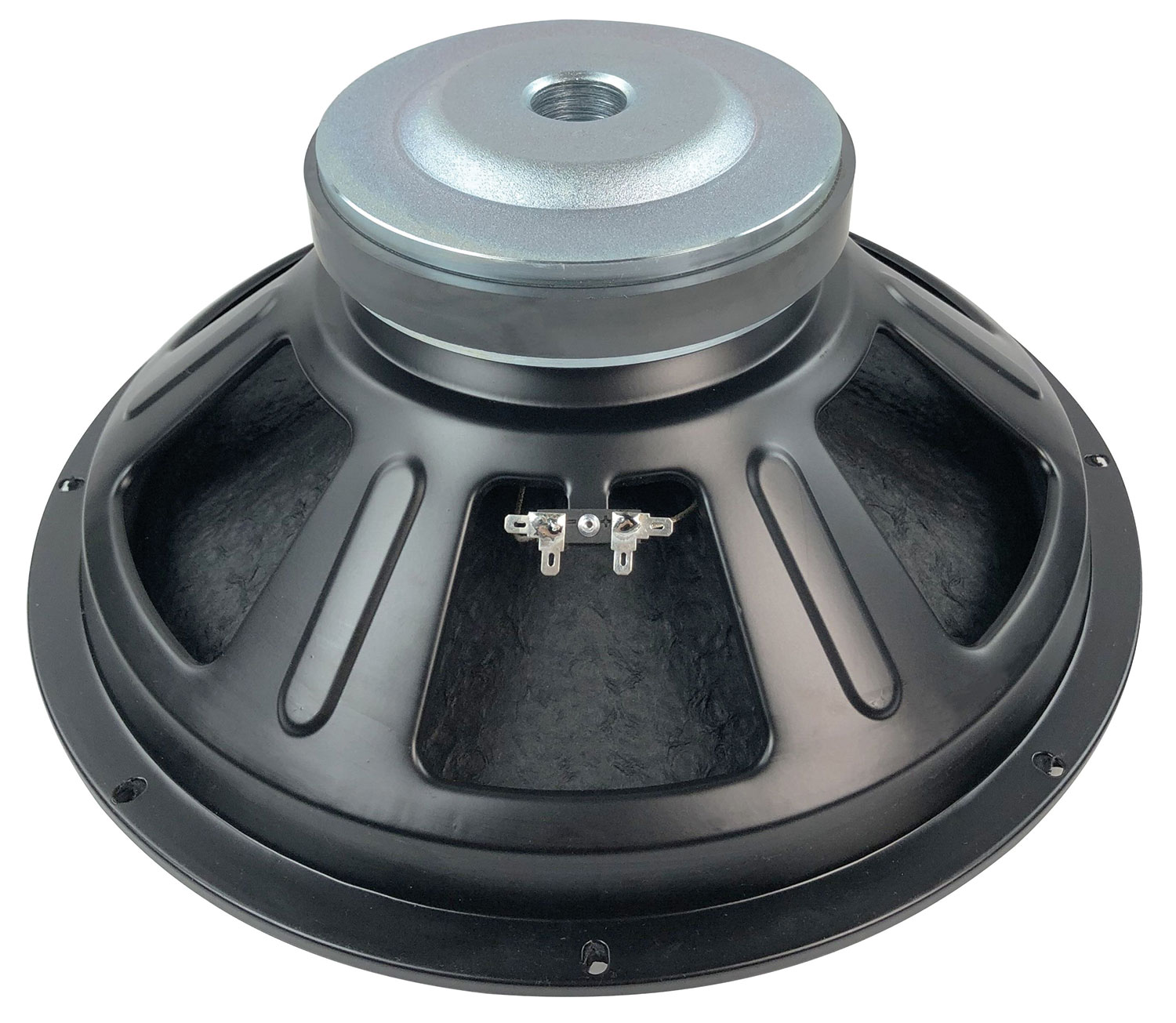

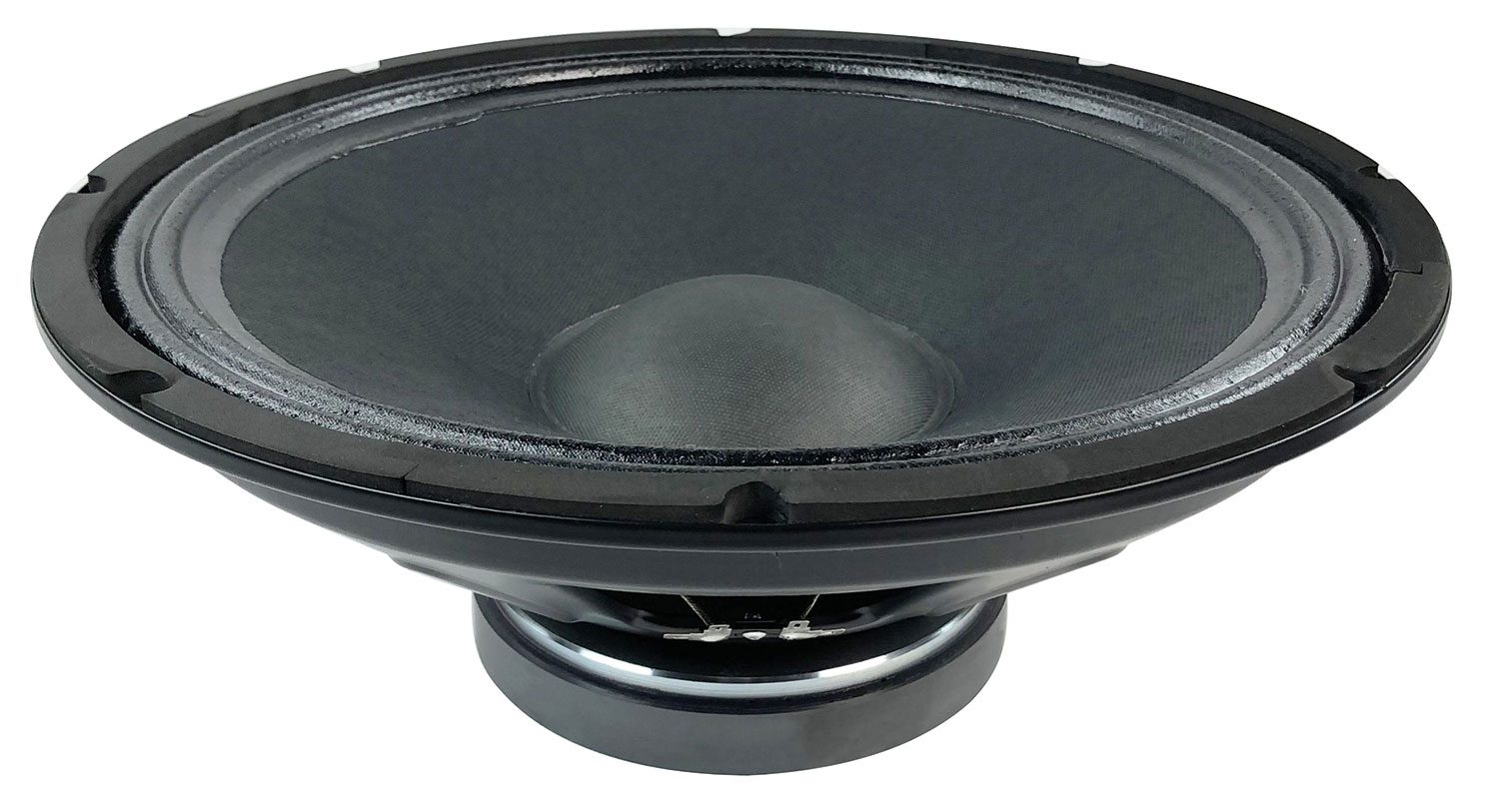

4 Ohm High Power Sub Drivers
15" sub 4ohm 500Wrms
902.125UK
SUBCASA-15BA
High power handling 4 Ohm low frequency drivers with large diameter voice coil and reinforced cone. Designed for installing into ported or folded cabinets to add high energy sub frequencies and… more
- Direct replacements for CASA series active sub cabinets
4 Ohm High Power Sub Drivers
High power handling 4 Ohm low frequency drivers with large diameter voice coil and reinforced cone. Designed for installing into ported or folded cabinets to add high energy sub frequencies and explosive dynamics in medium to large PA systems.
- Direct replacements for CASA series active sub cabinets
- Weight 5.1kg
- Dimensions 210 x 385mmØ
- Sensitivity 98dB
- Magnet 170 x 85 x 20mm (60oz)
- Voice coil 76mmØ (3")
- Frequency response 40Hz - 2kHz
- Power handling : max 900W
- Power handling : rms 500W
- Construction Reinforced paper cone with steel frame basket
- Impedance 4 Ohms
In the Box
- 4 Ohm high power sub woofer driver
