8 Ohm High Power Sub Drivers
10" sub 8ohm 300Wrms
902.121UK
SUBCASA-10B
High power handling 8 Ohm low frequency drivers with large diameter voice coil and reinforced cone. Designed for installing into ported or folded cabinets to add high energy sub frequencies and… more
- Direct replacements for CASA series passive sub cabinets
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
902.121UK
10" Sub Driver 8ohm 300Wrms |
10" sub 8ohm 300Wrms | Box Label |
|
902.123UK
12" Sub Driver 8ohm 400Wrms |
12" sub 8ohm 400Wrms | Box Label |
|
902.126UK
15" Sub Driver 8ohm 500Wrms |
15" sub 8ohm 500Wrms | Box Label |
|
902.129UK
18" Sub Driver 8ohm 600Wrms |
18" sub 8ohm 600Wrms | Box Label |
8 Ohm High Power Sub Drivers

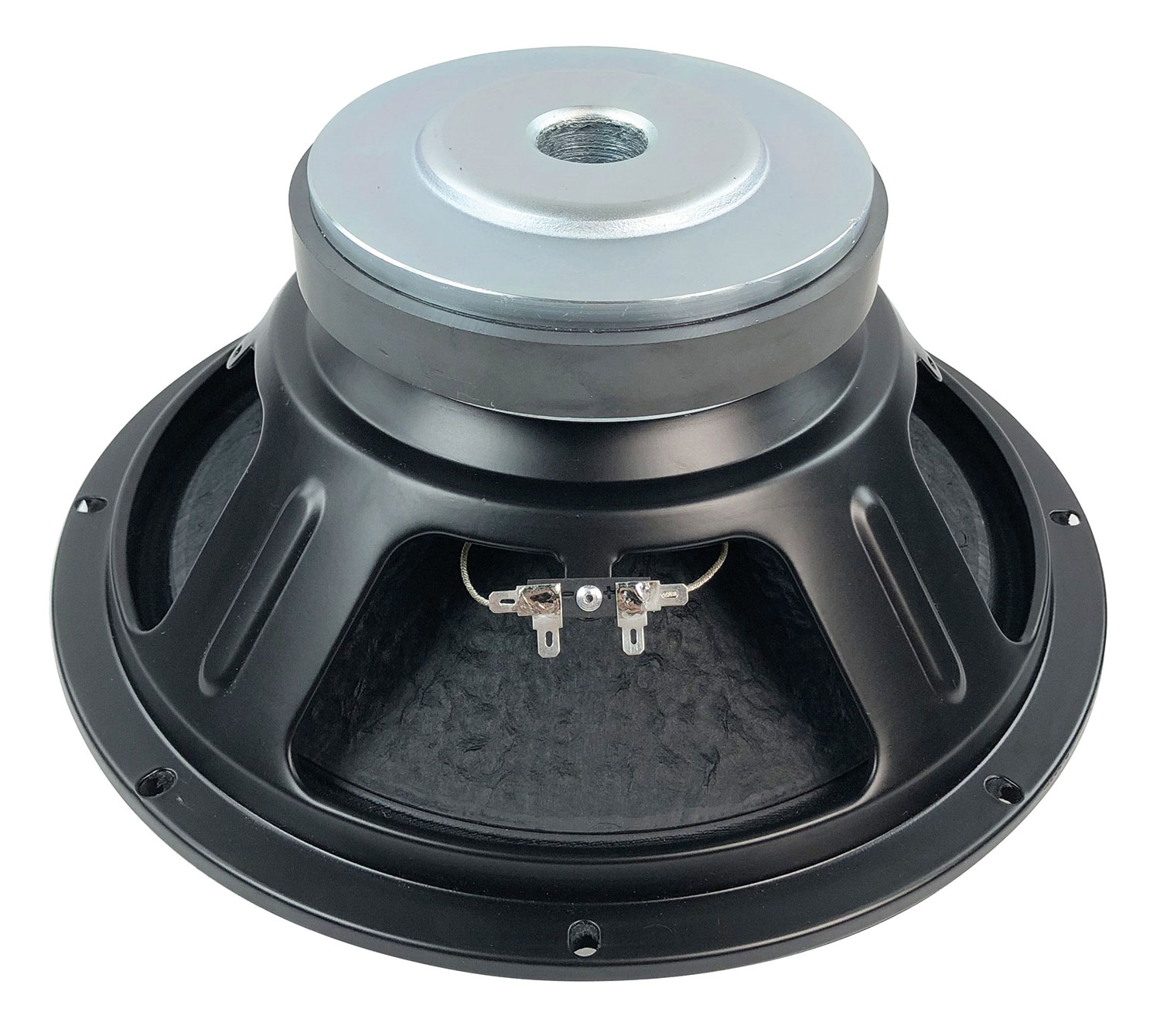

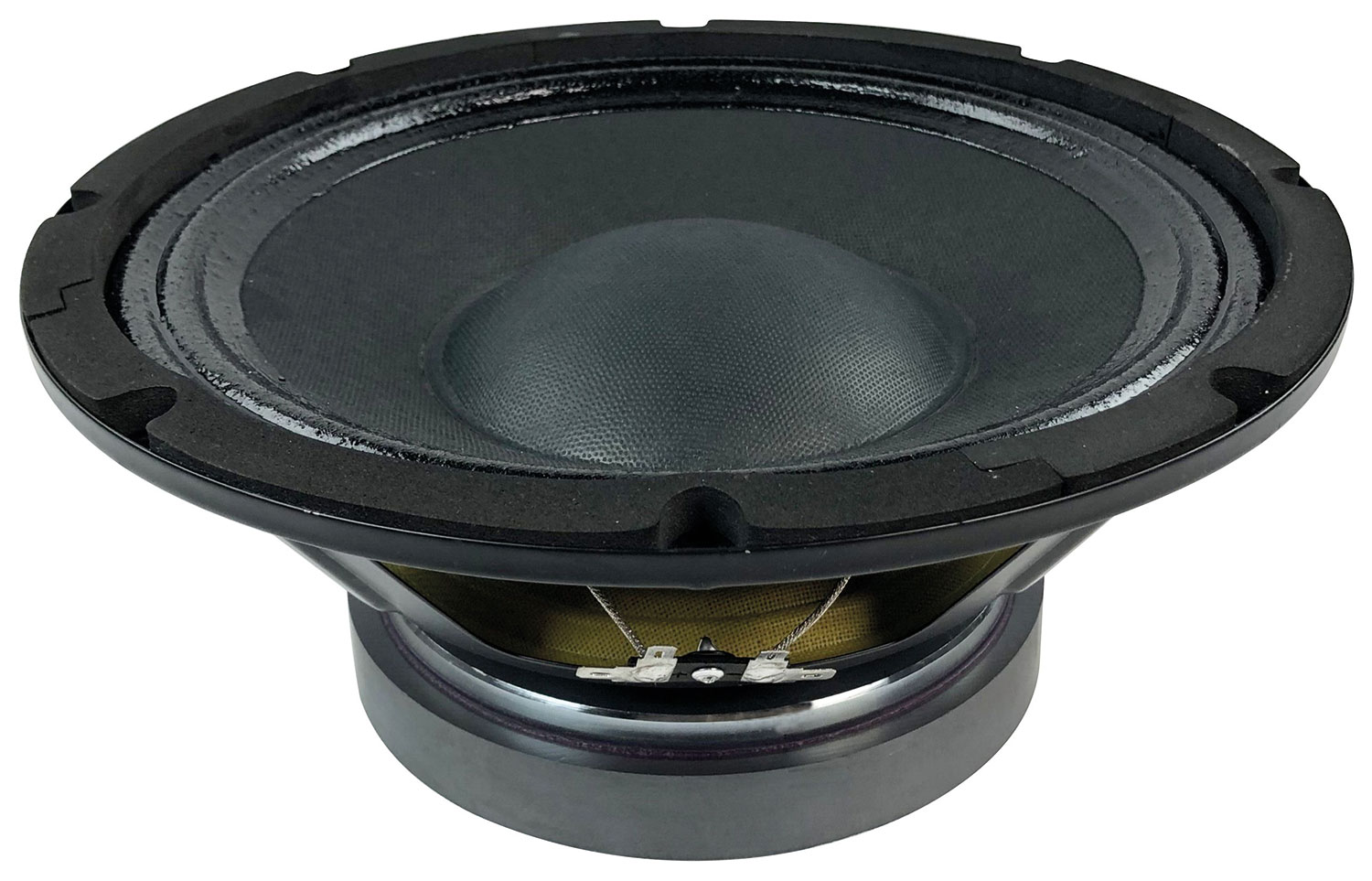

High power handling 8 Ohm low frequency drivers with large diameter voice coil and reinforced cone. Designed for installing into ported or folded cabinets to add high energy sub frequencies and explosive dynamics in medium to large PA systems.
- Direct replacements for CASA series passive sub cabinets
- Power handling : rms 300W
- Power handling : max 500W
- Frequency response 50Hz - 2kHz
- Voice coil 64mmØ (2.5")
- Magnet 156 x 80 x 20mm (50oz)
- Sensitivity 95dB
- Dimensions 130 x 257mmØ
- Weight 3.1kg
- Construction Reinforced paper cone with steel frame basket
- Impedance 8 Ohms
In the Box
- 8 Ohm high power sub woofer driver
