AVSL : Product : Loudspeakers : Components : Woofers : 902.521UK

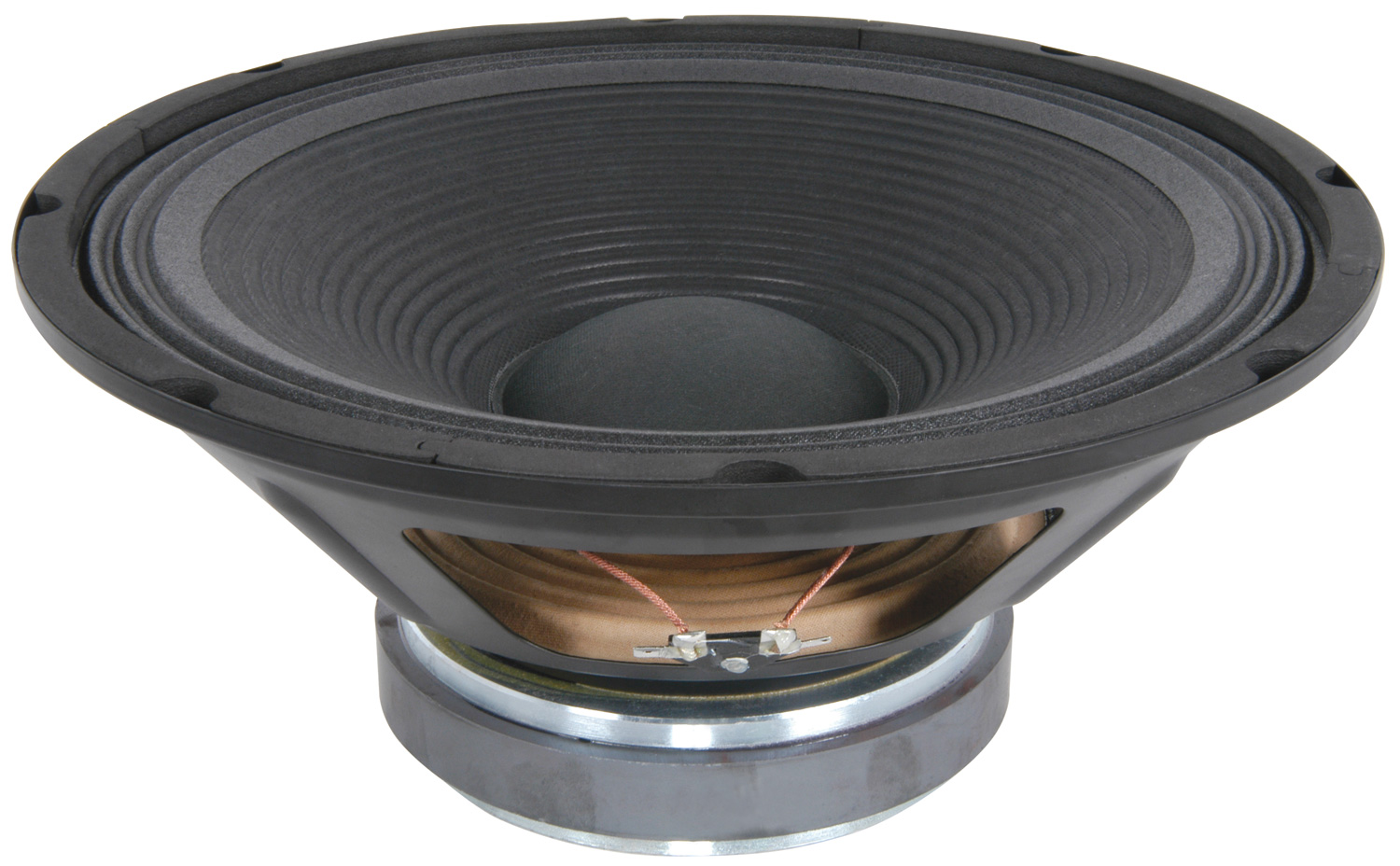

QR Passive Series Replacement Drivers

12" for QR12

902.521UK

A range of chassis speakers to replace the main driver in the QTX QR series passive cabinets. more

Vented magnets
Spade terminals

	DESCRIPTION	VERSION	PACKED
	902.527UK 8" driver for QR8 (178.210UK)	8" for QR8	Box Label
	902.524UK 10" driver for QR10 (178.211UK)	10" for QR10	Box Label
	902.521UK 12" driver for QR12 (178.212UK)	12" for QR12	Box Label
	902.518UK 15" driver for QR15 (178.213UK)	15" for QR15	Box Label

QR Passive Series Replacement Drivers

A range of chassis speakers to replace the main driver in the QTX QR series passive cabinets.

Vented magnets
Spade terminals

Weight 4.02kg
Dimensions 129mm x 307mmØ
Voice coil 52mmØ (2")
Sensitivity 98dB (1W/1m)
Magnet 1.1kg (40oz)
Frequency response 45Hz-6kHz
Diameter 300mmØ (12")
Magnet 140 x 20mm
Power handling RMS 200W
Power handling max. 400W
Impedance 8 ohms
