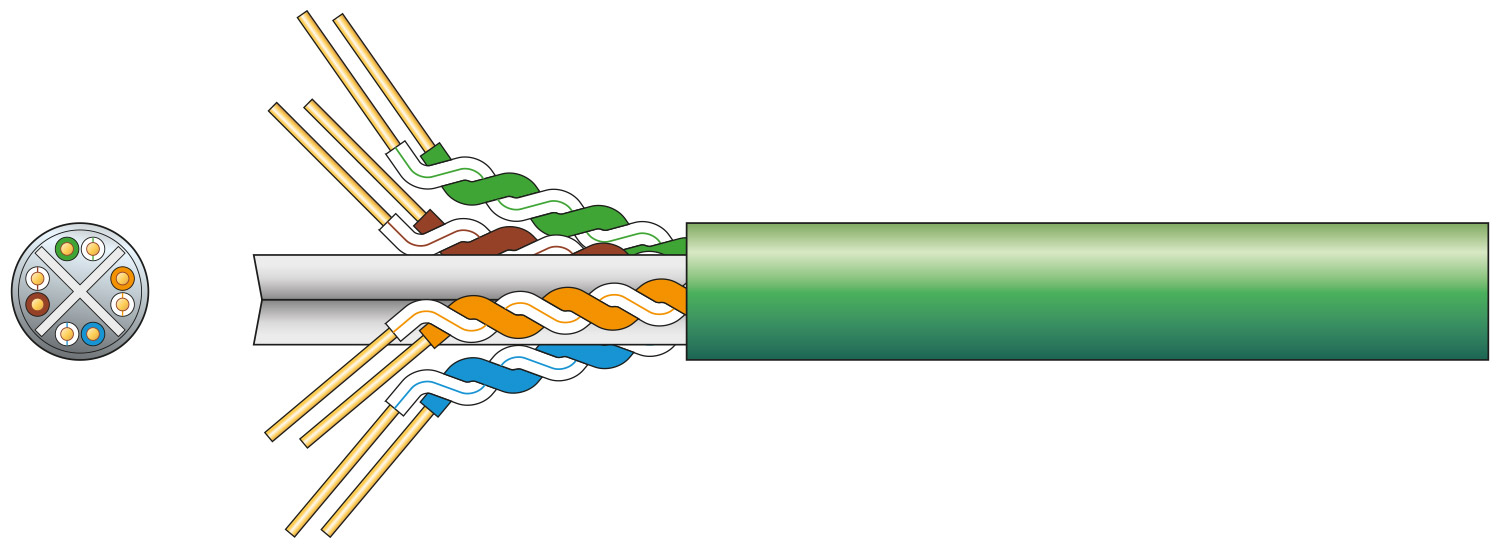

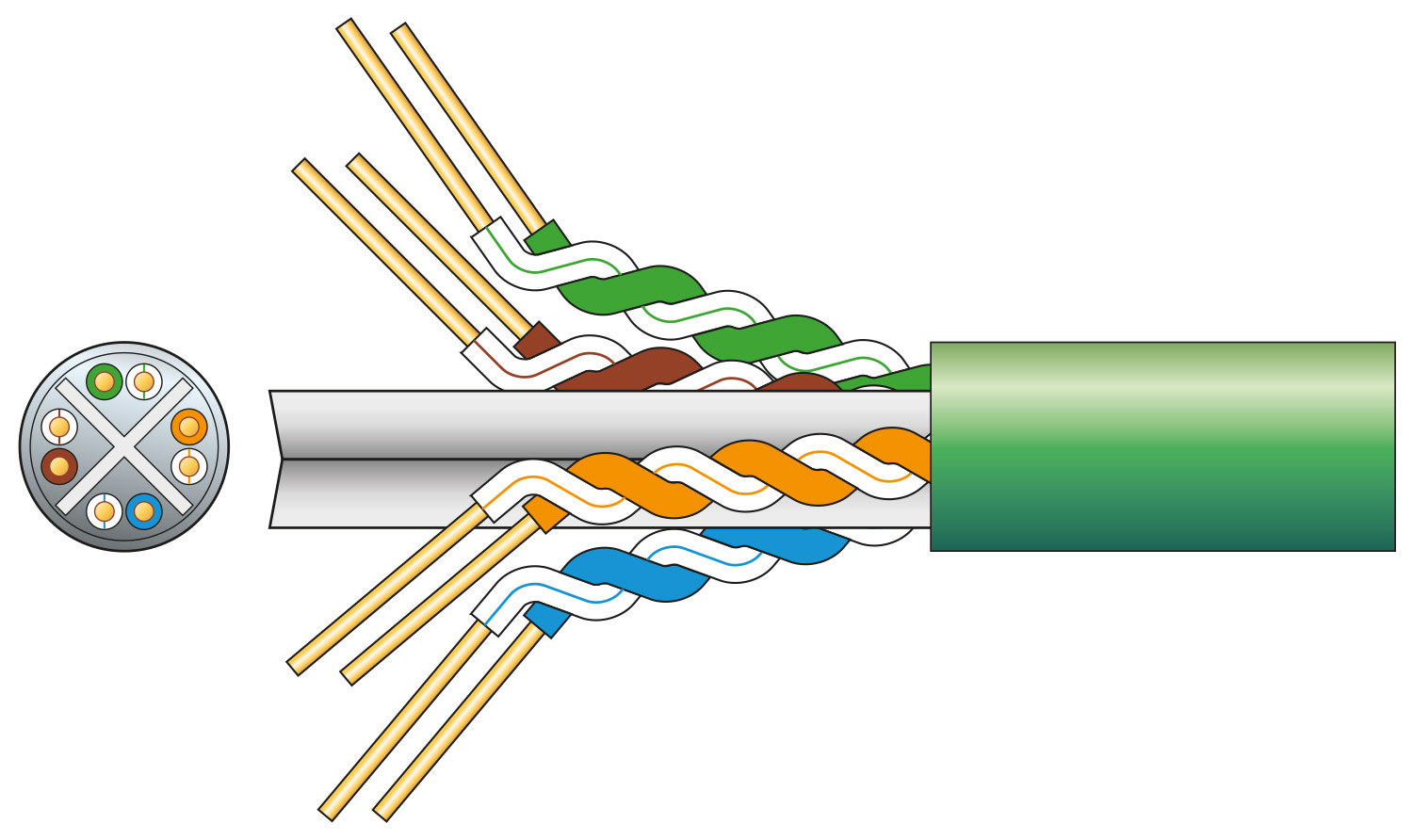

Cat6 U/UTP Network Cable

Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

• Oxygen free solid copper conductor
• Supplied in an easy-pull dispensing box and marked at 1m intervals
• Passes Cat6 fluke test 100m at 250MHz
• Complies to TIA/EIA-568 Cat6 standard
• HDBaseT Compliant

• Weight 12.7kg
• Length 305±1.5m
• Cable colour Green
• Conductor Solid OFC
• Strands 8 x 1/0.54mmØ ±2%
• Conductor CSA 8 x 0.229mm²
• Cable : diameter 5.8mmØ
• Insulation HDPE 0.195mm thickness
• Sheath PVC 0.55mm thickness
• Capacitance 5.2nF/100m
• DC resistance @ 20°C <9.5 ohms/100m
• Impedance (100 to 250MHz) 100±15 ohms
• Return loss >17.3dB @100m
• Attenuation <32.8dB @100m
• NEXT >38.3dB
• PSNEXT >36.3dB
• ELFEXT >19.8dB
• PSELFEXT >16.8dB
• Phase delay <570ns
