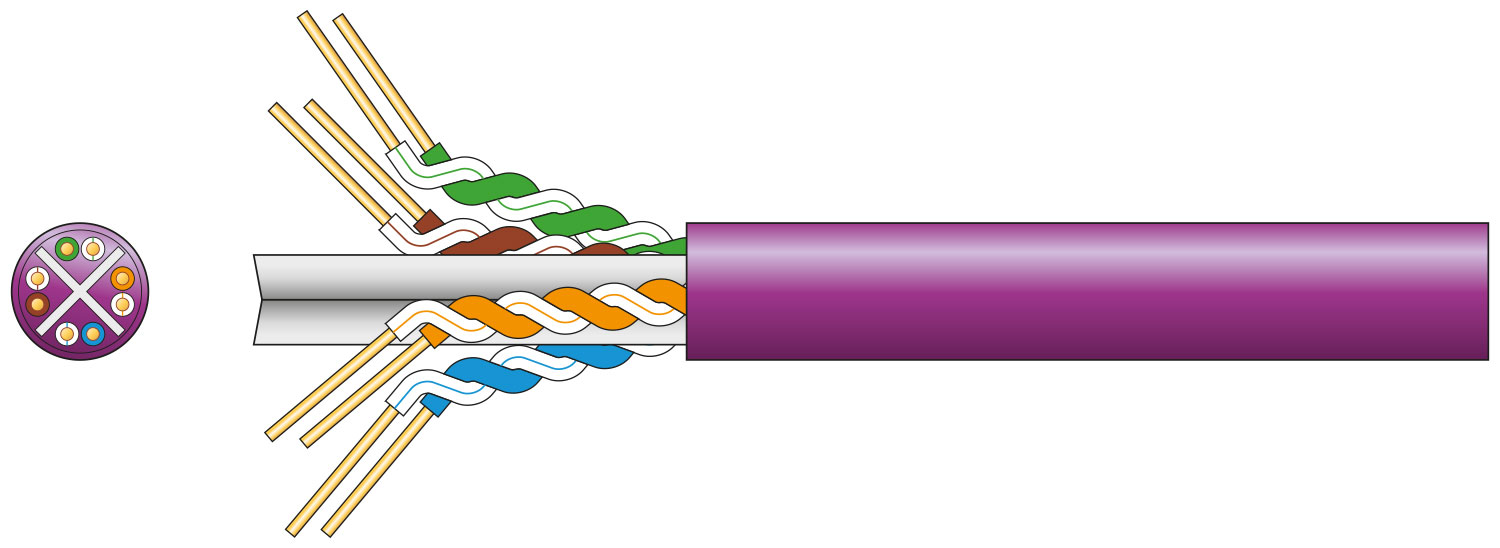

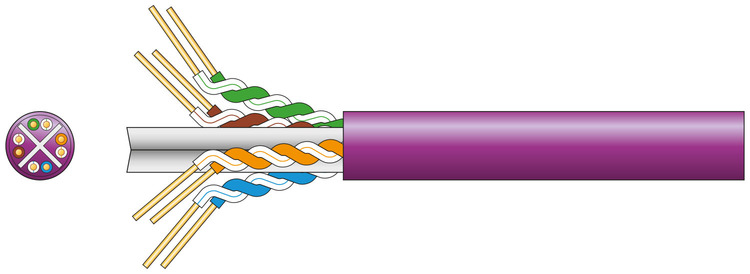

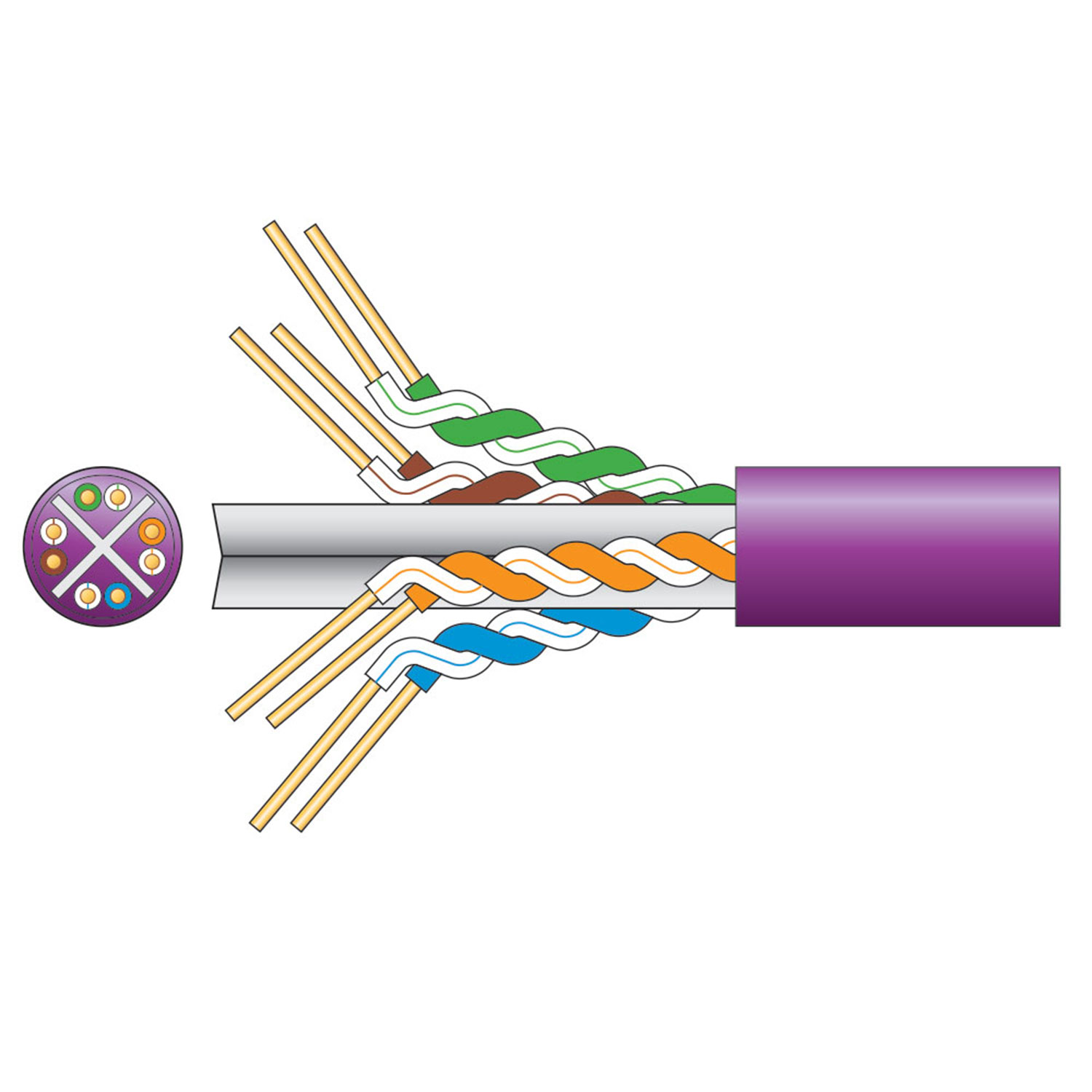

Cat6 U/UTP LSZH Network Cable
Lilac 305m
808.015UK
Cat6 oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission… more
- Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
- Oxygen free solid copper conductor
- Supplied in an easy-pull dispensing box
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
808.015UK
Cat6 U/UTP LSZH Network Cable 305m Lilac |
Lilac 305m | Box Label |
Cat6 U/UTP LSZH Network Cable
Cat6 oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
- Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
- Oxygen free solid copper conductor
- Supplied in an easy-pull dispensing box
- Passes Cat6 fluke test 100m at 250MHz
- Complies to TIA/EIA-568 Cat6 standard
- HDBaseT Compliant
- Conductor Solid OFC
- Strands 8 x 1/0.54mmØ ±2%
- Conductor CSA 8 x 0.229mm²
- Cable : diameter 5.8mmØ
- Insulation HDPE 0.195mm thickness
- Sheath LSHF 0.55mm thickness
- Capacitance 5.2nF/100m
- DC resistance @ 20°C <9.5 ohms/100m
- Impedance (100 to 250MHz) 100±15 ohms
- Return loss >17.3dB @100m
- Attenuation <32.8dB @100m
- NEXT >38.3dB
- PSNEXT >36.3dB
- ELFEXT >19.8dB
- PSELFEXT >16.8dB
- Phase delay <570ns
- Cable colour Lilac
- Length 305m
- Weight 12.7kg
Downloads
