Cat6 U/UTP Network Cable

Grey 100m

808.030UK

Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet… more

  • Oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
  • Passes Cat6 fluke test 100m at 250MHz
DESCRIPTION VERSION PACKED
808.011UK

Cat6 U/UTP Network Cable 305m Grey

Grey 305m Box Label
808.030UK

Cat6 U/UTP Network Cable 100m Grey

Grey 100m Box Label
808.035UK

Cat6 U/UTP Network Cable 305m Red

Red 305m Box Label
808.036UK

Cat6 U/UTP Network Cable 305m Green

Green 305m Box Label

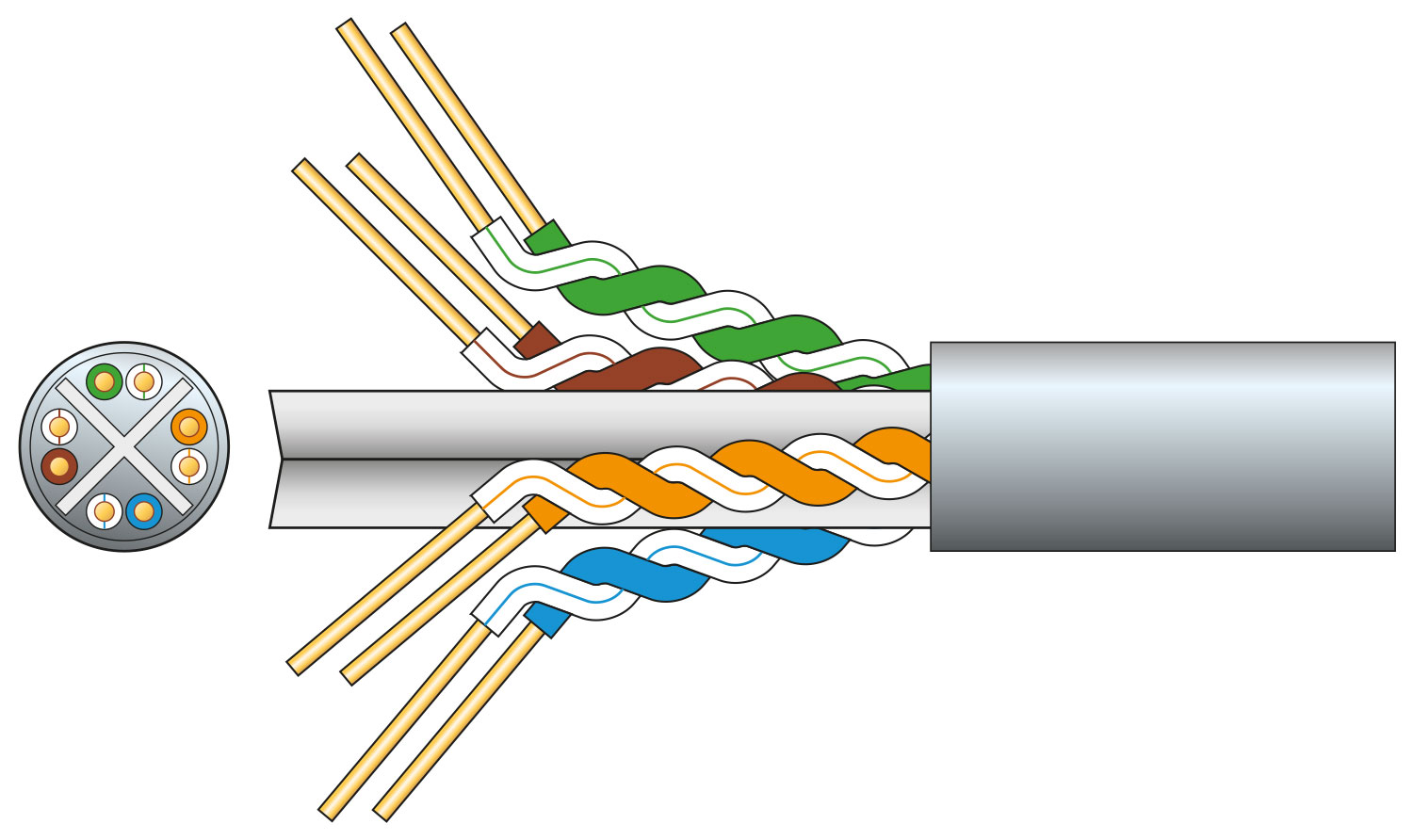

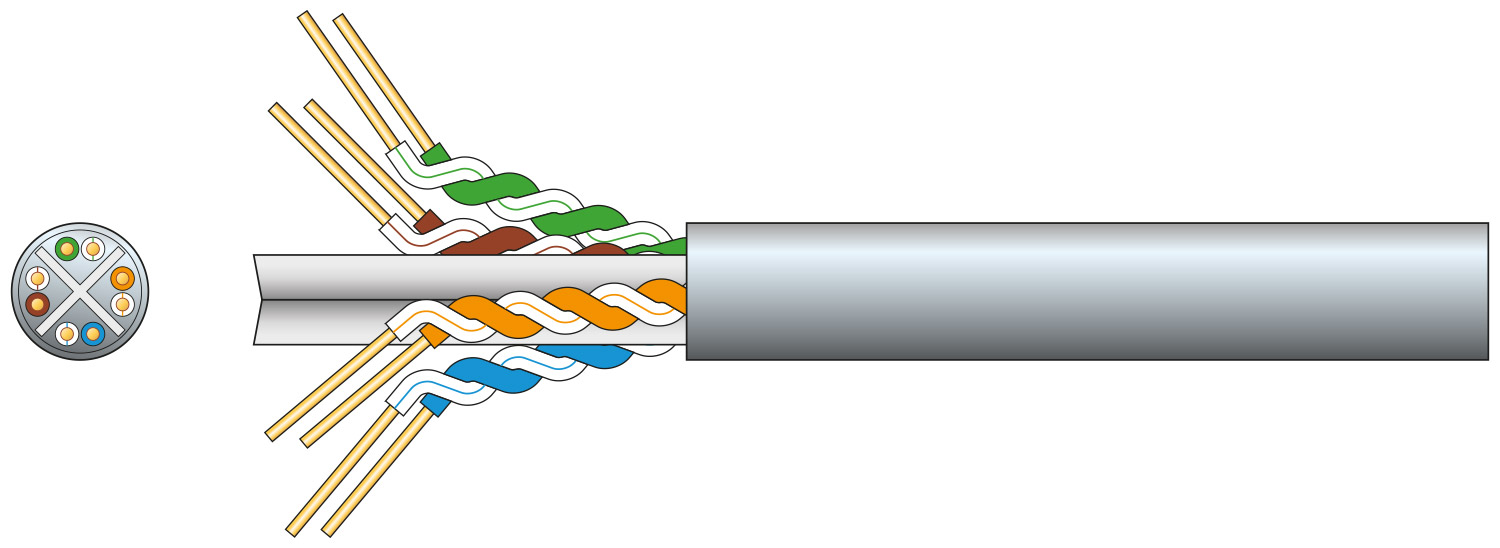

Cat6 U/UTP Network Cable

Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • Oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
  • HDBaseT Compliant
  • Weight 4.3kg
  • Length 100±0.5m
  • Cable colour Grey
  • Conductor Solid OFC
  • Strands 8 x 1/0.54mmØ ±2%
  • Conductor CSA 8 x 0.229mm²
  • Cable : diameter 5.8mmØ
  • Insulation HDPE 0.195mm thickness
  • Sheath PVC 0.55mm thickness
  • Capacitance 5.2nF/100m
  • DC resistance @ 20°C <9.5 ohms/100m
  • Impedance (100 to 250MHz) 100±15 ohms
  • Return loss >17.3dB @100m
  • Attenuation <32.8dB @100m
  • NEXT >38.3dB
  • PSNEXT >36.3dB
  • ELFEXT >19.8dB
  • PSELFEXT >16.8dB
  • Phase delay <570ns
