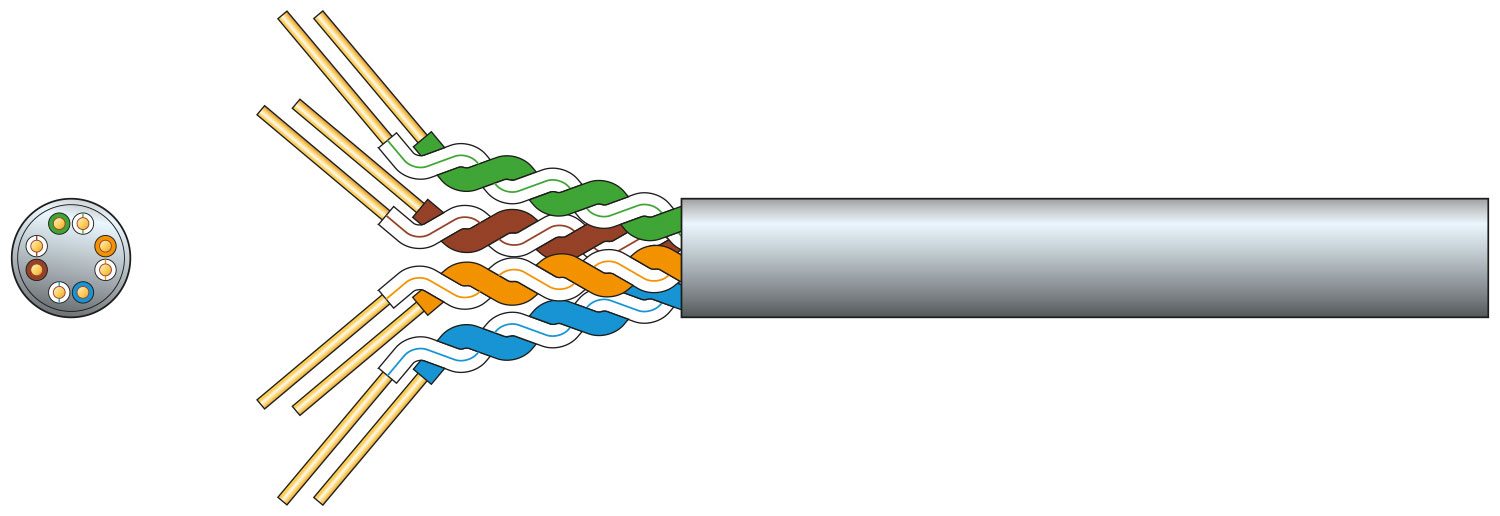

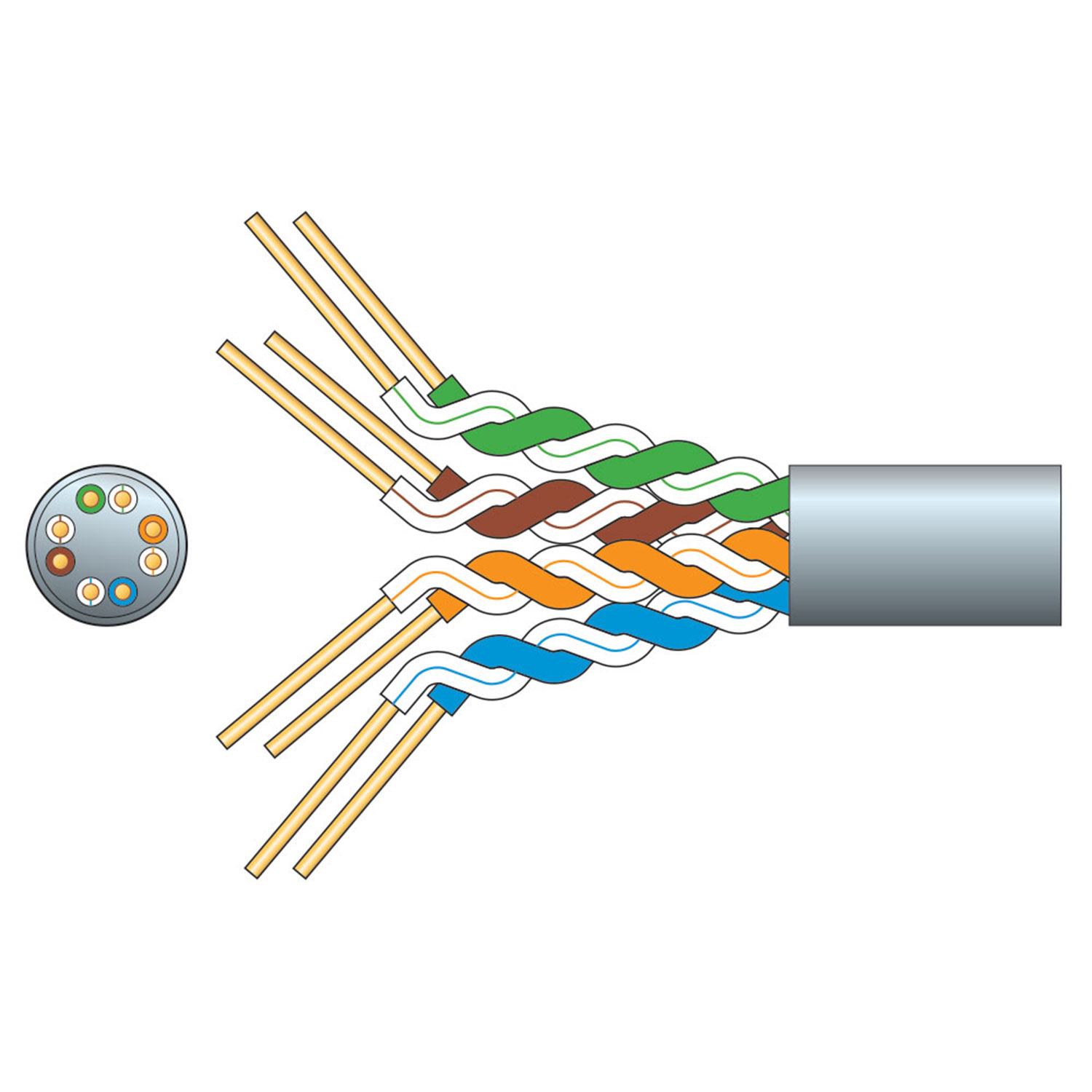

Economy Cat5e U/UTP Network Cable
Grey 305m
808.021UK
Solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet applications. more
- Solid copper clad aluminium conductor
- Supplied in an easy-pull dispensing box
- Passes Cat5e fluke test 100m at 100MHz
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
808.021UK
Economy Cat5e U/UTP Network Cable 305m Grey |
Grey 305m | Box Label |
Economy Cat5e U/UTP Network Cable
Solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet applications.
- Solid copper clad aluminium conductor
- Supplied in an easy-pull dispensing box
- Passes Cat5e fluke test 100m at 100MHz
- Conductor Solid CCA
- Strands 8 x 1/0.51mmØ ±2%
- CSA 8 x 0.204mm²
- Cable : diameter 5mmØ
- Insulation HDPE 0.19mm thickness
- Sheath PVC 0.5mm thickness
- Impedance 100 Ohms (±15)
- DC resistance @ 20°C <35 Ohms/100mt
- Return loss >20dB @ 100m
- NEXT >40dB @ 100m
- PSNEXT >38dB @ 100m
- Cable colour Grey
- Length 305m
- Weight 6kg
