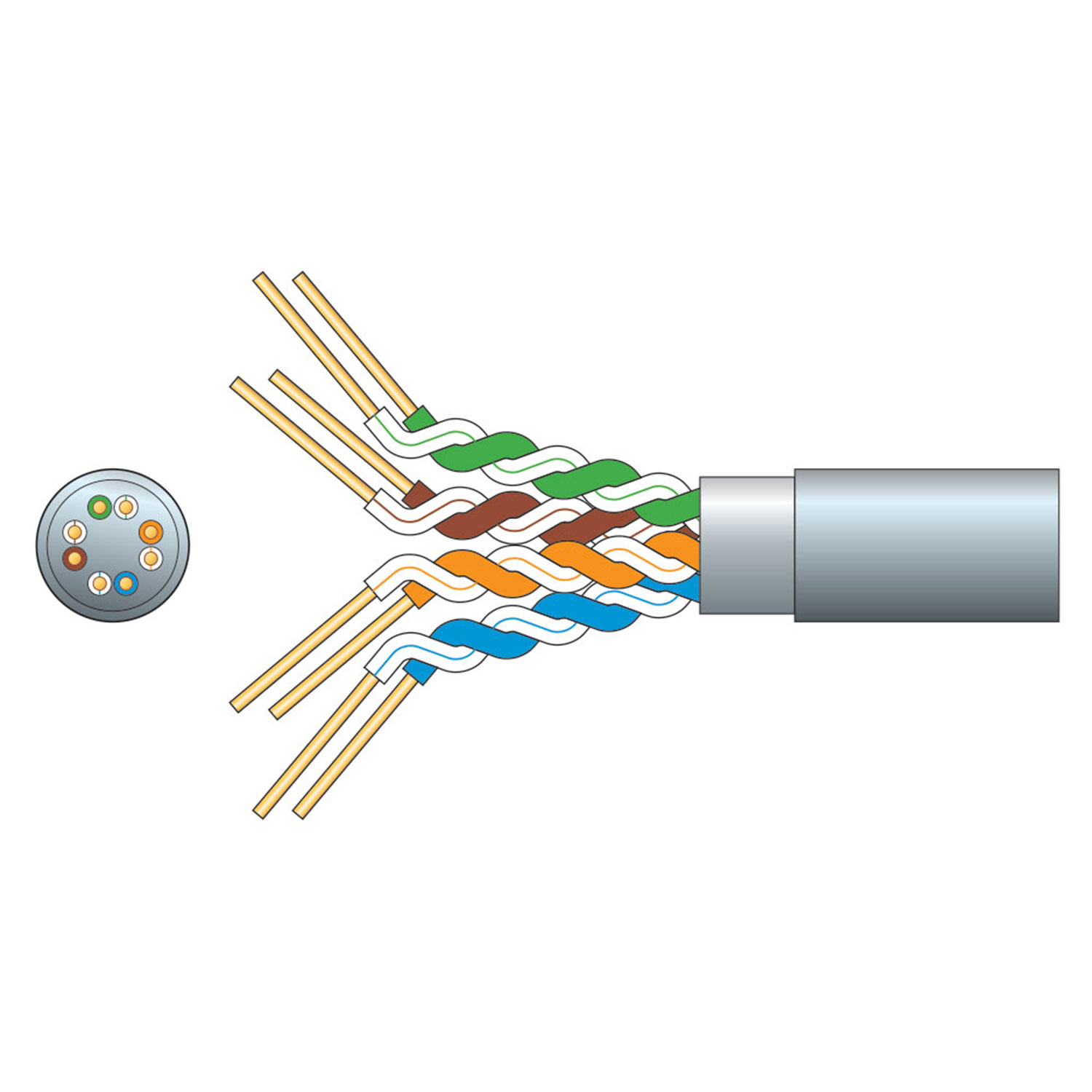

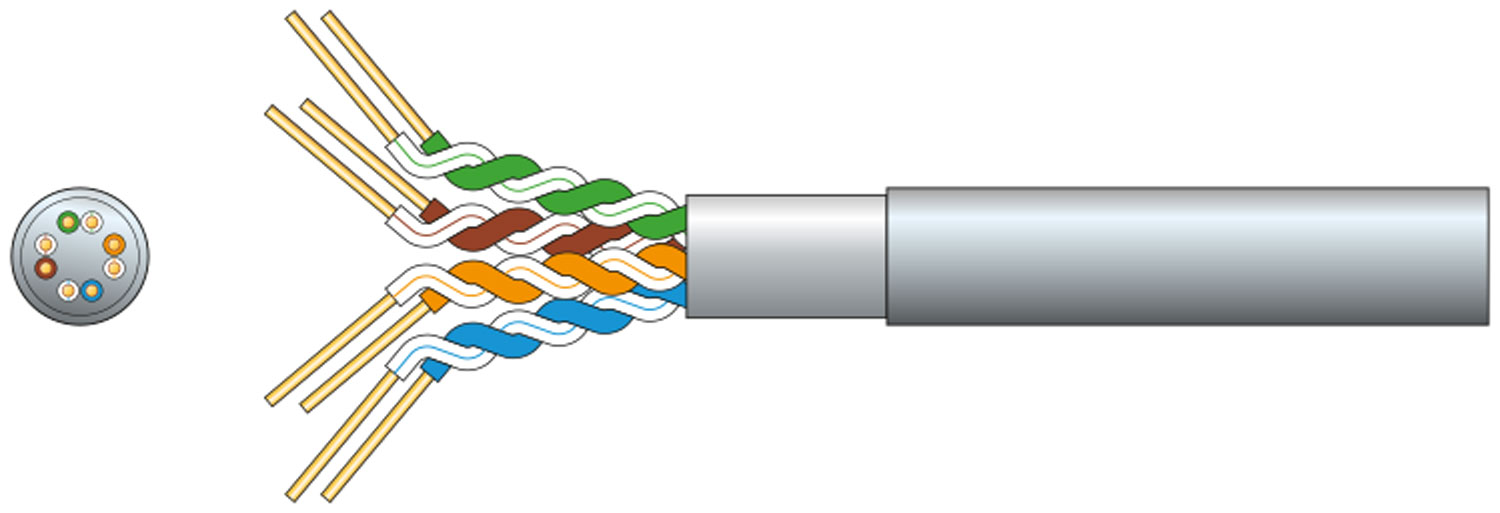

Cat5e F/UTP Network Cable
Grey 305m
808.003UK
Cat5e oxygen free copper twisted pair data cable with overall aluminium foil screen. supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission… more
- AWG 24 oxygen free solid copper conductor
- Supplied in an easy-pull dispensing box
- Passes Cat5e fluke test 100m at 100MHz
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
808.003UK
Cat5e F/UTP Network Cable 305m Grey |
Grey 305m | Box Label |
Cat5e F/UTP Network Cable
Cat5e oxygen free copper twisted pair data cable with overall aluminium foil screen. supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
- AWG 24 oxygen free solid copper conductor
- Supplied in an easy-pull dispensing box
- Passes Cat5e fluke test 100m at 100MHz
- Complies to TIA/EIA-568 Cat5e standard
- Conductor Solid OFC
- Strands 8 x 1/0.5mmØ ±2%
- Conductor CSA 8 x 0.196mm²
- Cable : diameter 5.8mmØ
- Insulation HDPE 0.225mm thickness
- Sheath PVC 0.55mm thickness
- Screen material Mylar + Aluminium/Mylar + Drain wire
- Capacitance 5.0nF/100m
- DC resistance @ 20°C <9.5 ohms/100m
- Impedance (1 to 100MHz) 100±15 ohms
- Return loss >20dB @100m
- Attenuation <22dB @100m
- NEXT >35.3dB
- PSNEXT >32.3dB
- ELFEXT >23.8dB
- PSELFEXT >20.8dB
- Phase delay <570ns
- Colour Grey
- Length 305m
- Weight 11.8kg
