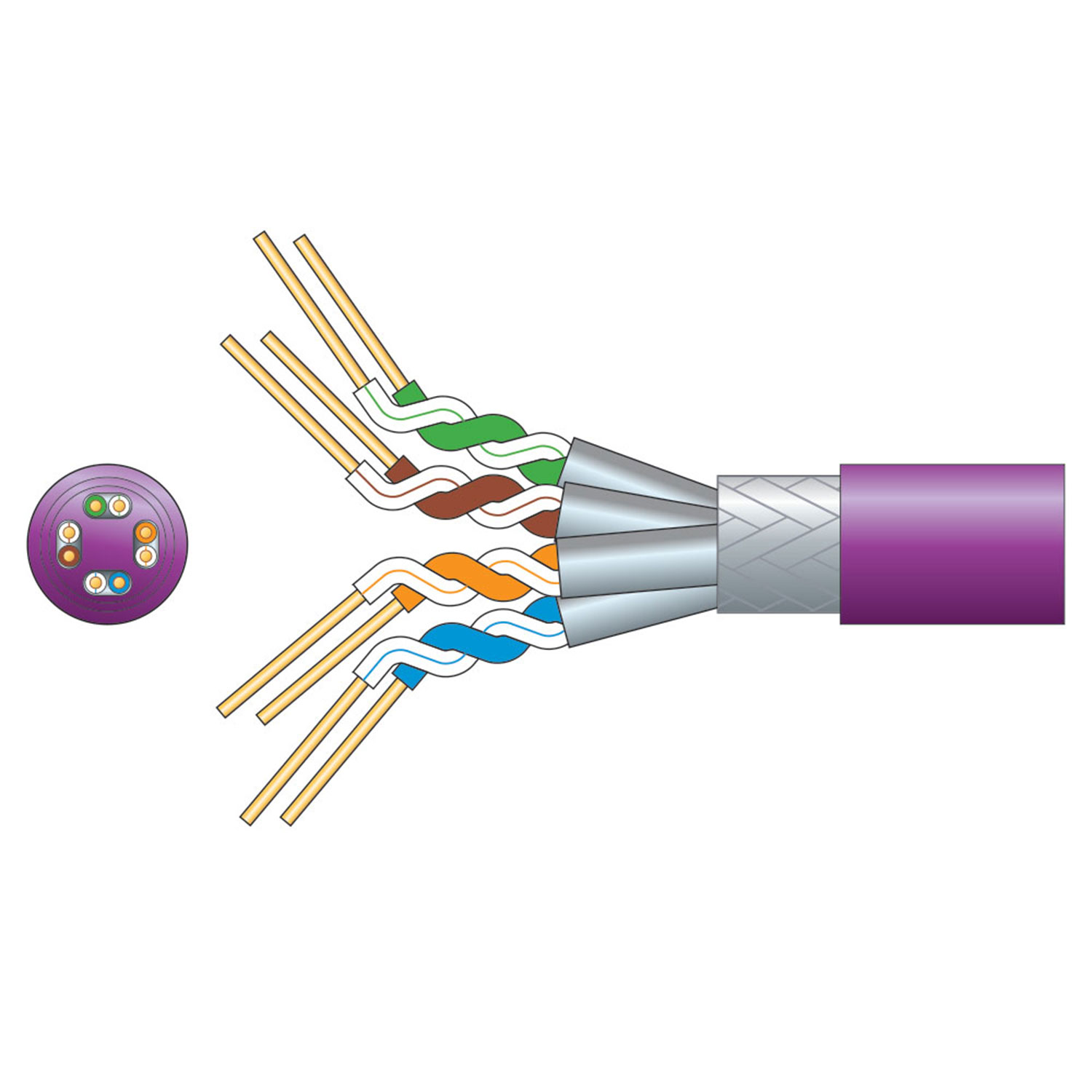

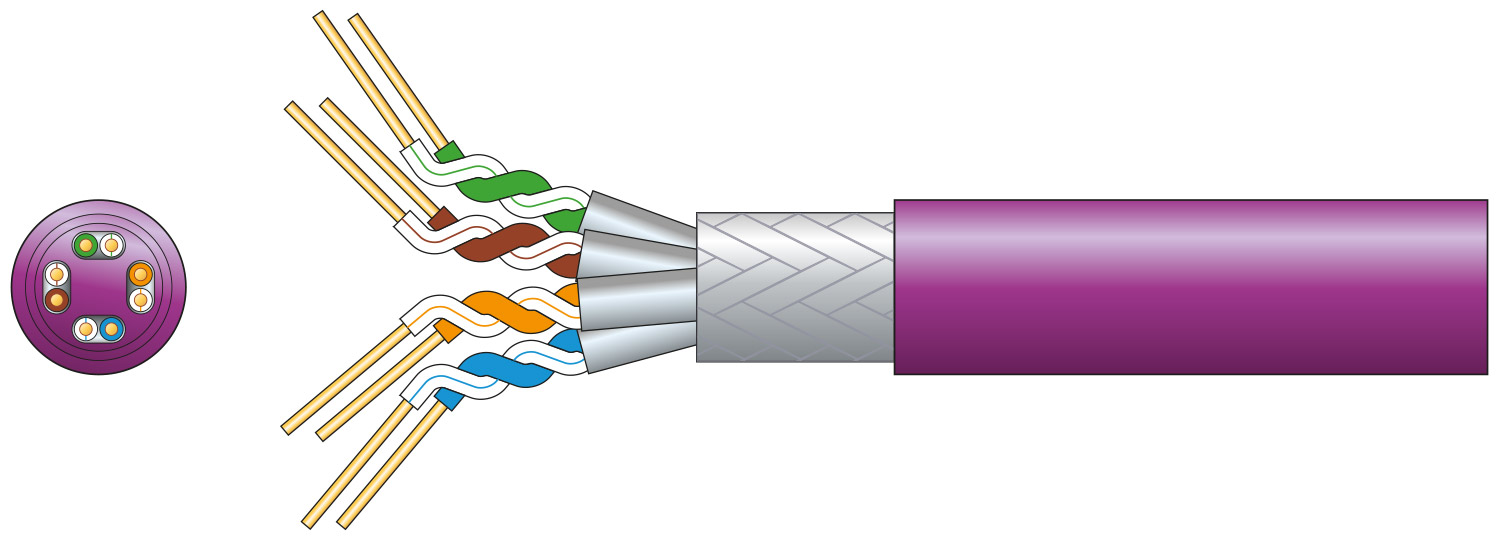

Cat6a S/FTP LSZH Network Cable

Cat6a oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Individual pair aluminium foil screen and overall braided aluminium screen provide protection from any pair or alien crosstalk. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications within noisy environments.

• Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
• AWG 23 oxygen free solid copper conductor
• Supplied on a sturdy wooden drum reel
• Passes Cat6a fluke test 100m at 500MHz
• Complies to TIA/EIA-568 Cat6a standard

• Conductor Solid OFC
• Strands 8 x 1/0.565mmØ ±2%
• Conductor CSA 8 x 0.251mm²
• Cable : diameter 7.5mmØ
• Screen Aluminium/Mylar foil
• Braid material Aluminium
• Insulation PE 0.385mm thickness
• Sheath LSZH 0.55mm thickness
• Capacitance 6.6nF/100m
• DC resistance @ 20°C <9.38 Ohms/100m
• Impedance (100 to 250MHz) 100±15 Ohms
• Impedance (250 to 500MHz) 100±22 Ohms
• Return loss >25dB @100m
• Attenuation <45.3dB @100m
• NEXT >74.3dB
• PSNEXT >72.3dB
• ELFEXT >13.8dB
• PSELFEXT >10.8dB
• Phase delay <570ns
• Colour Lilac
• Length 305m
• Weight 17.4kg
