Economy Cat6 Outdoor U/UTP Network Cable

Black 305m

808.027UK

Cat6 solid conductor twisted pair data cable with PE sheath supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet… more

  • Solid copper clad aluminium conductor
  • PE sheath with UV resistant properties ideal for outdoor installations
  • Supplied in an easy-pull dispensing box
DESCRIPTION VERSION PACKED
808.027UK

Economy Cat6 Outdoor U/UTP Network Cable 305m

Black 305m Box Label

Economy Cat6 Outdoor U/UTP Network Cable

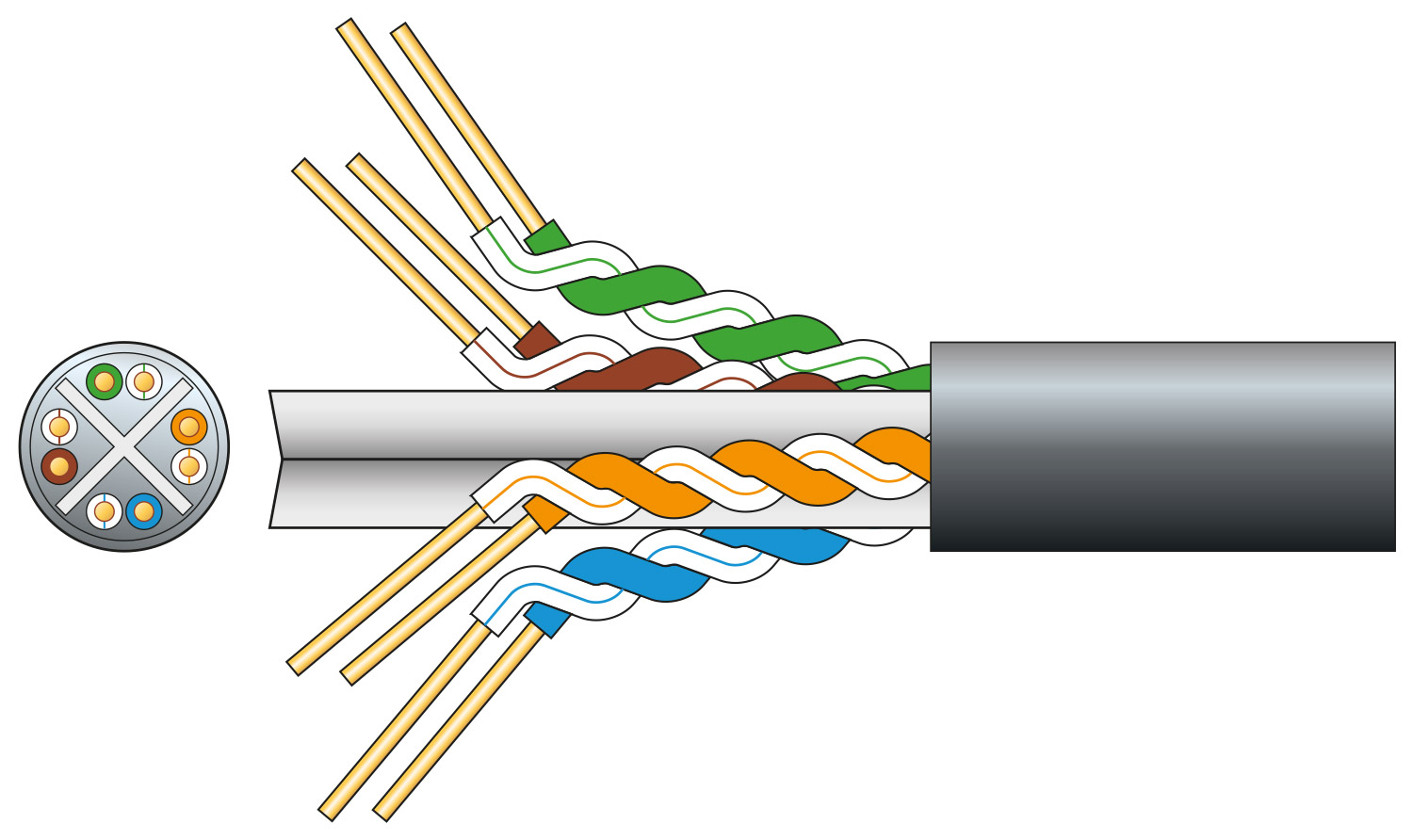

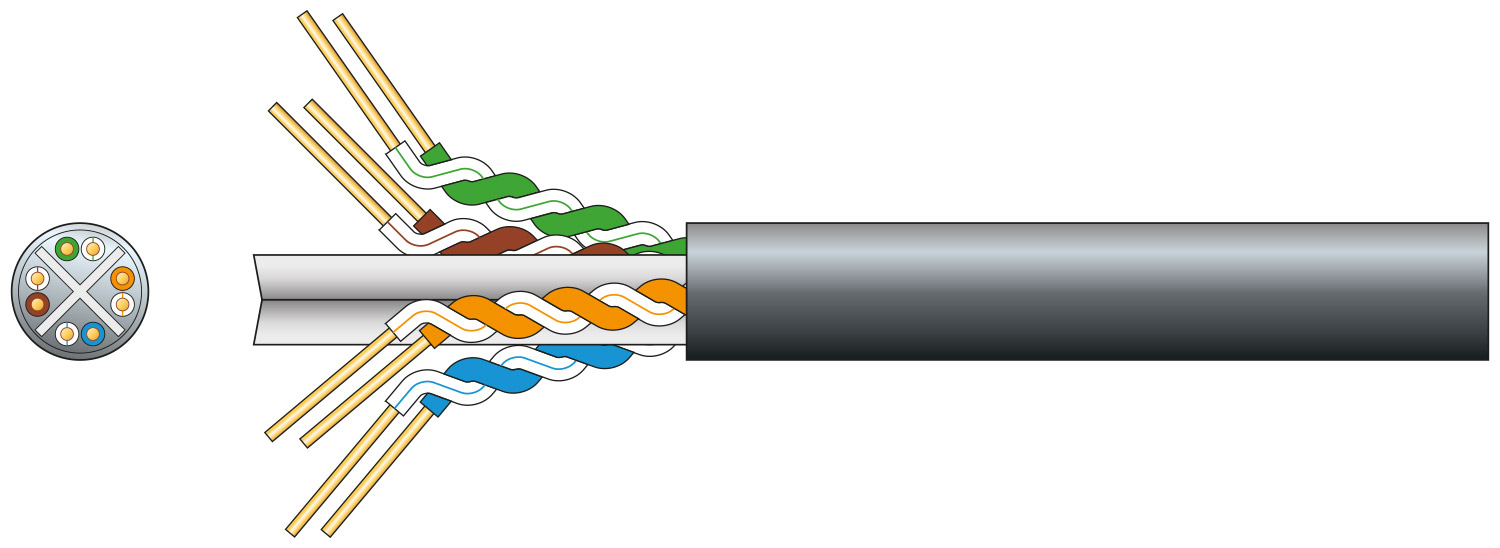

Cat6 solid conductor twisted pair data cable with PE sheath supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.

  • Solid copper clad aluminium conductor
  • PE sheath with UV resistant properties ideal for outdoor installations
  • Supplied in an easy-pull dispensing box
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
  • Conductor Solid CCA
  • Strands 8 x 1/0.57mmØ ±2%
  • CSA 8 x 0.26mm²
  • Cable : diameter 6mmØ
  • Insulation HDPE 0.23mm thickness
  • Sheath PE 0.5mm thickness
  • Impedance 100 Ohms (±15)
  • DC resistance @ 20°C <35 Ohms/100m
  • Return loss >20dB @ 100m (from 1Mhz to 100Mhz)
  • NEXT >40dB @ 100m
  • PSNEXT >38dB @ 100m
  • Cable colour Black
  • Length 305m
  • Weight 7kg
