CASA Passive PA Cabinets
8" 150Wrms
Full-range passive PA cabinets with high-efficiency drivers loaded into a compact impact-resistant moulded cabinet. Fitted with 2 side handles and a top carrying handle for easy portability and… more
- Custom high-efficiency drivers
- High impact moulded cabinet with side and top handles
- 35mm pole mount socket
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
178.109UK
CASA-8 Passive 8" Full Range PA Cabinet 150Wrms |
8" 150Wrms | Box Label |
|
178.111UK
CASA-10 Passive 10" Full Range PA Cabinet 200Wrms |
10" 200Wrms | Box Label |
|
178.113UK
CASA-12 Passive 12" Full Range PA Cabinet 300Wrms |
12" 300Wrms | Box Label |
|
178.116UK
CASA-15 Passive 15" Full Range PA Cabinet 400Wrms |
15" 400Wrms | Box Label |
Recommended Accessories |
|||
|
127.008UK
CASA-8 Slip Cover |
CASA-8 | Poly Bag |
|
902.104UK
8" Driver 8 Ohm 200W |
8" 8ohm 200W | Box Label |
|
902.109UK
25mm (1") HF Driver 20Wrms |
25mm (1") 20Wrms | Box Label |
CASA Passive PA Cabinets
Full-range passive PA cabinets with high-efficiency drivers loaded into a compact impact-resistant moulded cabinet. Fitted with 2 side handles and a top carrying handle for easy portability and mounting via the integral 35mm pole-mount socket. These cabinets pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.
- Custom high-efficiency drivers
- High impact moulded cabinet with side and top handles
- 35mm pole mount socket
- Weight 8.1kg
- Dimensions 435 x 278 x 245mm
- Frequency response 60Hz - 19kHz
- SPL max. 120.0dB
- Sensitivity 94dB
- Power handling : max 300W
- Power handling : rms 150W
- HF driver 25mmØ (1") Ti compression driver
- Voice coil 50mmØ (2")
- Main driver 200mmØ (8")
- Impedance 8 Ohms

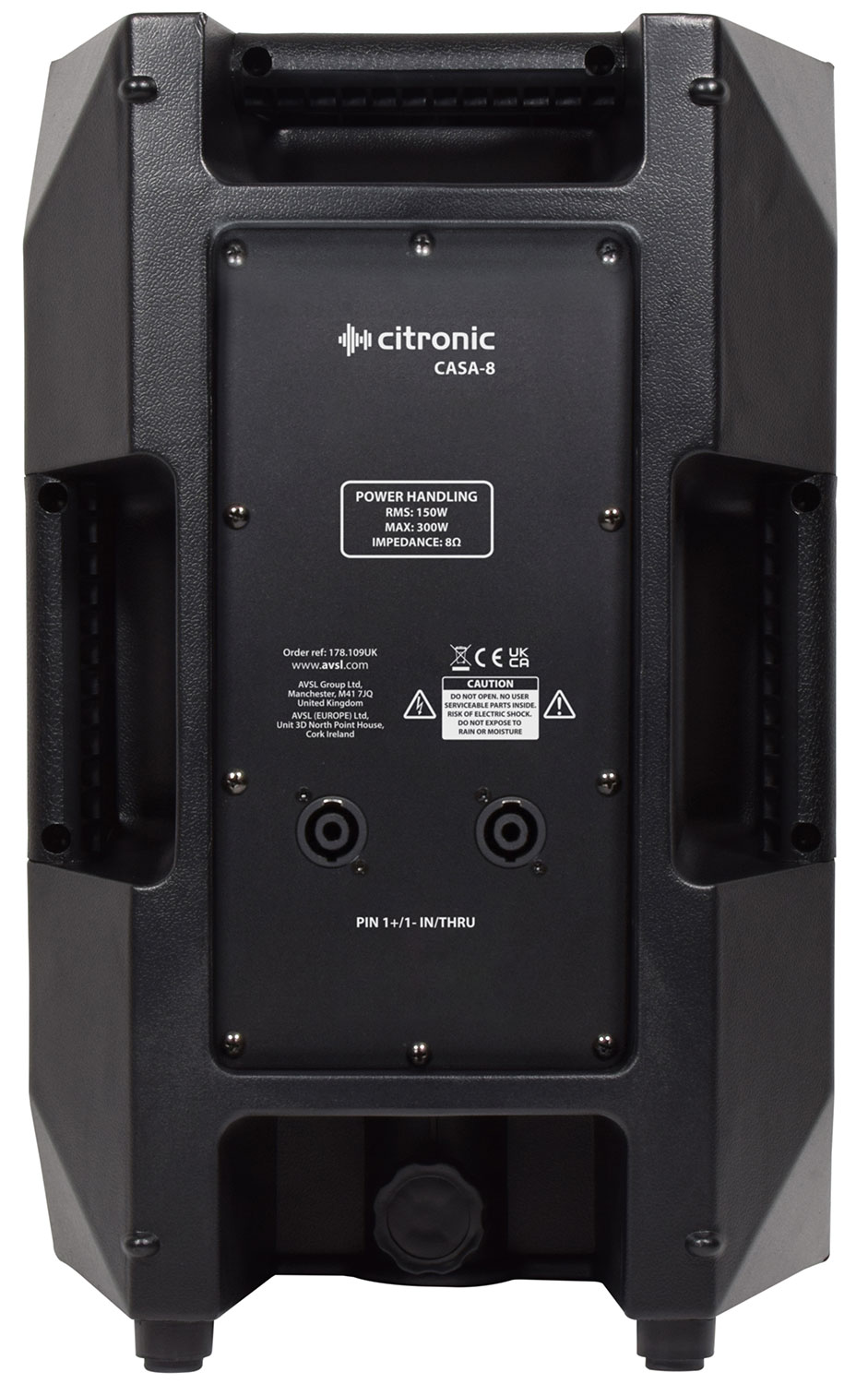

- Connection 2 x SPK socket
In the Box
- CASA series passive PA cabinet
