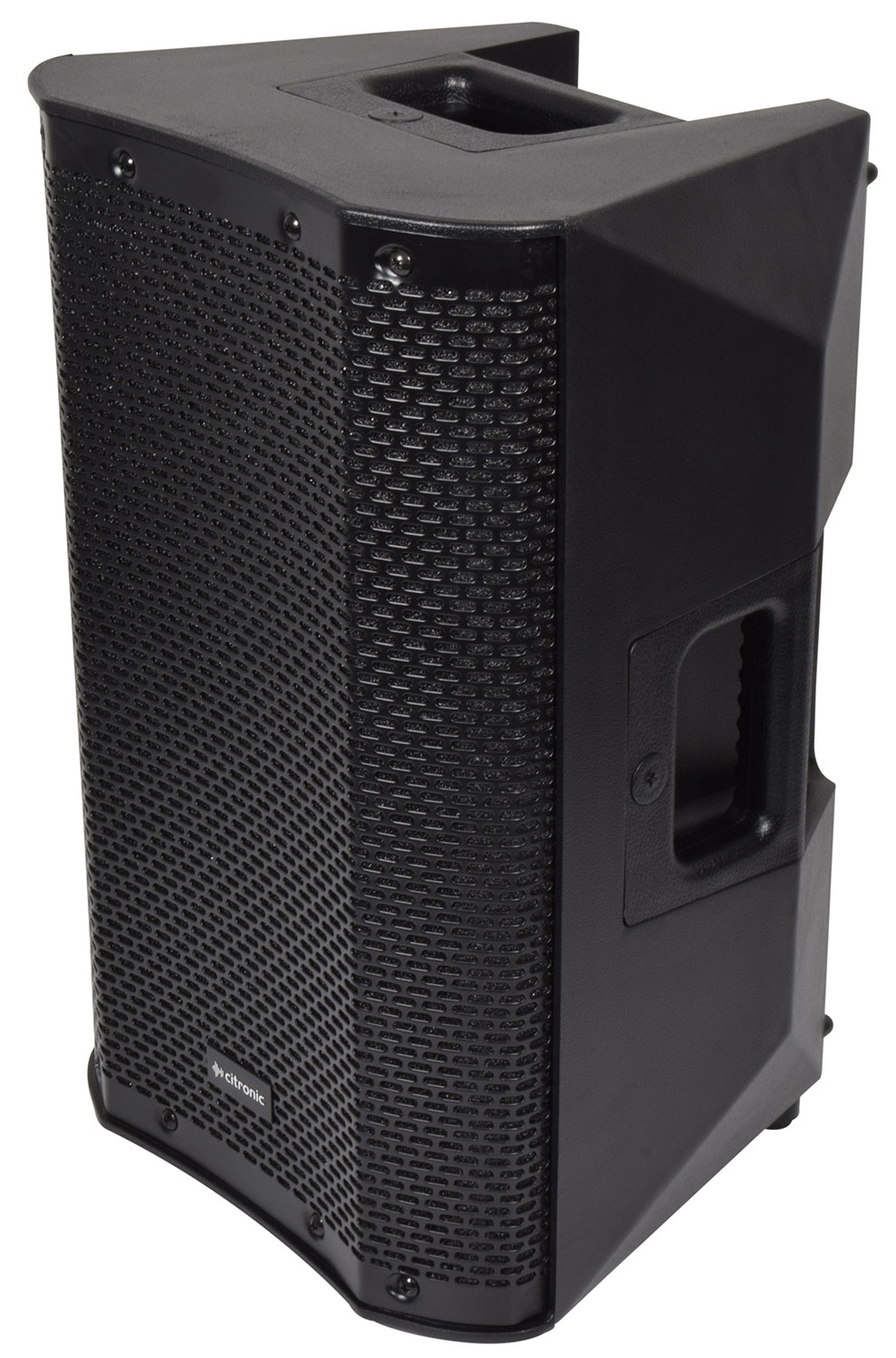

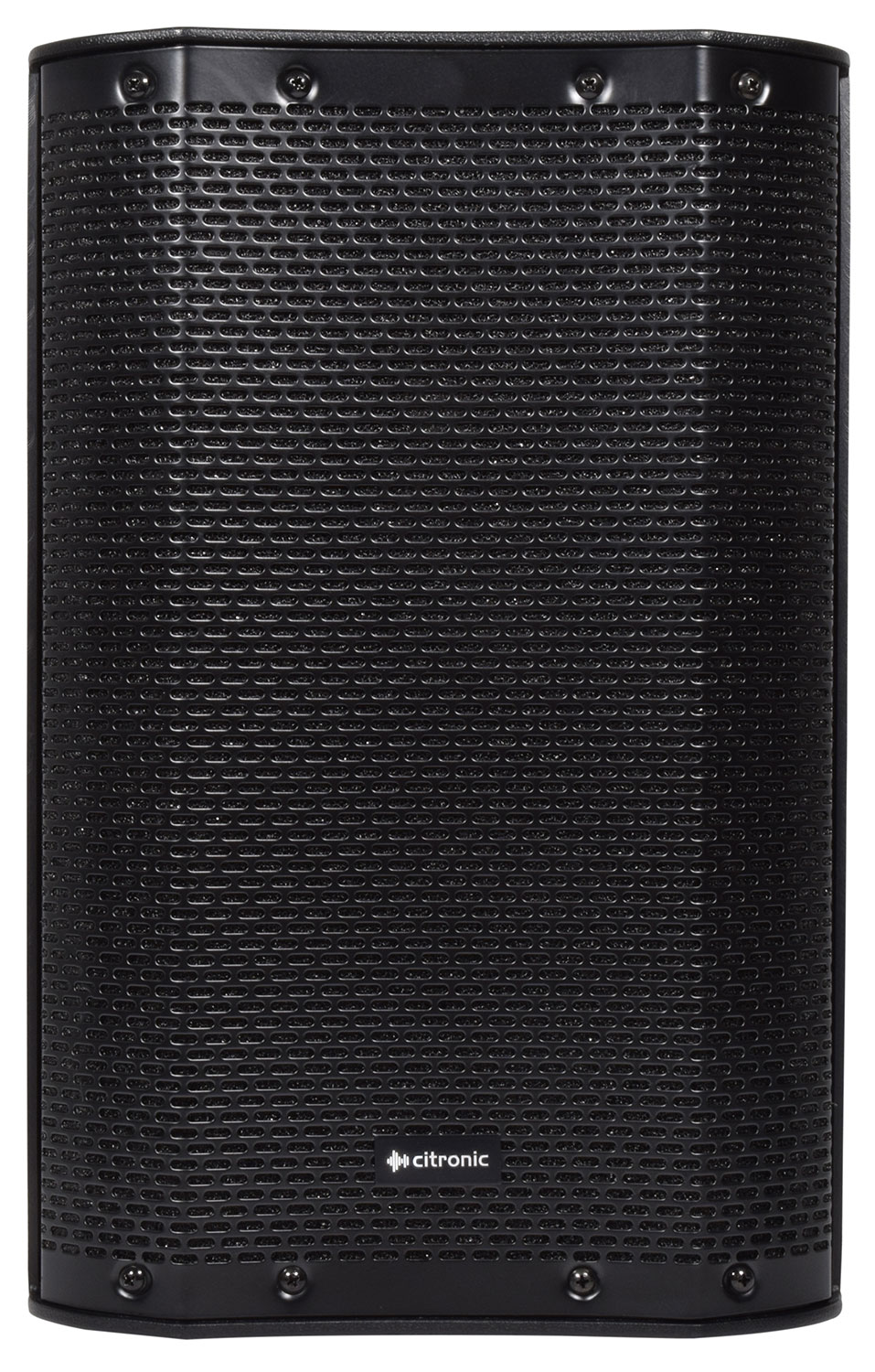

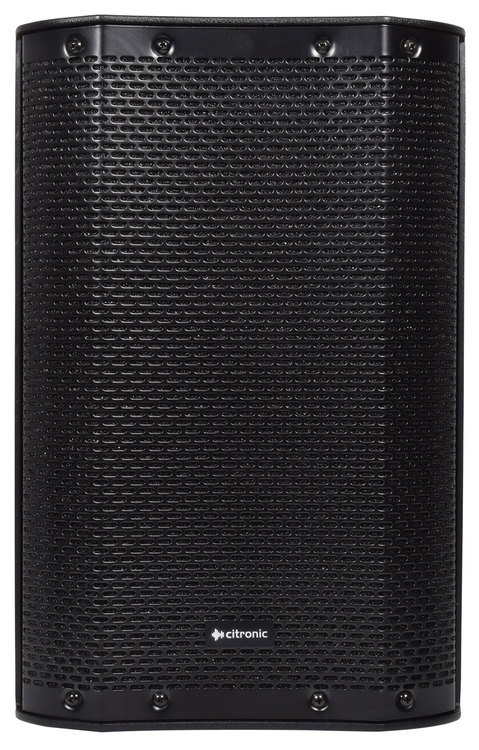

CASA Active PA Cabinets with DSP, USB/SD and Bluetooth

Versatile full-range active moulded PA cabinets with built-in high efficiency class D amplifier. A DSP controller offers 5 switchable output profiles which are suited to different program material. Inputs are provided on XLR/jack with mic/line level switching and RCA line connectors. A built-in audio module provides playback from USB or SD media and Bluetooth wireless pairing. These cabinets are fully featured for virtually any PA application and pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.

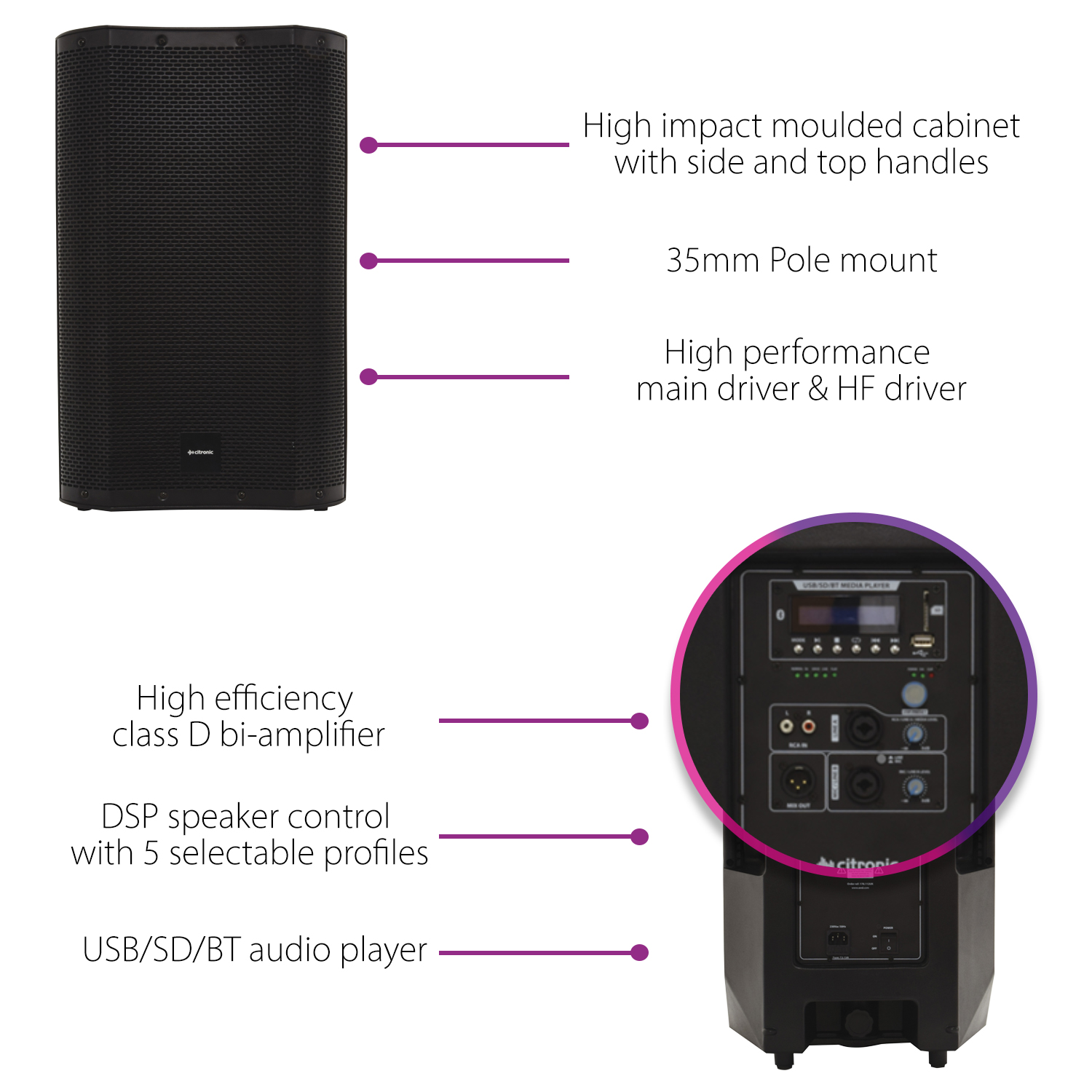

• High efficiency class D bi-amplifier section
• DSP speaker control with 5 selectable profiles
• Inbuilt USB/SD audio player
• Bluetooth wireless connectivity

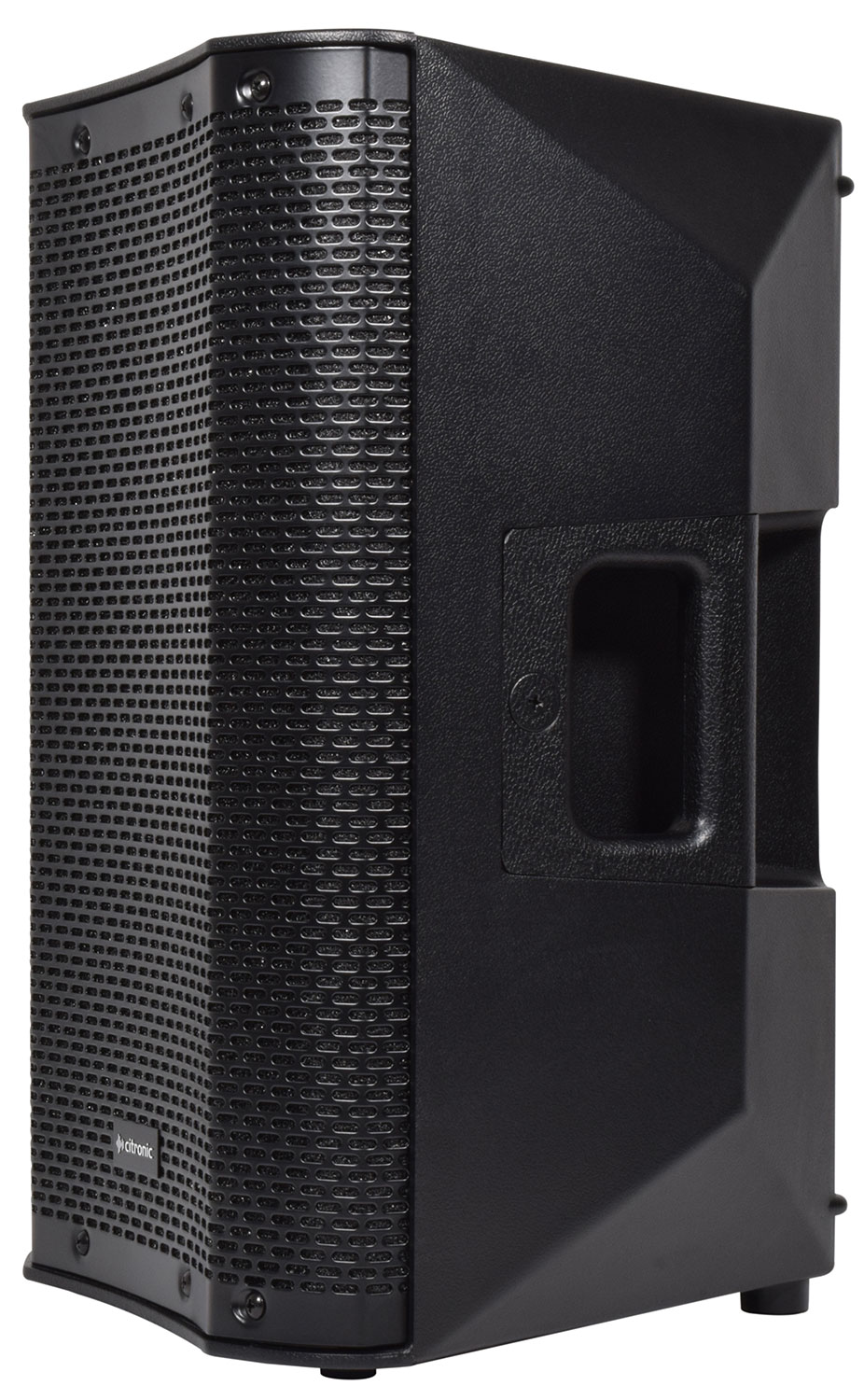

• High impact moulded cabinet with side and top handles.

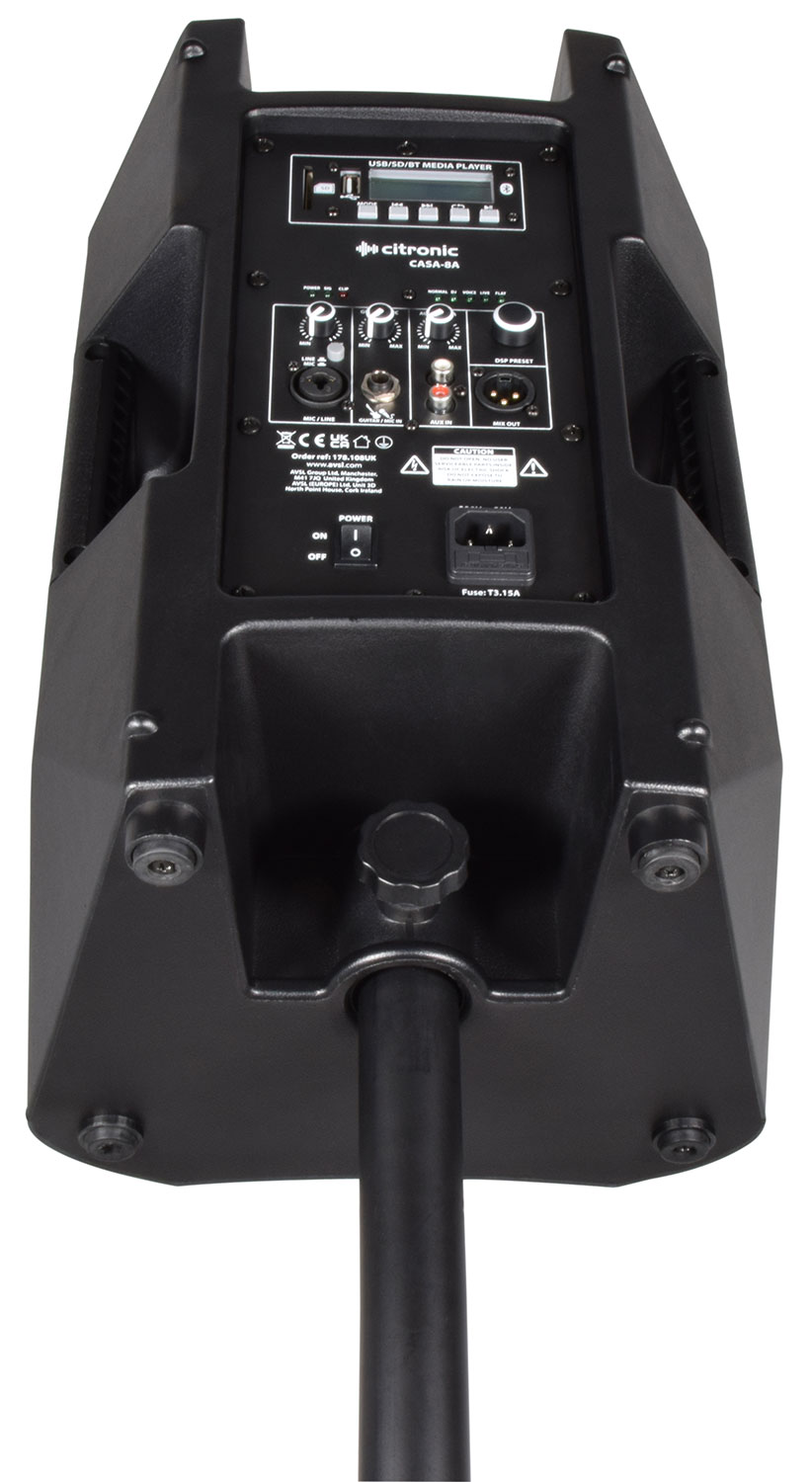

• 35mm pole mount socket

• Weight 8.71kg
• Dimensions 435 x 278 x 245mm

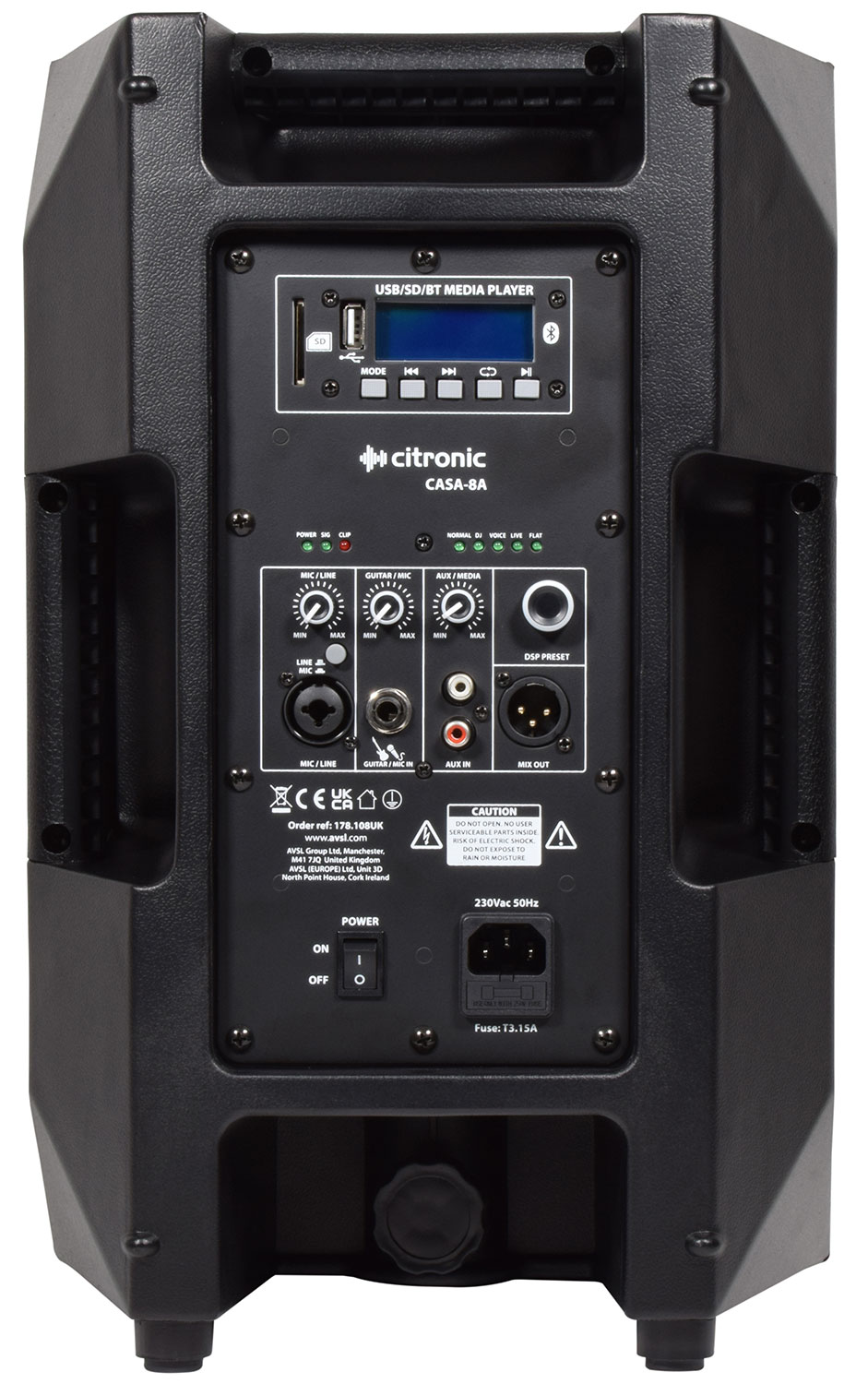

• Inputs XLR/jack mic/line, 6.3mm jack mic/instrument, L+R RCA line
• Frequency response 60Hz - 19kHz
• SPL max. 120.0dB
• Sensitivity 94dB
• Output power peak 800W
• Output power : max. 400W
• Output power : rms 200W
• HF driver 25mmØ (1") Ti compression driver
• Voice coil 50mmØ (2")
• Main driver 200mmØ (8")
• Power supply 230Vac, 50Hz (IEC)
• Audio source USB/SD player + Bluetooth receiver
• Line output XLR
• DSP settings Normal, DJ. Voice, Live, Flat
