CASA Passive PA Cabinets
12" 300Wrms
Full-range passive PA cabinets with high-efficiency drivers loaded into a compact impact-resistant moulded cabinet. Fitted with 2 side handles and a top carrying handle for easy portability and… more
- Custom high-efficiency drivers
- High impact moulded cabinet with side and top handles
- 35mm pole mount socket
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
178.109UK
CASA-8 Passive 8" Full Range PA Cabinet 150Wrms |
8" 150Wrms | Box Label |
|
178.111UK
CASA-10 Passive 10" Full Range PA Cabinet 200Wrms |
10" 200Wrms | Box Label |
|
178.113UK
CASA-12 Passive 12" Full Range PA Cabinet 300Wrms |
12" 300Wrms | Box Label |
|
178.116UK
CASA-15 Passive 15" Full Range PA Cabinet 400Wrms |
15" 400Wrms | Box Label |
Recommended Accessories |
|||
|
127.012UK
CASA-12 Slip Cover |
CASA-12 | Poly Bag |
|
902.106UK
12" Driver 8 Ohm 300W |
12" 8ohm 300W | Box Label |
|
902.111UK
34mm (1.35") HF Driver 35Wrms |
34mm (1.35") 35Wrms | Box Label |

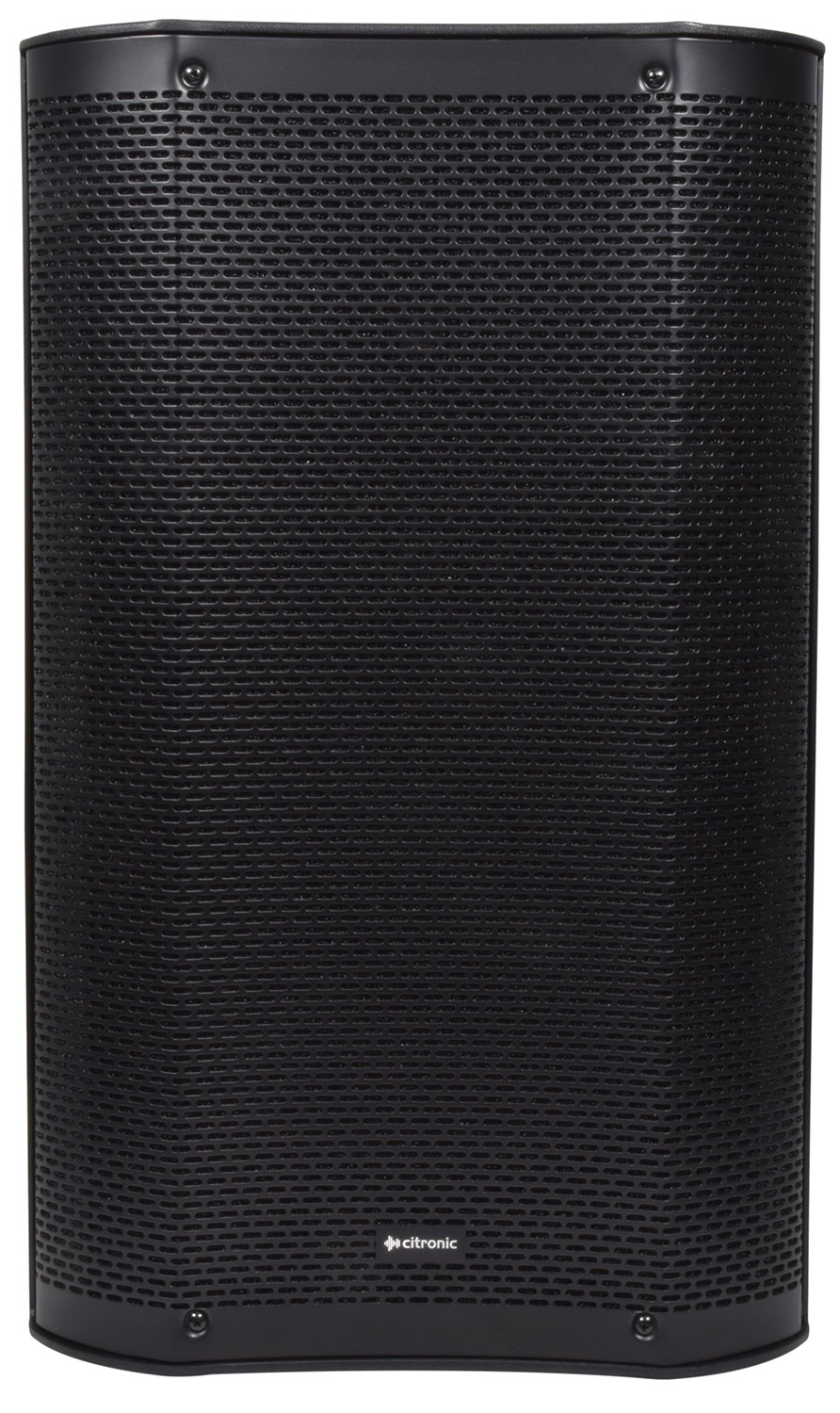

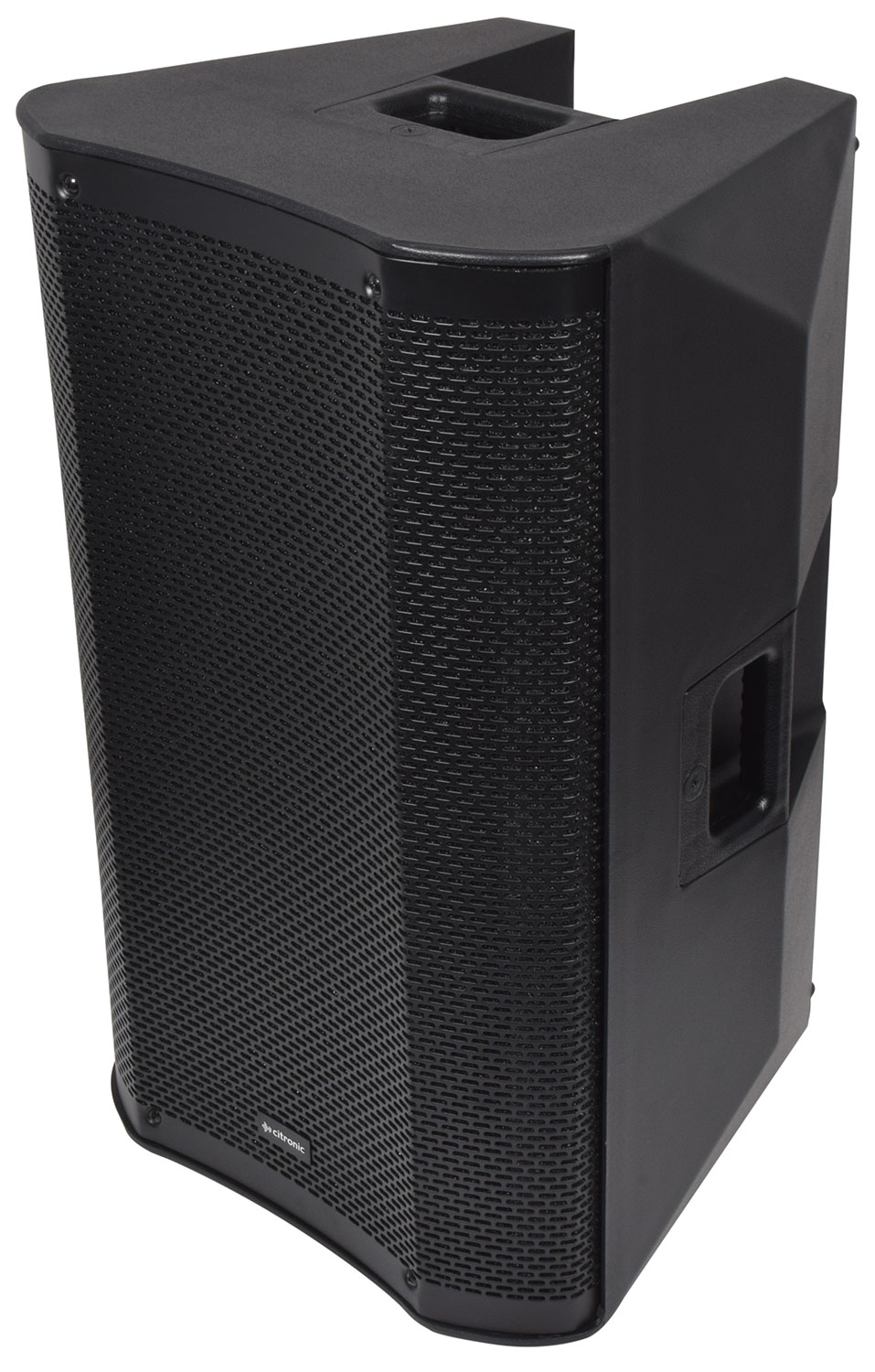

CASA Passive PA Cabinets
Full-range passive PA cabinets with high-efficiency drivers loaded into a compact impact-resistant moulded cabinet. Fitted with 2 side handles and a top carrying handle for easy portability and mounting via the integral 35mm pole-mount socket. These cabinets pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.
- Custom high-efficiency drivers

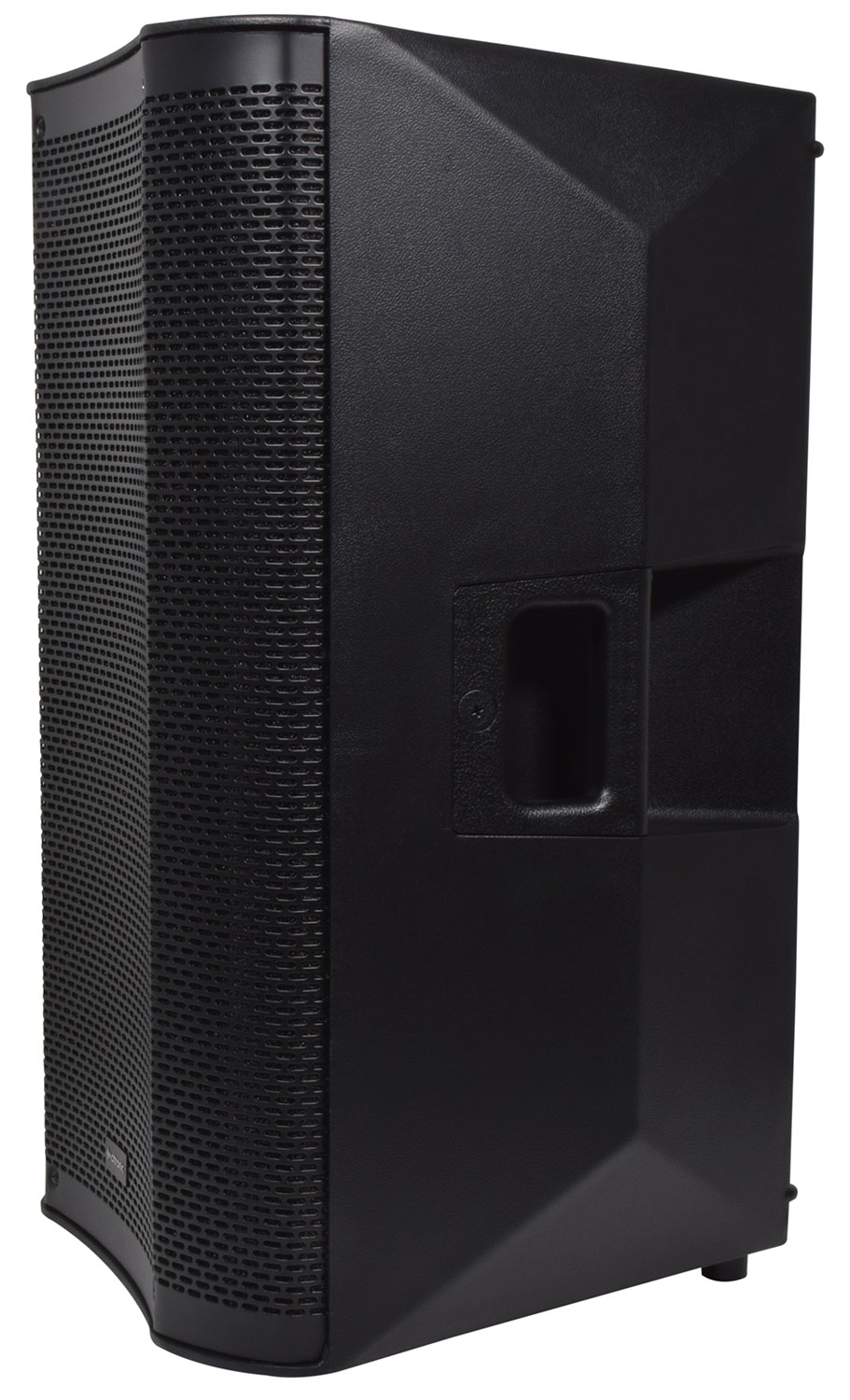

- High impact moulded cabinet with side and top handles

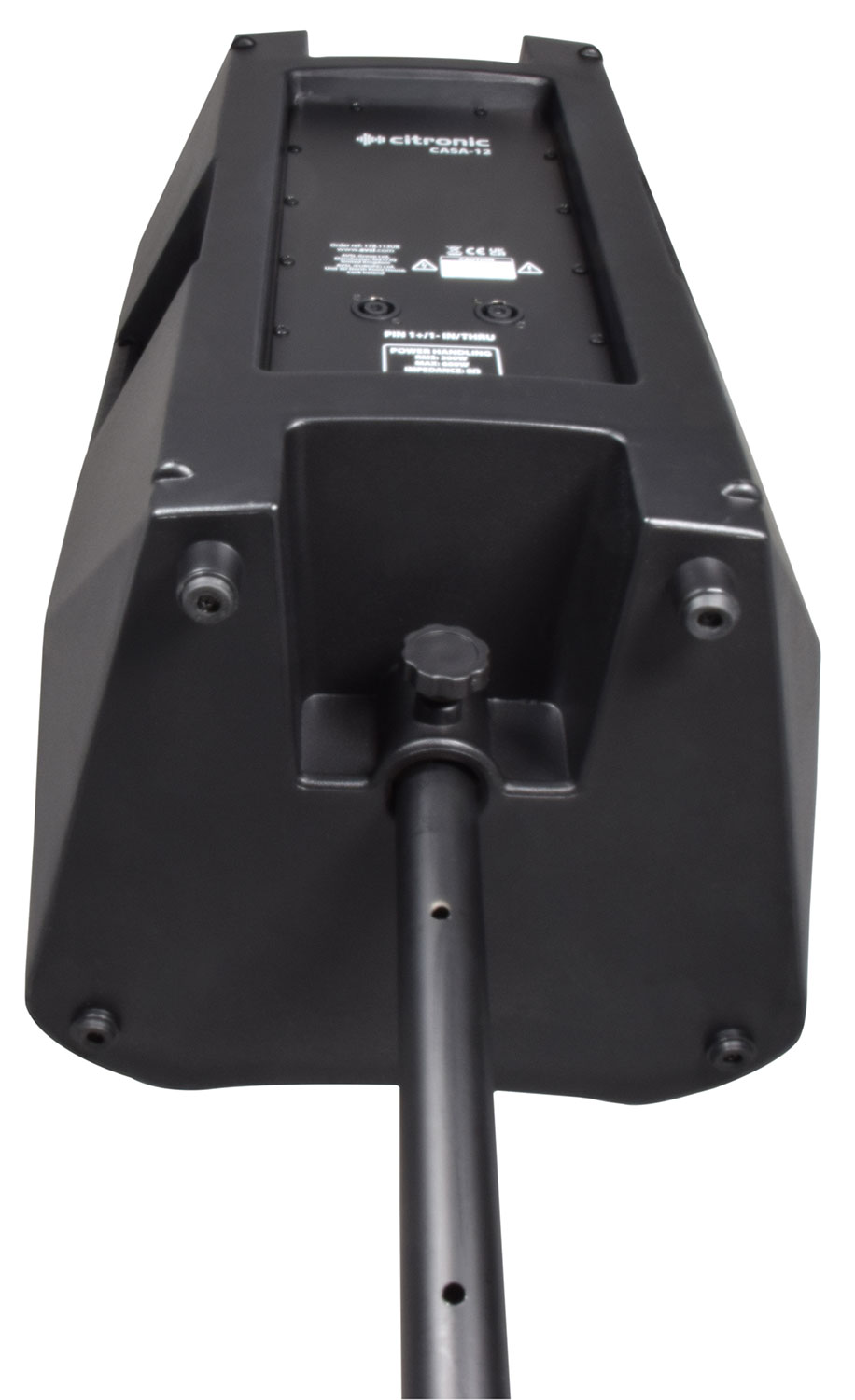

- 35mm pole mount socket
- Weight 11.0kg
- Dimensions 610 x 375 x 340mm
- Frequency response 50Hz - 20kHz
- SPL max. 123.0dB
- Sensitivity 96dB
- Power handling : max 600W
- Power handling : rms 300W
- HF driver 35mmØ (1.35") Ti compression driver
- Voice coil 75mmØ (3")
- Main driver 300mmØ (12")
- Impedance 8 Ohms

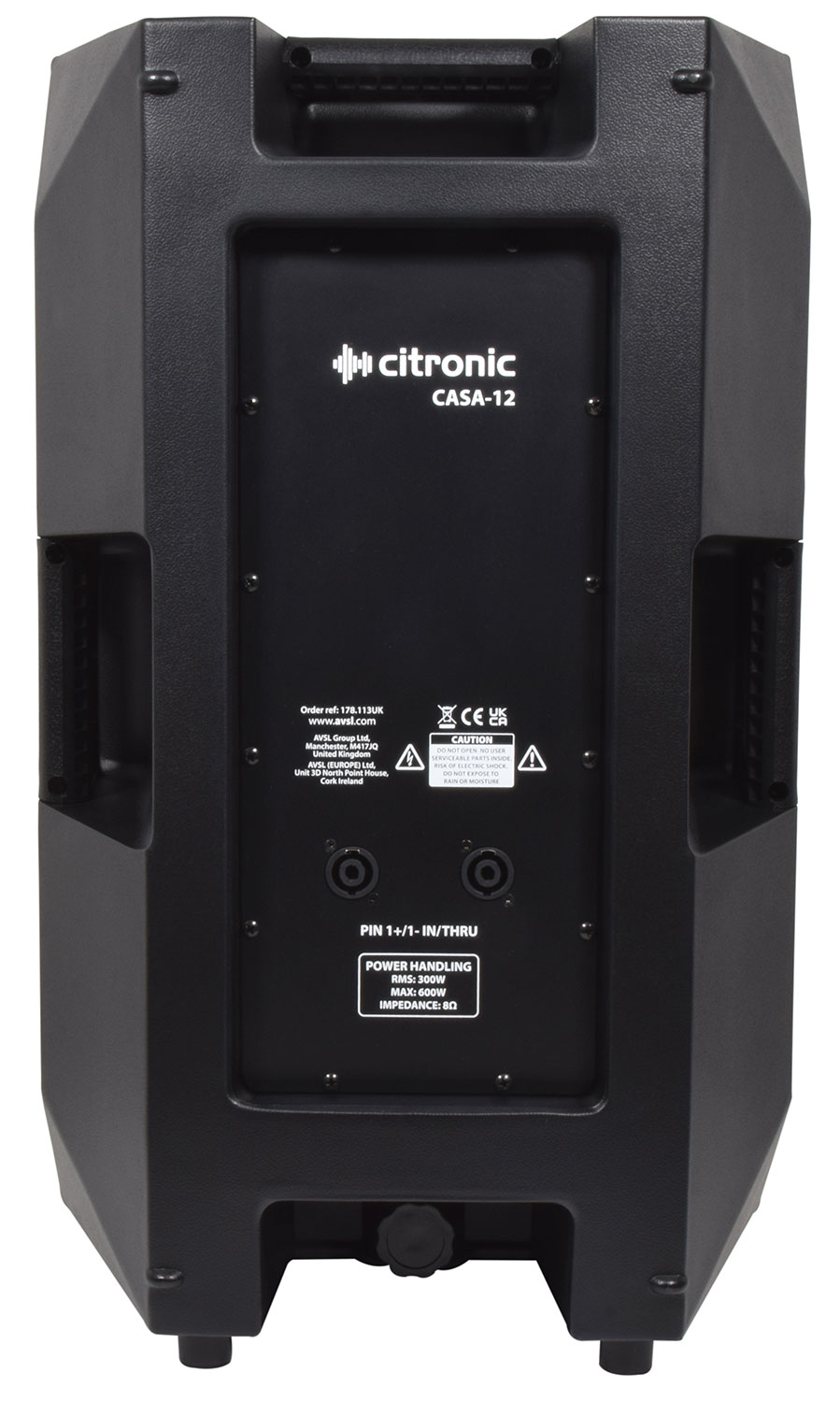

- Connection 2 x SPK socket
In the Box
- CASA series passive PA cabinet
