CAB Series Passive Cabinets
300mm (12") 300W
Full-range speaker cabinets housed in a compact and lightweight moulded PP enclosure. Custom designed low frequency woofers are paired with titanium compression drivers for a powerful yet balanced… more
- Integral top and side carry handles
- 35mm pole mount
- 2 x SPK sockets
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
178.007UK
CAB-6 Passive Speaker Cab 150Wrms |
165mm (6.5") 150W | Box Label |
![]() |
178.009UK
CAB-8 Passive Speaker Cab 150Wrms |
200mm (8") 150W | Box Label |
![]() |
178.011UK
CAB-10 Passive Speakr Cab 220Wrms |
250mm (10") 220W | Box Label |
![]() |
178.013UK
CAB-12 Passive Speakr Cab 300Wrms |
300mm (12") 300W | Box Label |
![]() |
178.016UK
CAB-15 Passive Speakr Cab 350Wrms |
380mm (15") 350W | Box Label |
CAB Series Passive Cabinets

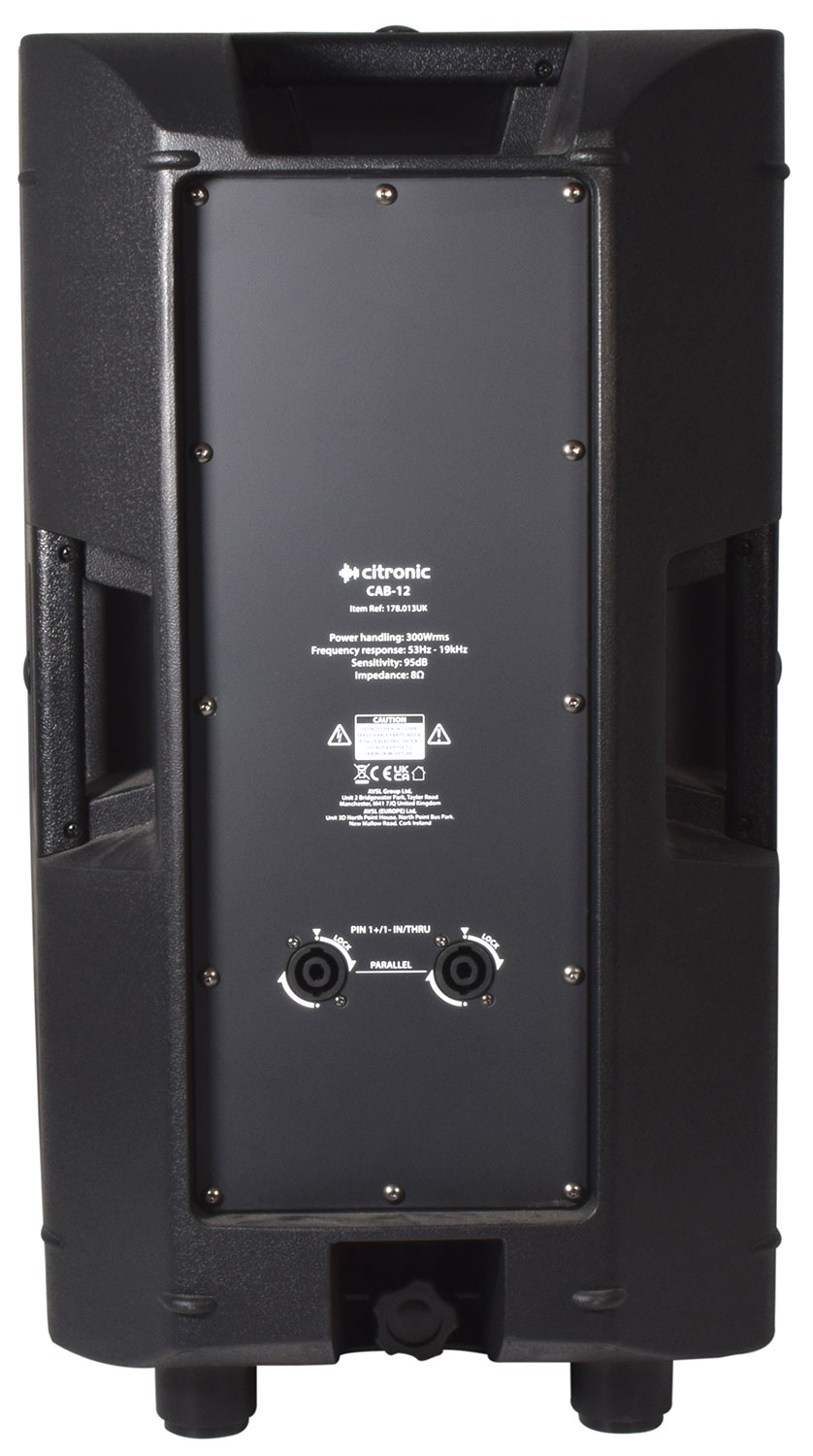

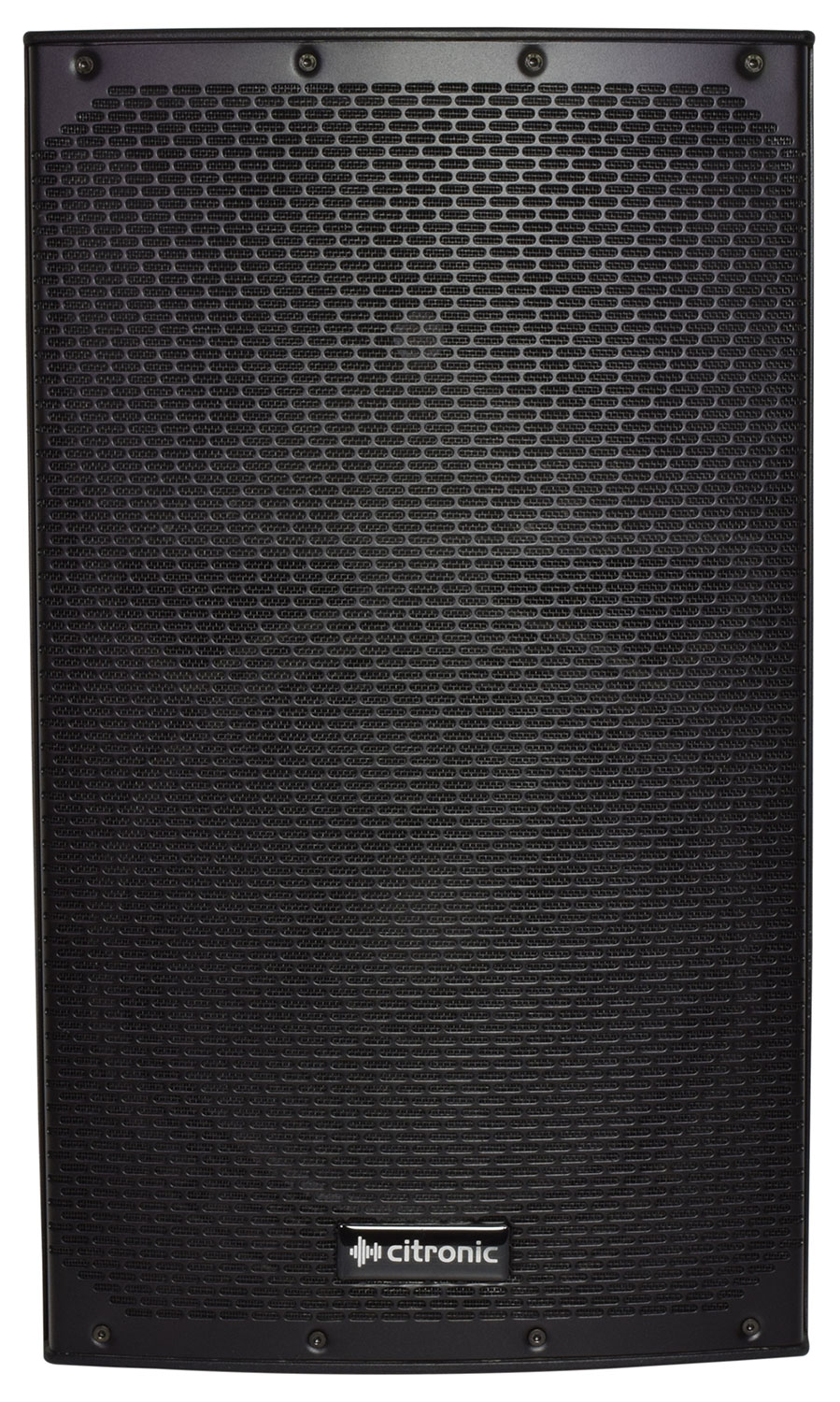

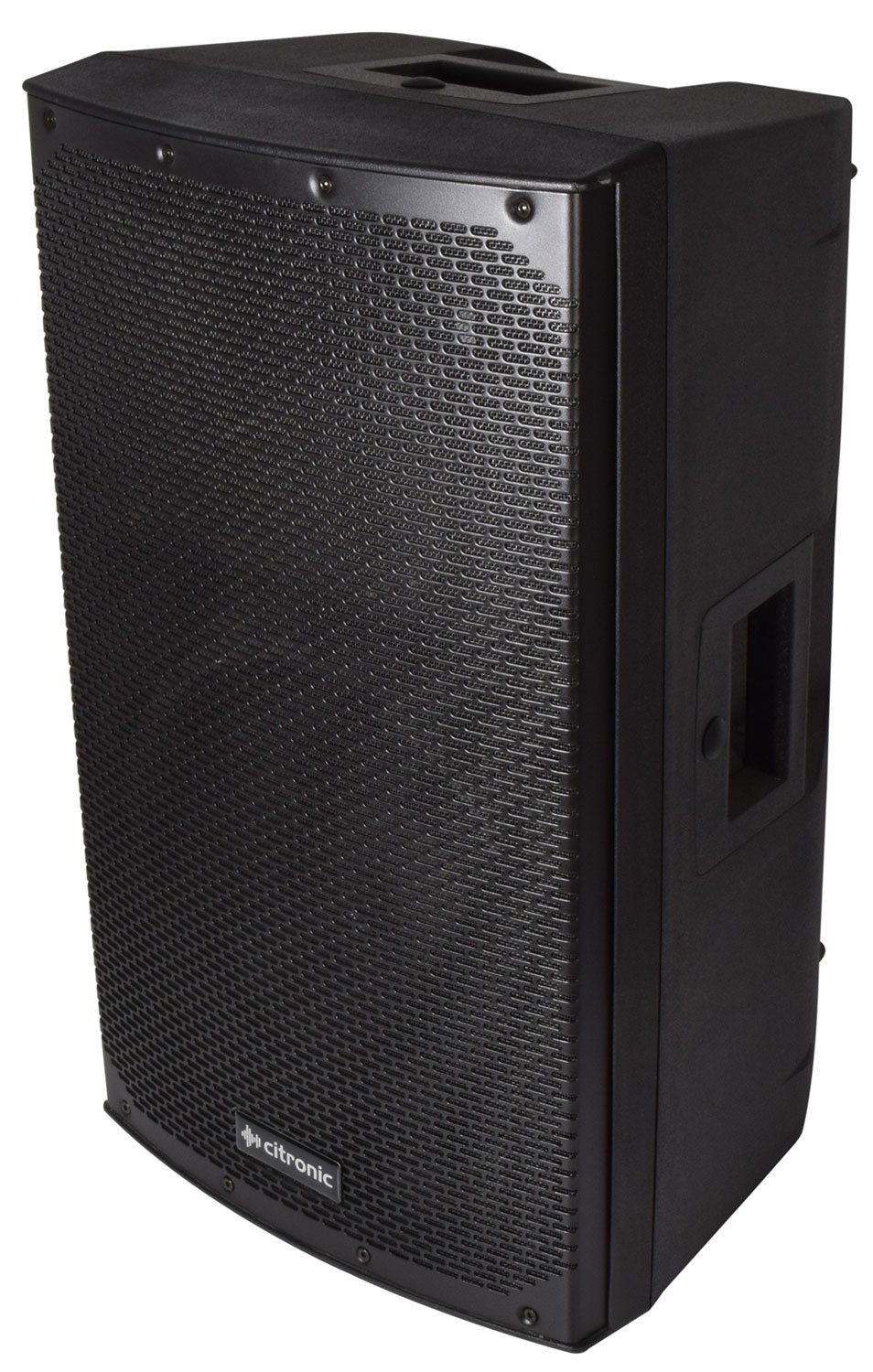

Full-range speaker cabinets housed in a compact and lightweight moulded PP enclosure. Custom designed low frequency woofers are paired with titanium compression drivers for a powerful yet balanced sound delivery. Each cabinet is fitted with top and side carrying handles and a 35mm pole mount socket. Connection from an amplifier is via Speakon lead to either of 2 sockets on the rear panel. Compact, lightweight and yet very capable sound reinforcement cabinets.
- Integral top and side carry handles
- 35mm pole mount
- 2 x SPK sockets
- Weight 13.2kg
- Dimensions 603 x 355 x 350mm
- Crossover frequency 2.8kHz
- SPL max. 119dB
- Sensitivity @ 1W/1m 95dB
- Frequency response 53Hz - 19kHz
- HF driver 35mmØ (1.35") Ti CD
- Voice coil 50mmØ (2.00")
- LF driver 300mmØ (12")
- Power handling : rms 300W
- Housing material Injection moulded polypropylene
- Impedance 8 Ohms (LF+HF combined)
- Dispersion 90° x 60°
- Connectors 2 x SPK socket
In the Box
- CAB-series passive full-range speaker cabinet
