CAB Series Active Cabinets With BT Link

Active PA speakers with BT wireless connection and stereo link capability, housed in a compact and lightweight moulded PP enclosure. Custom designed low and high frequency drivers are powered by a digital amplifier circuit for powerful and energy-efficient performance. A switchable Mic/Line input and separate Line input are provided along with a Bluetooth receiver for playback from a smart phone or tablet. The BT section also has a link function which allows wireless connection to another CAB series speaker to form a stereo pair (Bluetooth signal only). Maximum sound output with minimal size, weight and setup time.

• Bluetooth receiver with stereo link capability
• Digital amplifier for lightweight & efficient performance
• Integral top and side carry handles
• 2 inputs with separate volume control

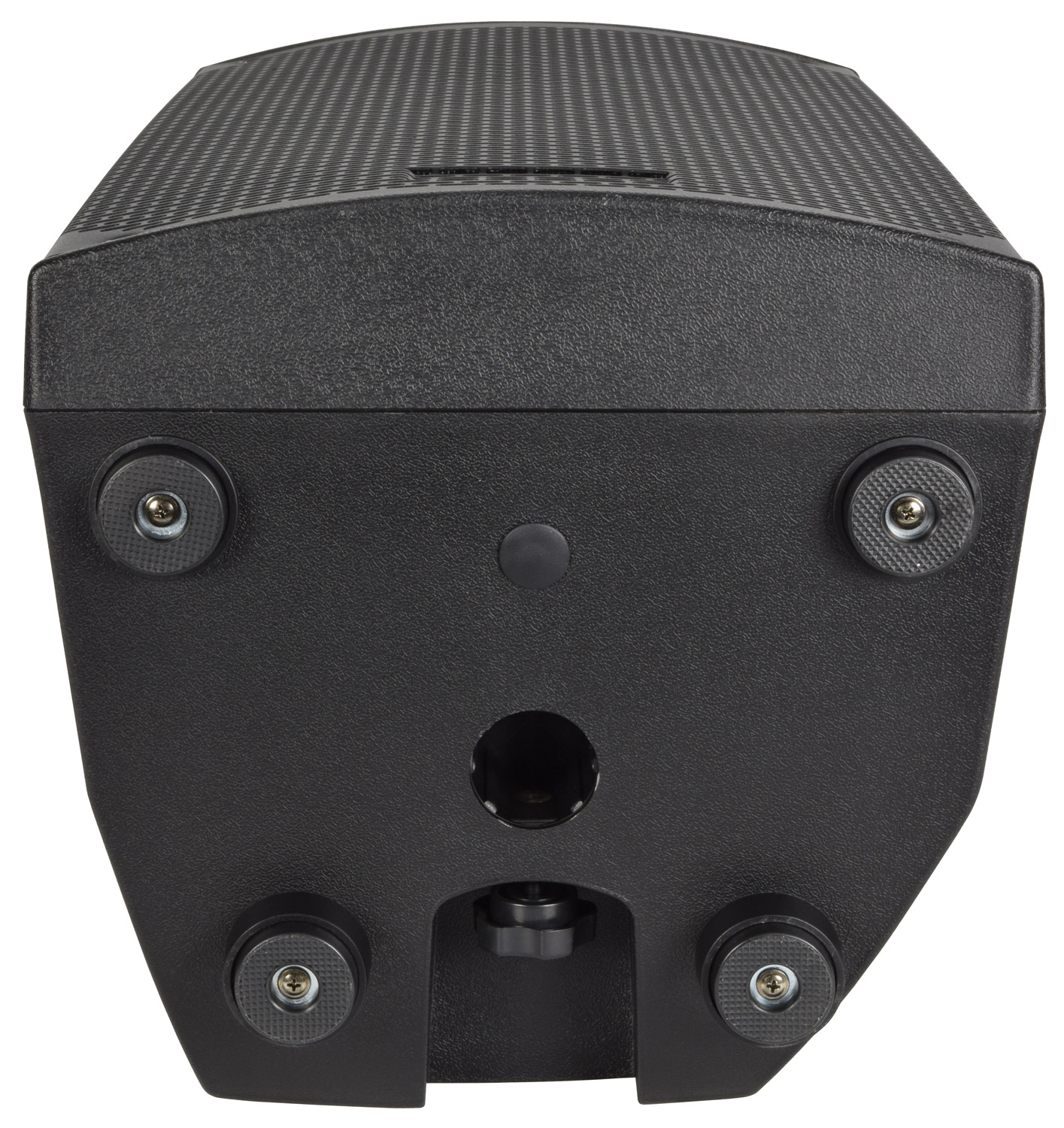

• 35mm pole mount

• Frequency response 58Hz - 19kHz
• Weight 11.2kg
• Dimensions 530 x 310 x 300mm
• Crossover frequency 3.2kHz
• Voice coil 38mmØ (1.5")
• Main driver 250mmØ (10") woofer
• Max. SPL 132dB
• Output power peak 880W
• Output power : rms 220W
• Power supply 220-240Vac, 50Hz (IEC)
• Housing material Injection moulded polypropylene
• Amplifier : construction Class D + Class AB
• HF driver 35mmØ (1.35") Ti compression driver
• Dispersion 90° x 60°

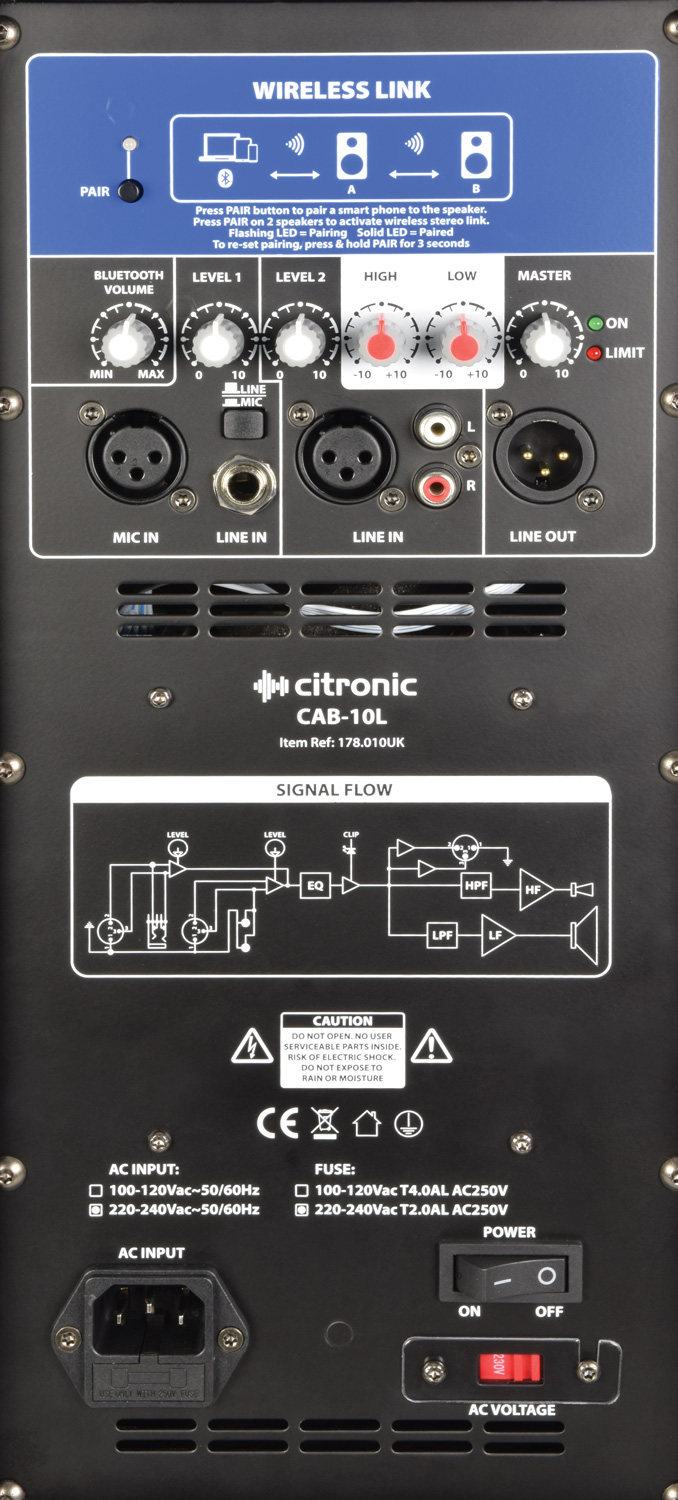

• Inputs Mic/Line XLR or jack, Line XLR or RCA, Bluetooth
• Indicators Power on, Limit & Bluetooth link LEDs
• Line output XLR
• Impedance LF: 4 Ohms, HF: 8 Ohms
