BP Series - 100V Weatherproof Speakers
5.25" White
Weatherproof versions of the highly regarded BC series 100V PA speakers, each with an ABS enclosure and powder coated aluminium grille. Main drivers have polypropylene cones and tweeter units all have… more
- Water resistant PP cone main driver
- IP54 Weatherproof
- Rotary selector switch for 100V line tappings or 8 Ohms operation
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
952.810UK
BP3V-W 100V 3" background speaker white |
3" White | Box Label |
|
952.811UK
BP3V-B 100V 3" background speaker black |
3" Black | Box Label |
|
952.812UK
BP4V-W 100V 4" background speaker white |
4" White | Box Label |
|
952.813UK
BP4V-B 100V 4" background speaker black |
4" Black | Box Label |
|
952.814UK
BP5V-W 100V 5.25" background speaker white |
5.25" White | Box Label |
|
952.815UK
BP5V-B 100V 5.25" background speaker black |
5.25" Black | Box Label |
|
952.816UK
BP6V-W 100V 6.5" background speaker white |
6.5" White | Box Label |
|
952.817UK
BP6V-B 100V 6.5" background speaker black |
6.5" Black | Box Label |
BP Series - 100V Weatherproof Speakers

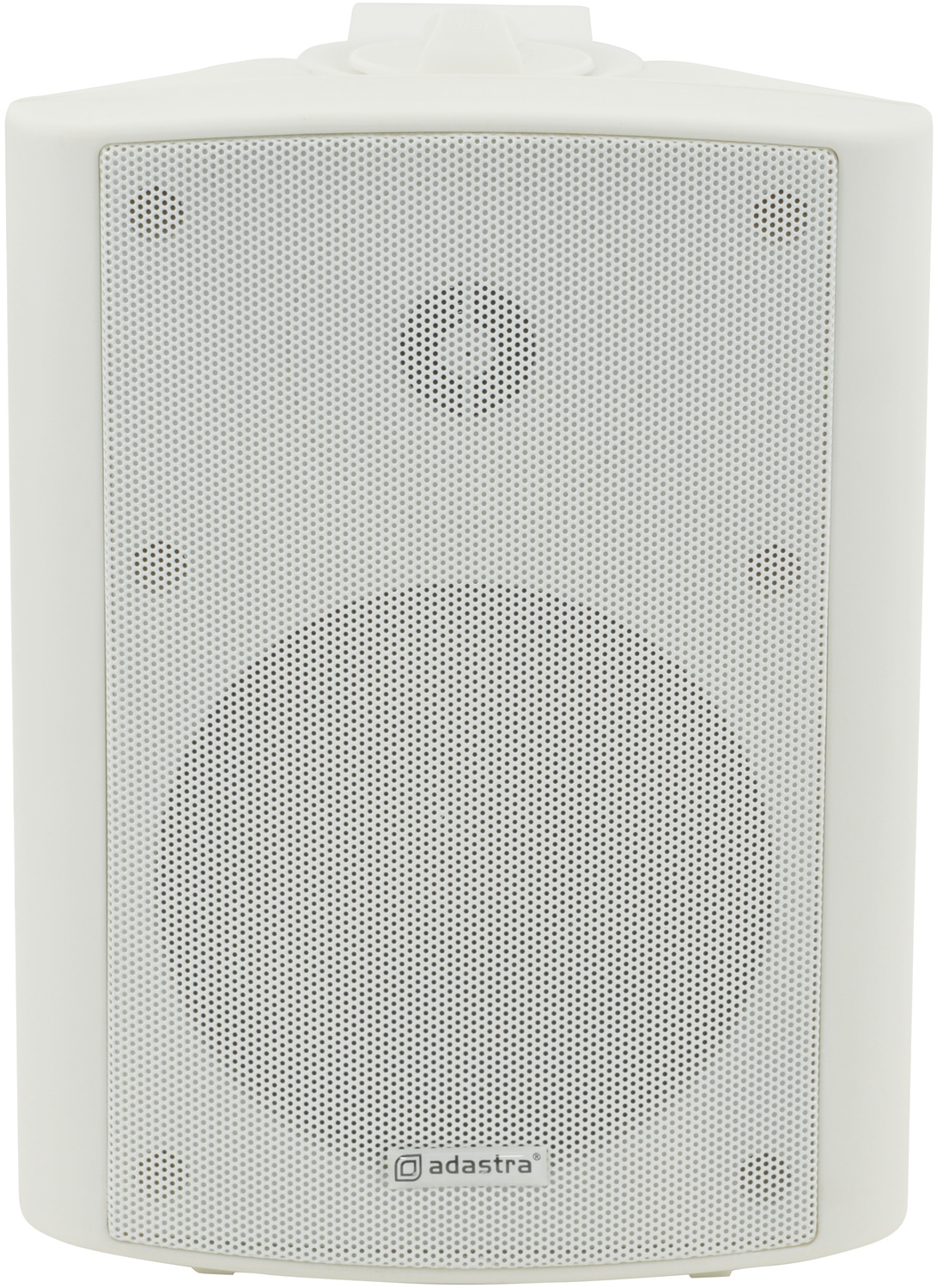

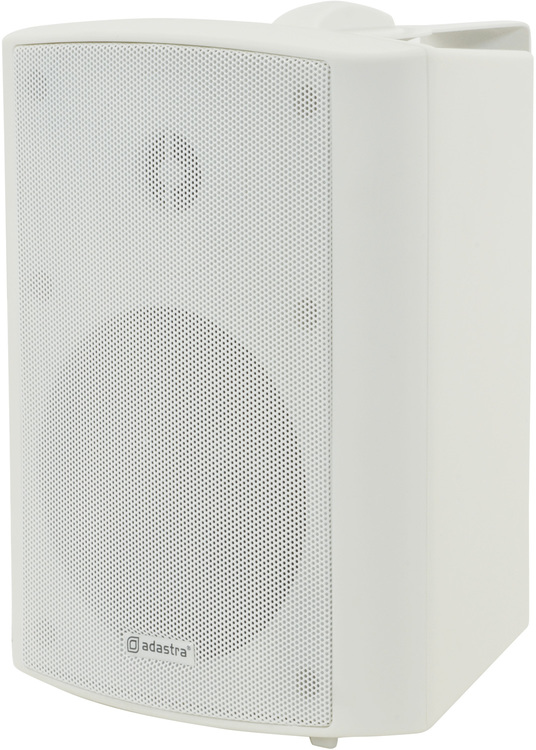

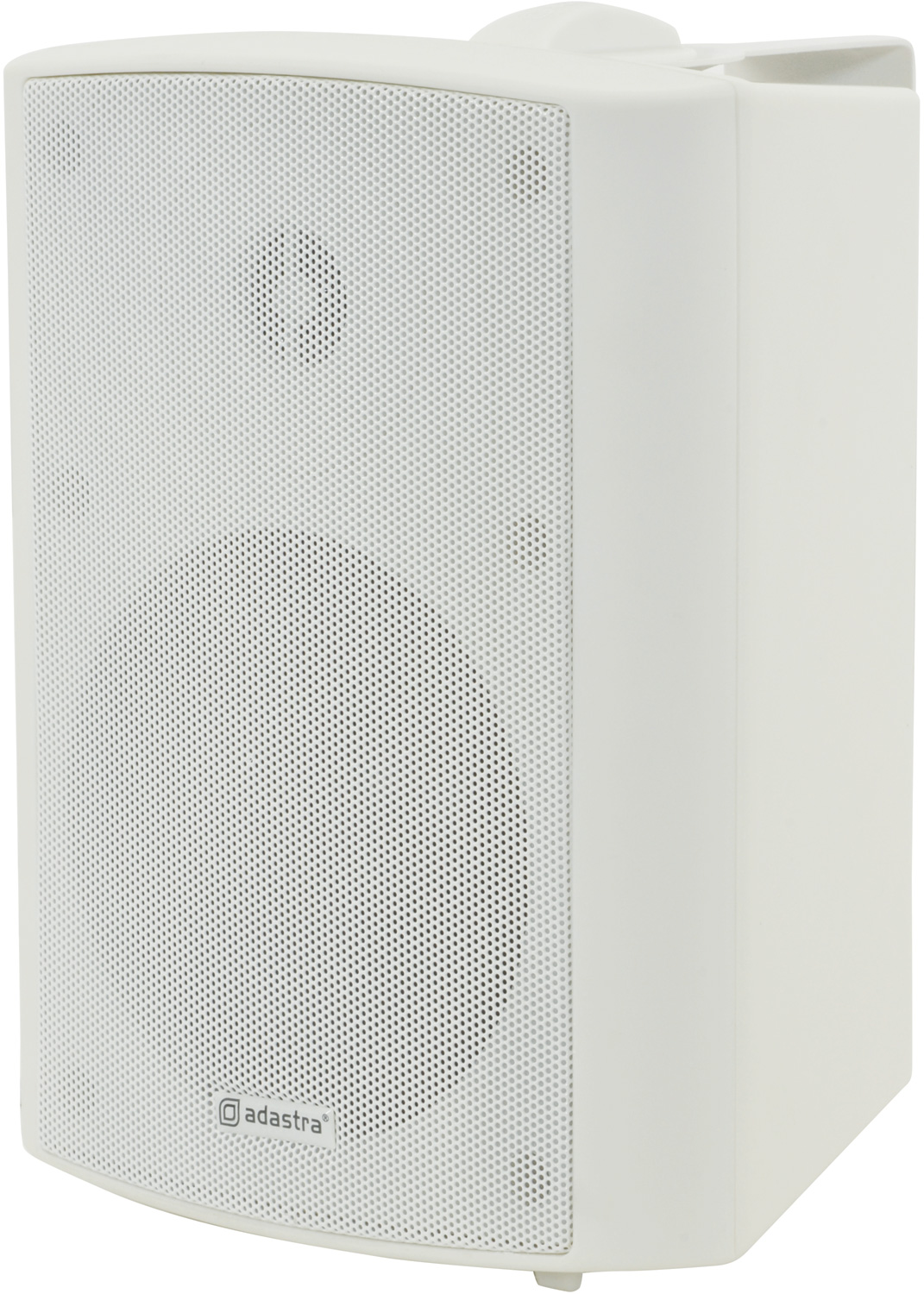

Weatherproof versions of the highly regarded BC series 100V PA speakers, each with an ABS enclosure and powder coated aluminium grille. Main drivers have polypropylene cones and tweeter units all have polymer diaphragms for reliable operation in humid environments. Connection from an amplifier is through a hard-wired 1m lead, maintaining the IP protection all the way to a junction box or indoor area. Designed to provide high qualilty sound reproduction in a wider range of environments.
- Water resistant PP cone main driver
- IP54 Weatherproof

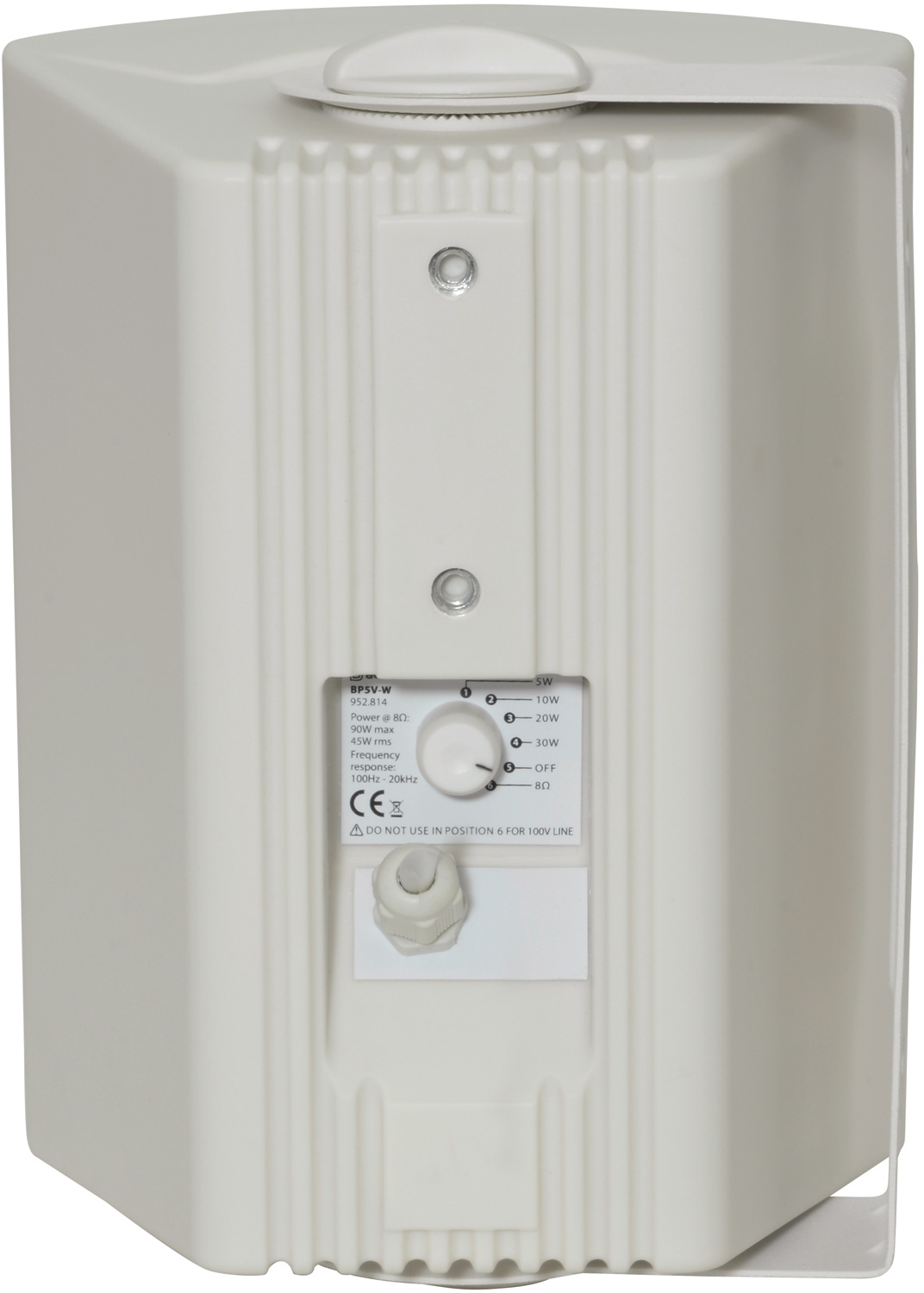

- Rotary selector switch for 100V line tappings or 8 Ohms operation
- Wall mounting bracket supplied
- Alternative M6 threaded mounting points
- 1m hard-wired speaker cable connected
- Supplied singly
- Weight 2.38kg
- Dimensions 180 x 235 x 175mm
- Tappings 30W, 20W, 10W, 5W + 8 Ohms
- Impedance : 100V 333, 500, 1k, 2k Ohms
- SPL @ 1W/1m 89dB
- Power rms : 8 Ohms 45W
- Power max. : 8 Ohms 90W
- Frequency response 100Hz - 20kHz
- Tweeter 25mm (1'') balanced dome
- Woofer 130mmØ (5.25'') polypropylene cone
- Colour White
- Construction Moulded PP cabinet with aluminium grille
- IP rating IP54
- Operating temperature range -5°C to +40°C
- Connection 1m hard-wired speaker cable
In the Box
- BP-series weatherproof 100V PA speaker
- Wall-mounting bracket
- 2 x cap screws
