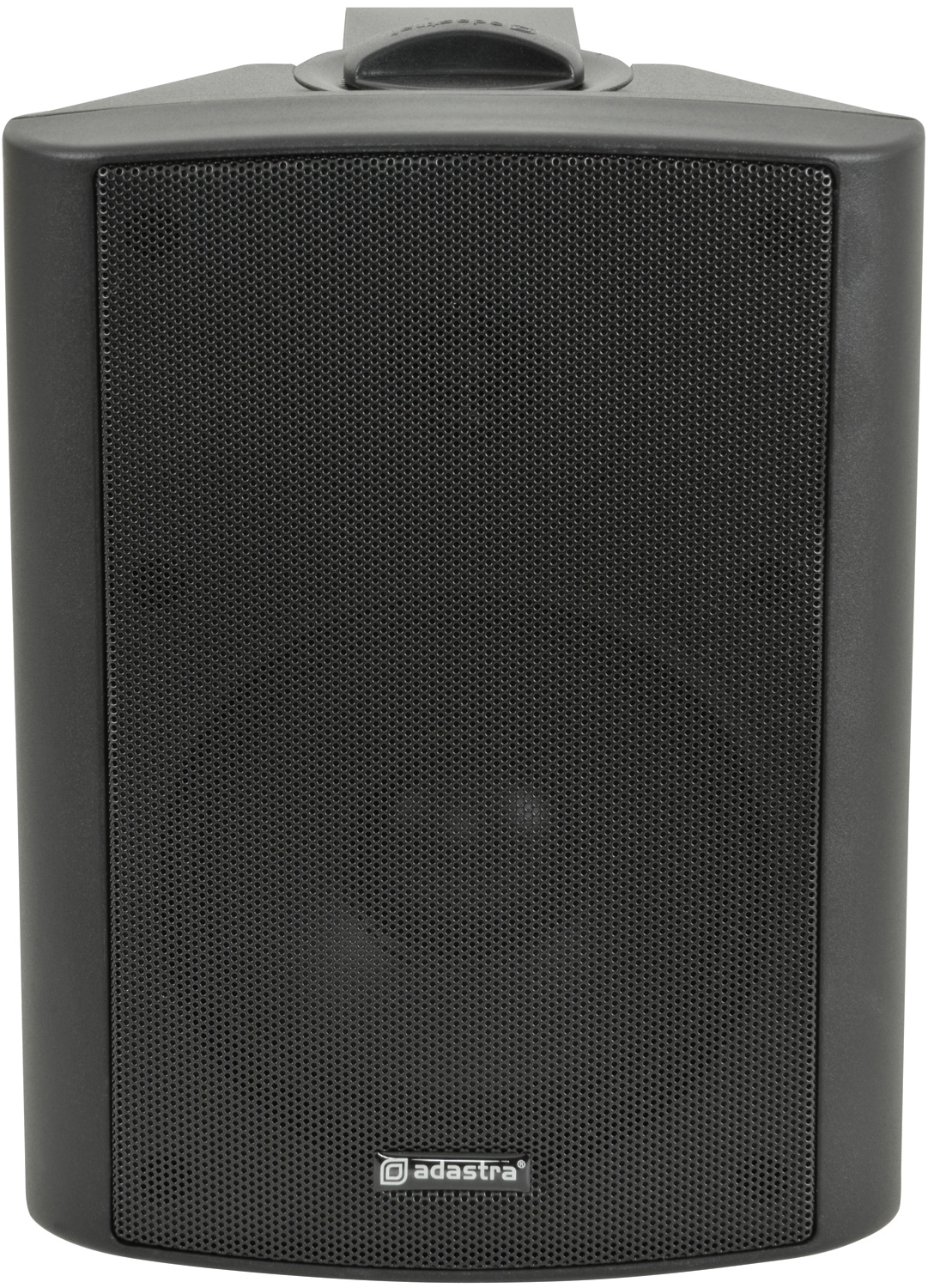

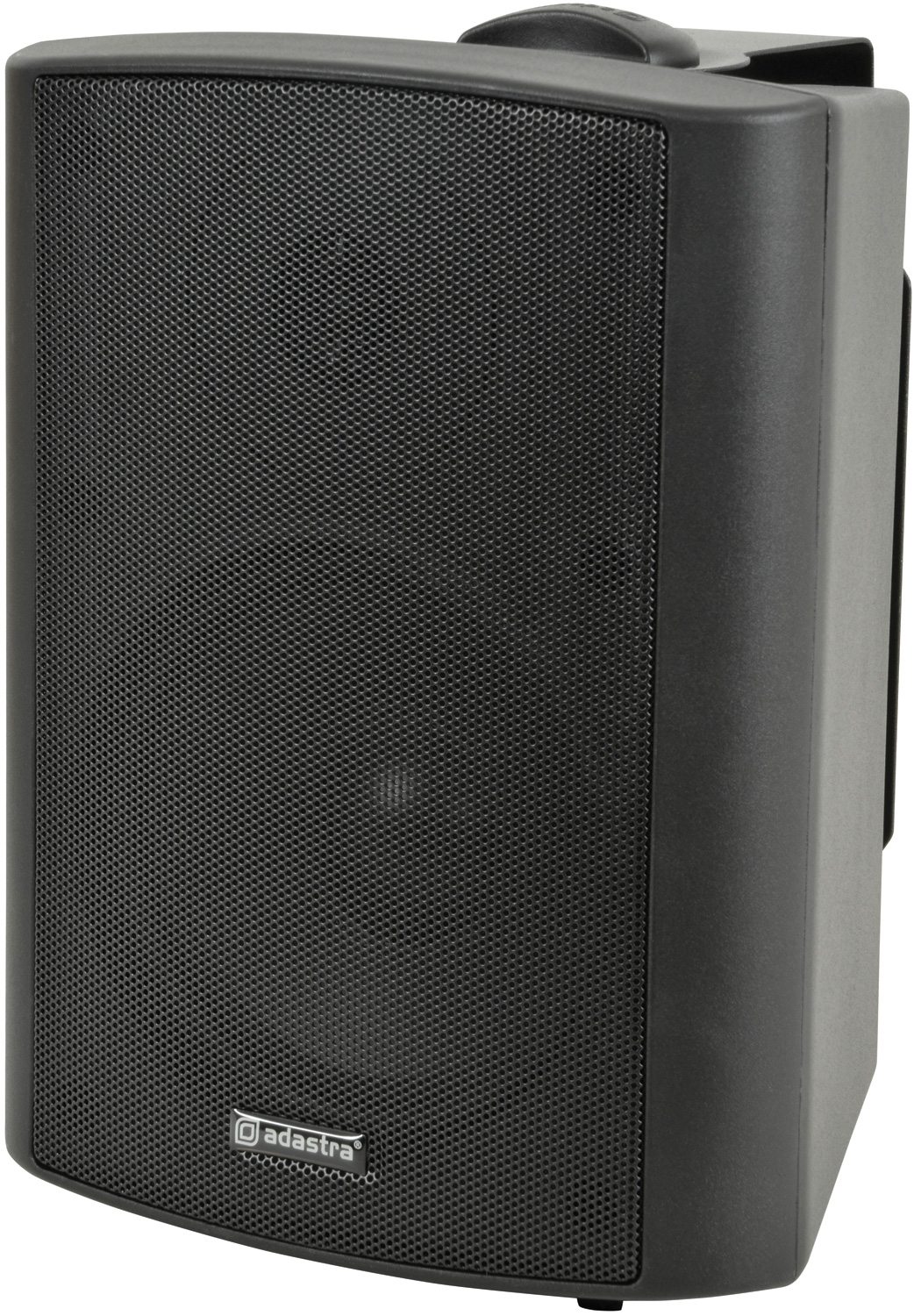

BP Series - 100V Weatherproof Speakers

Weatherproof versions of the highly regarded BC series 100V PA speakers, each with an ABS enclosure and powder coated aluminium grille. Main drivers have polypropylene cones and tweeter units all have polymer diaphragms for reliable operation in humid environments. Connection from an amplifier is through a hard-wired 1m lead, maintaining the IP protection all the way to a junction box or indoor area. Designed to provide high qualilty sound reproduction in a wider range of environments.

• Water resistant PP cone main driver
• IP54 Weatherproof

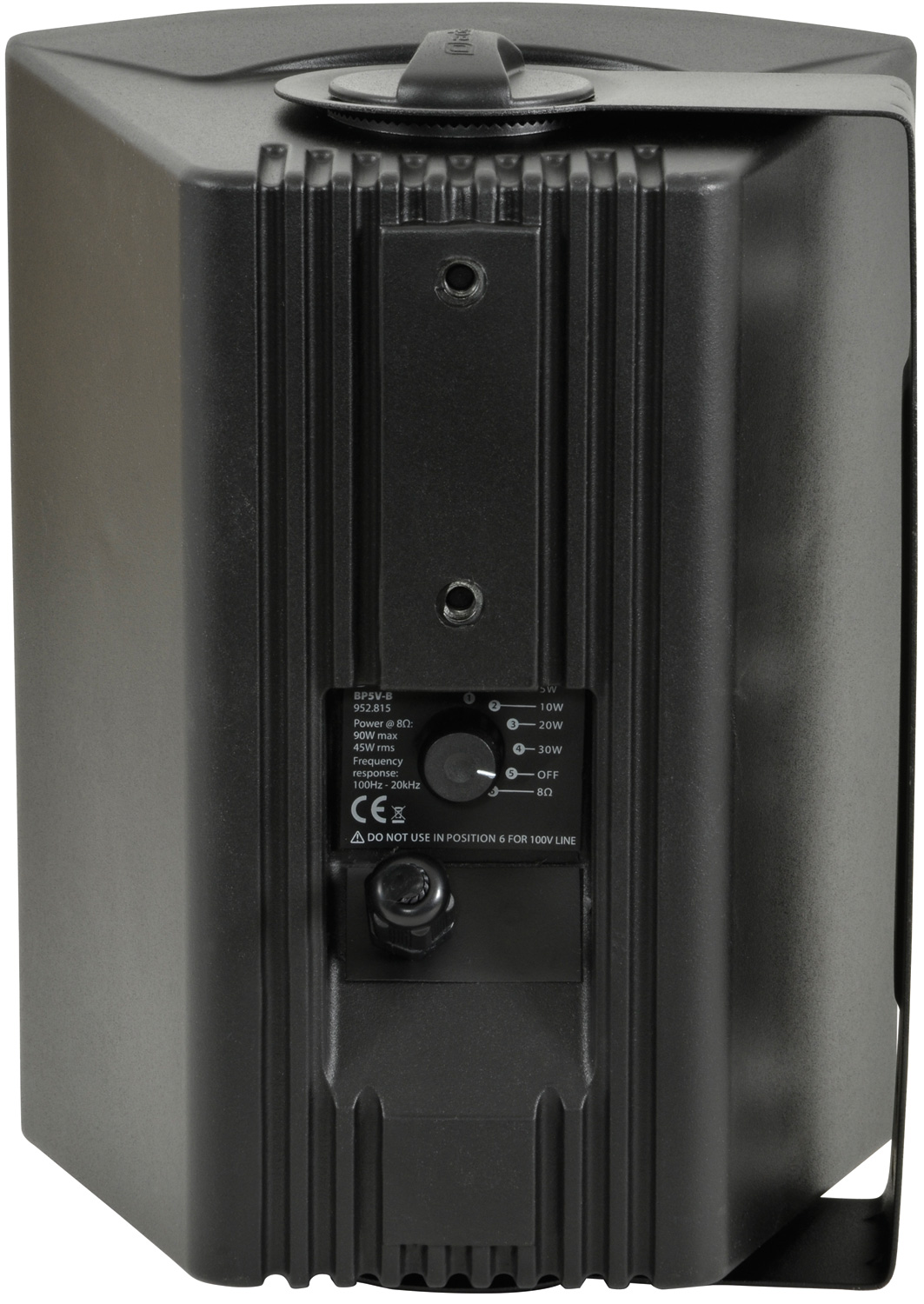

• Rotary selector switch for 100V line tappings or 8 Ohms operation
• Wall mounting bracket supplied
• Alternative M6 threaded mounting points
• 1m hard-wired speaker cable connected
• Supplied singly

• Weight 2.38kg
• Dimensions 180 x 235 x 175mm
• Tappings 30W, 20W, 10W, 5W + 8 Ohms
• Impedance : 100V 333, 500, 1k, 2k Ohms
• SPL @ 1W/1m 89dB
• Power rms : 8 Ohms 45W
• Power max. : 8 Ohms 90W
• Frequency response 100Hz - 20kHz
• Tweeter 25mm (1'') balanced dome
• Woofer 130mmØ (5.25'') polypropylene cone
• Colour Black
• Construction Moulded PP cabinet with aluminium grille
• IP rating IP54
• Operating temperature range -5°C to +40°C
• Connection 1m hard-wired speaker cable
