BC Series - 100V Indoor Speakers
6.5" Black each
Industry standard 100V indoor speakers with ABS enclosures and a powder coated steel grille grille. Wall or ceiling surface mounting via the adjustable steel bracket. The trapezoidal design allows for… more
- Rotary selector switch for 100V line tappings or 8 Ohms operation
- 2 way speaker system with crossover network
- Wall mounting bracket supplied
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
952.710UK
BC3V-W 100V 3" background speaker white |
3" White each | Box Label |
|
952.711UK
BC3V-B 100V 3" background speaker black |
3" Black each | Box Label |
|
952.712UK
BC4V-W 100V 4" background speaker white |
4" White each | Box Label |
|
952.713UK
BC4V-B 100V 4" background speaker black |
4" Black each | Box Label |
|
952.714UK
BC5V-W 100V 5.25" background speaker white |
5.25" White each | Box Label |
|
952.715UK
BC5V-B 100V 5.25" background speaker black |
5.25" Black each | Box Label |
|
952.716UK
BC6V-W 100V 6.5" background speaker white |
6.5" White each | Box Label |
|
952.717UK
BC6V-B 100V 6.5" background speaker black |
6.5" Black each | Box Label |

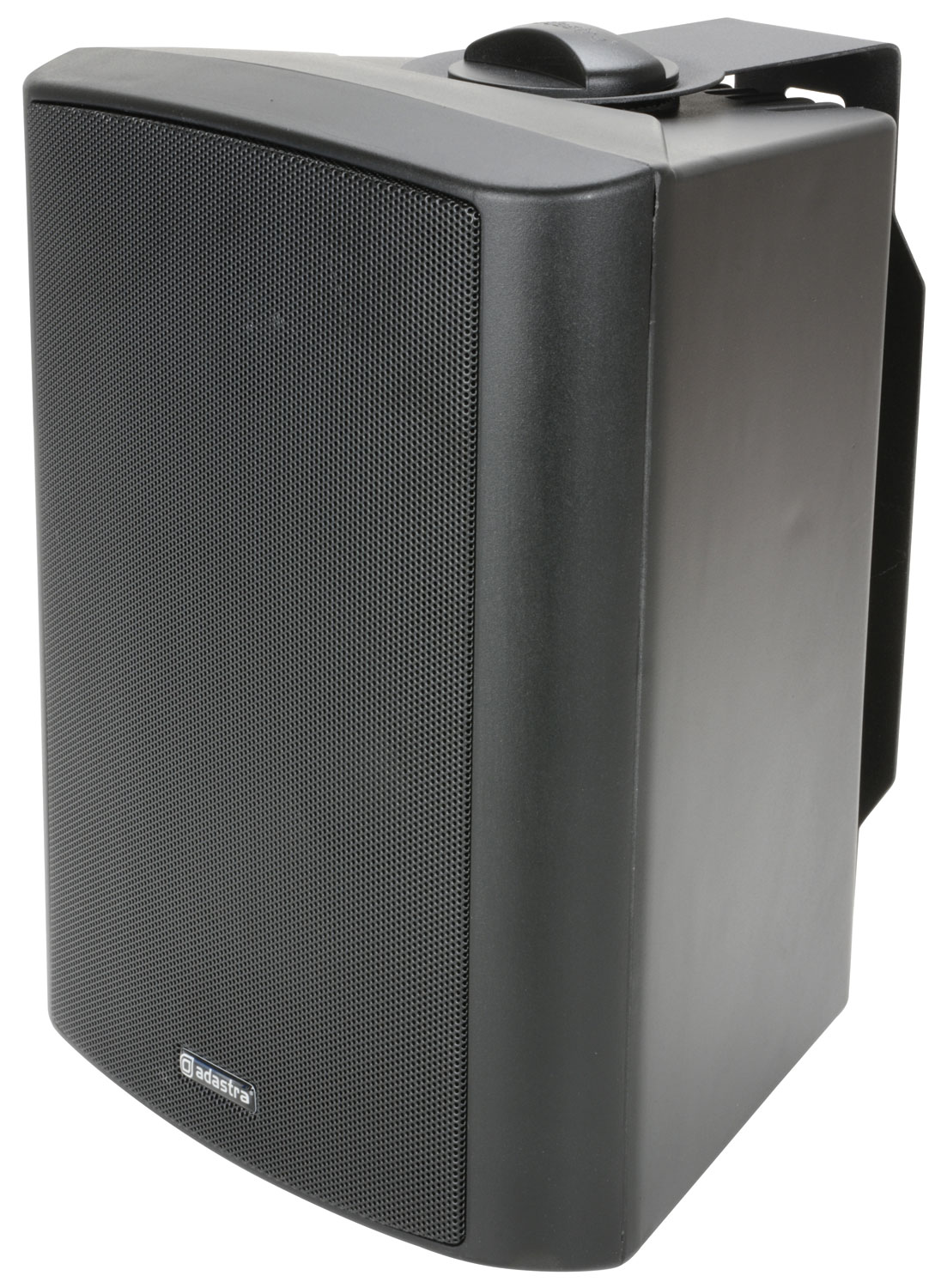

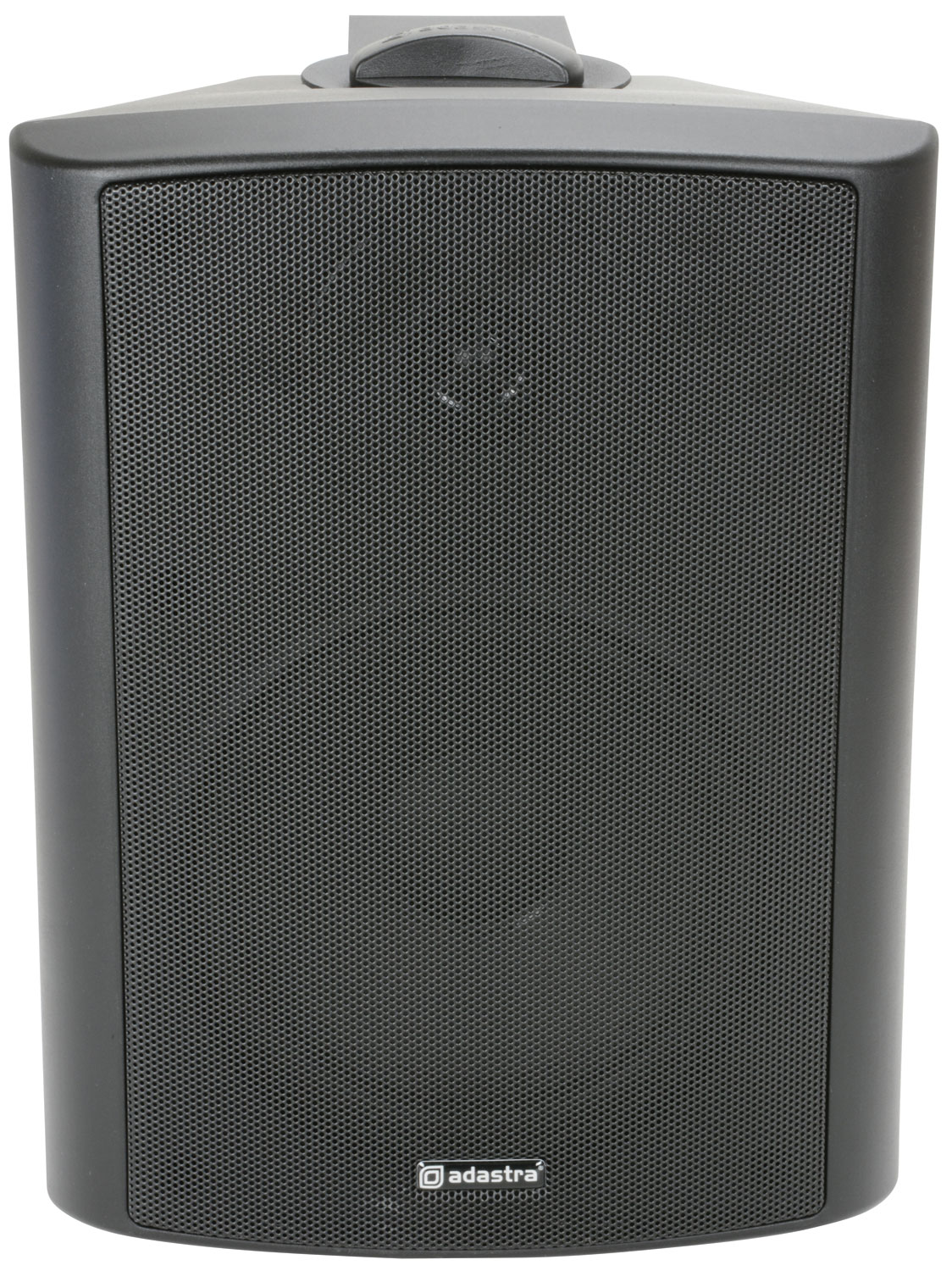

BC Series - 100V Indoor Speakers

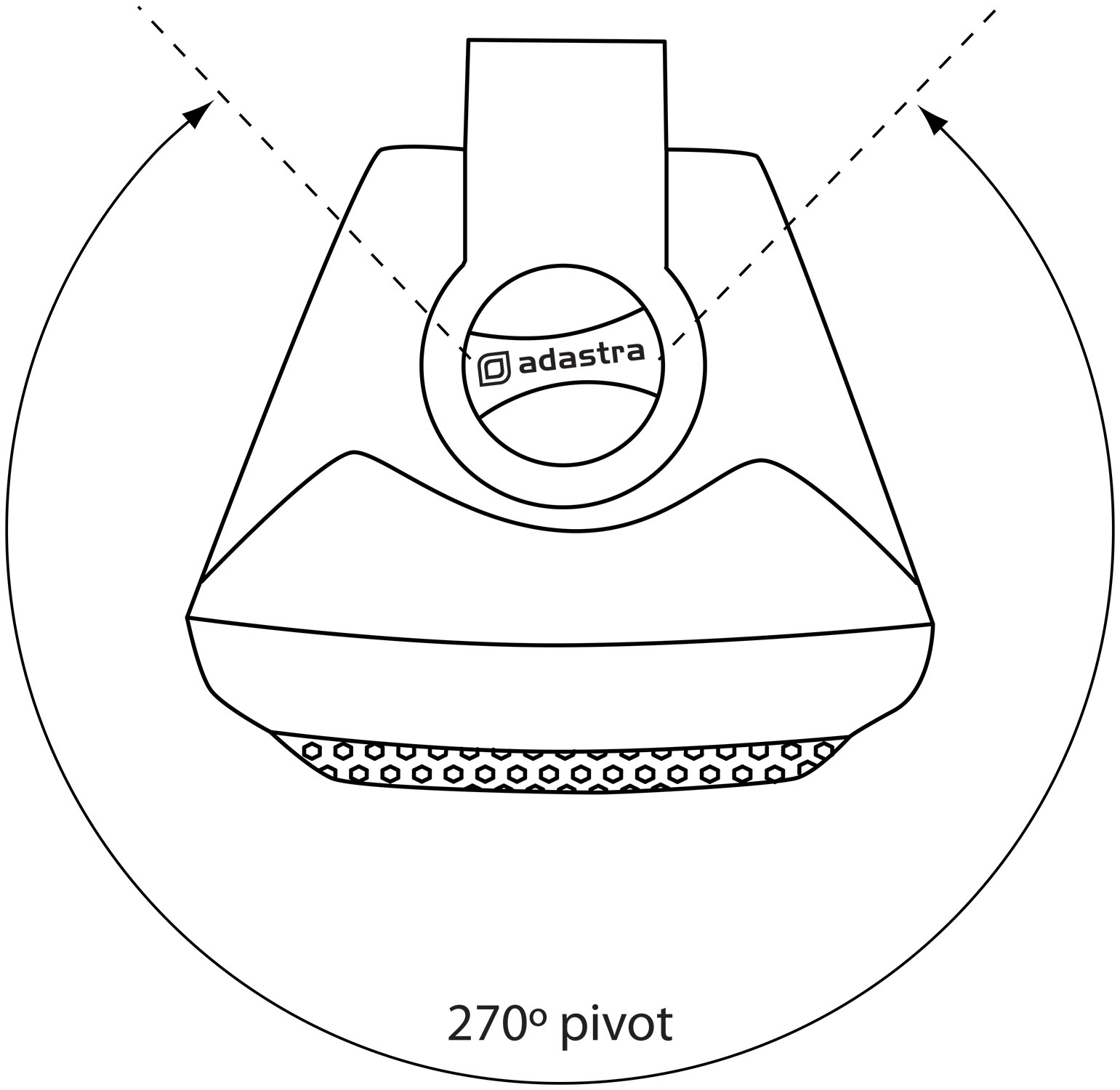

Industry standard 100V indoor speakers with ABS enclosures and a powder coated steel grille grille. Wall or ceiling surface mounting via the adjustable steel bracket. The trapezoidal design allows for the enclosures to be mounted neatly into corners or angled for directional coverage. Main drivers have high quality coated paper cones for full-sounding low and mid-range frequencies, ideal for music playback and clear voice announcements.

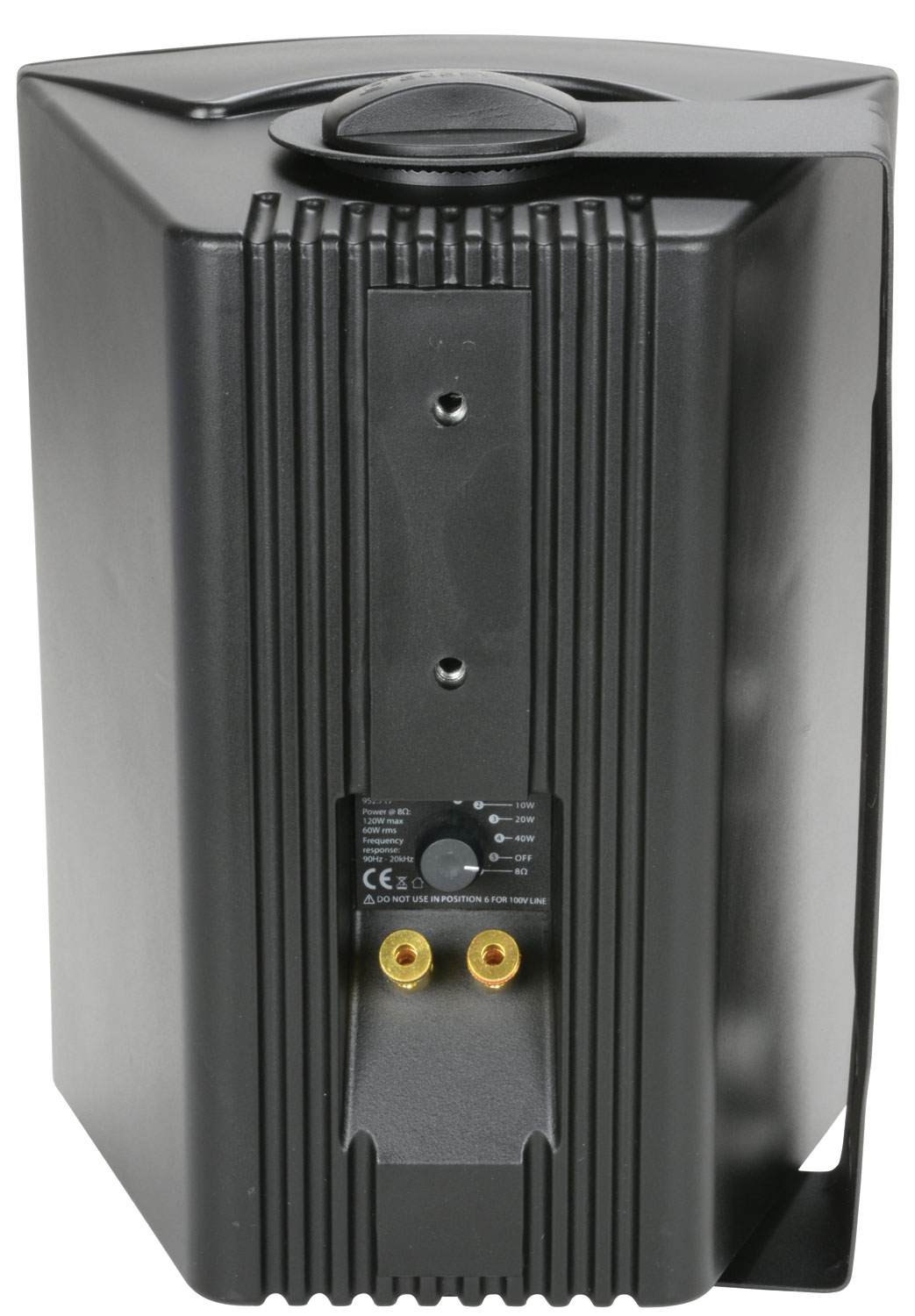

- Rotary selector switch for 100V line tappings or 8 Ohms operation
- 2 way speaker system with crossover network
- Wall mounting bracket supplied
- Alternative M6 threaded mounting points
- Spring terminal connection
- Supplied singly
- Weight 3.08kg

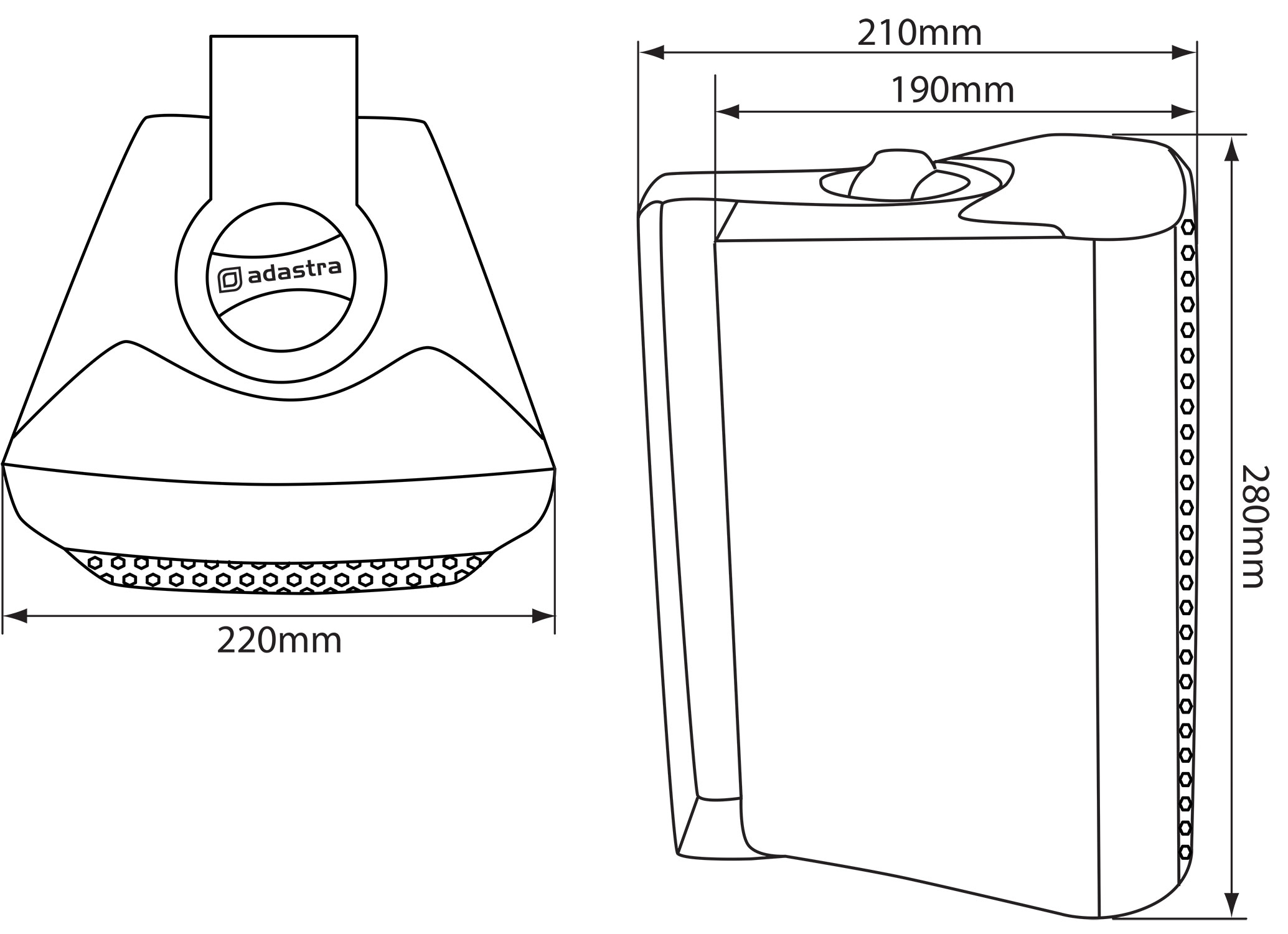

- Dimensions 220 x 280 x 210mm
- Impedance : 100V 250, 500, 1k, 2k Ohms
- Tappings 40W, 20W, 10W, 5W + 8 Ohms
- SPL @ 1W/1m 89dB
- Power rms : 8 Ohms 60W
- Power max. : 8 Ohms 120W
- Frequency response 90Hz - 20kHz
- Frequency response 90Hz - 20kHz
- Tweeter 25mm (1'') balanced dome
- Woofer 165mmØ (6.5'') reinforced paper cone
- Colour Black
- Model BC6V-B
- Connection Spring terminals
In the Box
- BC-series indoor 100V PA speaker
- Wall-mounting bracket
- 2 x cap screws
