SL Series - Slimline Ceiling Speakers
6.5" pair
952.548UK
SL6
High-grade ceiling speaker offering a premium quality sound delivery system. Quick and neat installation with sleek edge profile. more
- Minimal profile edge
- Full range sound reproduction
- Sleek, understated profile
- Efficient 2-way crossover network
SL Series - Slimline Ceiling Speakers
High-grade ceiling speakers featuring a hi-flex main driver for full range output with extended low frequency response. Both 5.25" and 6.5" models add a mylar tweeter unit for accurate HF reproduction. Quick fit spring clamps or 'dog-ear' mounts enable easy installation, resulting in a minimalist profile for a discreet and understated sound system.
- Efficient 2-way crossover network
- Gold-plated spring terminals
- Sleek, understated profile
- Flared baffle for wide dispersion
- 3 "dog-ear" mounts for SL5 and SL6
- 3 spring clips for SL4
- 2 spring clips for SL3
- Supplied in pairs
- Weight (each) 1.50kg

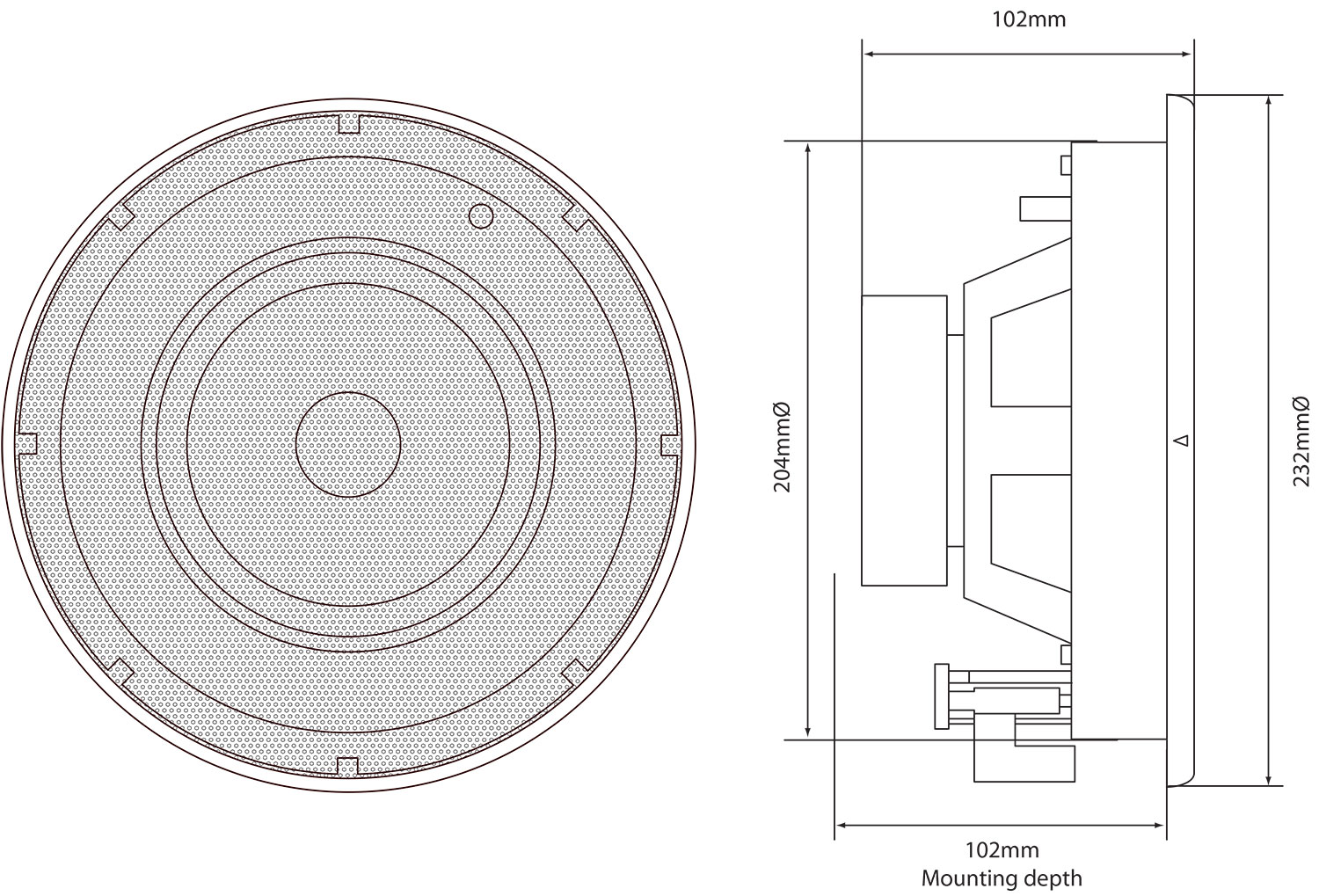

- Dimensions (each) 102 x 232mmØ
- SPL @ 1W/1m 89dB
- Mounting depth 102mm
- Cutout 204mmØ
- Power rms 40W
- Frequency response 40Hz - 20kHz
- Crossover frequency 4.5kHz
- Tweeter 12mmØ (0.5") mylar dome
- Woofer 165mmØ (6.5") PP cone
- Impedance 8 ohms
- Dispersion angle 160°
In the Box
- Pair of SL ceiling speakers
