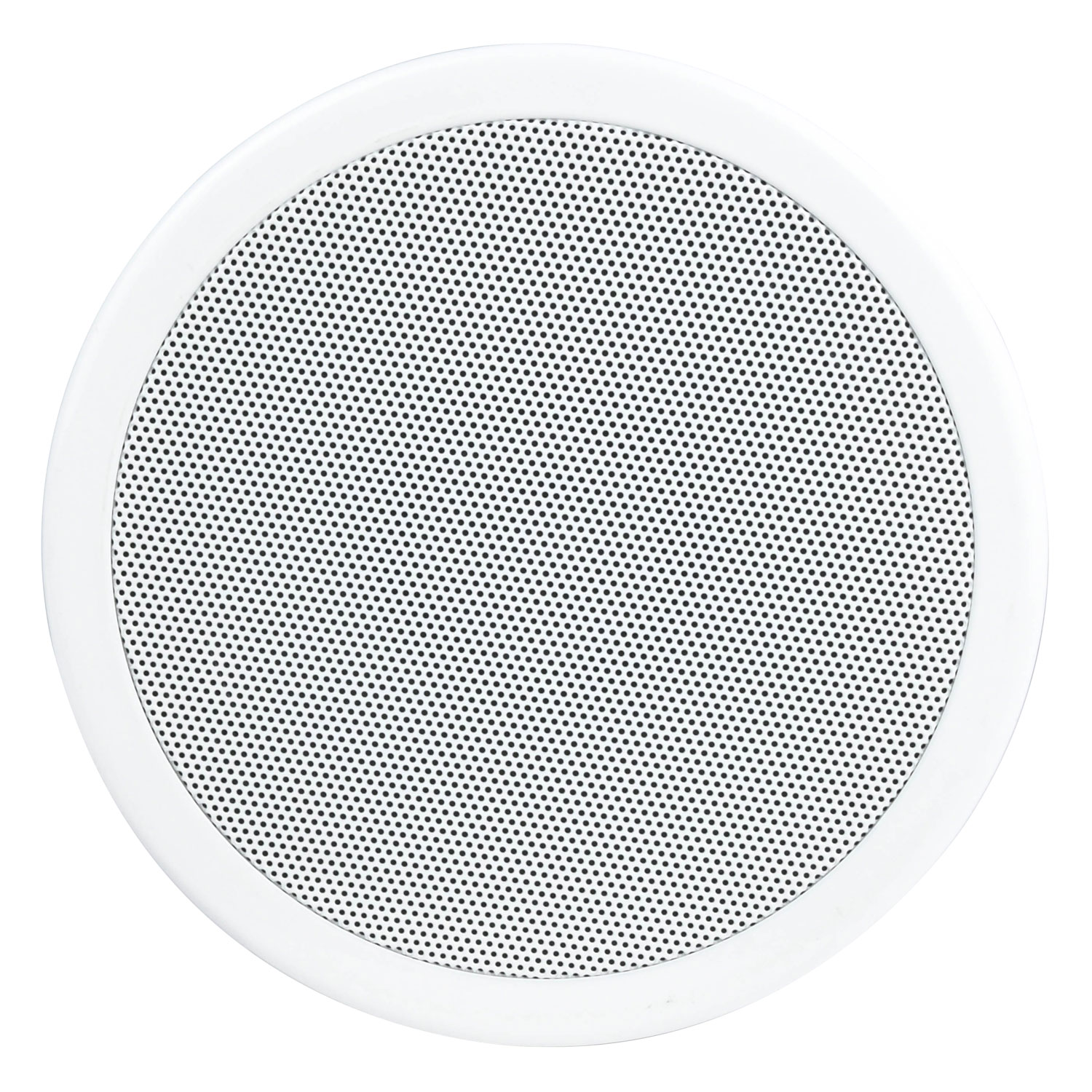

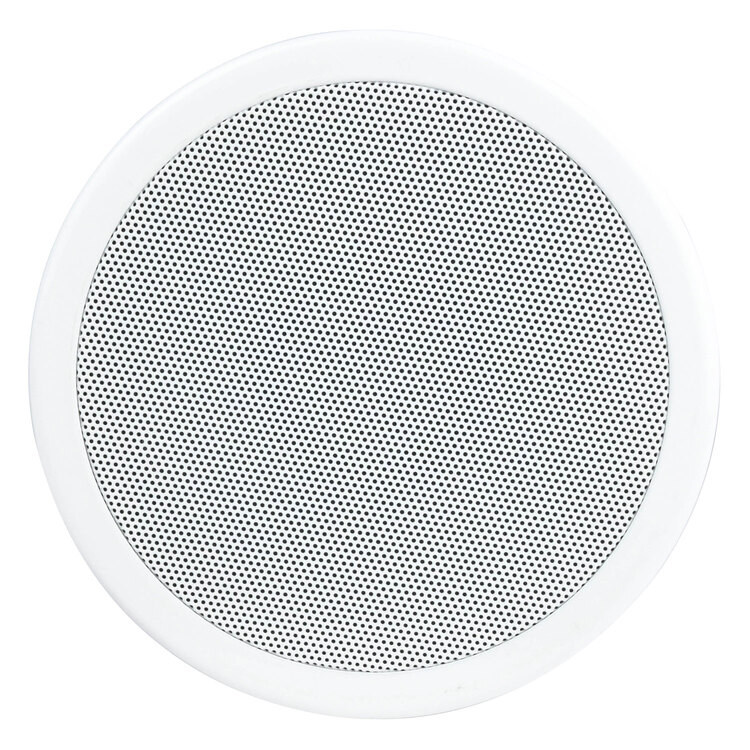

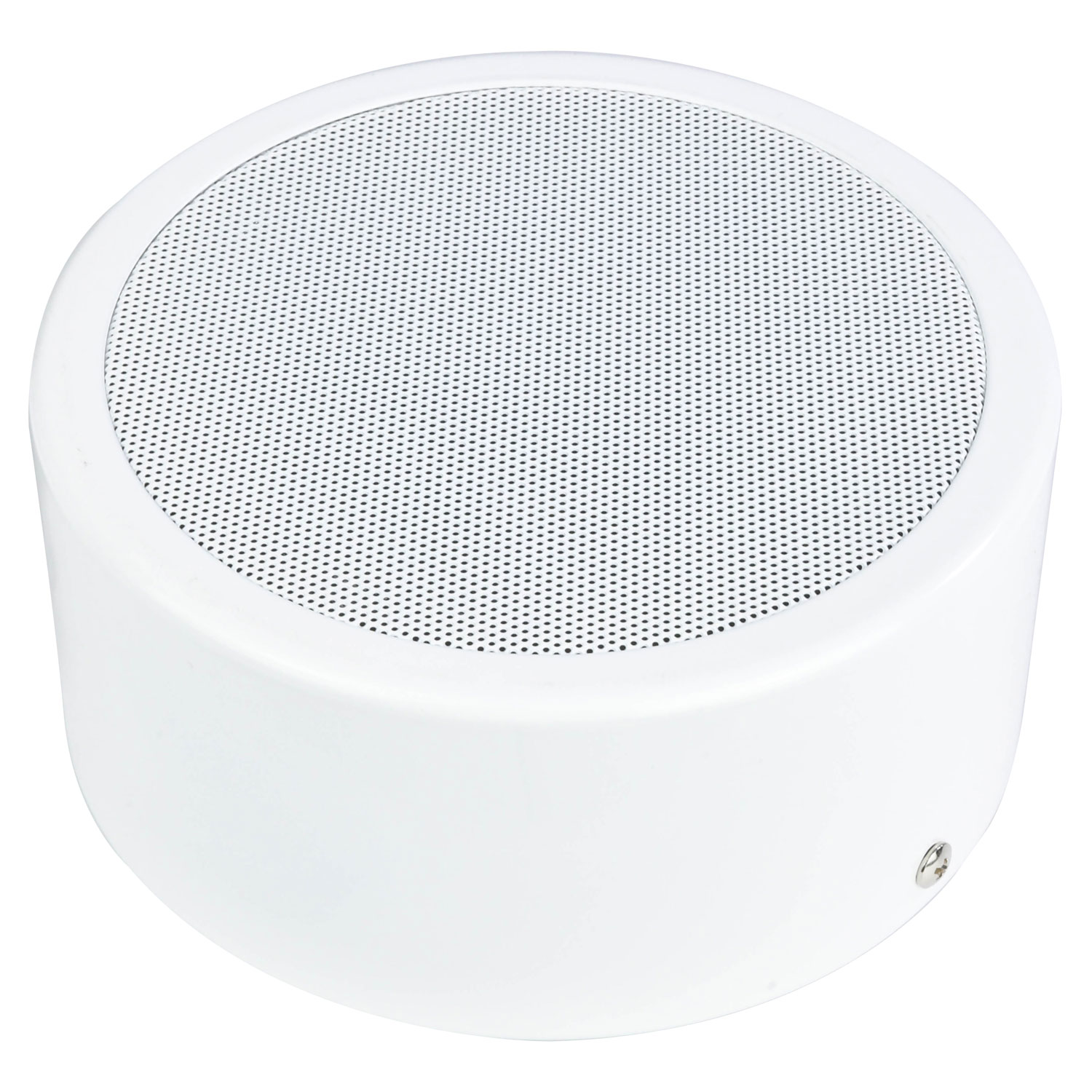

CS-6F Fire-rated Surface Speaker 6.5in - 100V
CS-6F
CS-6F is a fire-rated ceiling or wall speaker in a powder-coated steel enclosure that is surface-mounted through an internal cross-bar assembly. This design offers convenient and discreet public… more
- Powder-coated steel enclosure
- Fire resistant EN54-24 compliant
- Removable surface-mounting bar
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
952.250UK
6.5in Surface EN54-24 Ceilng Speaker - 100V |
CS-6F | Box Label |
CS-6F Fire-rated Surface Speaker 6.5in - 100V

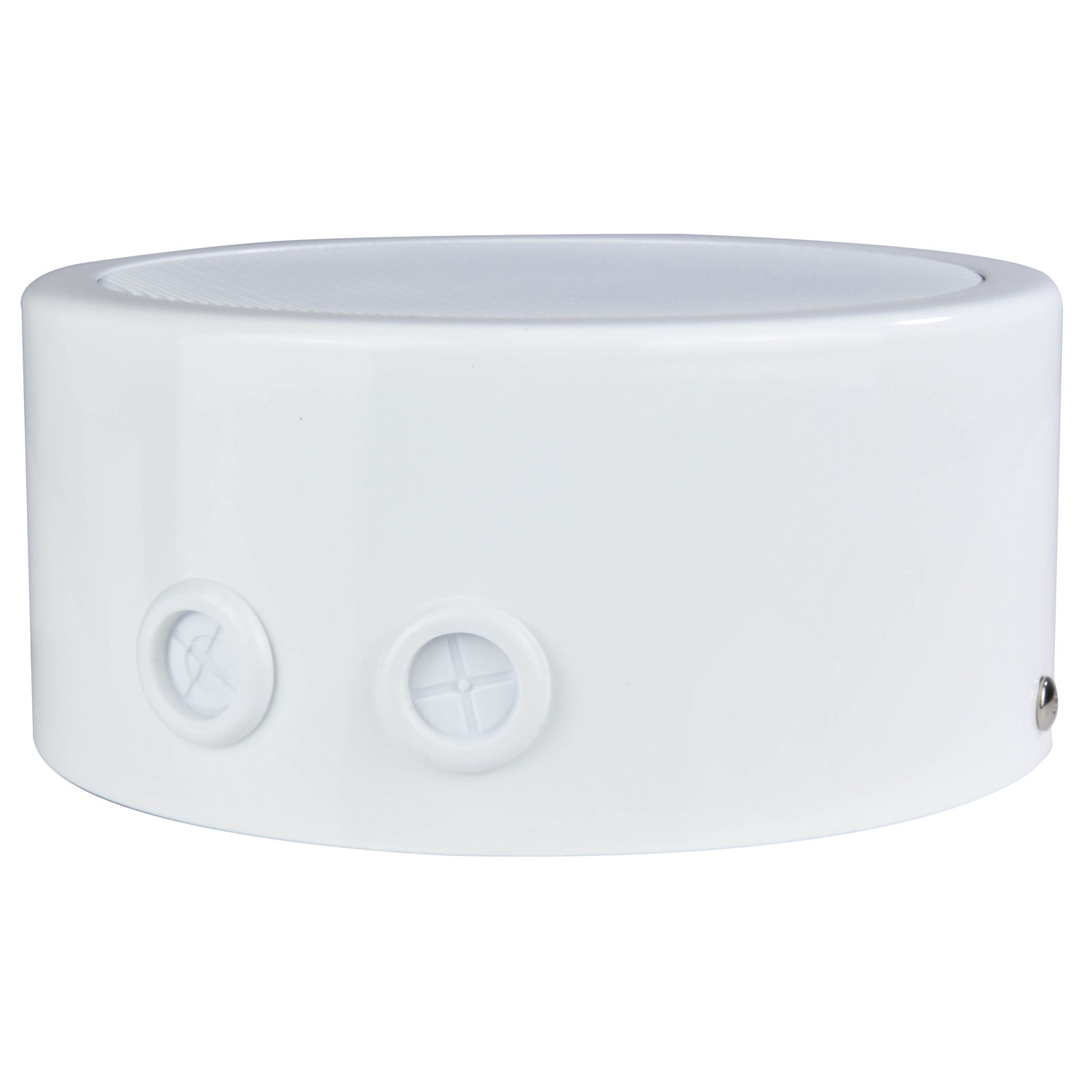

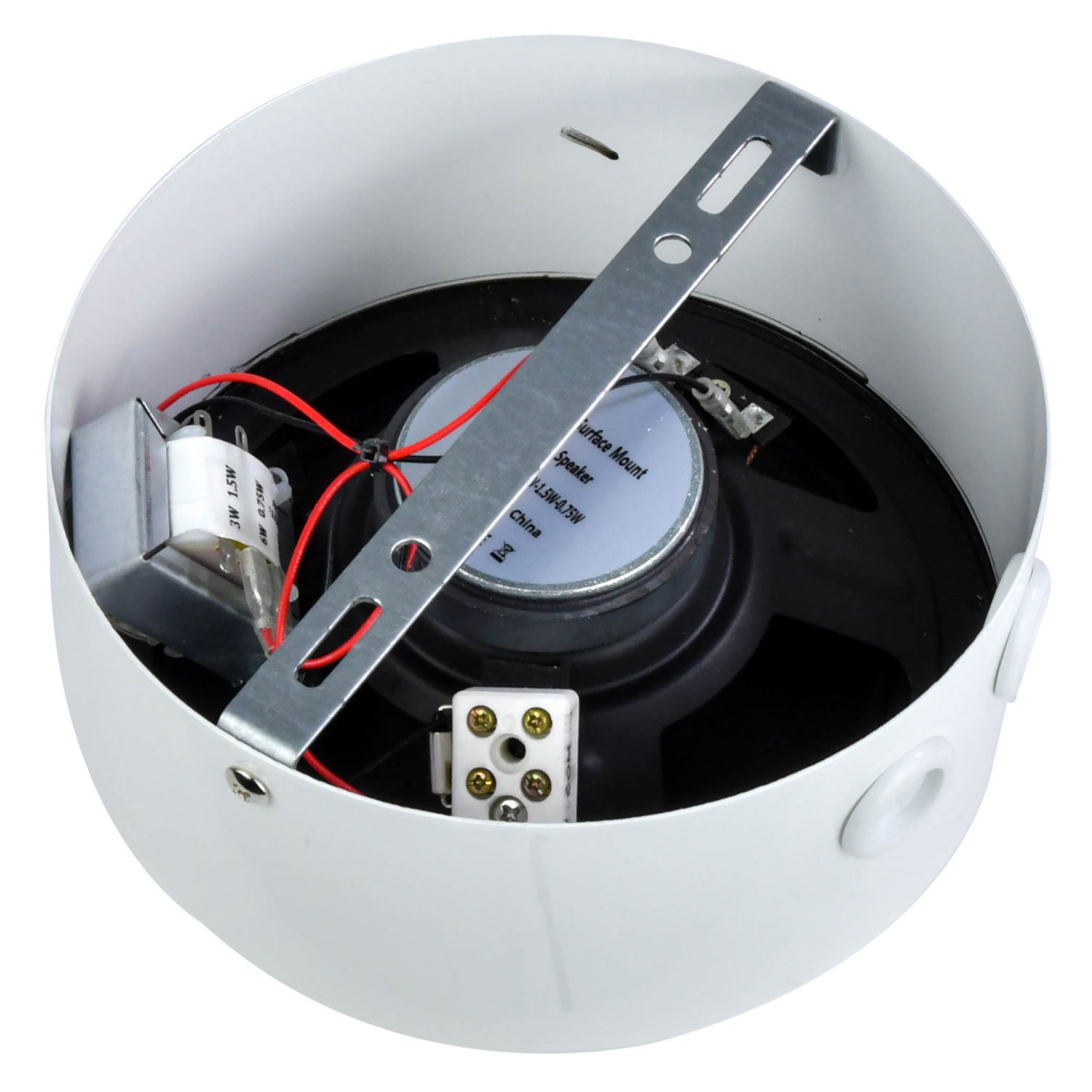

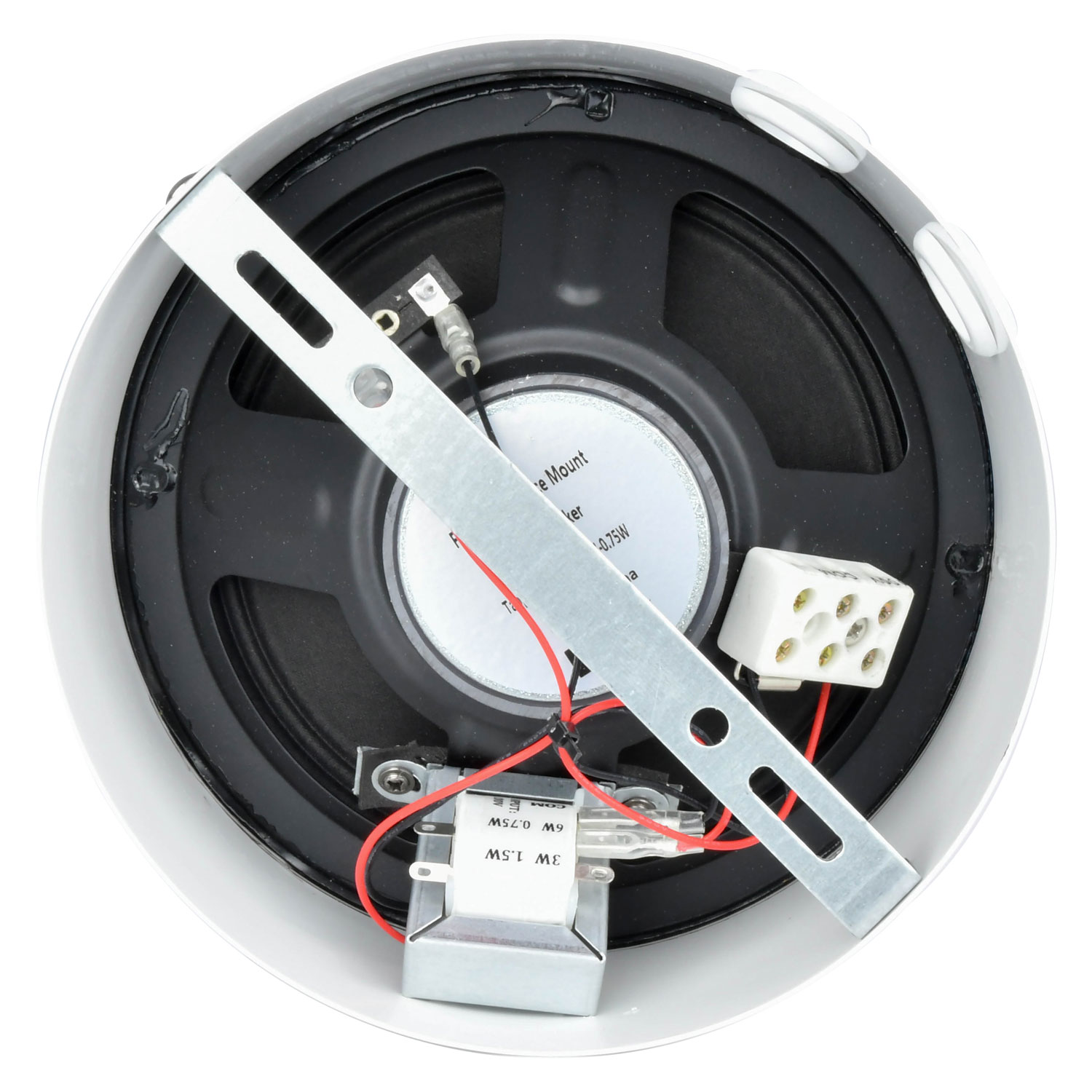

CS-6F is a fire-rated ceiling or wall speaker in a powder-coated steel enclosure that is surface-mounted through an internal cross-bar assembly. This design offers convenient and discreet public address coverage where recessed installation is not possible or may compromise a fire barrier. Internally, the 6.5" full-range driver is connected via a fire-resistant cable to a ceramic terminal block, thermal fuse, and 100V transformer. Cable access is via gland knock-out holes. Fully certified to EN54-24 for use in fire-rated commercial installations.
- Powder-coated steel enclosure
- Fire resistant EN54-24 compliant
- Removable surface-mounting bar
- Ceramic terminal block and thermal fuse fitted.
- Construction Powder-coated steel housing and grille
- Driver 165mmØ (6.5") full range woofer
- Tappings 0.75W, 1.5W, 3W, 6W
- Sensitivity 93dB (1W/1m)
- Frequency response 150Hz-20kHz
- Impedance 8 ohms
- Approvals EN54-24
- Dimensions 76 x 170mmØ
- Weight 910g
In the Box
- CS-6F surface-mount 100V speaker
