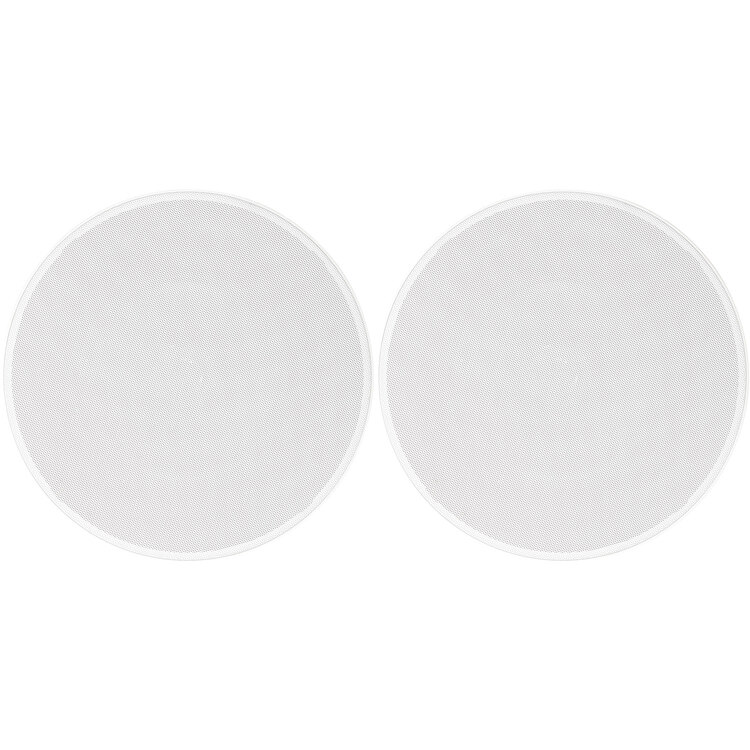

2 Way Low Profile 100V Line Ceiling Speakers
6.5"
952.261UK
LP6V
2-way ceiling speakers with flared baffle and a low profile magnetic grille. The main driver with concentric directional tweeter is operated via a rotary control with 5 x 100V volume tappings and an 8… more
- Rotary selector switch for 100V line tappings or 8 Ohms
- Magnetic frameless grille
- Fitted with "dog-ear" mounts for fixing to suspended or false ceilings
2 Way Low Profile 100V Line Ceiling Speakers

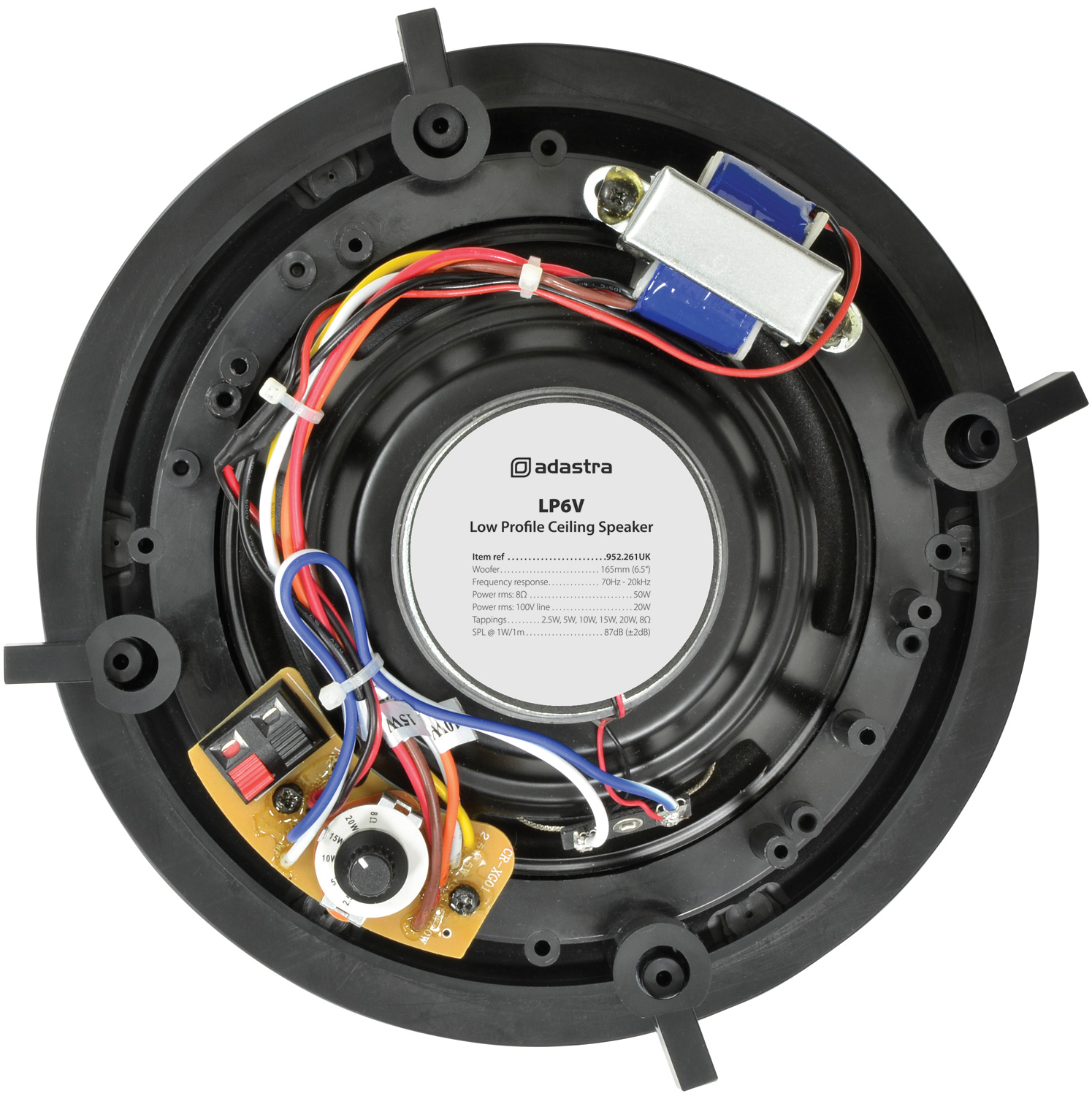

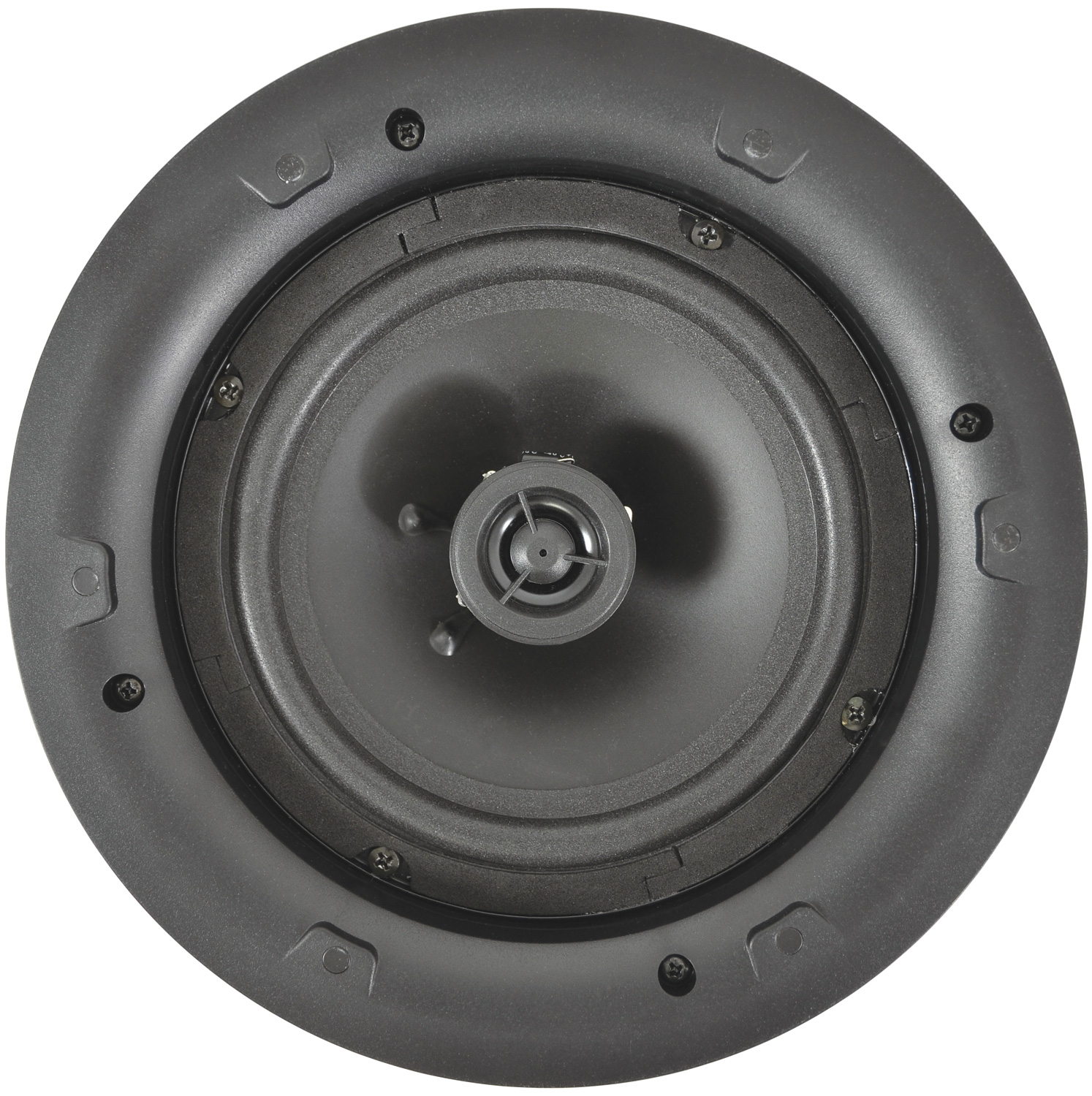

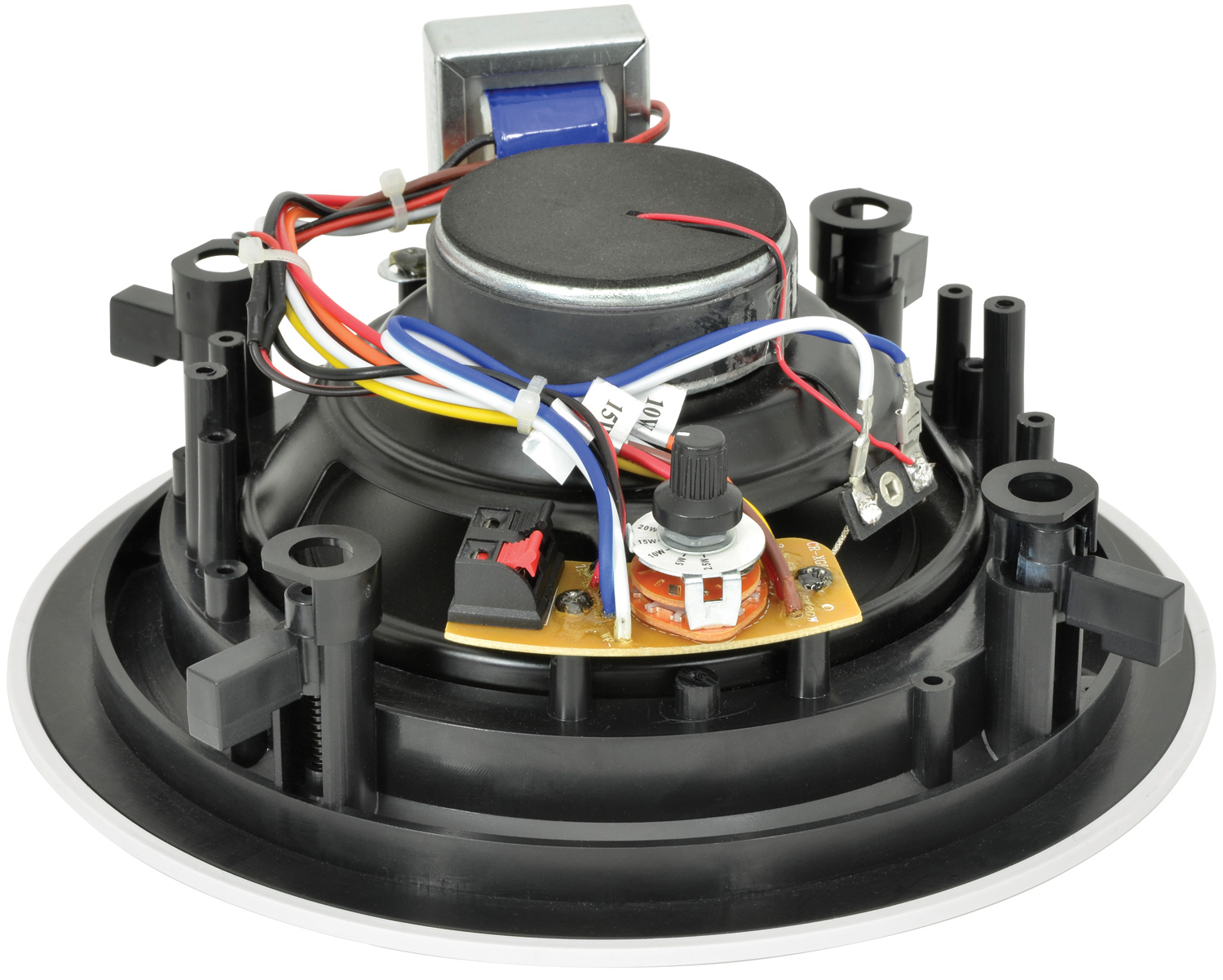

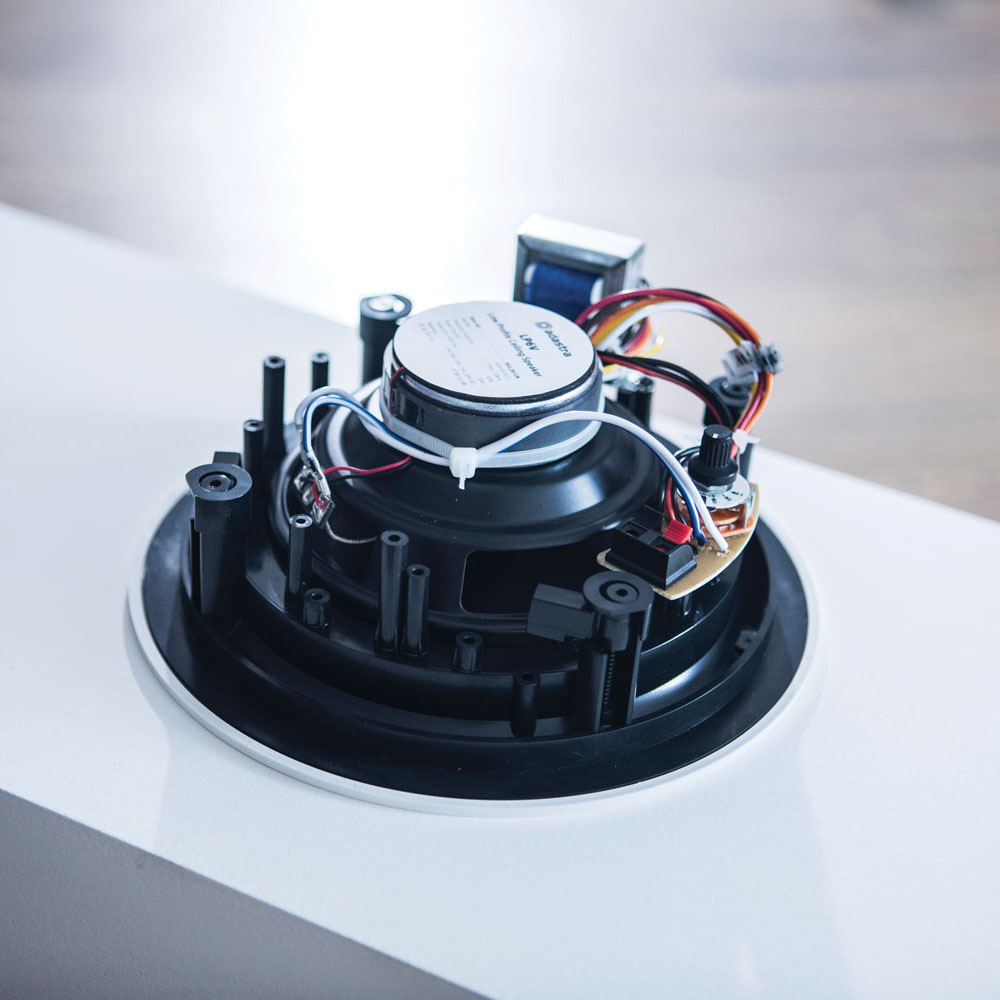

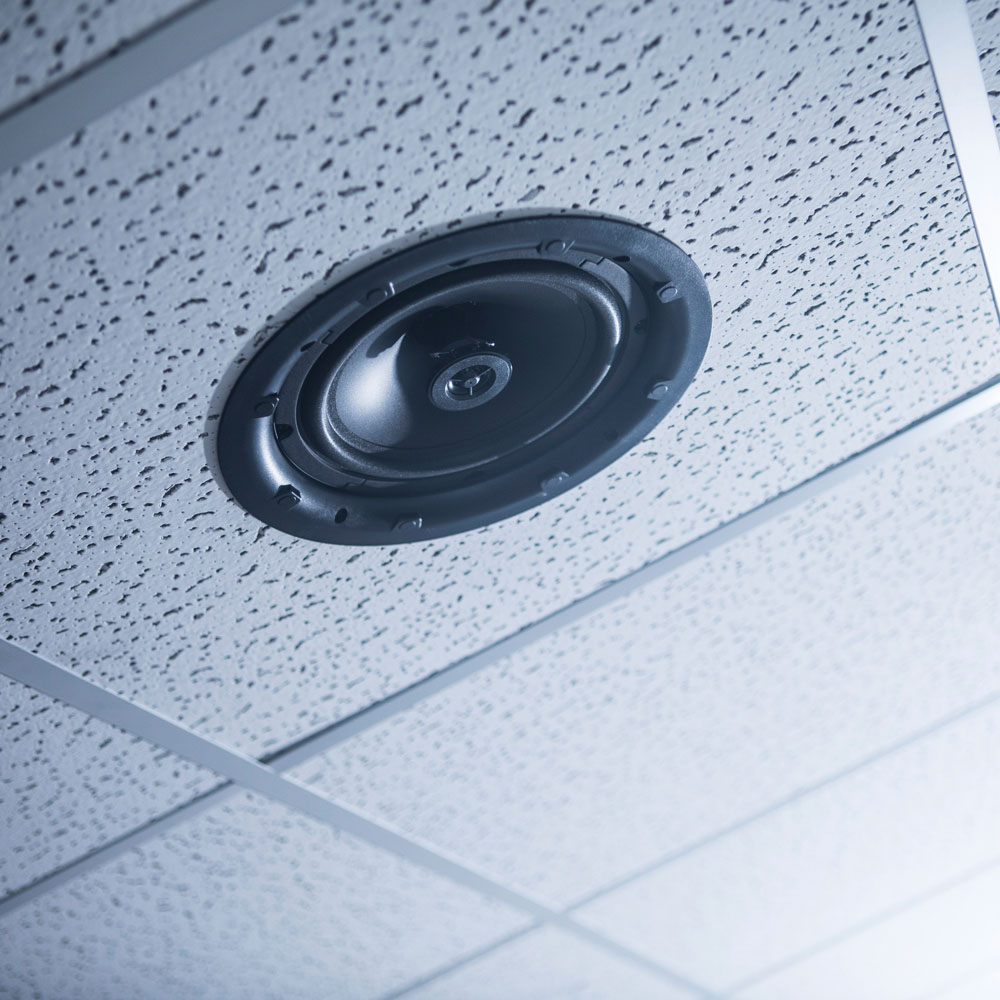

2-way ceiling speakers with flared baffle and a low profile magnetic grille. The main driver with concentric directional tweeter is operated via a rotary control with 5 x 100V volume tappings and an 8 Ohms option. Mount into suspended or false ceilings using the 4 "dog-ear" mounts to achieve a discreet, high quality sound installation.
- Rotary selector switch for 100V line tappings or 8 Ohms

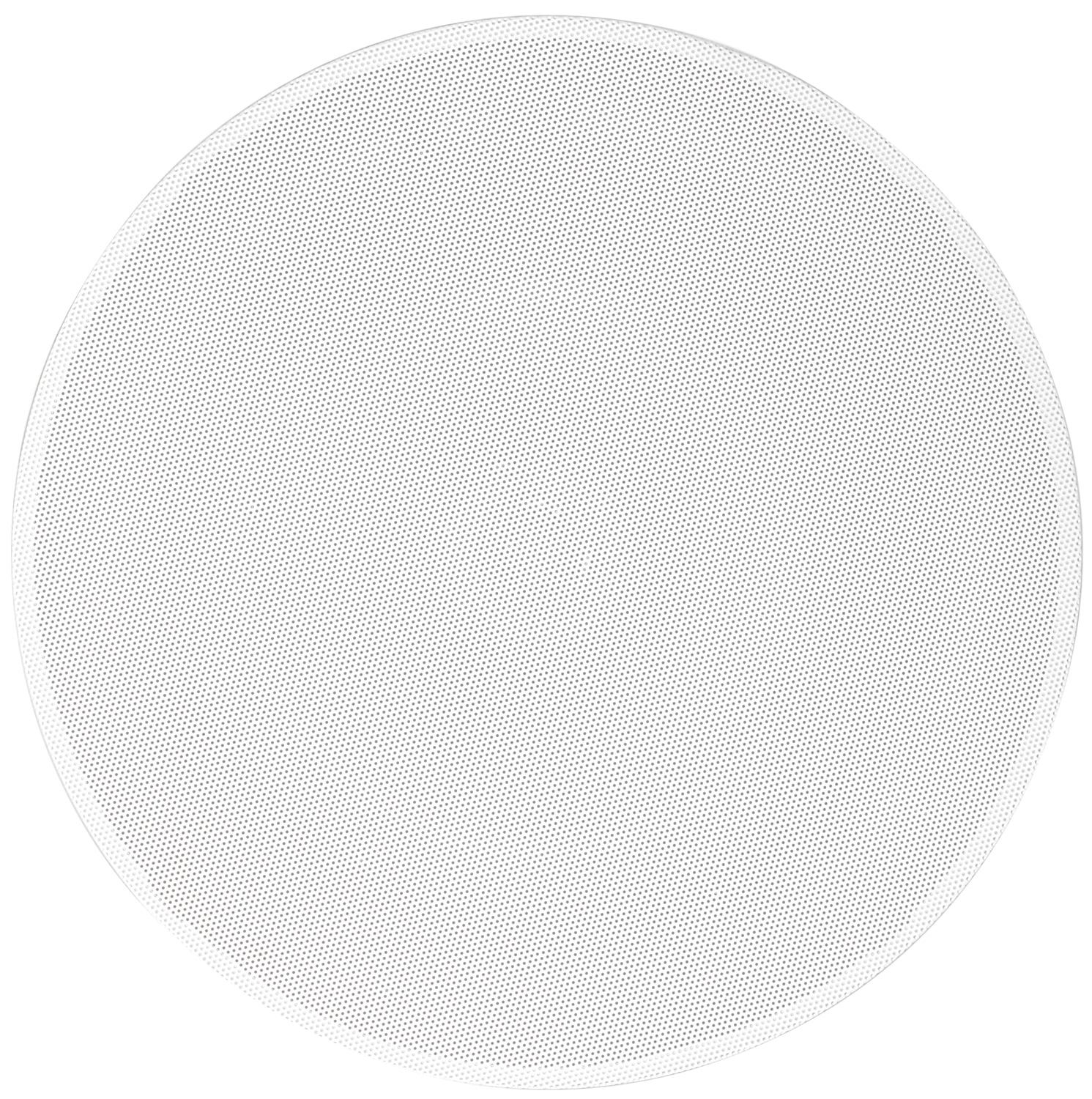

- Magnetic frameless grille
- Fitted with "dog-ear" mounts for fixing to suspended or false ceilings

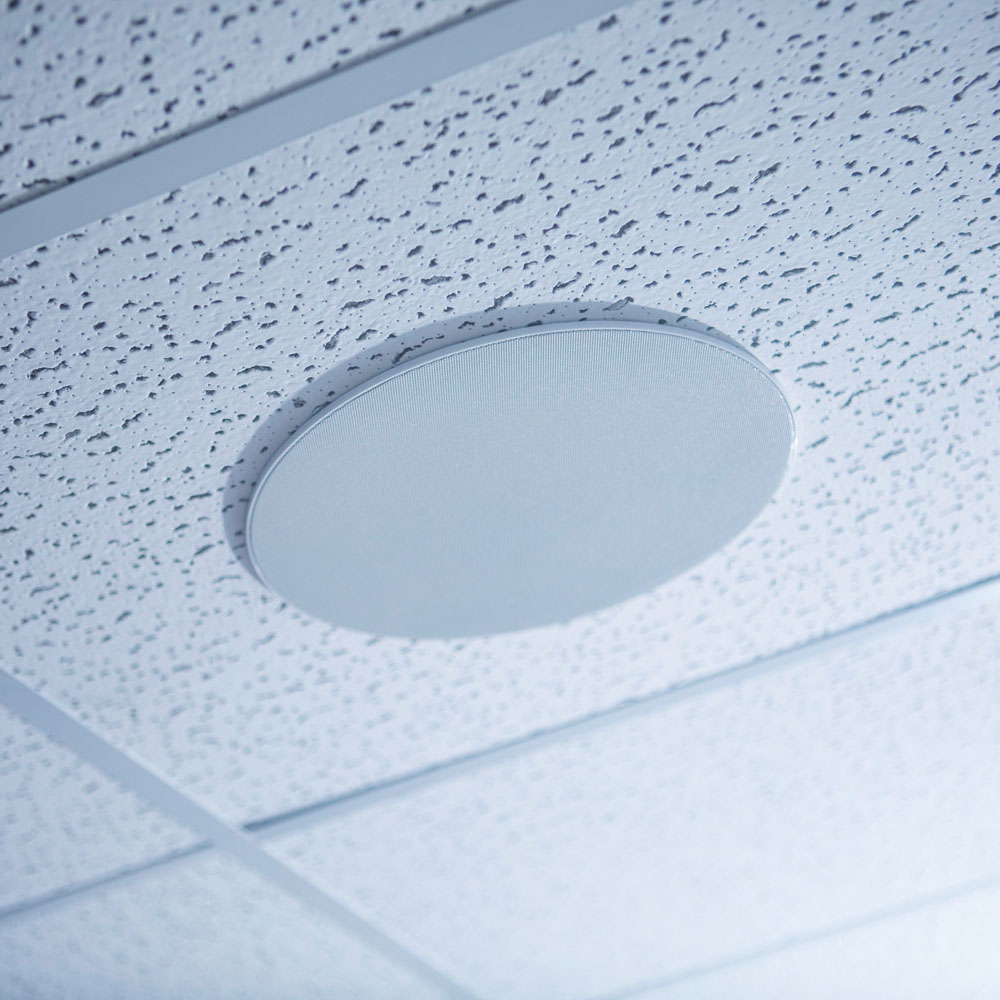

- Discreet, low profile installation
- Grille can be painted to match decor
- Supplied singly
- Weight 1.31kg
- Dimensions 102 x 232mmØ
- Operation temperature 2.5, 5, 10, 15, 20W & 8 ohms
- Sensitivity 87dB (±2dB, 1W/1m)
- Mounting depth 99mm
- Cutout diameter 202mmØ
- Power handling RMS 50W
- Power handling max. 100W
- Frequency response 70Hz-20kHz
- HF driver 38mmØ (1.5")
- LF driver 165mmØ (6.5")
- Dispersion angle 160°
In the Box

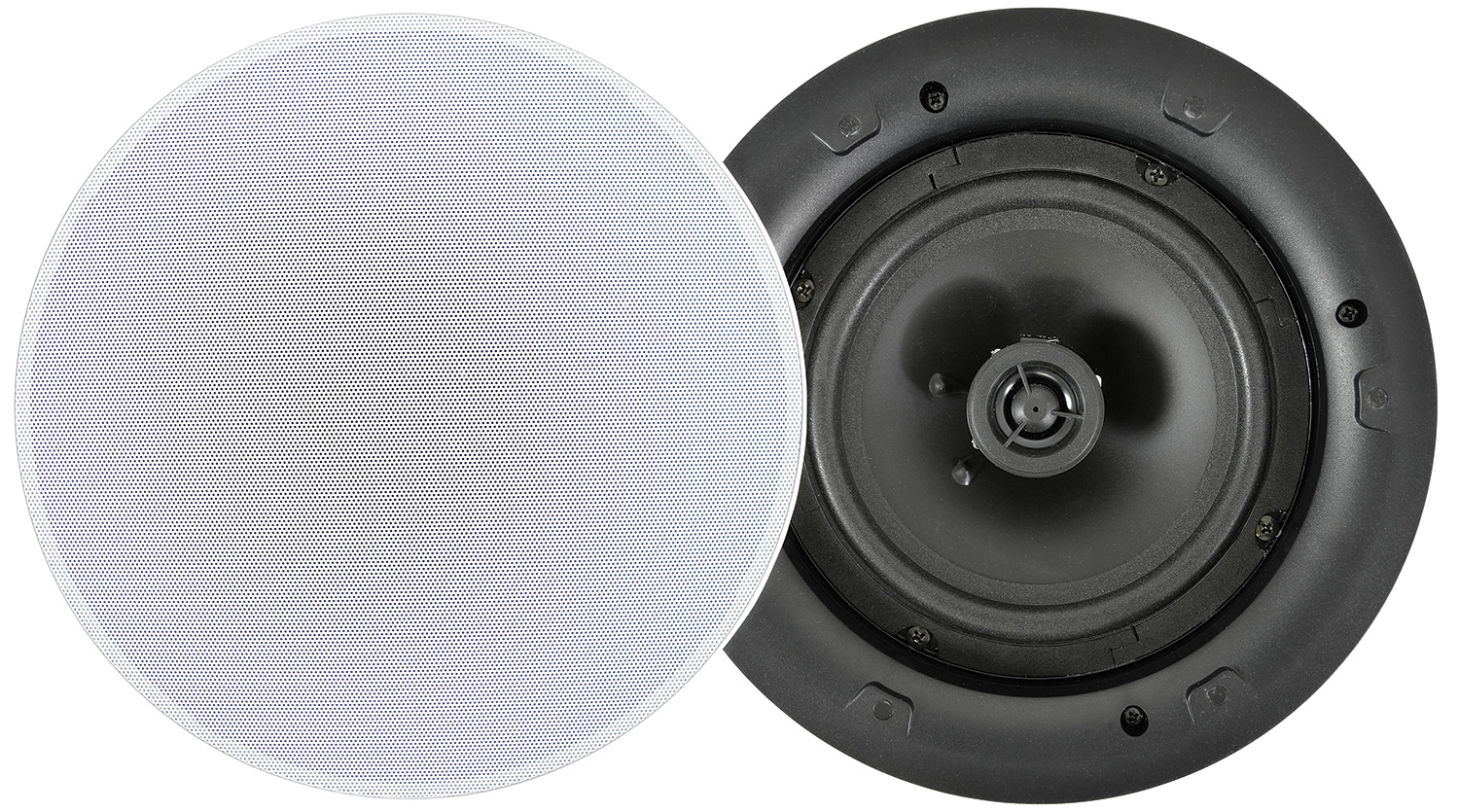

- Ceiling speaker with detachable grille
