Premium KV-series Ceiling Speakers

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV speaker is served by a full 2-way passive crossover network, providing an accurate and efficient frequency balance. Designed without compromise to deliver maximum power and quality from this class of ceiling speaker.

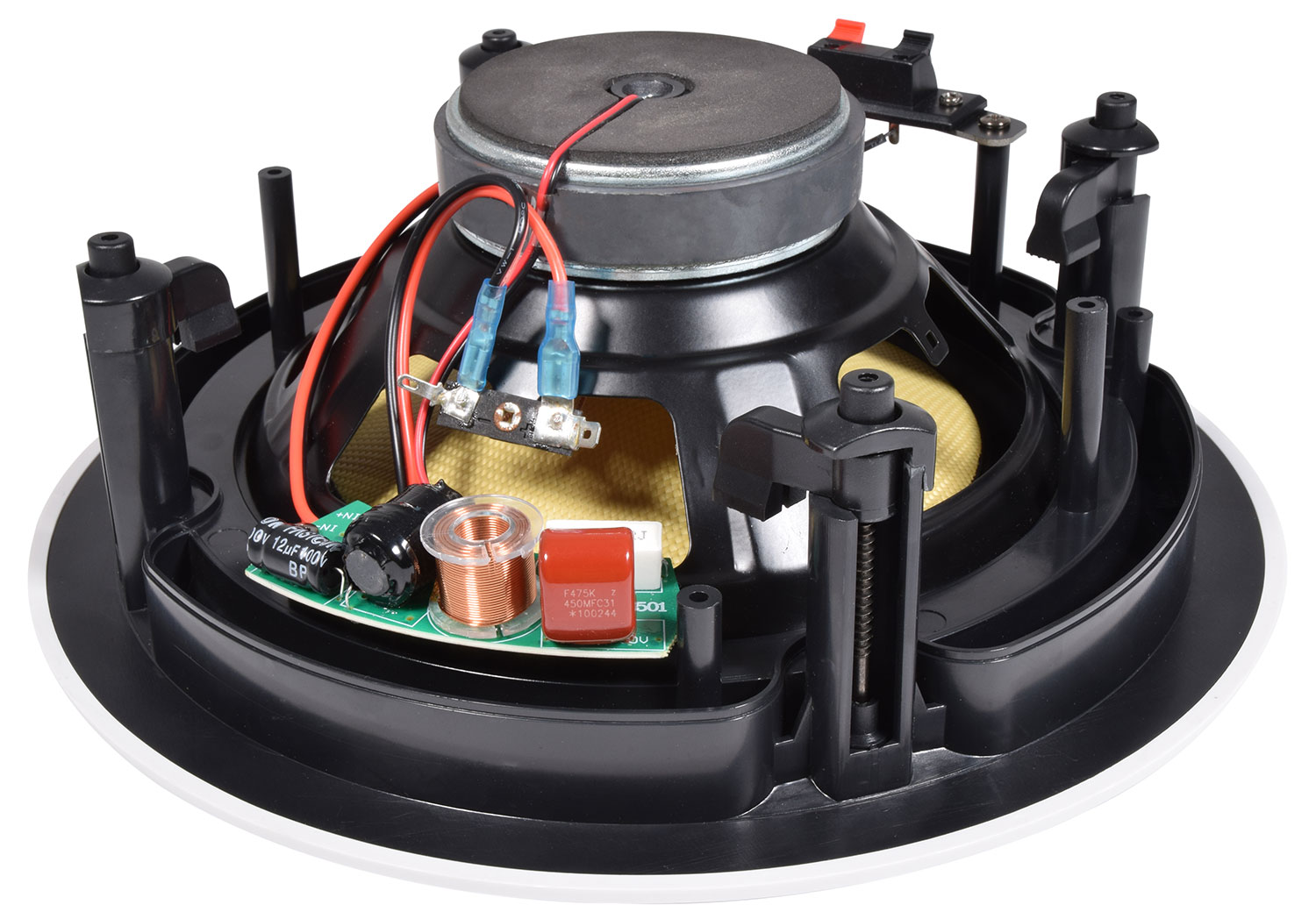

• Full 2-way passive crossover

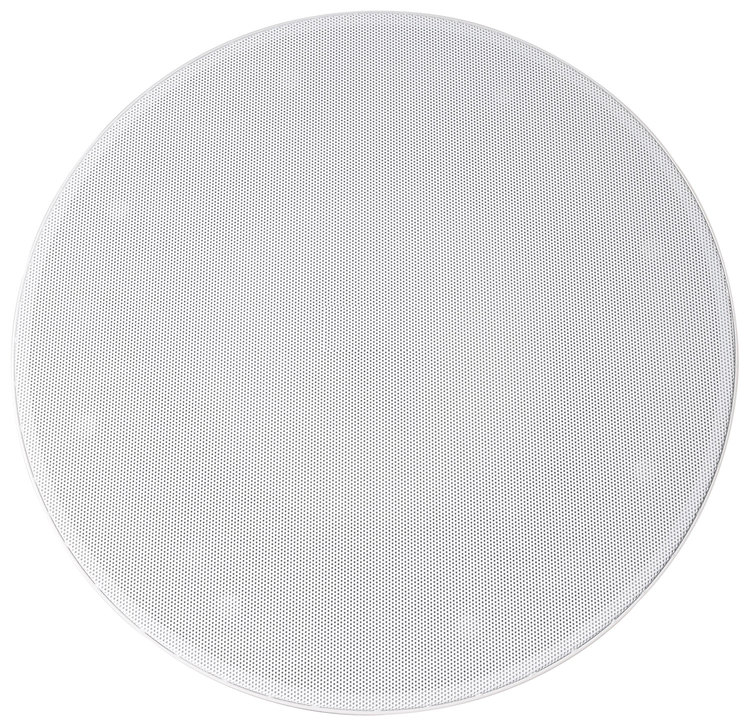

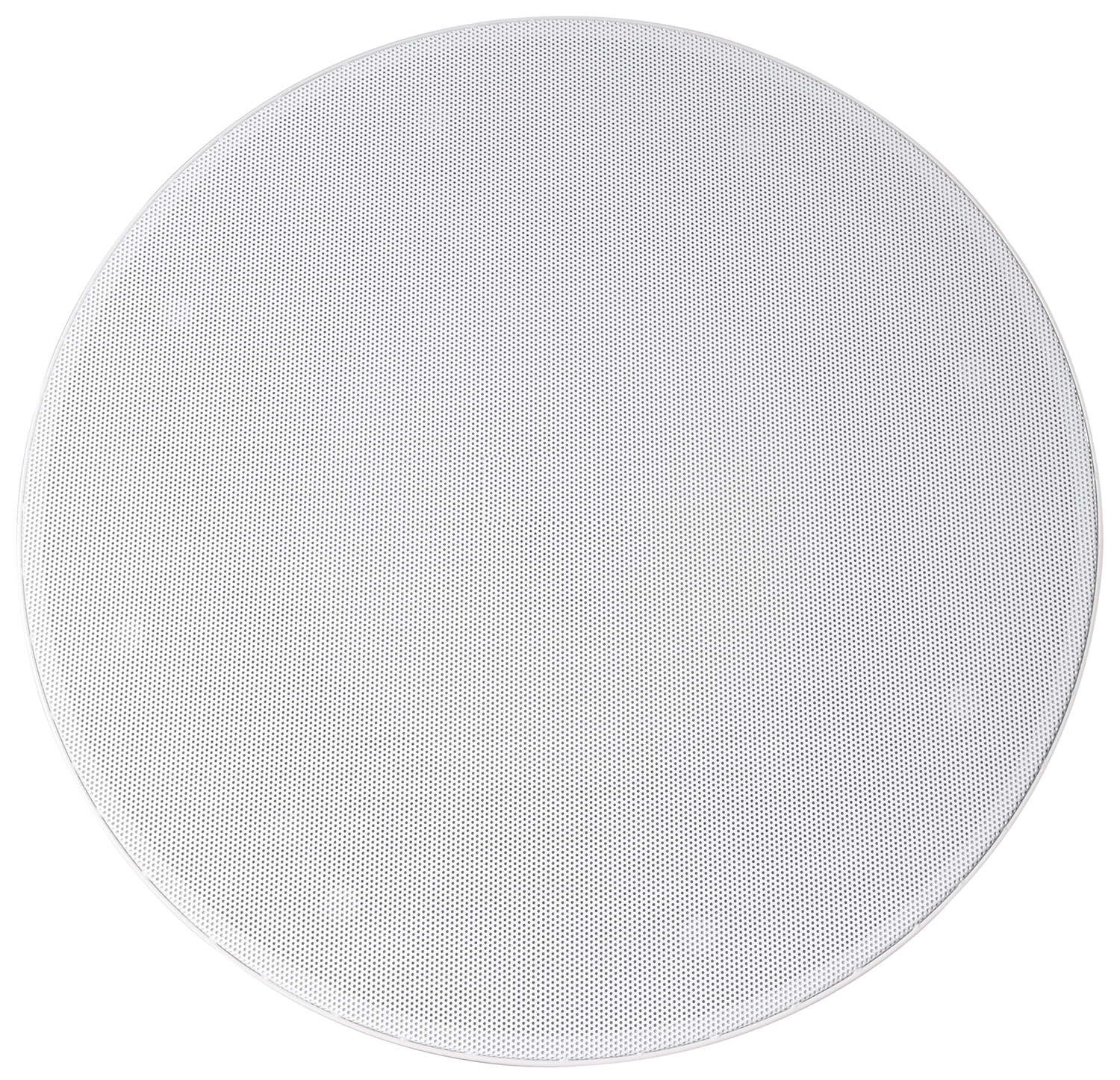

• Magnetic low profile steel grille
• Heavy duty glass-aramid cone
• Braced ABS basket with integral wave guide
• Supplied individually

• Weight 1.543kg
• Dimensions 110 x 281mmØ
• Mounting depth 110mm
• Cutout 255mmØ
• Max. SPL 105dB
• SPL @ 1W/1m 90dB
• Frequency response 50Hz - 20kHz
• Power handling : rms 40W
• Magnet weight 465g

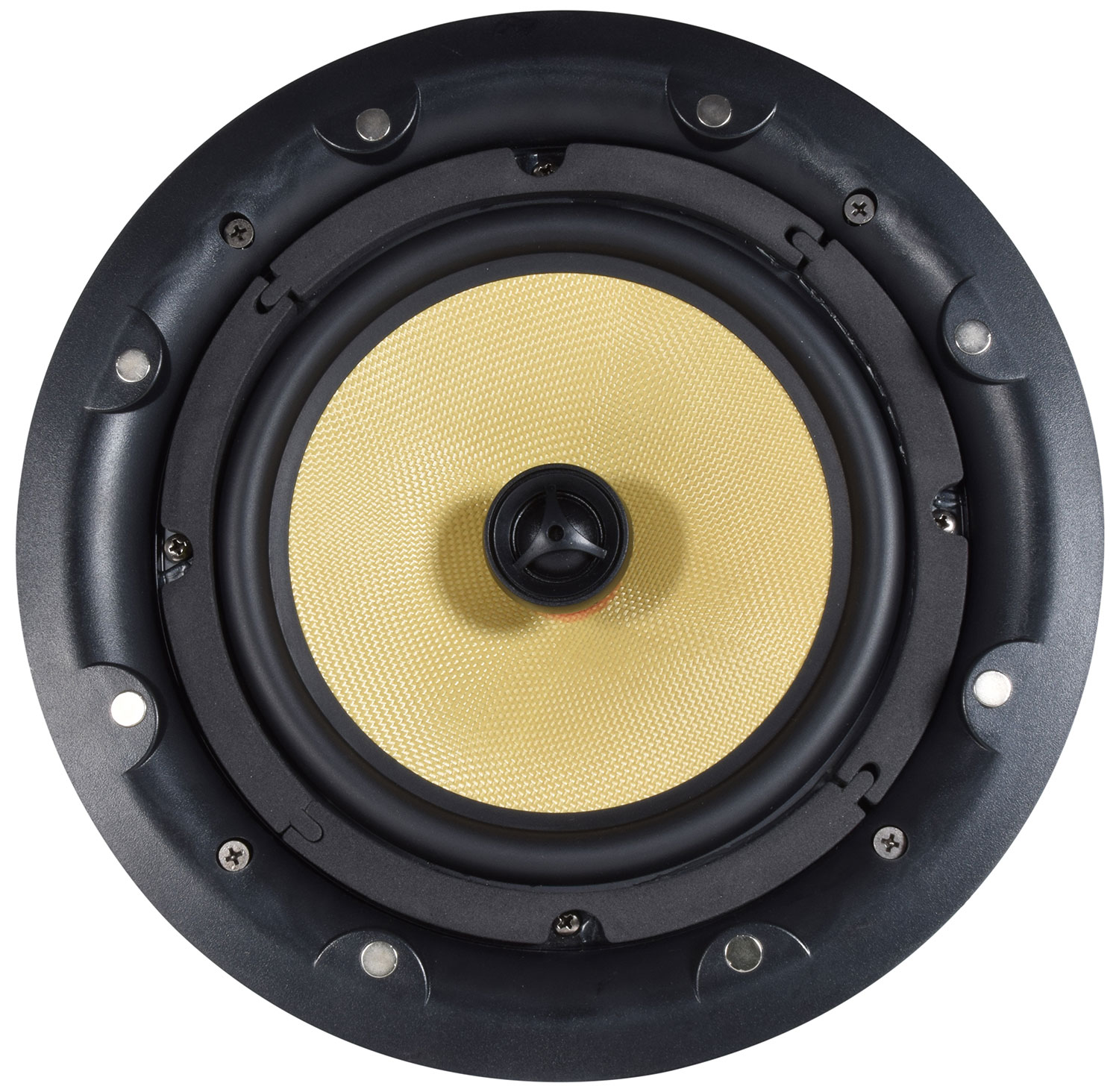

• Main driver 200mmØ (8") glass-aramid diaphragm
• Power handling : max 80W
• Construction ABS basket & powder coated steel grille
• Impedance 8 Ohms
• Dispersion angle 120°
• HF driver 25mmØ (1") ASV diaphragm
