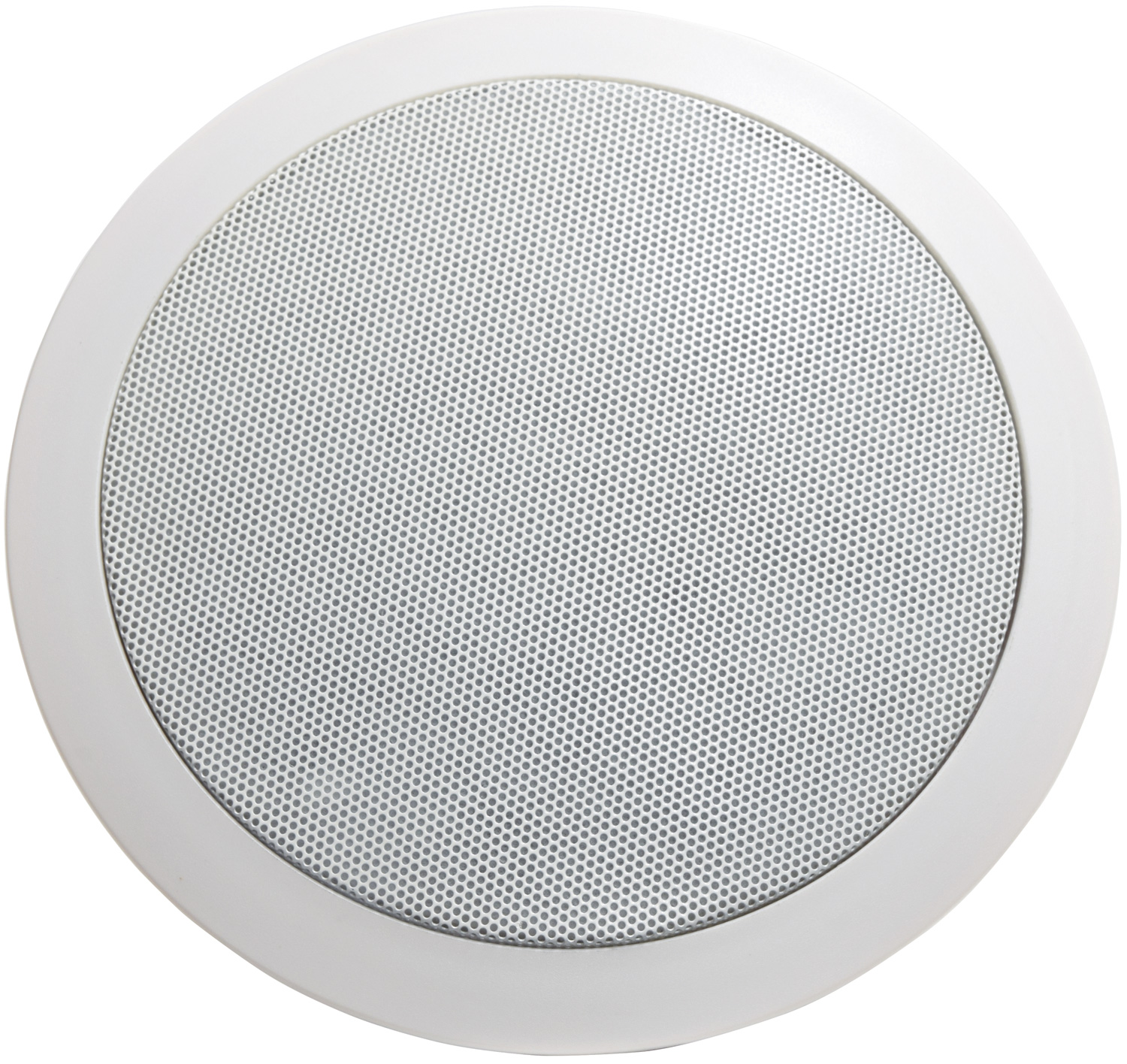

CC Series 2 Way 100V Ceiling Speakers
6.5"
952.153UK
CC6V

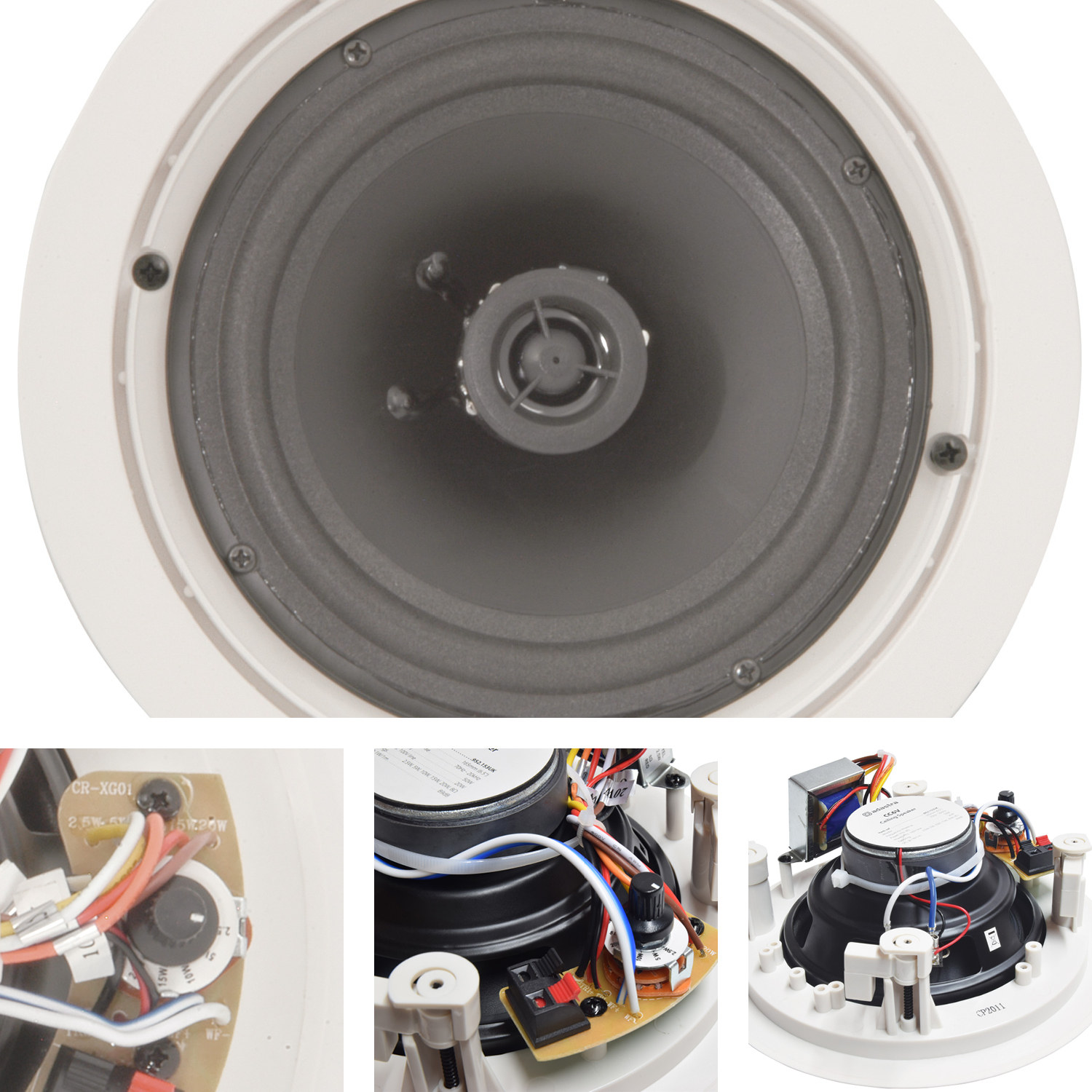

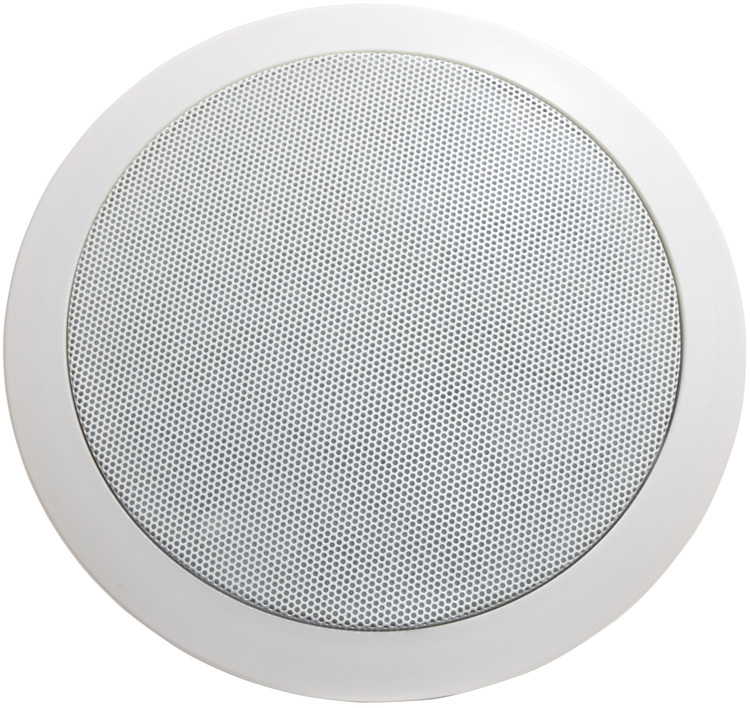

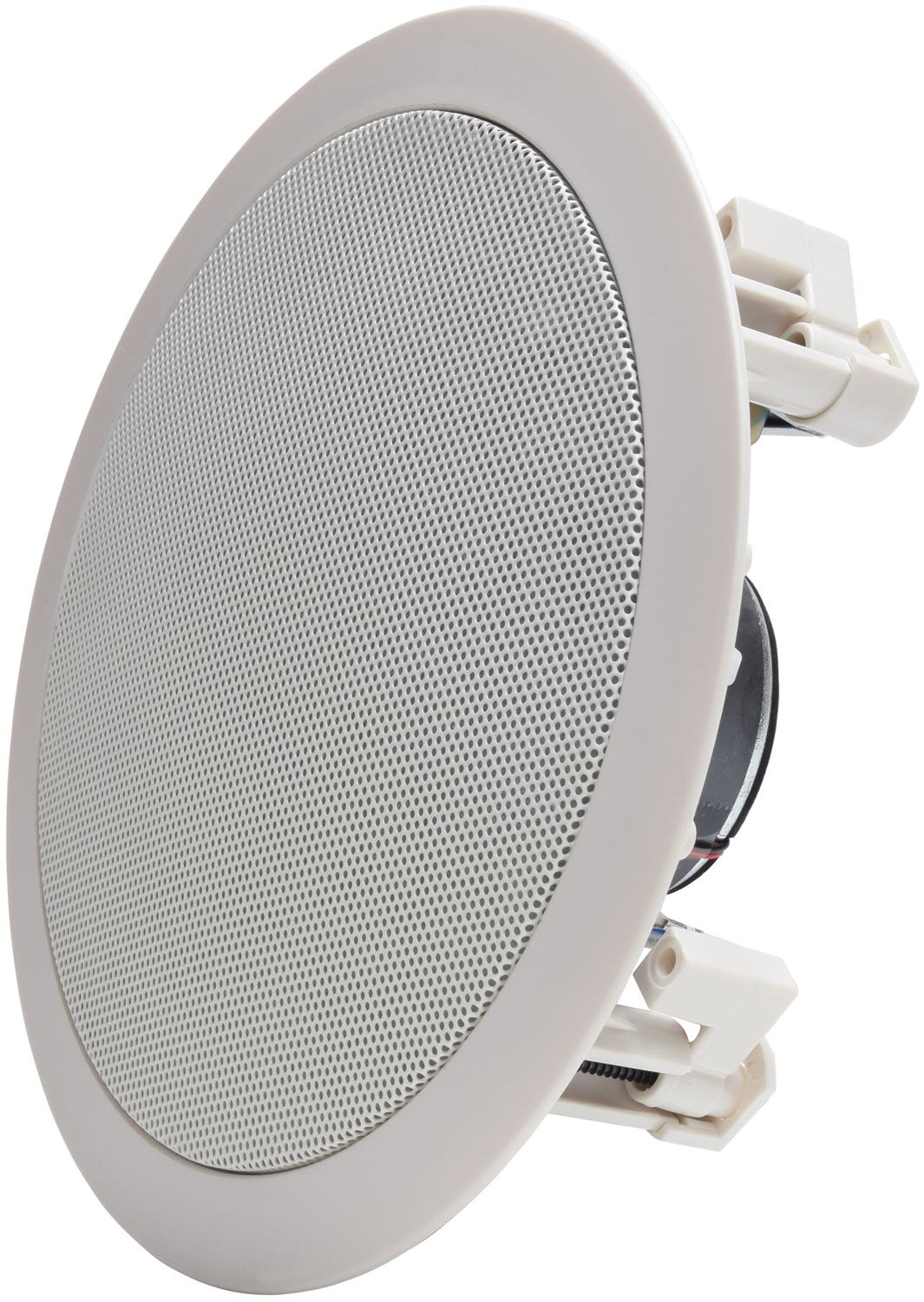

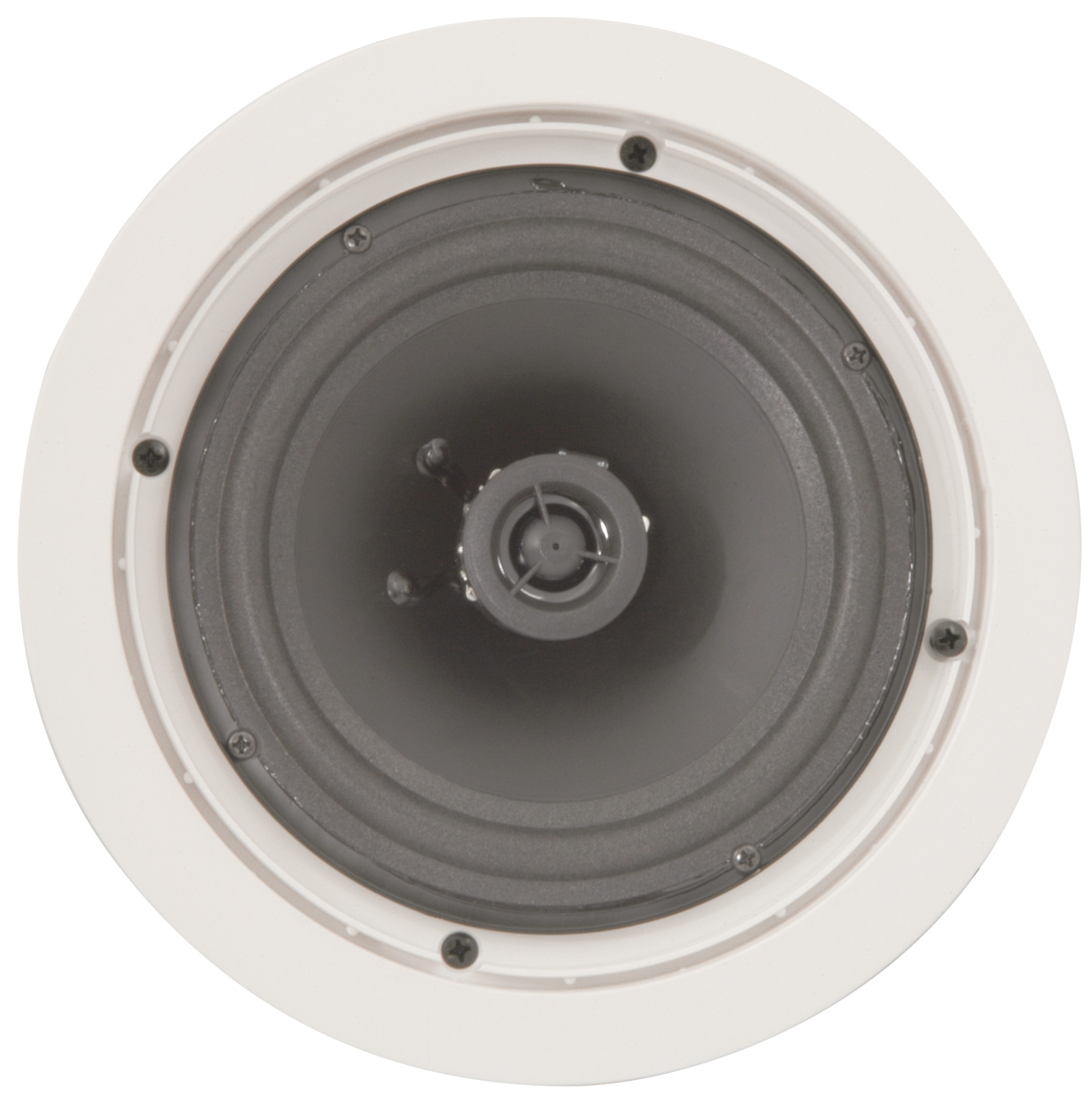

2-way quick fit ceiling speakers with PP mica bass driver and directional dome tweeter giving an excellent frequency response, all housed in a white polymer frame with metal grille. more

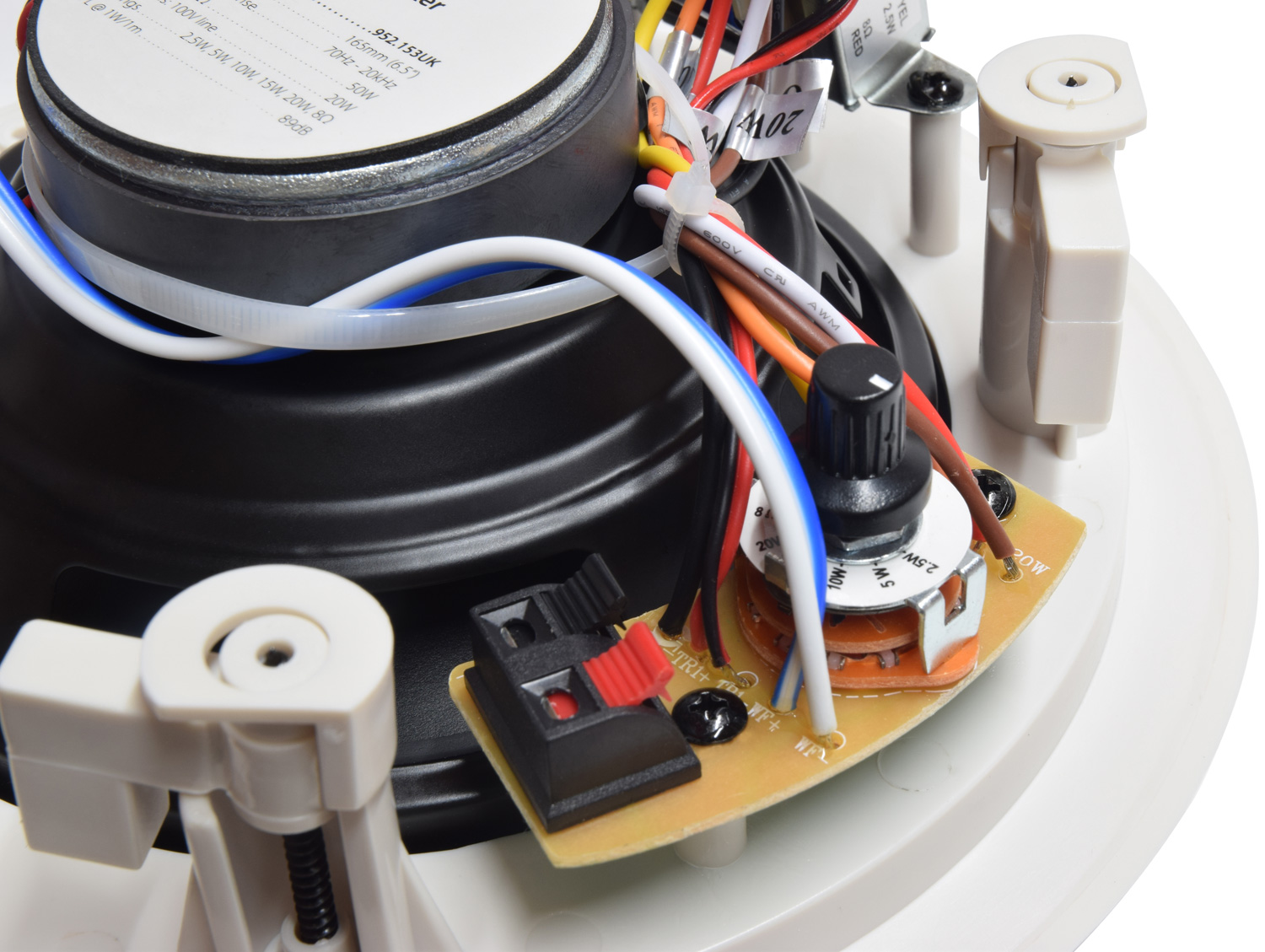

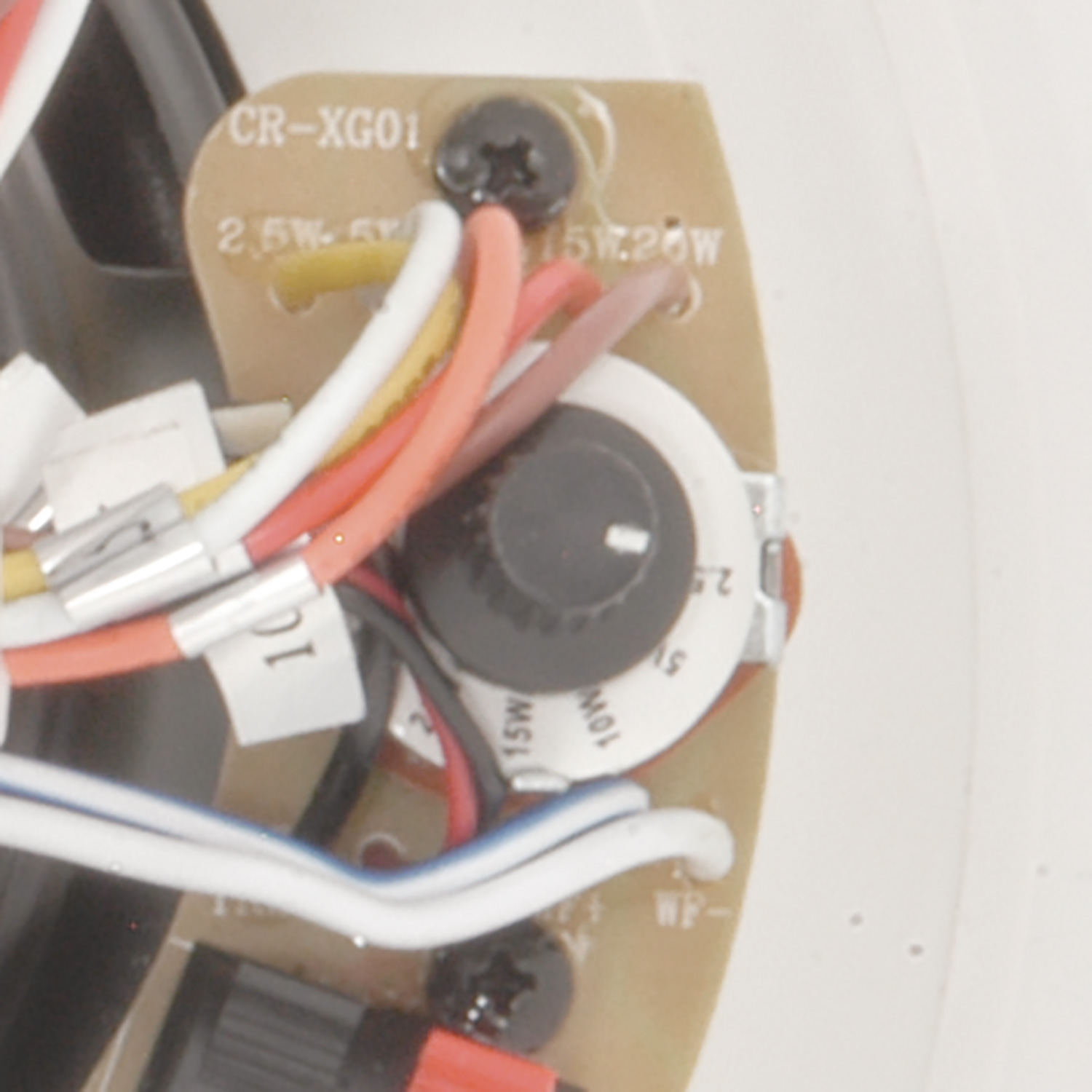

- Rotary selector switch for 100V line tappings or 8 Ohms

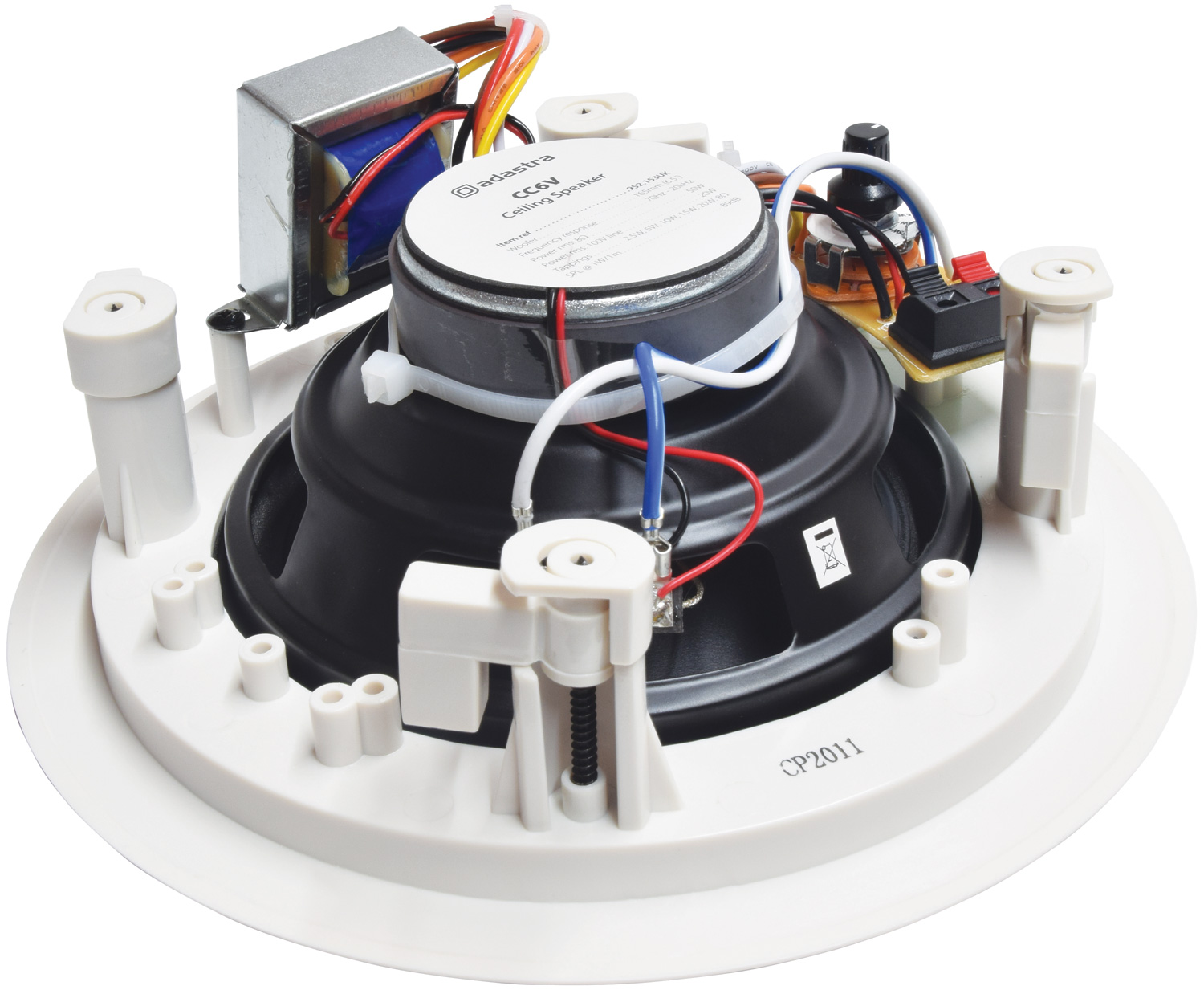

- Fitted with "dog-ear" mounts for fixing to ceiling tiles 1-20mm in thickness
- Spring loaded terminals for easy connection
CC Series 2 Way 100V Ceiling Speakers

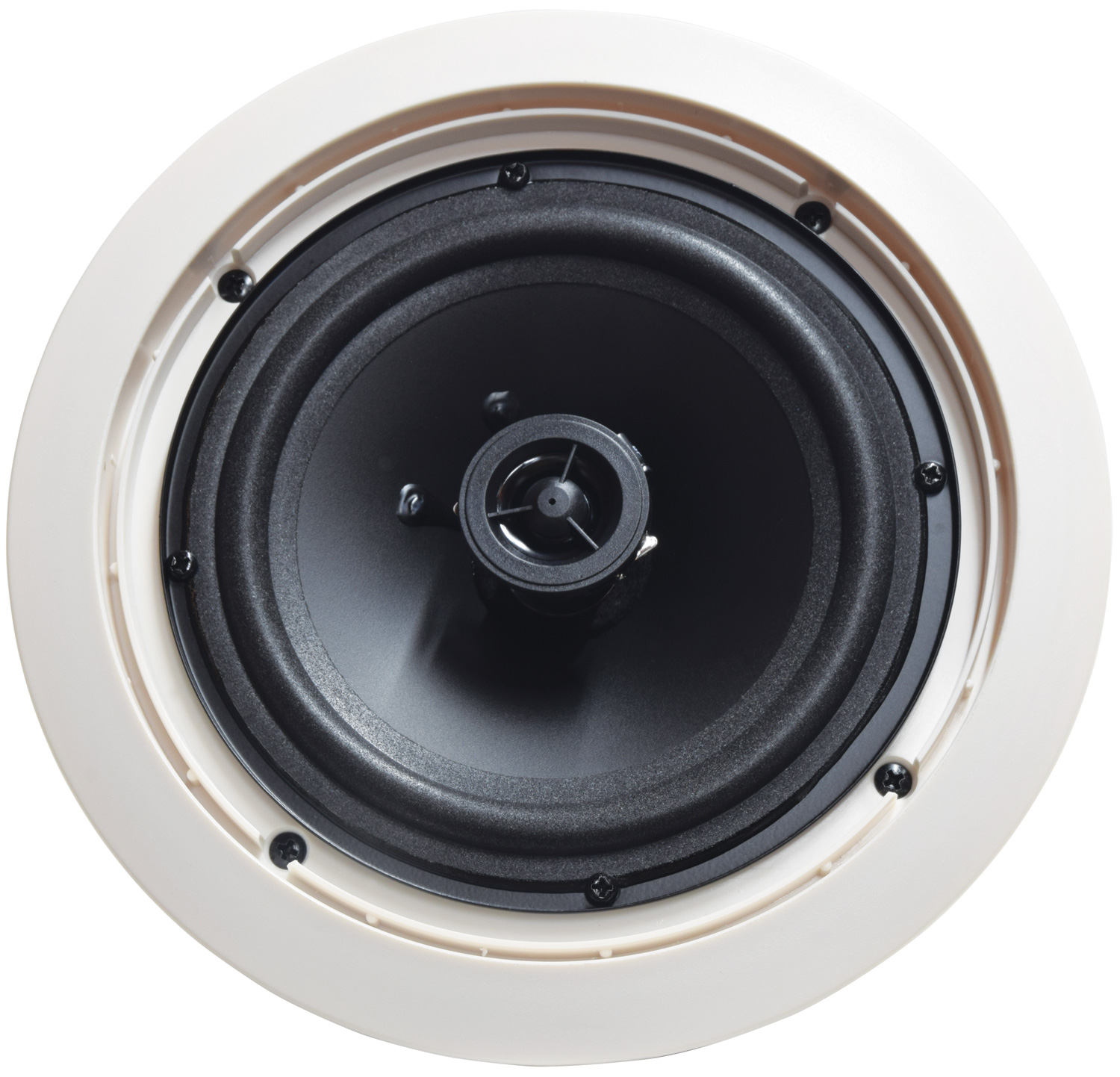

2-way quick fit ceiling speakers with PP mica bass driver and directional dome tweeter giving an excellent frequency response, all housed in a white polymer frame with metal grille.
- Rotary selector switch for 100V line tappings or 8 Ohms
- Fitted with "dog-ear" mounts for fixing to ceiling tiles 1-20mm in thickness
- Spring loaded terminals for easy connection
- Weight 1.25kg

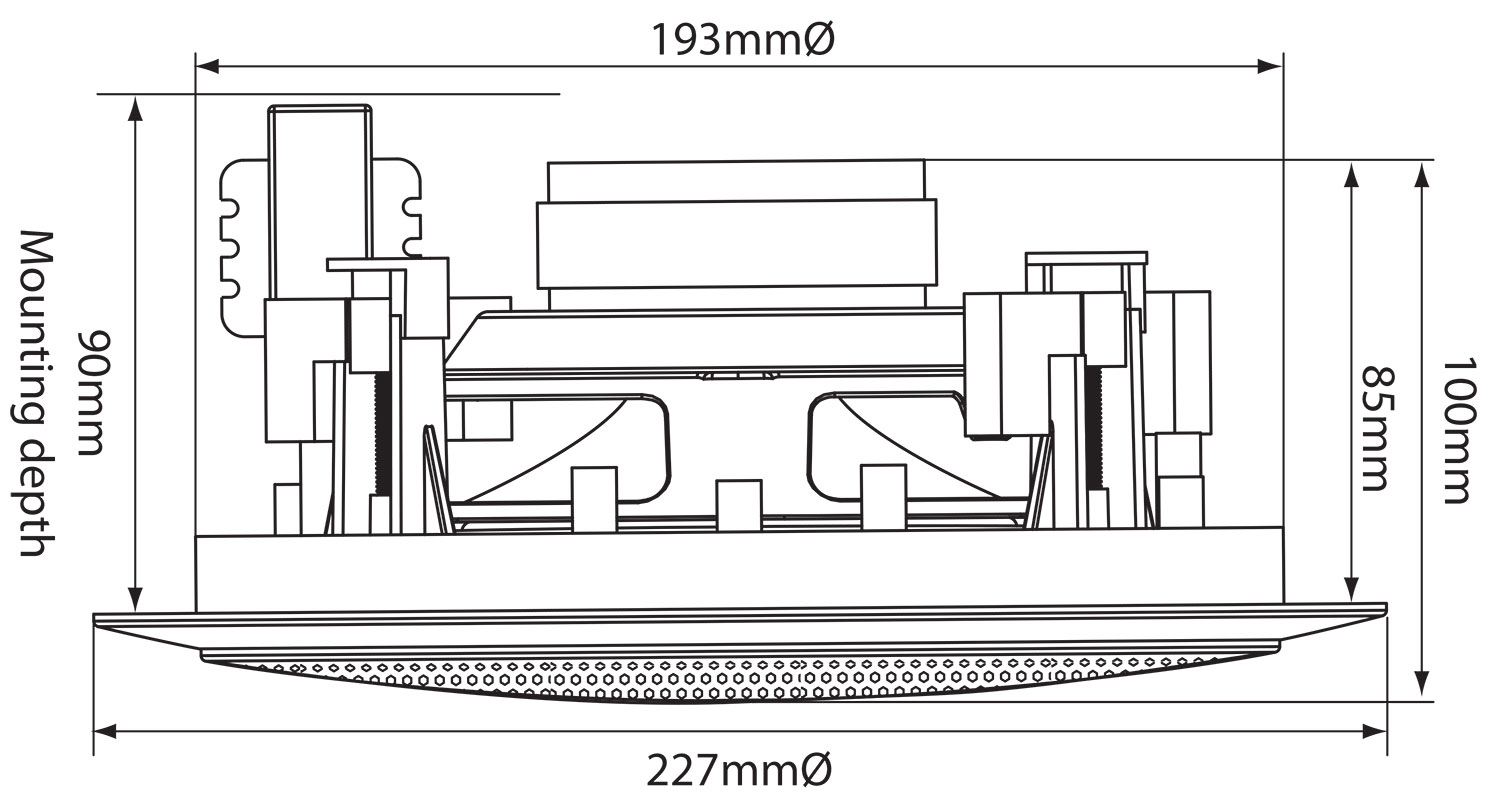

- Dimensions 100 x 227mmØ
- Tappings 2.5, 5, 10, 15, 20W & 8 Ohms
- SPL @ 1W/1m 87dB (±2dB)
- Mounting depth 90mm

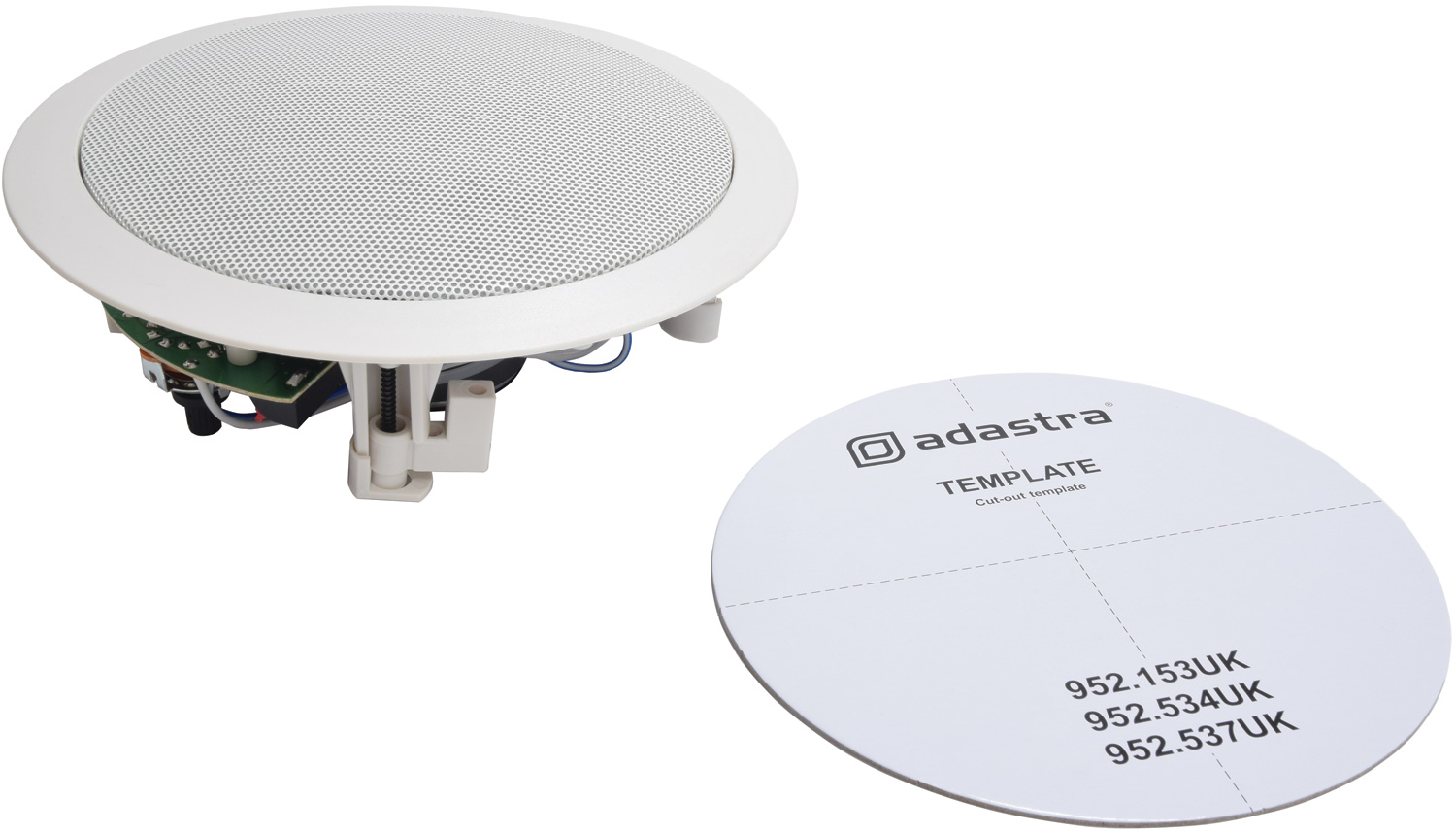

- Cutout 193mmØ
- Power rms : 100V line 20W
- Power rms : 8 Ohms 50W
- Power max. : 8 Ohms 100W
- Frequency response 70Hz - 20kHz
- Tweeter 38mmØ (1.5")
- Woofer 165mmØ (6.5")
- Dispersion angle 160°
