A ceiling speaker set with switchable Bluetooth connectivity, offering unrivalled simplicity in terms of pairing with and playback from compatible devices. The set includes 2 x ceiling speakers, ...

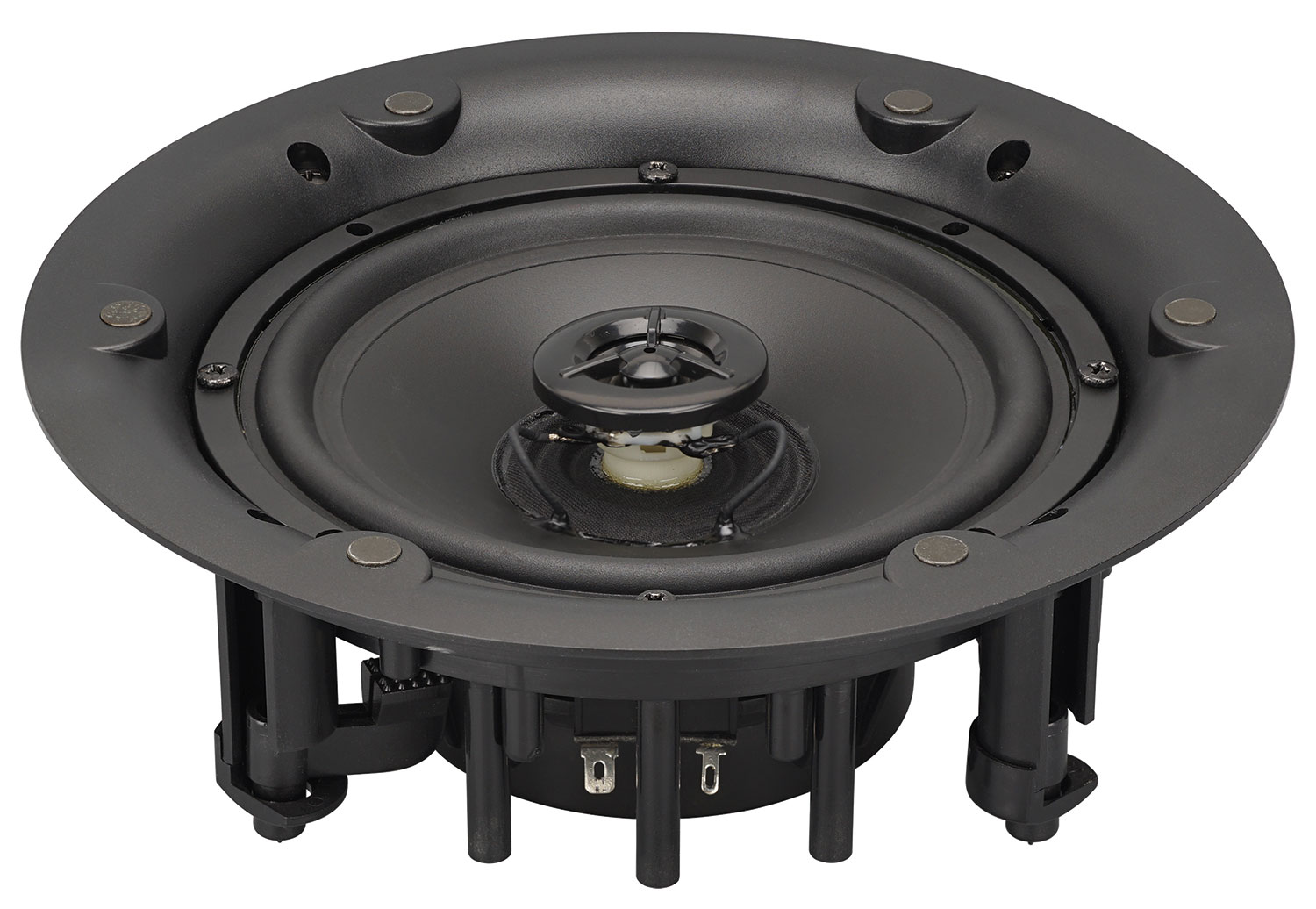

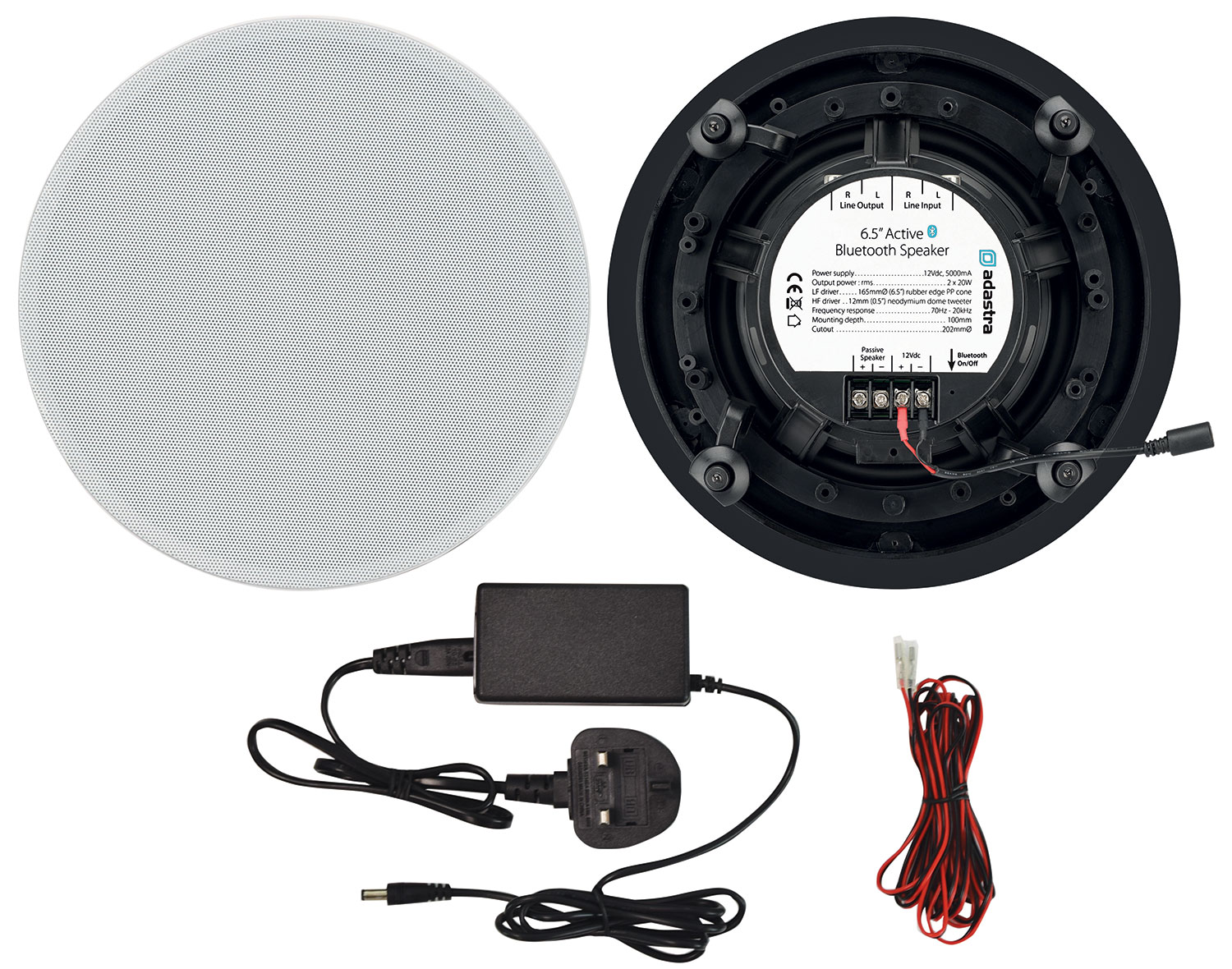

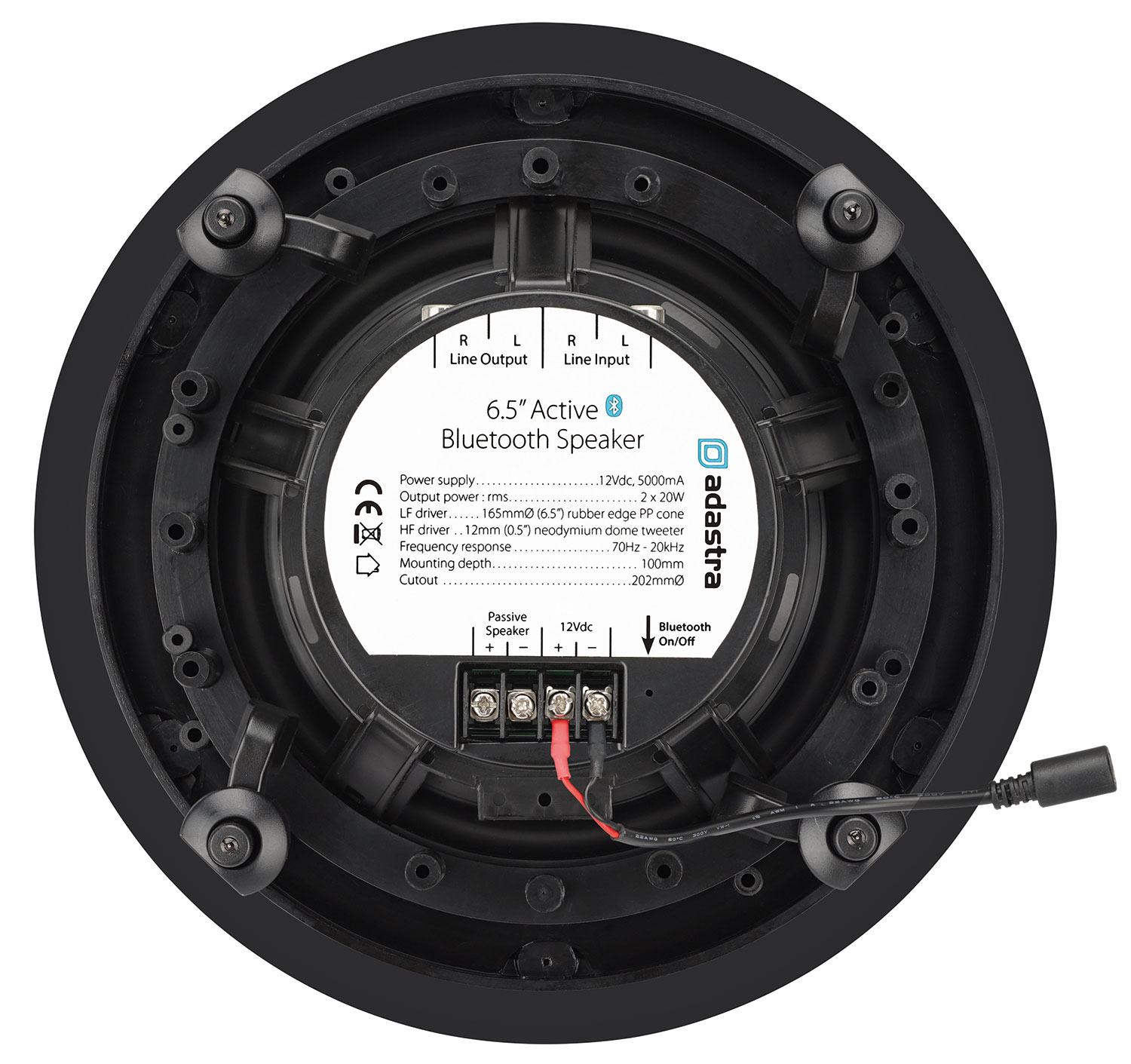

A ceiling speaker set with switchable Bluetooth connectivity, offering unrivalled simplicity in terms of pairing with and playback from compatible devices. The set includes 2 x ceiling speakers, including an active speaker with Bluetooth receiver and a passive, slave speaker. The active speaker’s RCA line input and output enable daisy-chaining of multiple sets. Each speaker features low and high frequency drivers and flared baffles for a smooth, full-range response. With understated, low-profile, magnetic grilles, these speakers are suitable for domestic and commercial use, with dog-ear clamps and an in-line DC power supply for ease of installation.
953.164UK | 953.165UK | |
---|---|---|
Power supply | In-line 12Vdc, 3A mains adaptor (included) | In-line 12Vdc, 5A mains adaptor (included) |
Sensitivity | 89dB | 89dB |
Output power : max. | 2 x 20W | 2 x 25W |
Output power : rms | 2 x 15W | 2 x 20W |
LF driver | 135mmØ (5.25") | 165mmØ (6.5") |
Frequency response | 80Hz - 20kHz | 70Hz - 20kHz |
Mounting depth | 97mm (active), 77mm (passive) | 100mm (active), 80mm (passive) |
Cutout | 180mmØ (each speaker) | 202mmØ (each speaker) |
Dimensions | 95 x 205mmØ (active), 75 x 205mmØ (passive) | 98 x 234mmØ (active), 77 x 234mmØ (passive) |
Weight (per set) | 1.78kg | 1.91kg |
