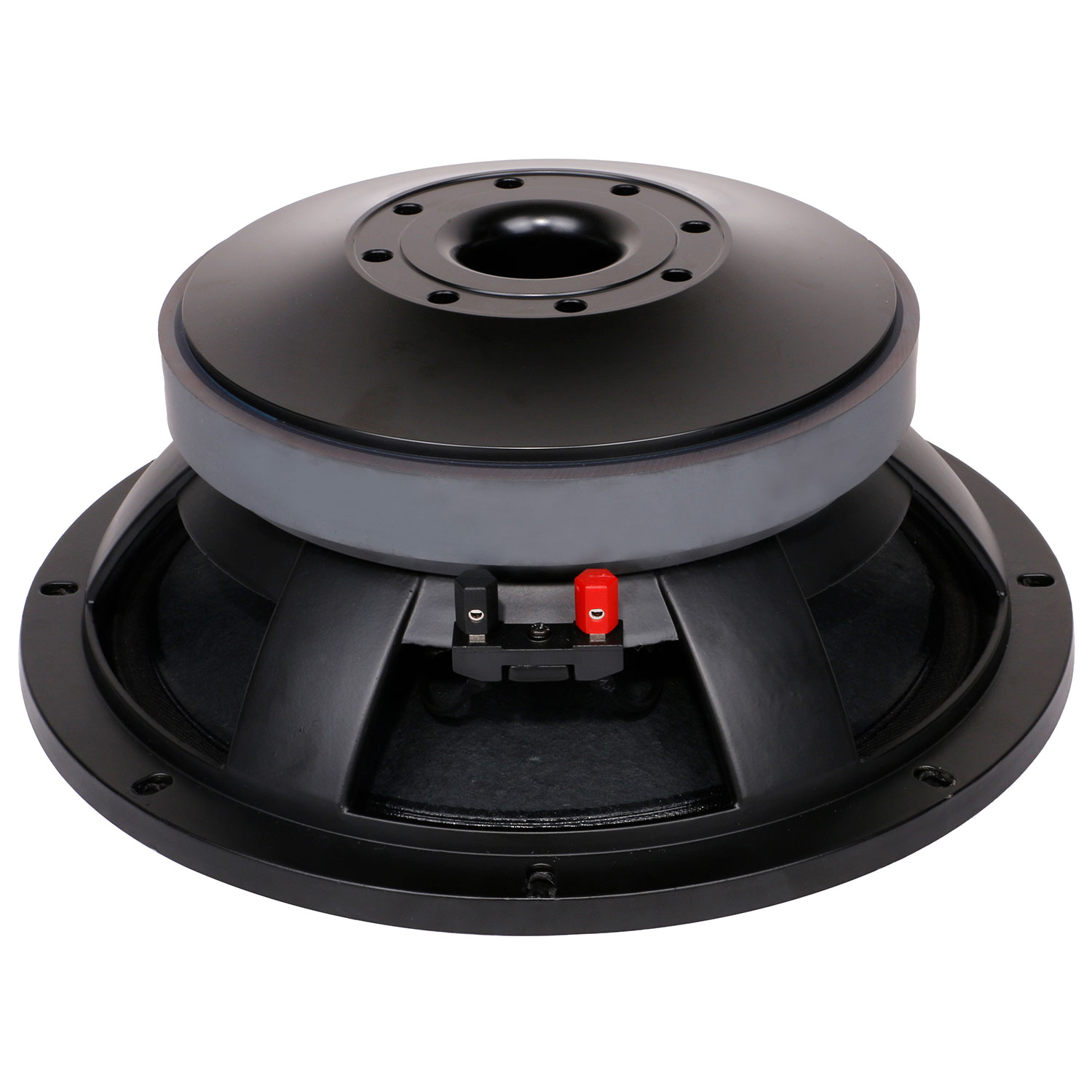

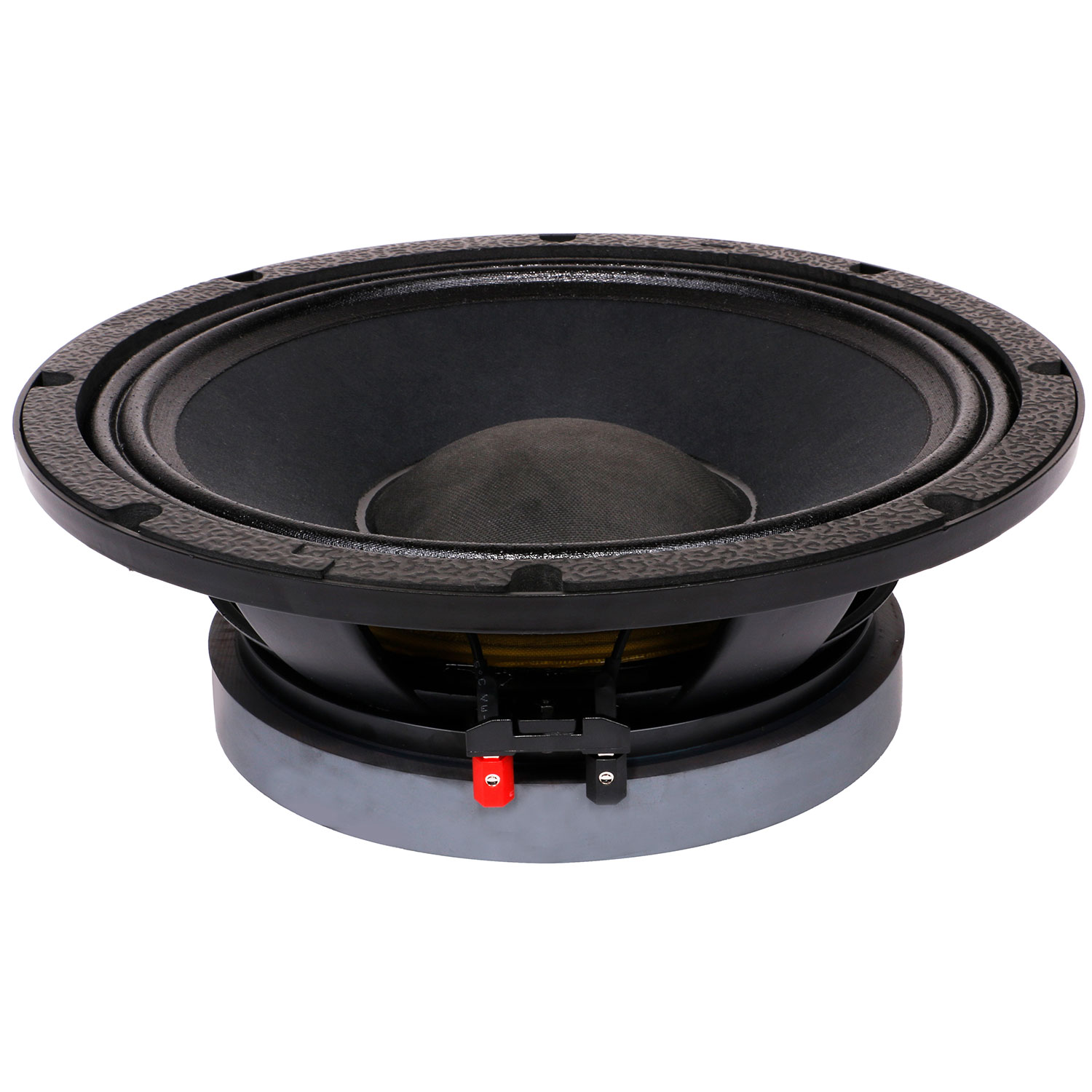

High Power Cast Frame Woofers for Full Range Cabinets
12" 600Wrms 8 Ohms
902.912UK
LFCORVA-12
Heavy duty main drivers for full range sound reinforcement cabinets. Constructed with cast aluminium basket, high power voice coil and large magnet for maximum power handling and SPL delivery. Direct… more
- Large voice coil and magnet
- Cast aluminium frame
High Power Cast Frame Woofers for Full Range Cabinets
Heavy duty main drivers for full range sound reinforcement cabinets. Constructed with cast aluminium basket, high power voice coil and large magnet for maximum power handling and SPL delivery. Direct replacements for the CORVA series full-range speakers.
- Large voice coil and magnet
- Cast aluminium frame
- Power handling : max 1200W
- Power handling : rms 600W
- Frequency response 45Hz - 2kHz
- Dimensions 200 x 310mmØ
- Weight 10.3kg
- Construction Cast aluminium frame and reinforced paper diaphragm
- Voice coil 100mmØ ISV coil
- Magnet 110 x 220mmØ 3.54kg ferrite
- Impedance 8 Ohms
In the Box
- High power cast frame woofer
