8 Ohm High Power Sub Drivers
12" sub 8ohm 400Wrms
902.123UK
SUBCASA-12B
High power handling 8 Ohm low frequency drivers with large diameter voice coil and reinforced cone. Designed for installing into ported or folded cabinets to add high energy sub frequencies and… more
- Direct replacements for CASA series passive sub cabinets
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
902.121UK
10" Sub Driver 8ohm 300Wrms |
10" sub 8ohm 300Wrms | Box Label |
|
902.123UK
12" Sub Driver 8ohm 400Wrms |
12" sub 8ohm 400Wrms | Box Label |
|
902.126UK
15" Sub Driver 8ohm 500Wrms |
15" sub 8ohm 500Wrms | Box Label |
|
902.129UK
18" Sub Driver 8ohm 600Wrms |
18" sub 8ohm 600Wrms | Box Label |
8 Ohm High Power Sub Drivers

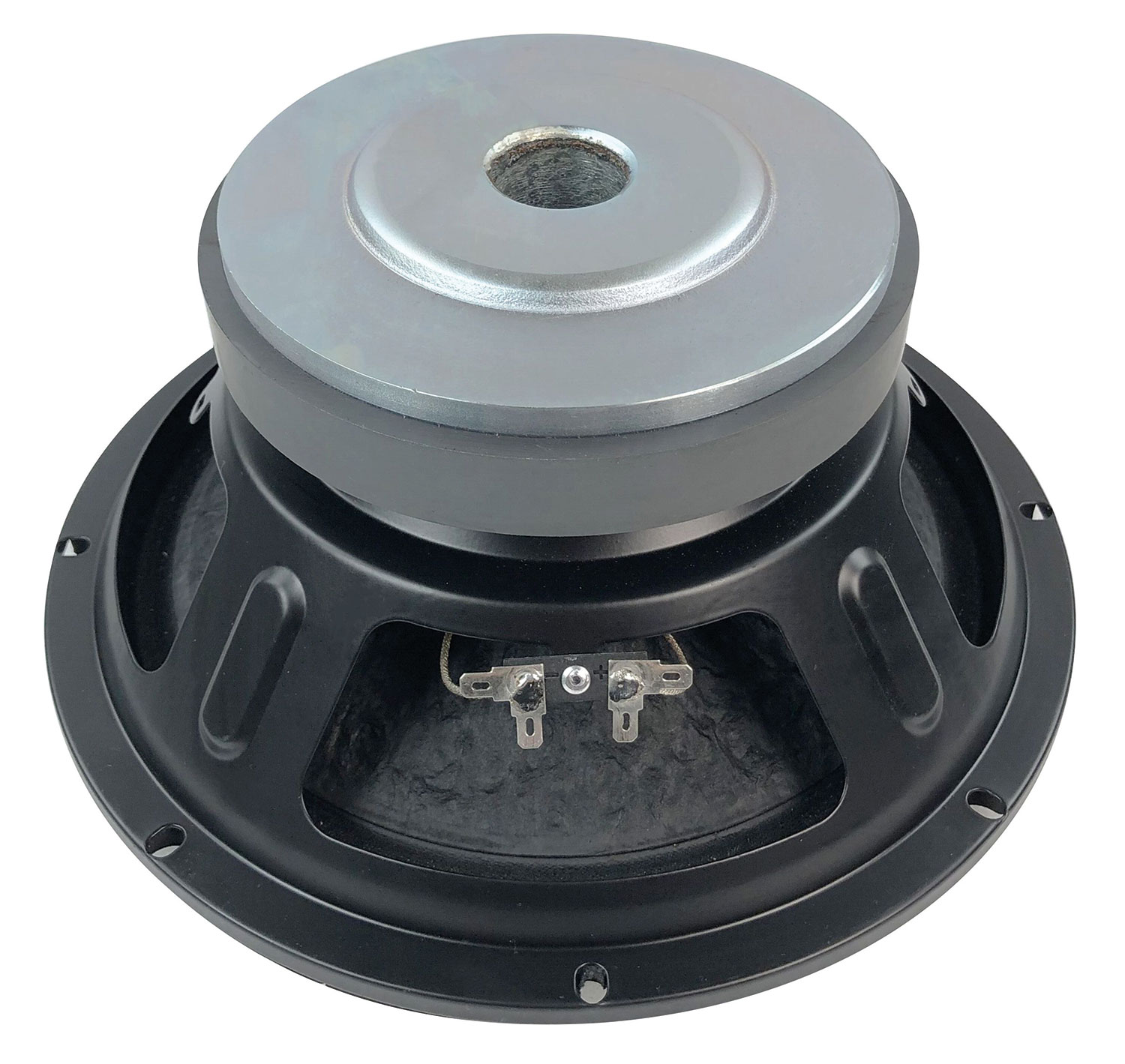

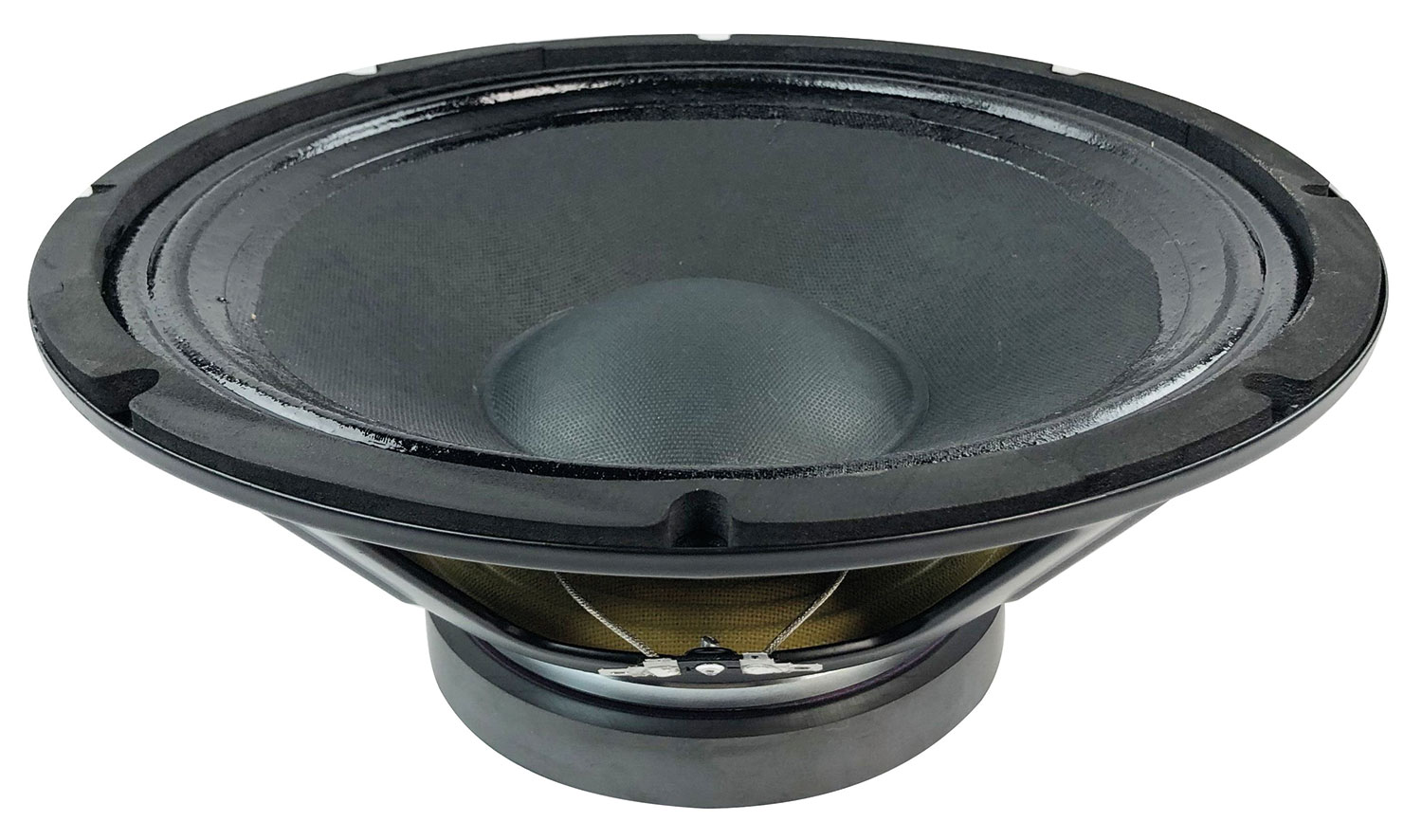

High power handling 8 Ohm low frequency drivers with large diameter voice coil and reinforced cone. Designed for installing into ported or folded cabinets to add high energy sub frequencies and explosive dynamics in medium to large PA systems.
- Direct replacements for CASA series passive sub cabinets
- Power handling : rms 400W
- Power handling : max 700W
- Frequency response 45Hz - 2kHz
- Voice coil 64mmØ (2.5")
- Magnet 156 x 80 x 20mm (50oz)
- Sensitivity 96dB
- Dimensions 160 x 310mmØ
- Weight 4.8kg
- Construction Reinforced paper cone with steel frame basket
- Impedance 8 Ohms
In the Box
- 8 Ohm high power sub woofer driver
