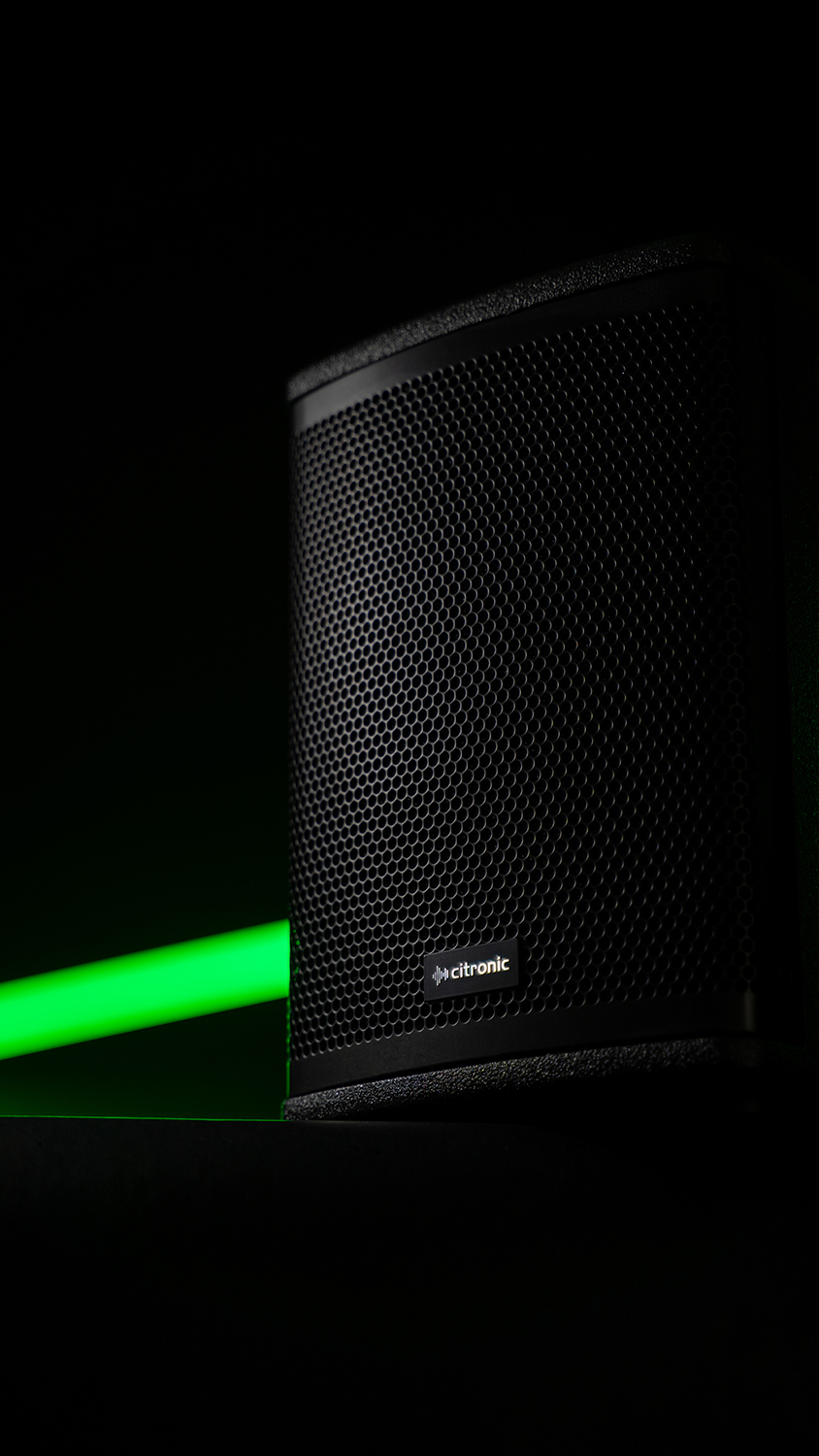

CUBA Full Range Wooden PA Cabinets

6" 100W Black

178.707UK
CUBA-6

Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression… more

  • Hard-wearing polyurea cabinet coating
  • CUBA-8 & CUBA-10 supplied with a U-bracket
  • 35mm pole mount socket and M8 flying points
DESCRIPTION VERSION PACKED
178.707UK

CUBA-6 Passive Full Range Cabinet 100Wrms

6" 100W Black Box Label
178.709UK

CUBA-8 Passive Full-Range Cabinet

8" 250W Black Box Label
178.711UK

CUBA-10 Passive Full-Range Cabinet

10" 270W Black Box Label
178.713UK

CUBA-12 Passive Full-Range Cabinet

12" 400W Black Box Label
178.716UK

CUBA-15 Passive Full-Range Cabinet

15" 450W Black Box Label
178.739UK

CUBA-8W Passive Full-Range Cab - WHITE

8" 250W White Box Label
178.741UK

CUBA-10W Passive Full-Range Cab - WHITE

10" 270W White Box Label

CUBA Full Range Wooden PA Cabinets

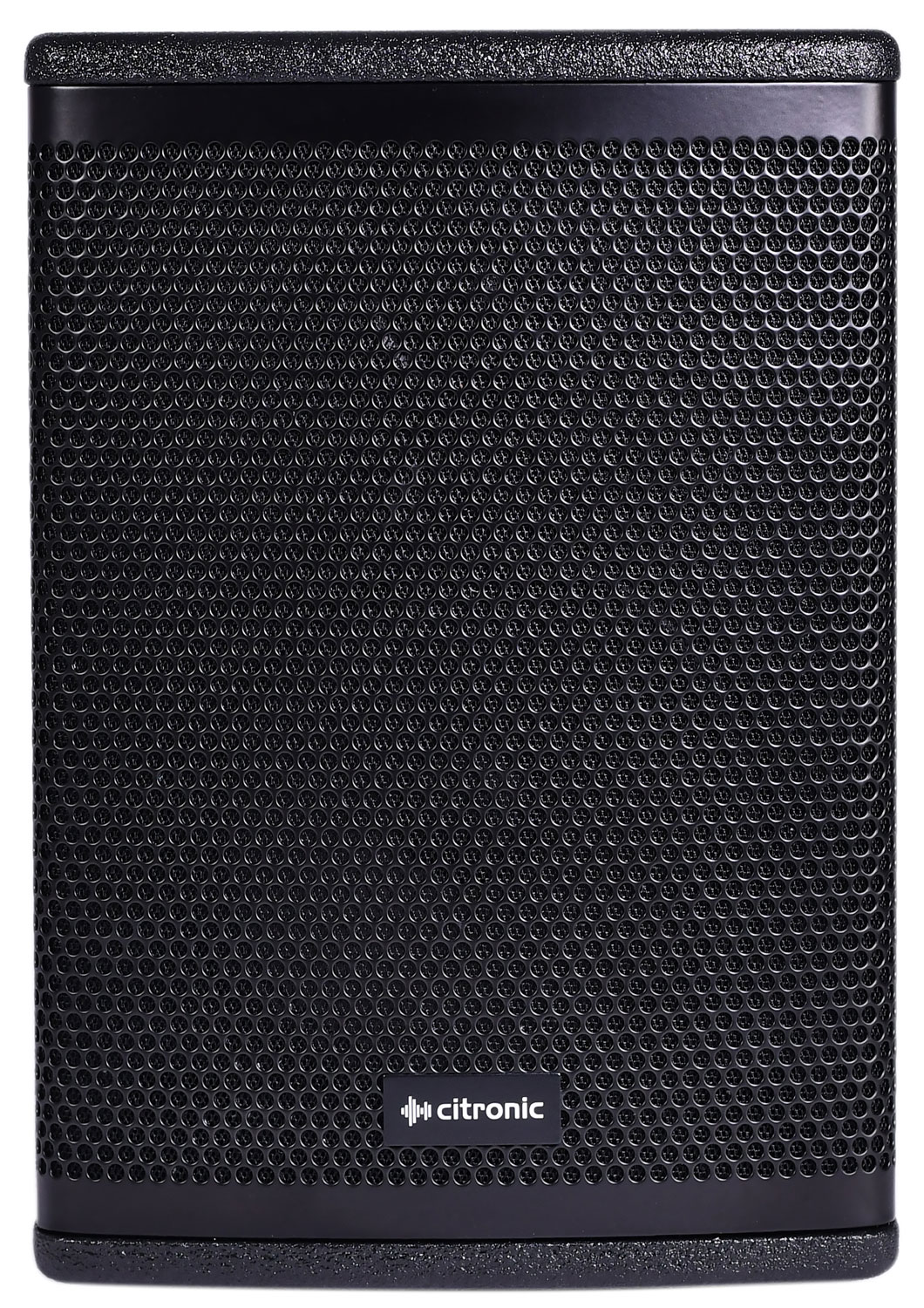

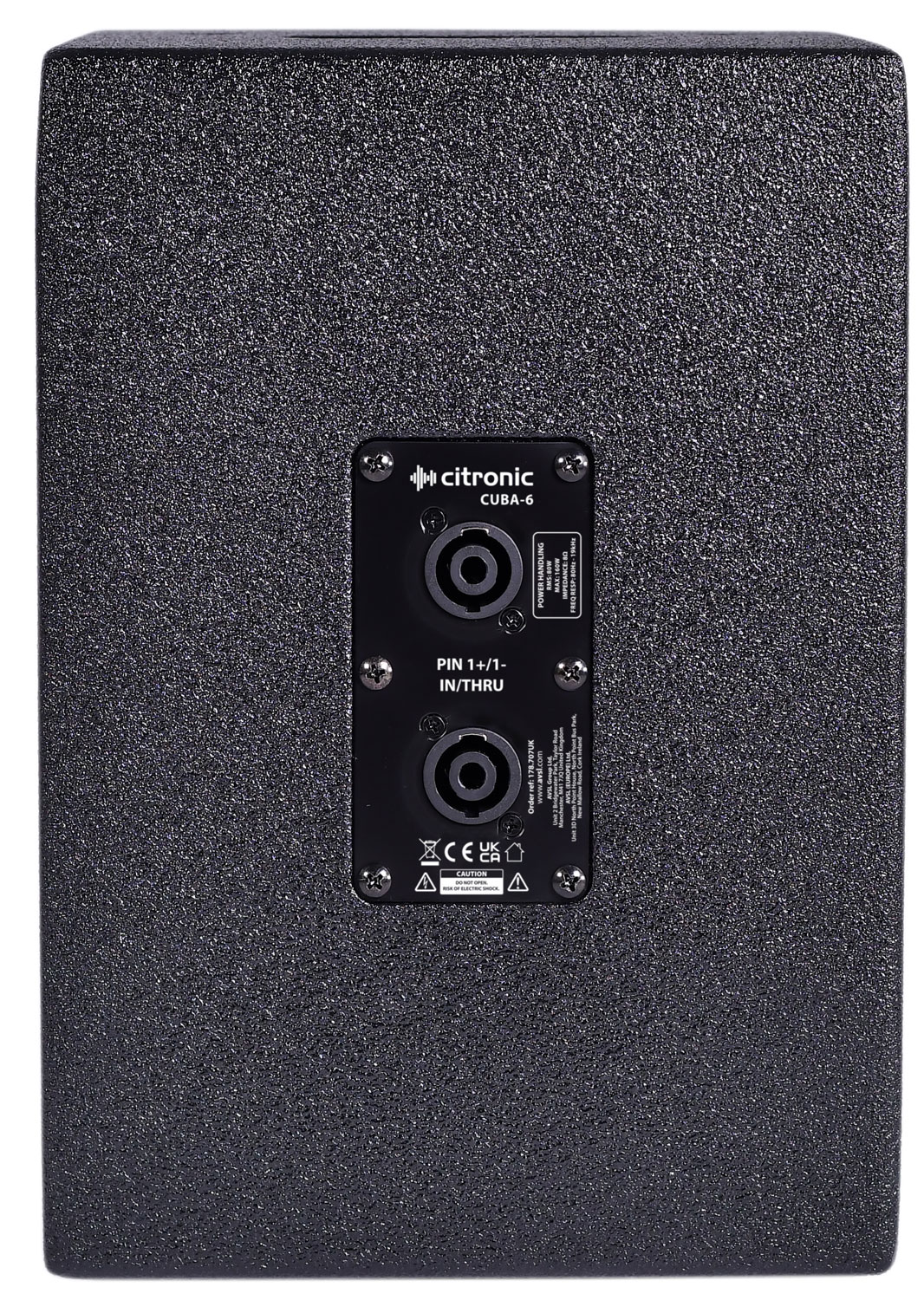

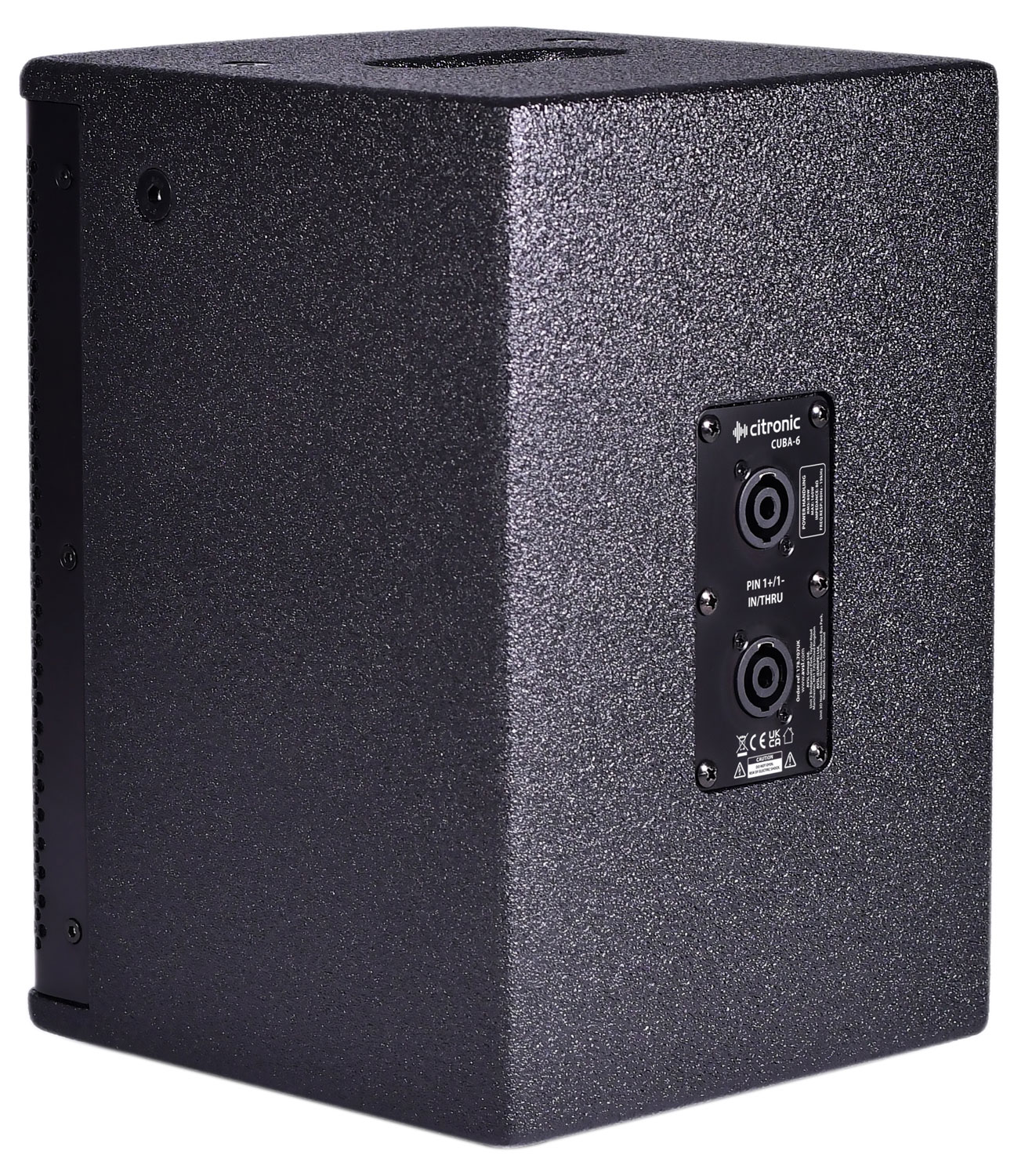

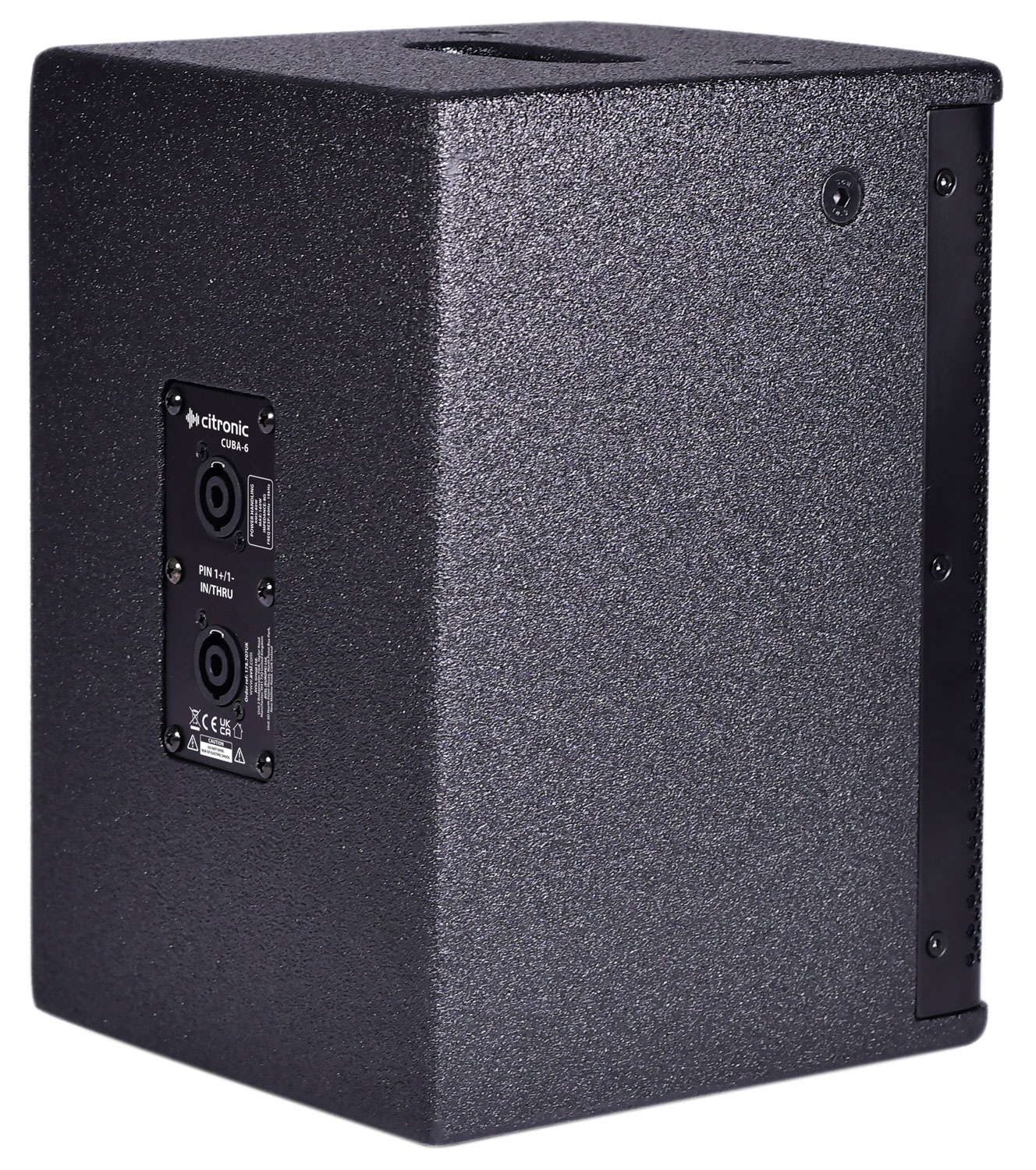

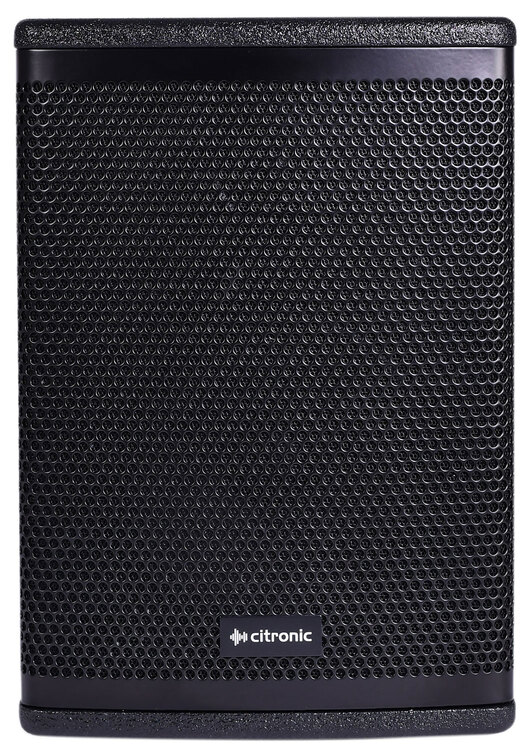

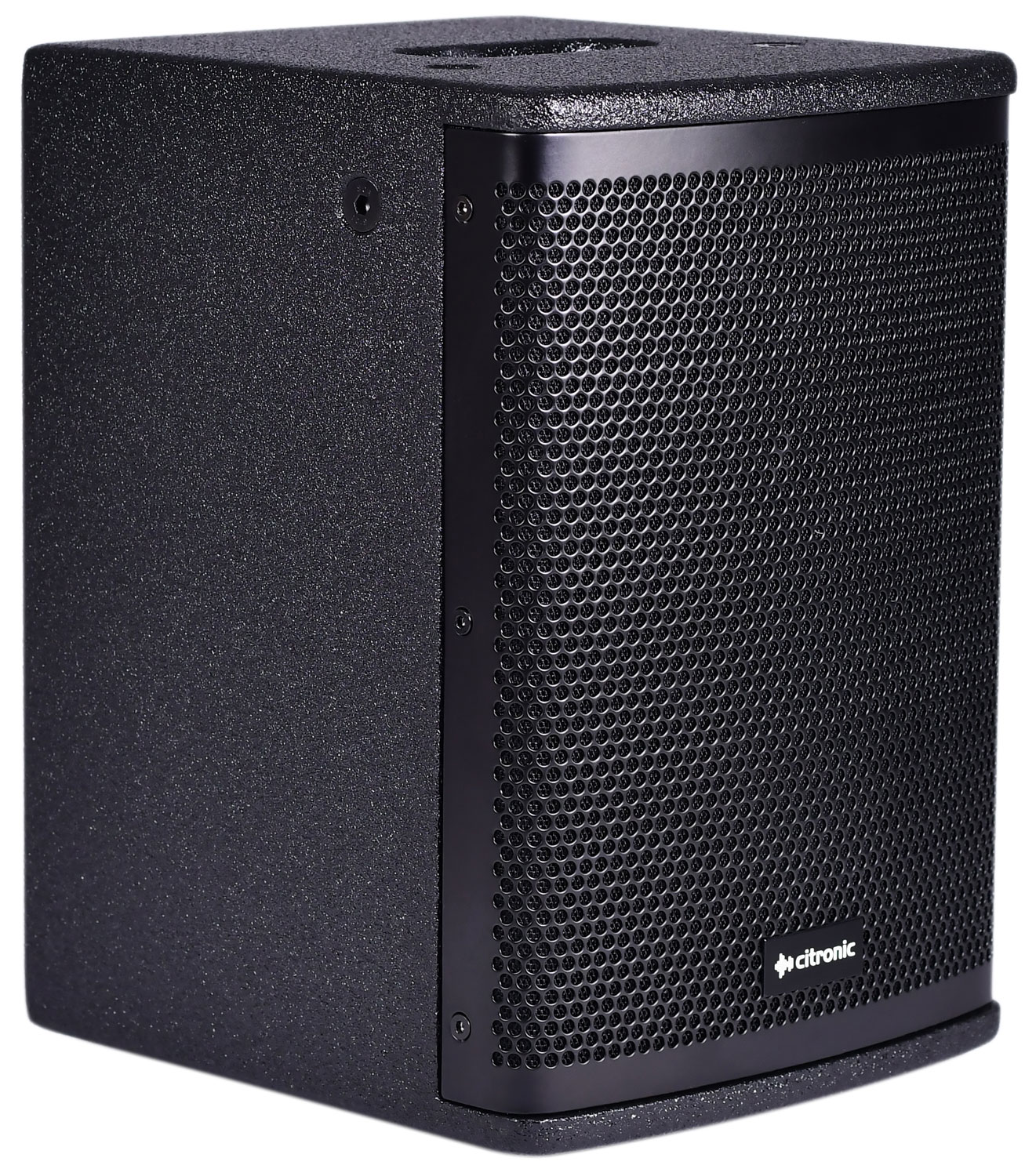

Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression driver combine with the tuned enclosure to deliver a balanced output of all frequencies. The rear panel has 2 parallel inputs for Speakon connection, also enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H-series amplifiers for a wide range of professional high power sound reinforcement situations.

  • Hard-wearing polyurea cabinet coating

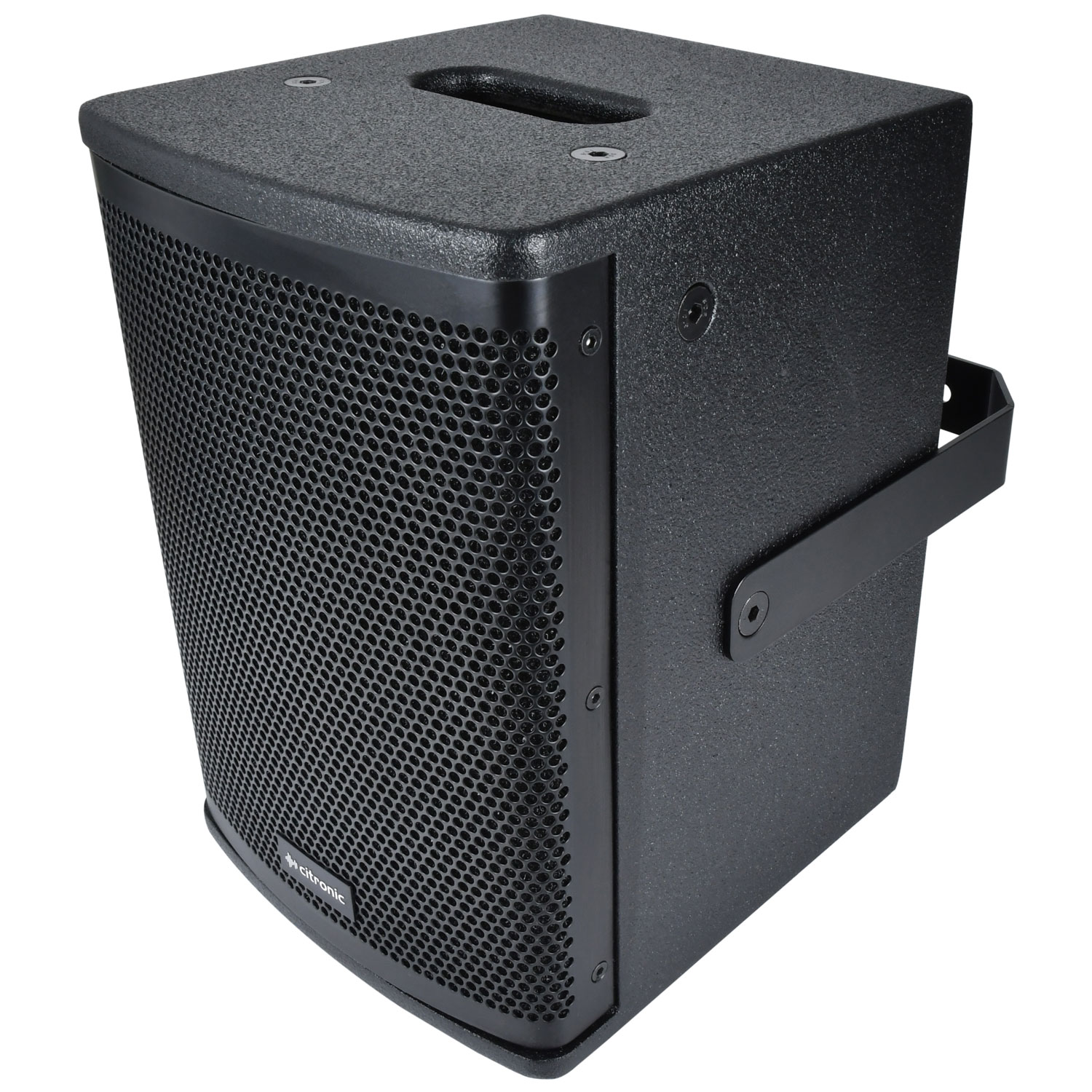

  • CUBA-8 & CUBA-10 supplied with a U-bracket
  • 35mm pole mount socket and M8 flying points
  • Custom designed high power LF and HF drivers
  • Weight 5.2kg
  • Dimensions 325 x 235 x 210mm
  • HF dispersion 100° x 100°
  • Max. SPL 115.0dB
  • Sensitivity 92dB
  • Frequency response 80Hz-18.5kHz
  • Power handling : max 200W
  • Power handling : rms 100W
  • HF driver 25mmØ (1") silk dome tweeter
  • Voice coil 38mmØ (1.5")
  • Main driver 165mmØ (6.5")
  • Colour Black
  • Construction Polyurea coated MDF + powder-coated steel grille
  • Input 2 x parallel SPK socket
  • Impedance 8 Ohms
