CUBA Active Full-Range PA Cabinets with DSP + Bluetooth®

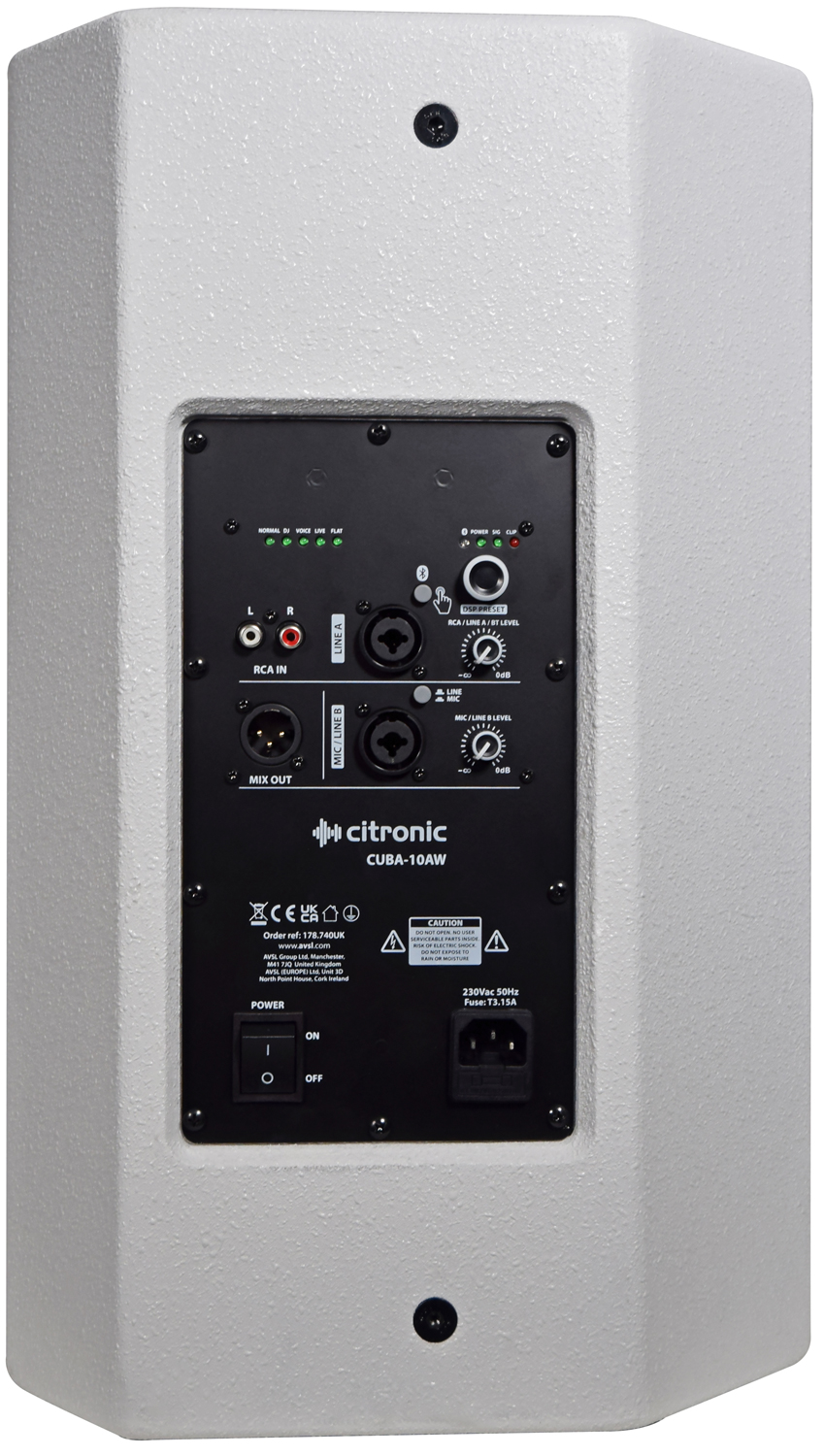

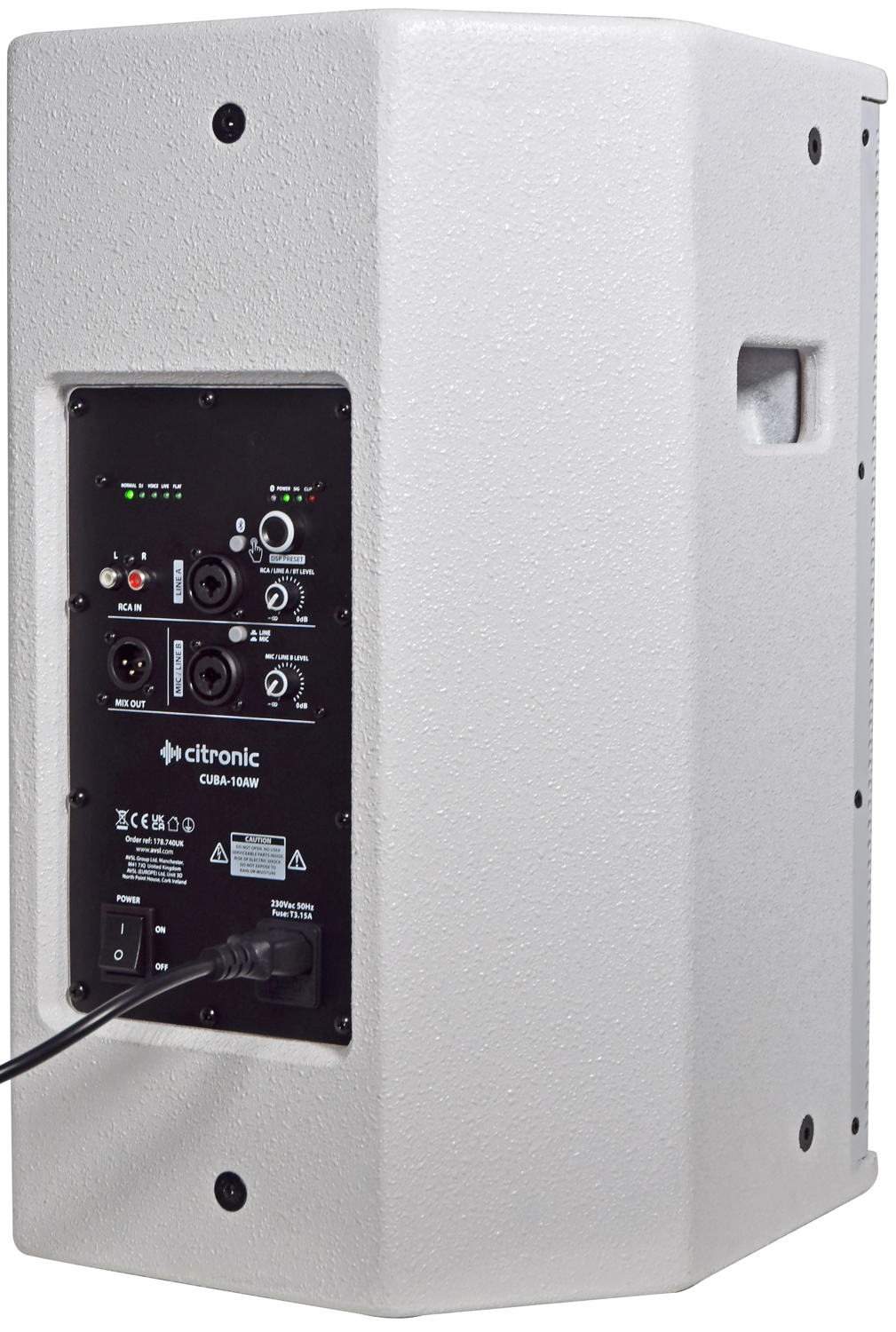

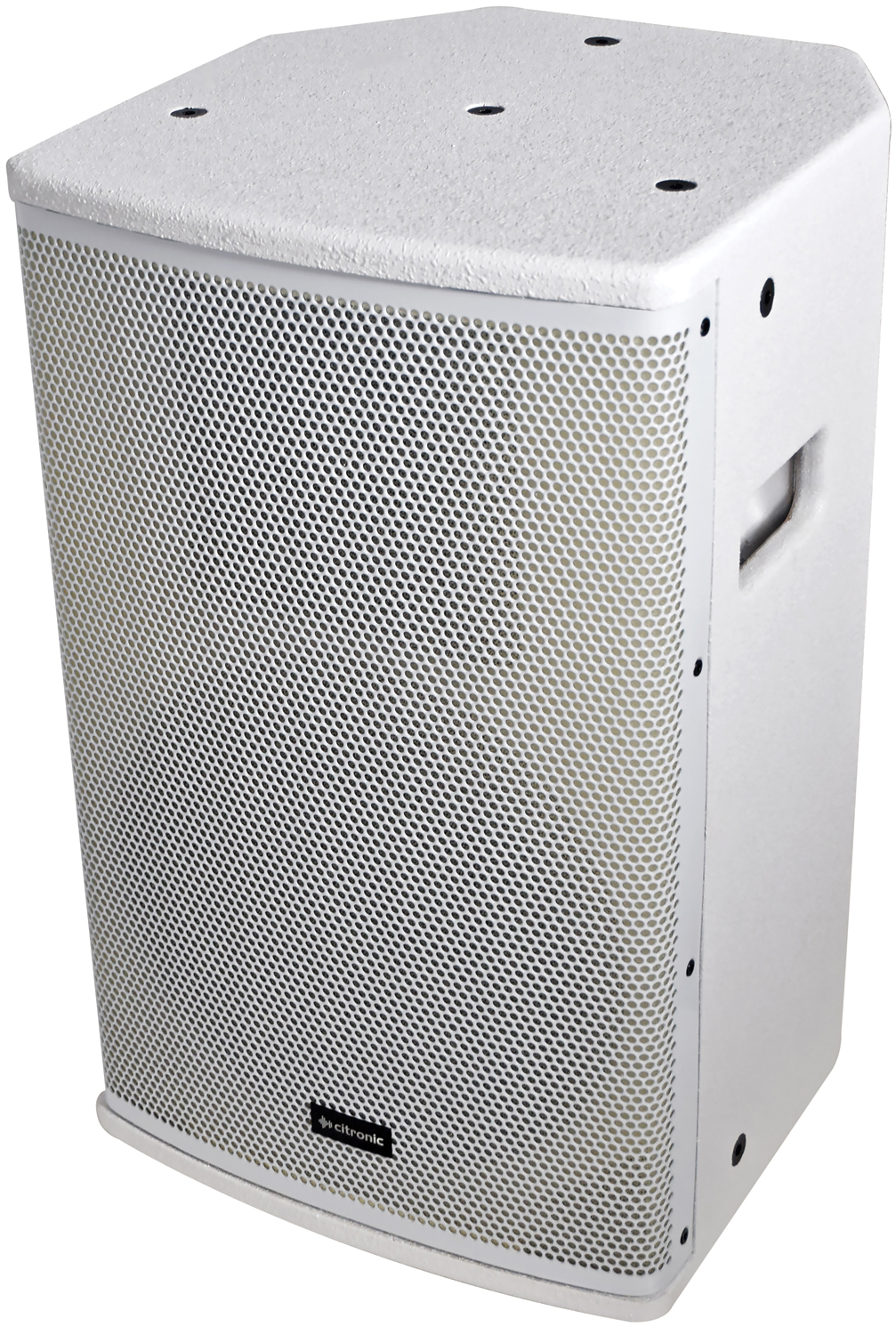

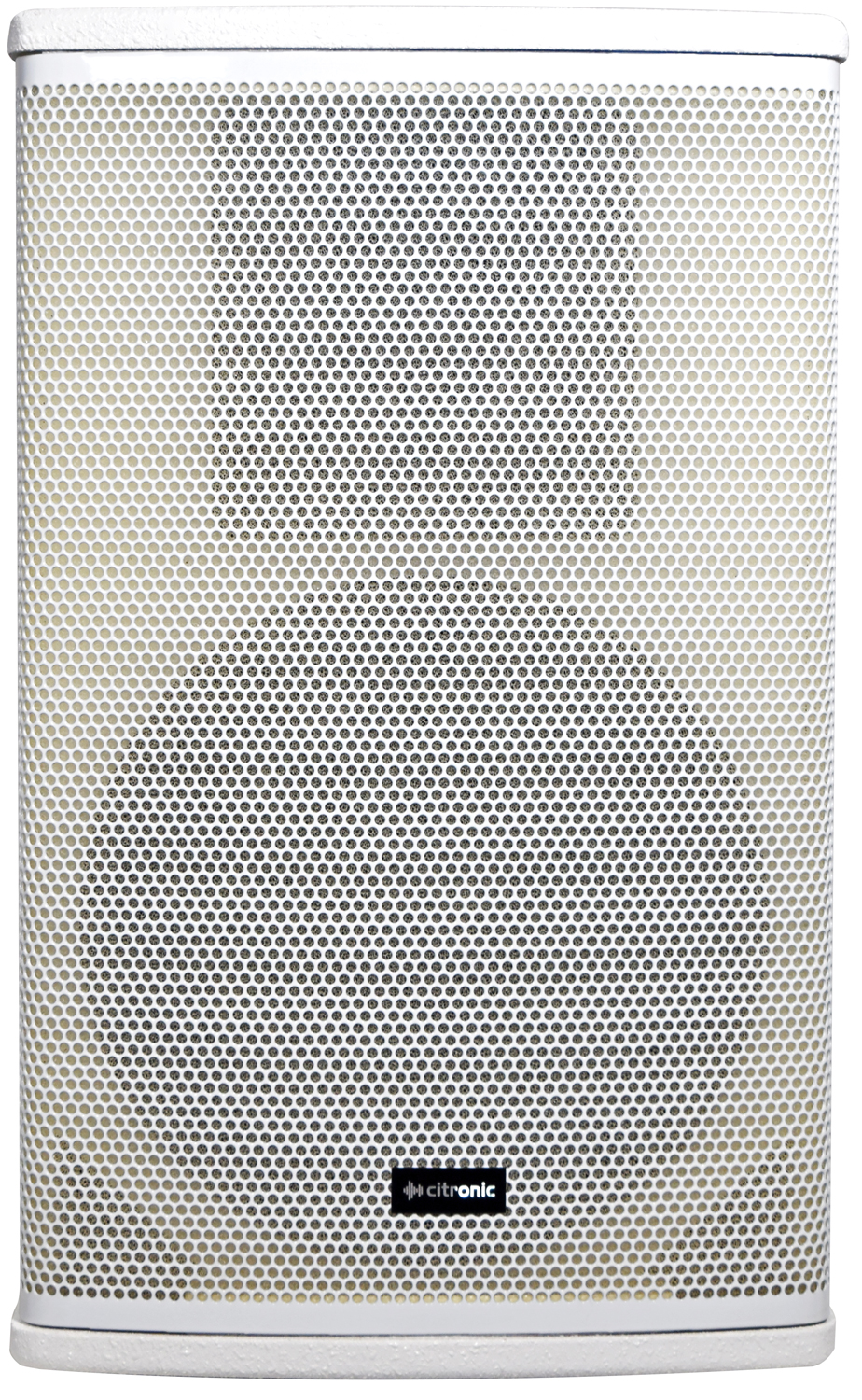

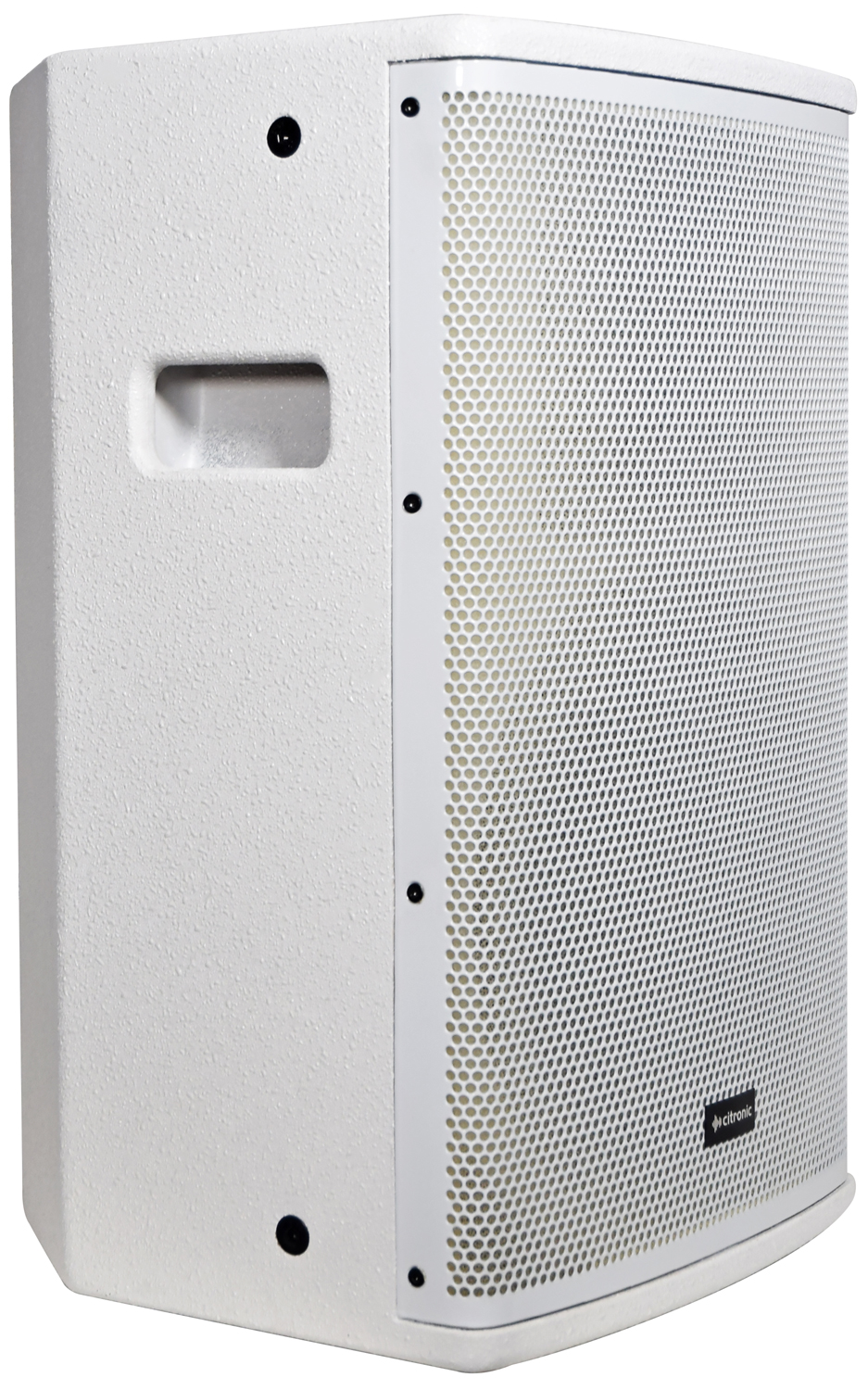

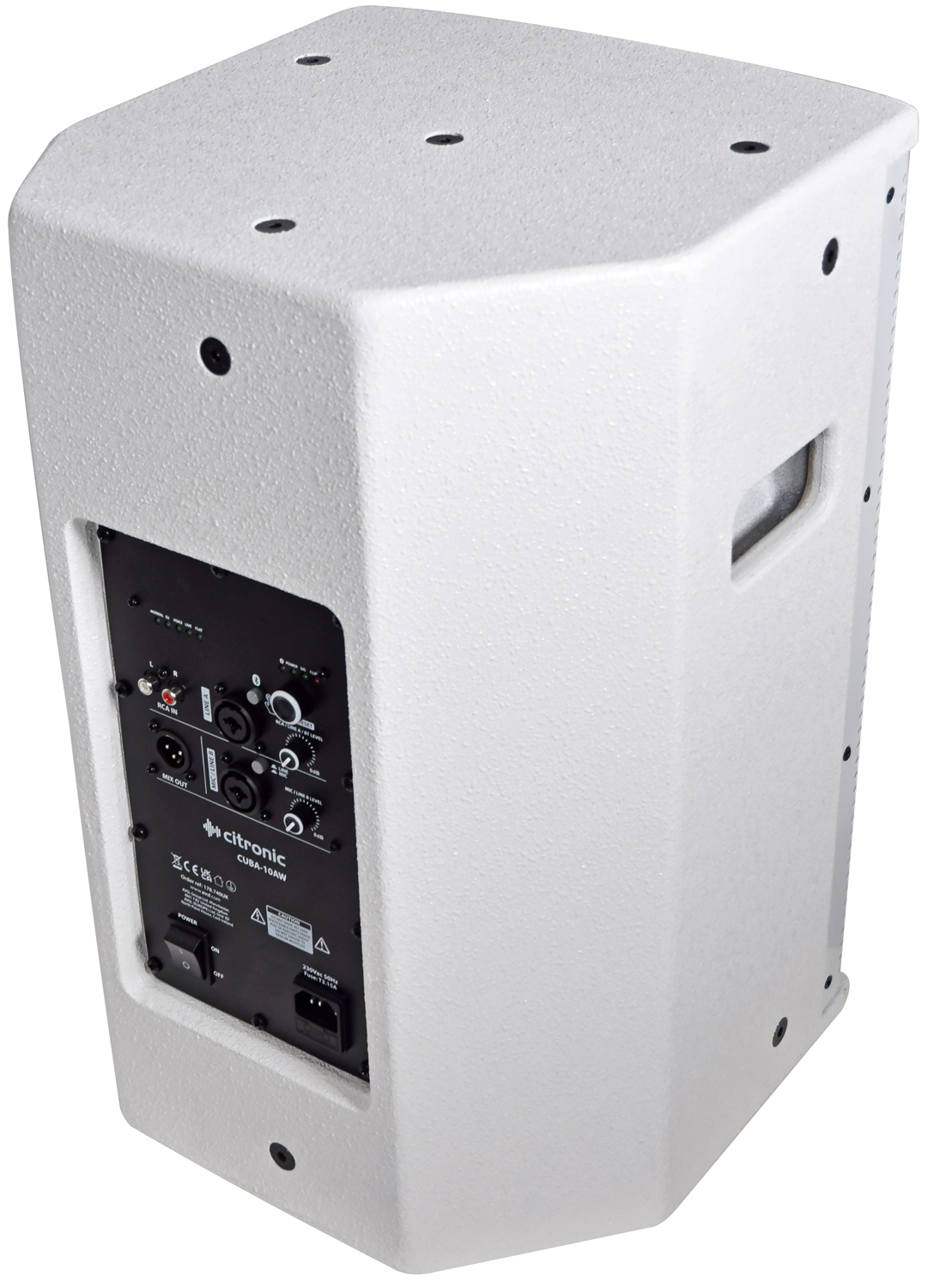

Premium full-range active speaker cabinets with minimalist texture coated MDF enclosure and powder-coated steel grille. Integral high-efficiency class-D amplifier sections are controlled by a 5-preset DSP which controls high detail and can extend the response down to sub-frequencies for an uncompromising full-range output. A switchable Mic/line input and a line input have XLR or jack input and the line input also has RCA option and a Bluetooth receiver for wireless playback from a smart phone. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Designed to provide clean, high-energy output across the full audio spectrum for all sound reinforcement applications.

• Efficient and lightweight class-D bi-amplifier
• High power full-range output
• 5 profile DSP section
• Bluetooth receiver

• Weight 16.2kg
• Dimensions 507 x 313 x 307mm
• HF dispersion 100°/50° x 55°
• Max. SPL 122.5dB
• Sensitivity 95dB
• Frequency response 60Hz-20kHZ
• Output power : max. 540W
• Output power : rms 270W
• HF driver 35mmØ (1.35") Ti compression driver
• Voice coil 50mmØ (2")
• Main driver 250mmØ (10")
• Power supply 230Vac, 50Hz (IEC)
• DSP settings Normal, DJ. Voice, Live, Flat

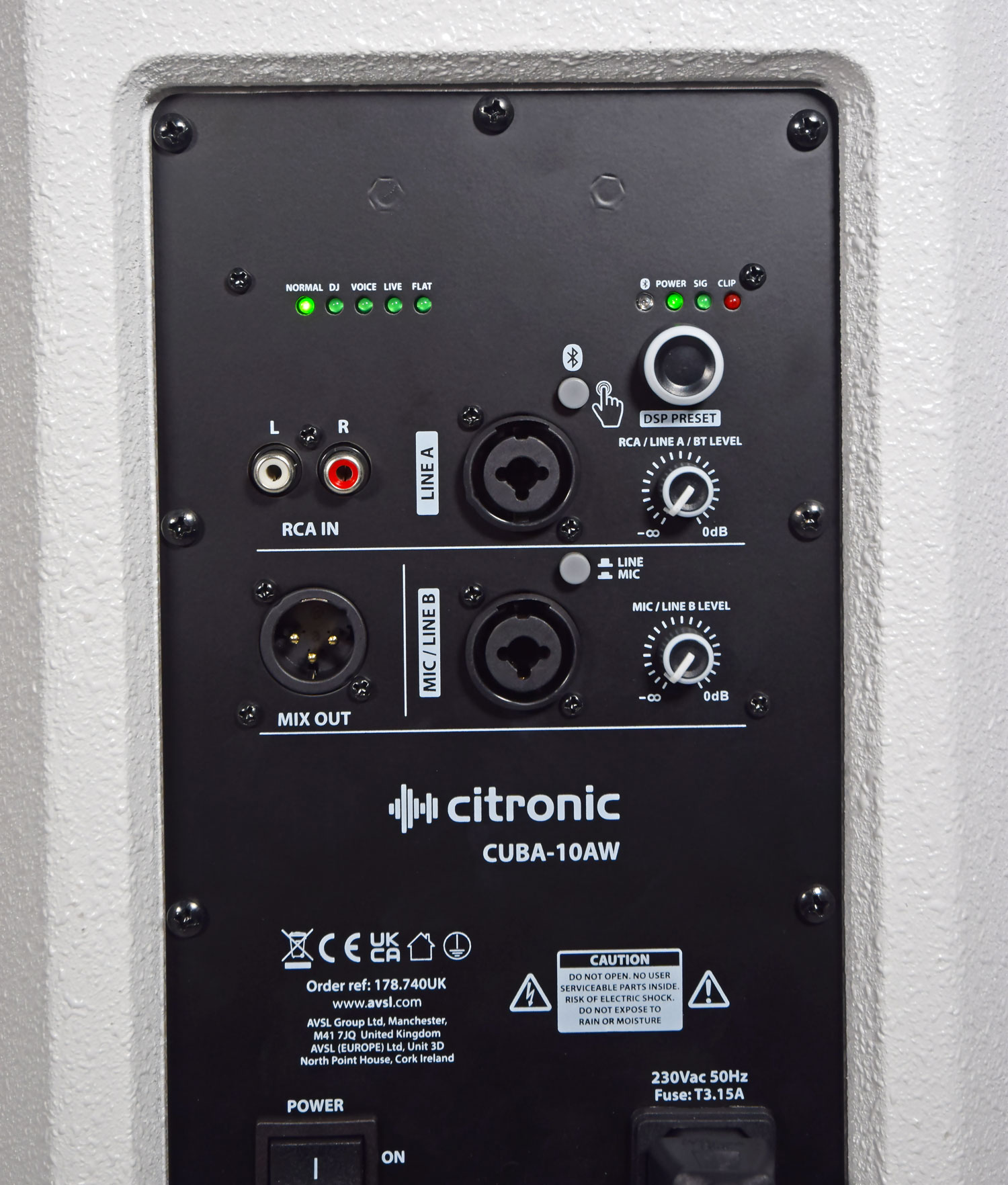

• Inputs Mic/line (XLR/jack), Line (RCA/XLR/jack), Bluetooth
• Line output XLR
• Construction Polyurea coated MDF + powder-coated steel grille
