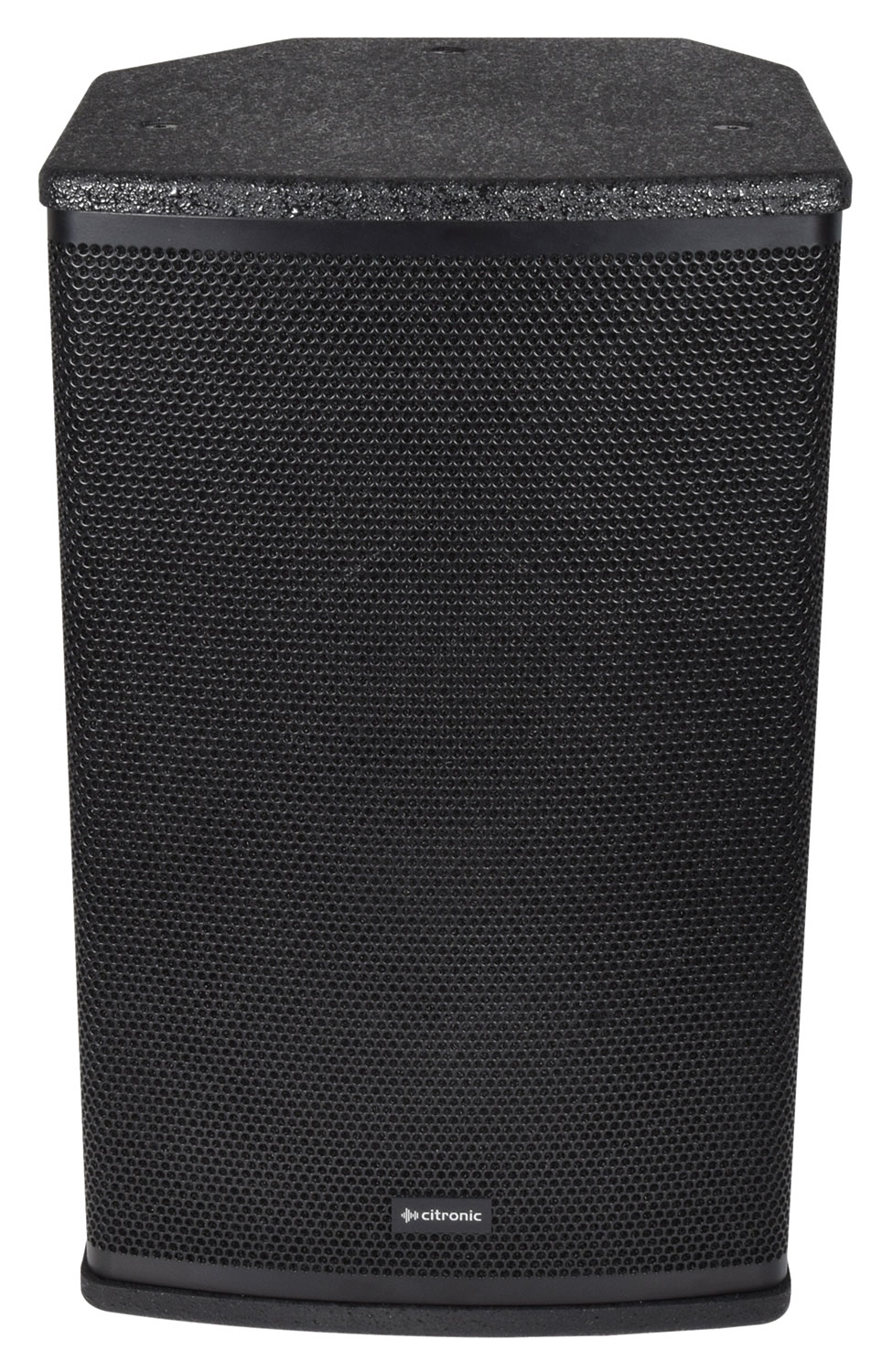

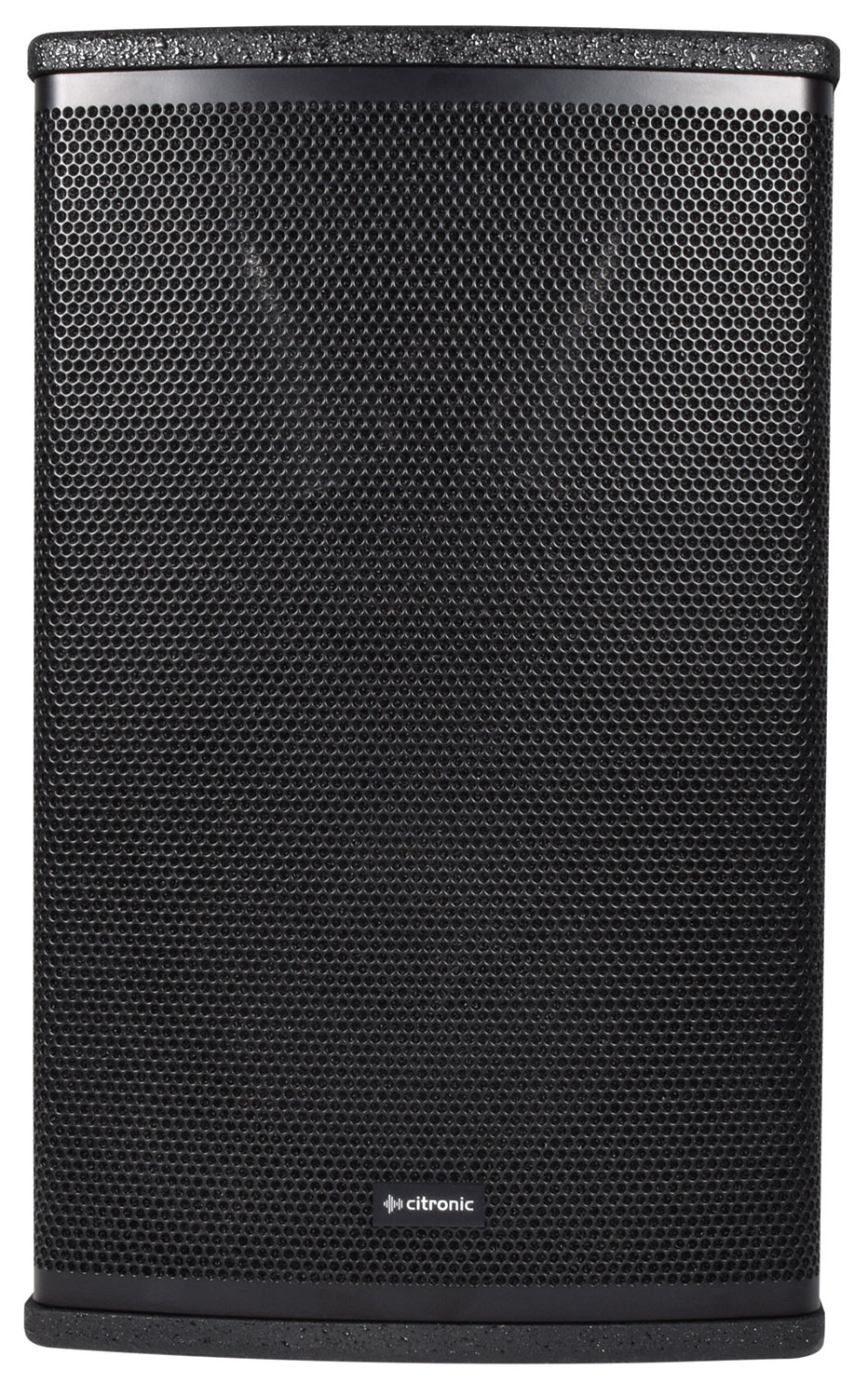

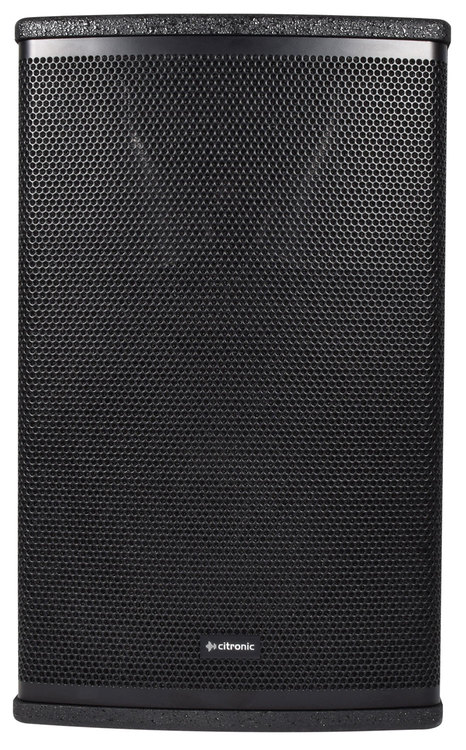

CUBA Full Range Wooden PA Cabinets

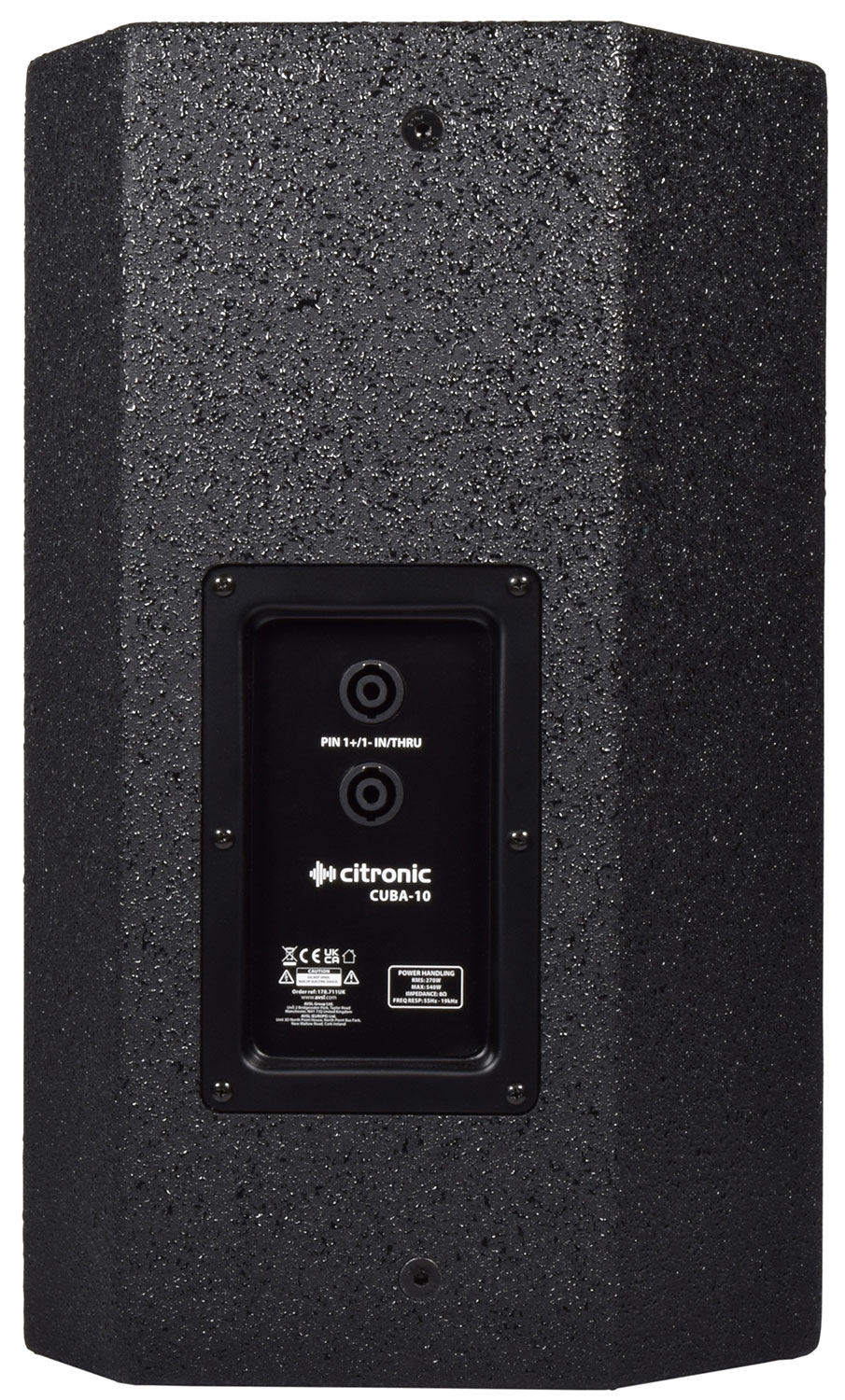

Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression driver combine with the tuned enclosure to deliver a balanced output of all frequencies. The rear panel has 2 parallel inputs for Speakon connection, also enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H-series amplifiers for a wide range of professional high power sound reinforcement situations.

• Hard-wearing polyurea cabinet coating

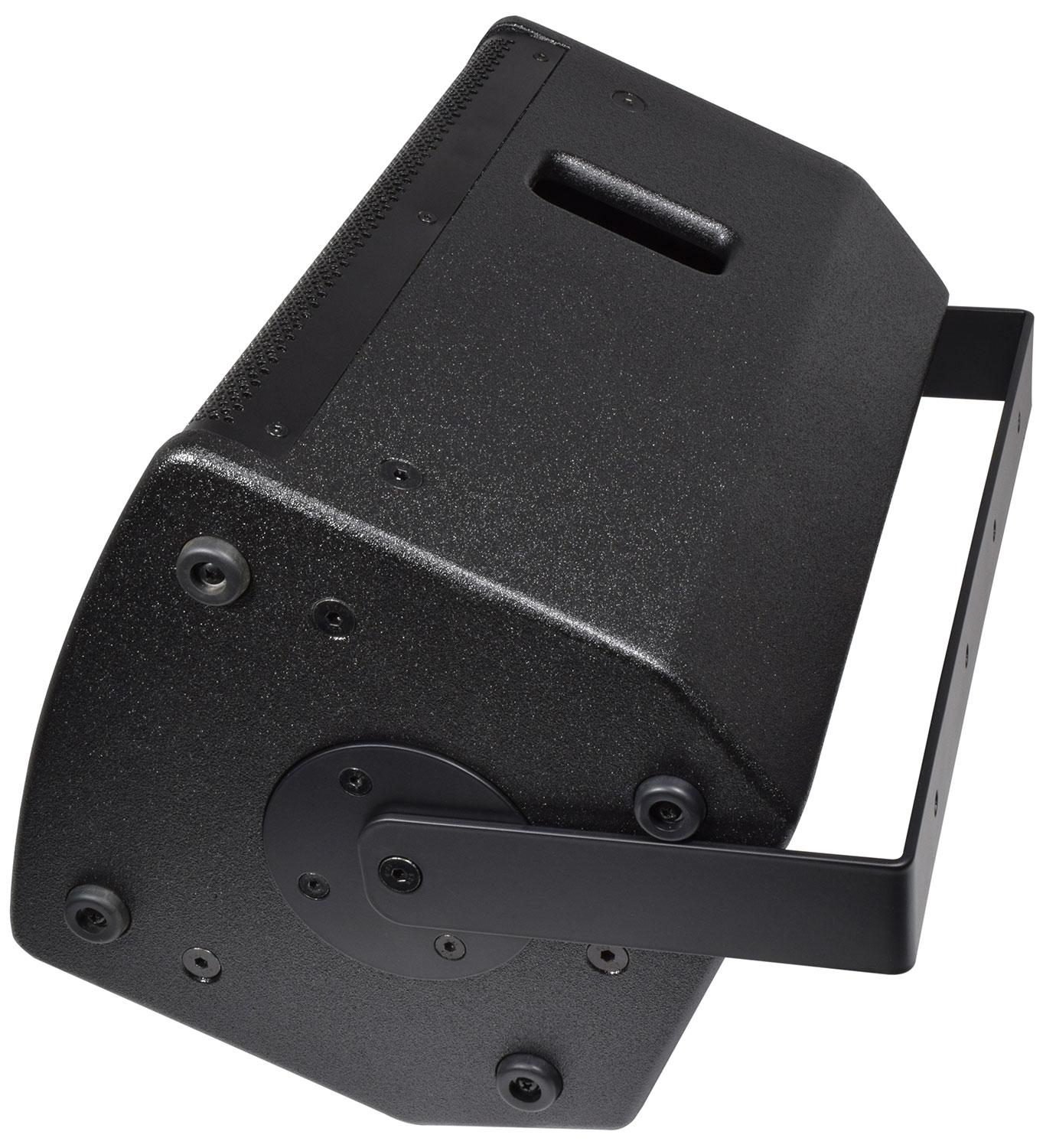

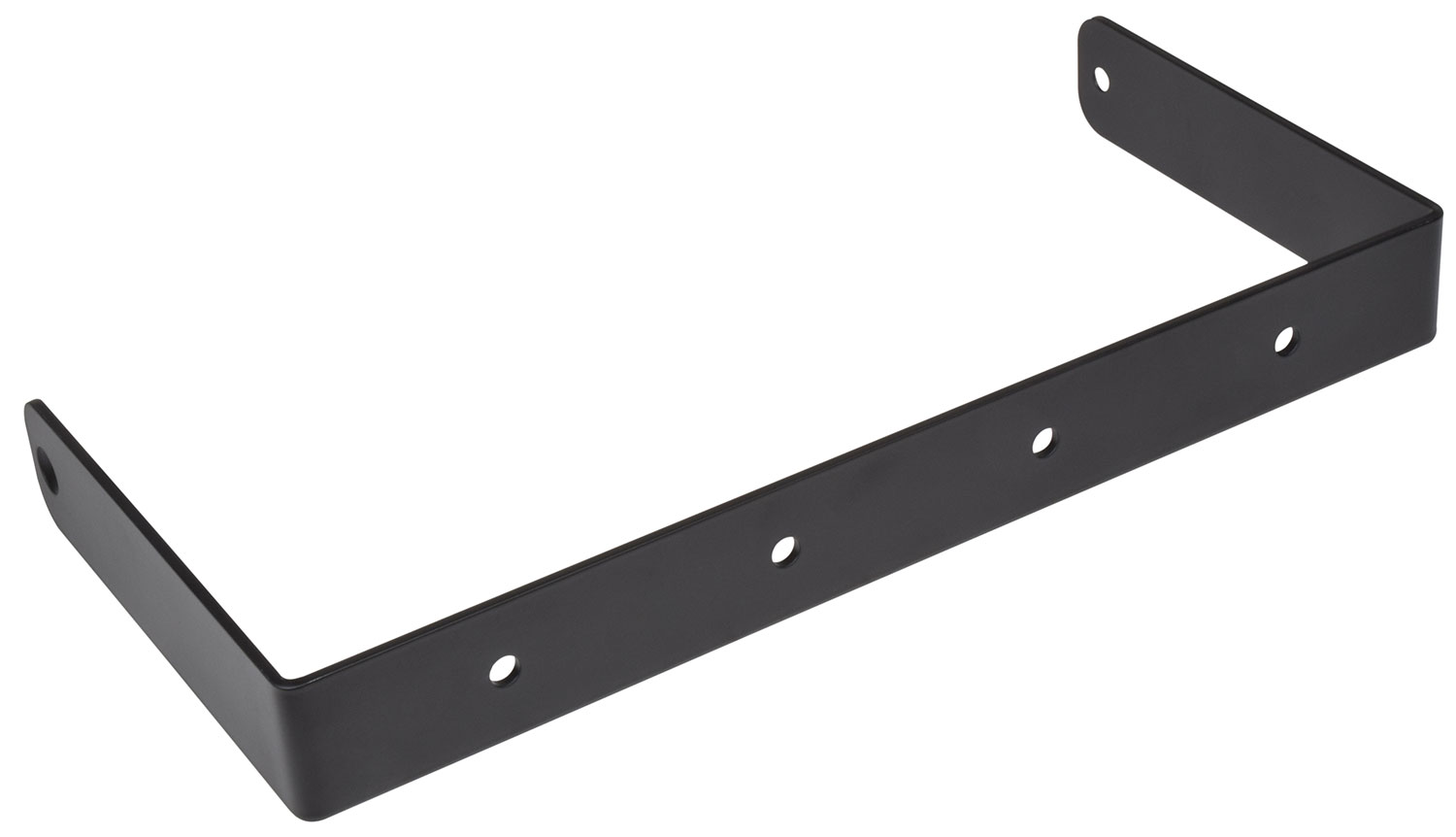

• CUBA-8 & CUBA-10 supplied with a U-bracket

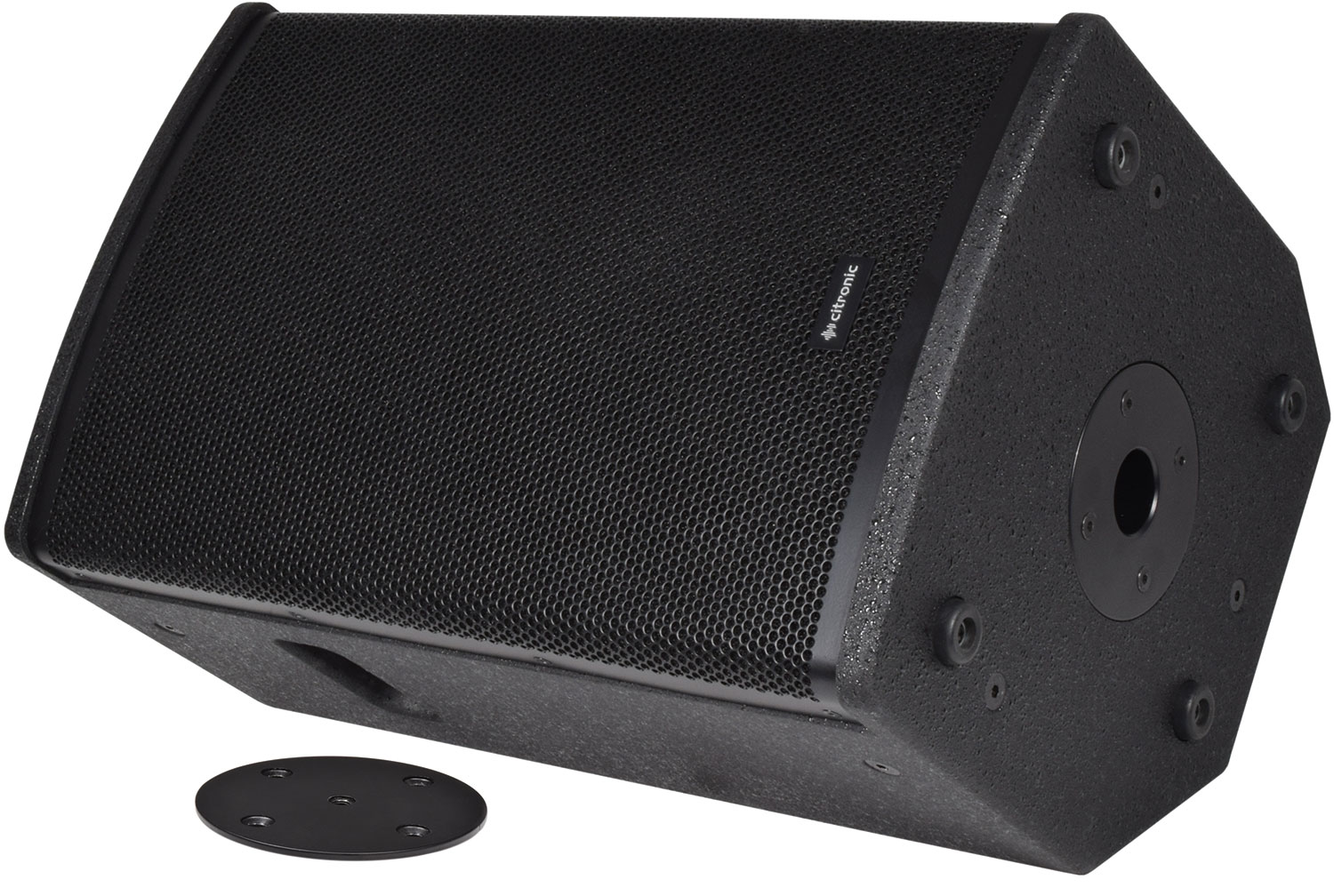

• 35mm pole mount socket and M8 flying points
• Custom designed high power LF and HF drivers

• Weight 12.5kg
• Dimensions 507 x 313 x 307mm
• HF dispersion 100°/50° x 55°
• Max. SPL 122.5dB
• Sensitivity 95dB
• Frequency response 60Hz-20kHZ
• Power handling : max 540W
• Power handling : rms 270W
• HF driver 35mmØ (1.35") Ti compression driver
• Voice coil 50mmØ (2")
• Main driver 250mmØ (10")
• Colour Black
• Construction Polyurea coated MDF + powder-coated steel grille
• Input 2 x parallel SPK socket
• Impedance 8 Ohms
