CUBA Active Full-Range PA Cabinets with DSP + Bluetooth®
6" 100W Black
Premium full-range active speaker cabinets with minimalist texture coated MDF enclosure and powder-coated steel grille. Integral high-efficiency class-D amplifier sections are controlled by a 5-preset… more
- Efficient and lightweight class-D bi-amplifier
- High power full-range output
- 5 profile DSP section
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
178.706UK
CUBA-6A Active Full Range Cabinet 100Wrms |
6" 100W Black | Box Label |
![]() |
178.708UK
CUBA-8A Active Full-Range Cabinet 250W |
8" 250W Black | Box Label |
![]() |
178.710UK
CUBA-10A Active Full-Range Cabinet 270W |
10" 270W Black | Box Label |
![]() |
178.712UK
CUBA-12A Active Full-Range Cabinet 400W |
12" 400W Black | Box Label |
![]() |
178.715UK
CUBA-15A Active Full-Range Cabinet 450W |
15" 450W Black | Box Label |
![]() |
178.737UK
CUBA-8AW Active Full-Range Cab 250W - White |
8" 250W White | Box Label |
![]() |
178.740UK
CUBA-10A Active Full-Range Cab 270W - White |
10" 270W White | Box Label |
CUBA Active Full-Range PA Cabinets with DSP + Bluetooth®

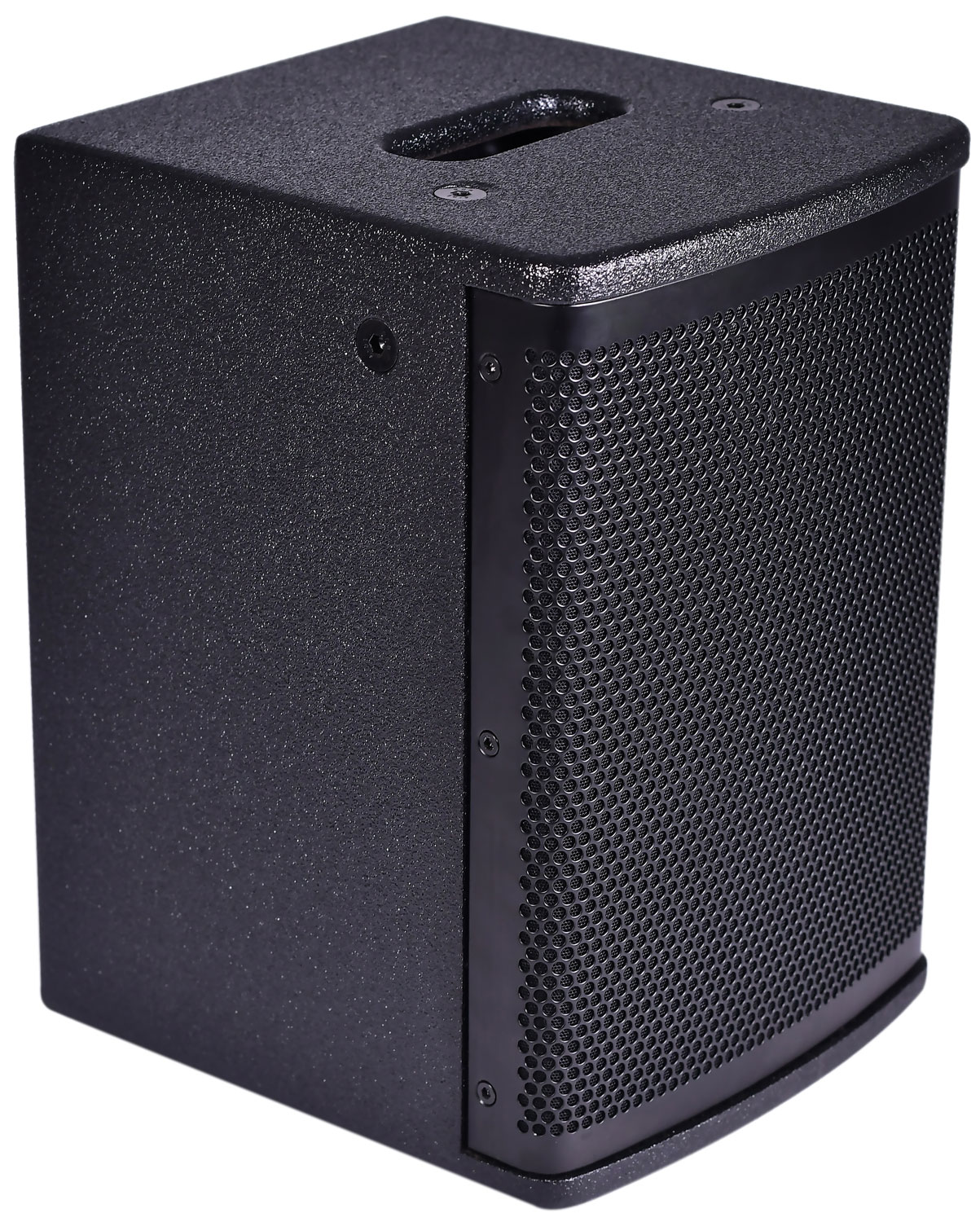

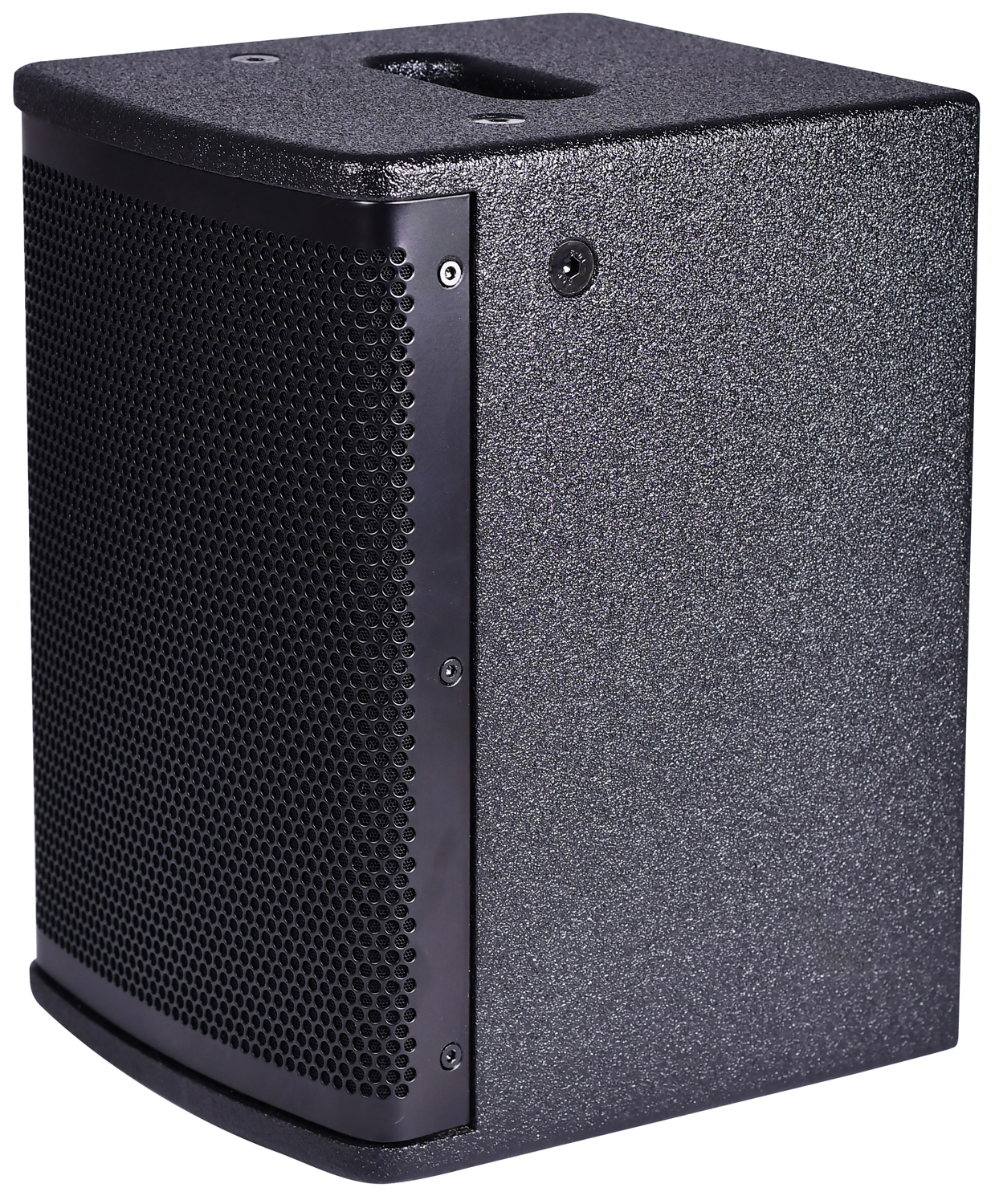

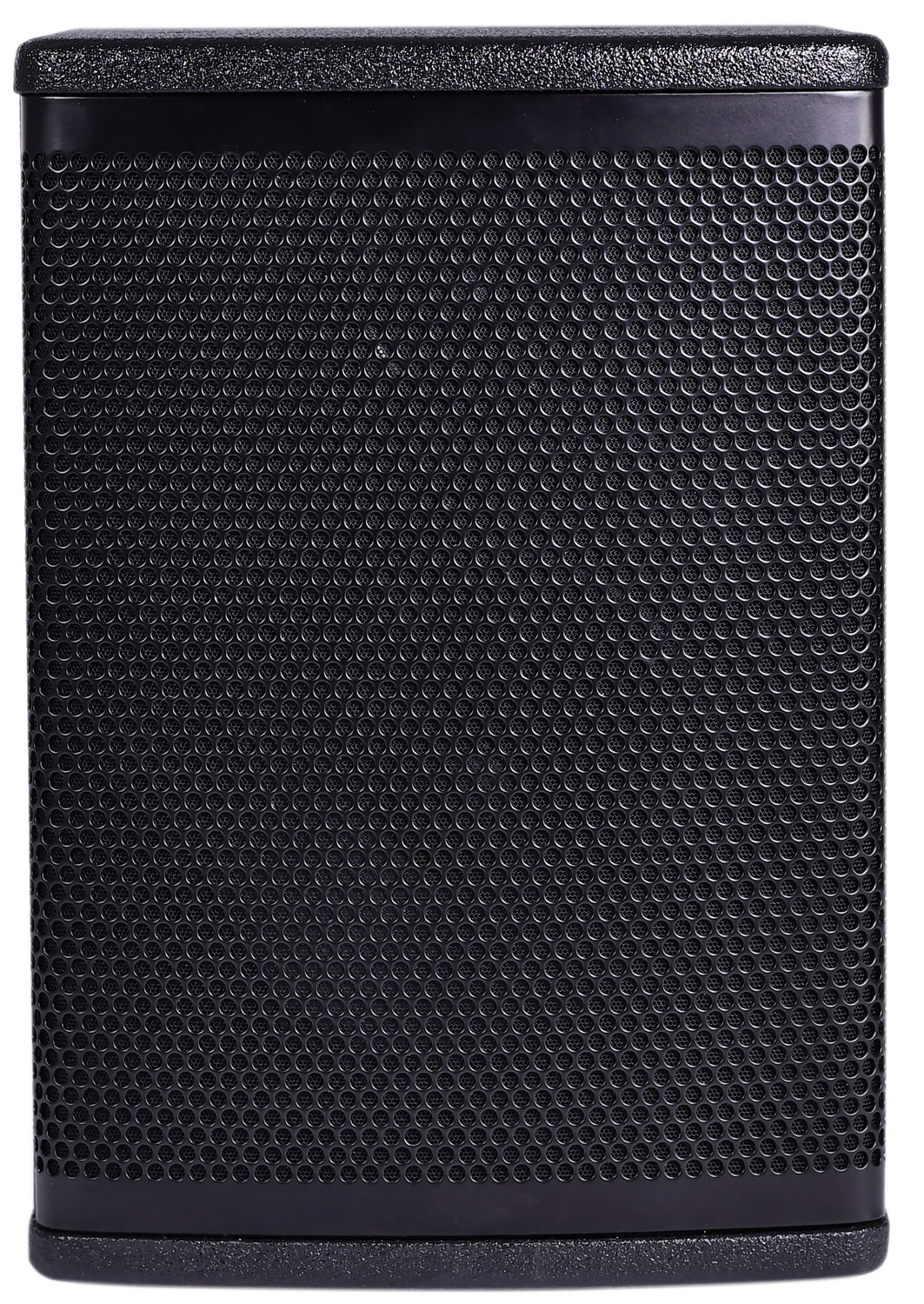

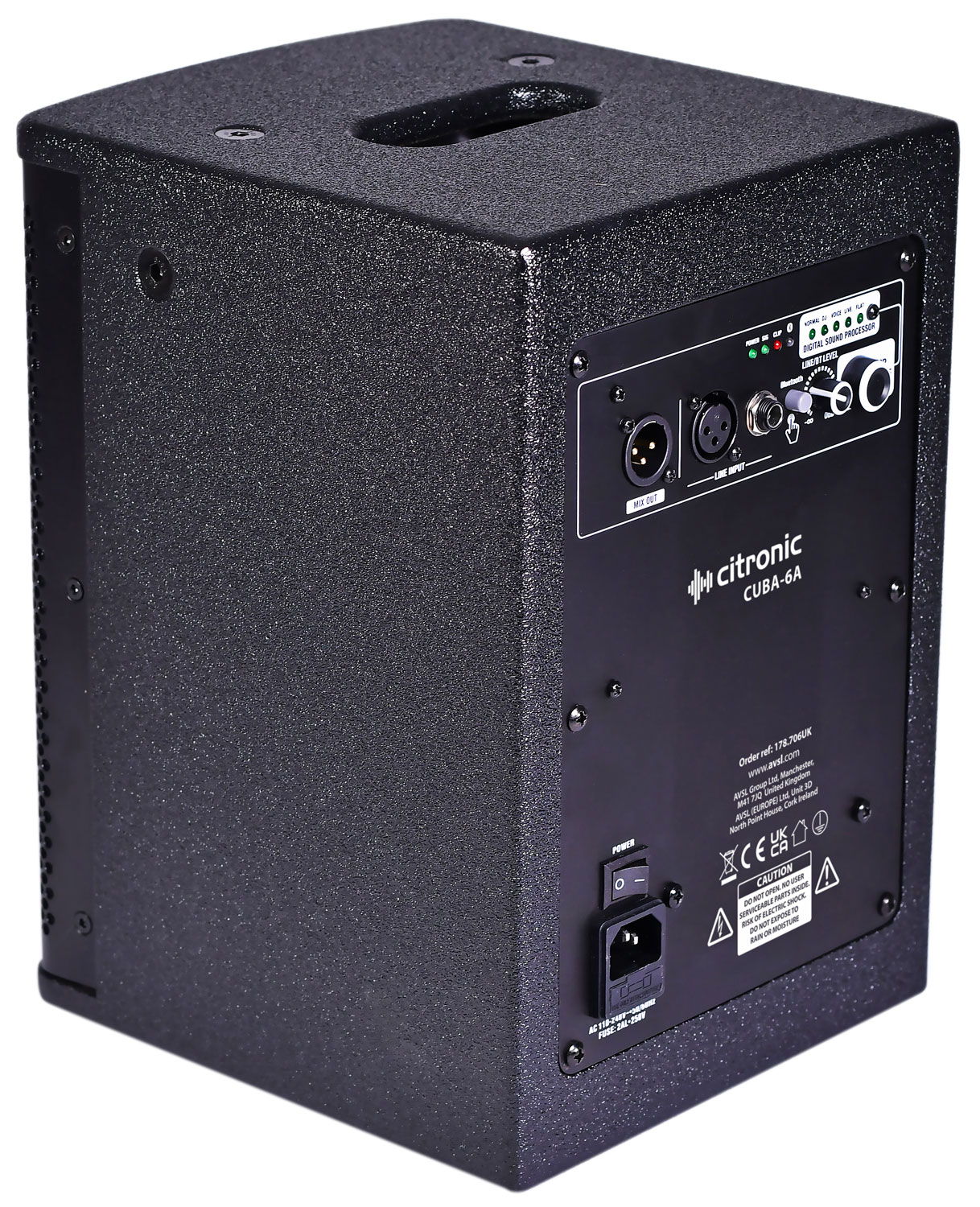

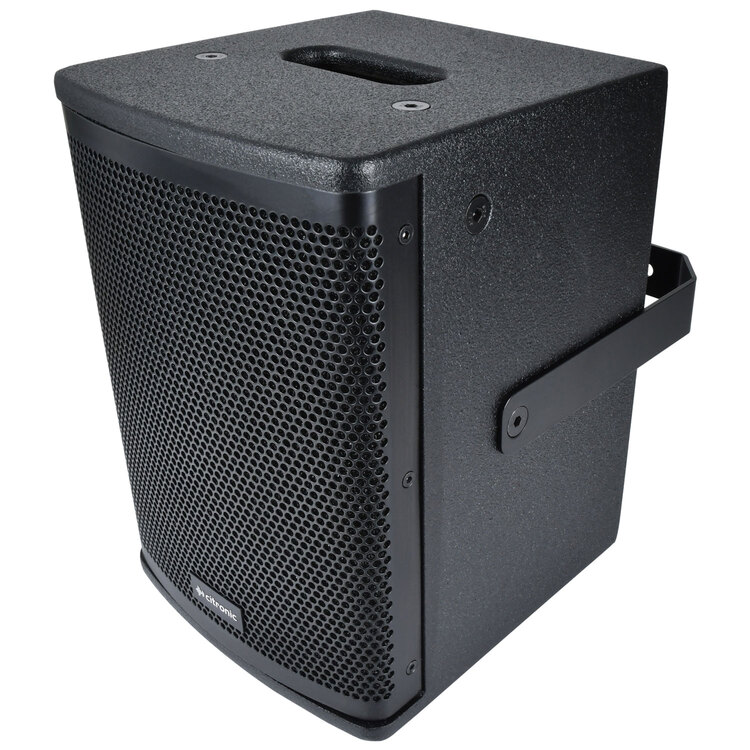

Premium full-range active speaker cabinets with minimalist texture coated MDF enclosure and powder-coated steel grille. Integral high-efficiency class-D amplifier sections are controlled by a 5-preset DSP which controls high detail and can extend the response down to sub-frequencies for an uncompromising full-range output. A switchable Mic/line input and a line input have XLR or jack input and the line input also has RCA option and a Bluetooth receiver for wireless playback from a smart phone. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Designed to provide clean, high-energy output across the full audio spectrum for all sound reinforcement applications.
- Efficient and lightweight class-D bi-amplifier
- High power full-range output
- 5 profile DSP section
- Bluetooth receiver
- Weight 6.1kg
- Dimensions 325 x 235 x 210mm
- HF dispersion 100° x 100°
- Max. SPL 115.0dB
- Sensitivity 92dB
- Frequency response 80Hz-18.5kHz
- Output power : max. 200W
- Output power : rms 100W
- HF driver 25mm (1") silk dome tweeter
- Voice coil 25mmØ (1")
- Main driver 165mmØ (6.5")
- Power supply 230Vac, 50Hz (IEC)
- DSP settings Normal, DJ. Voice, Live, Flat

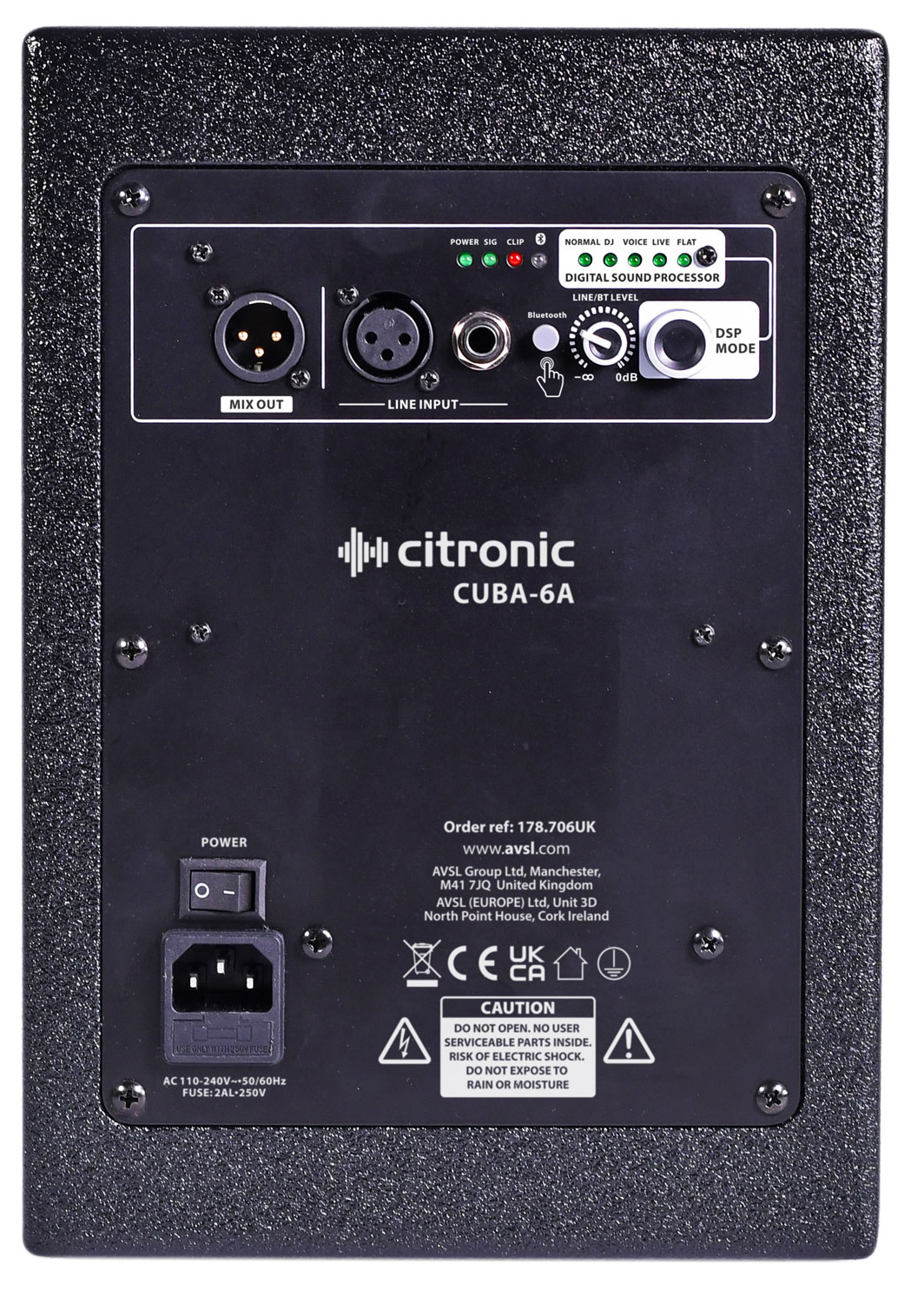

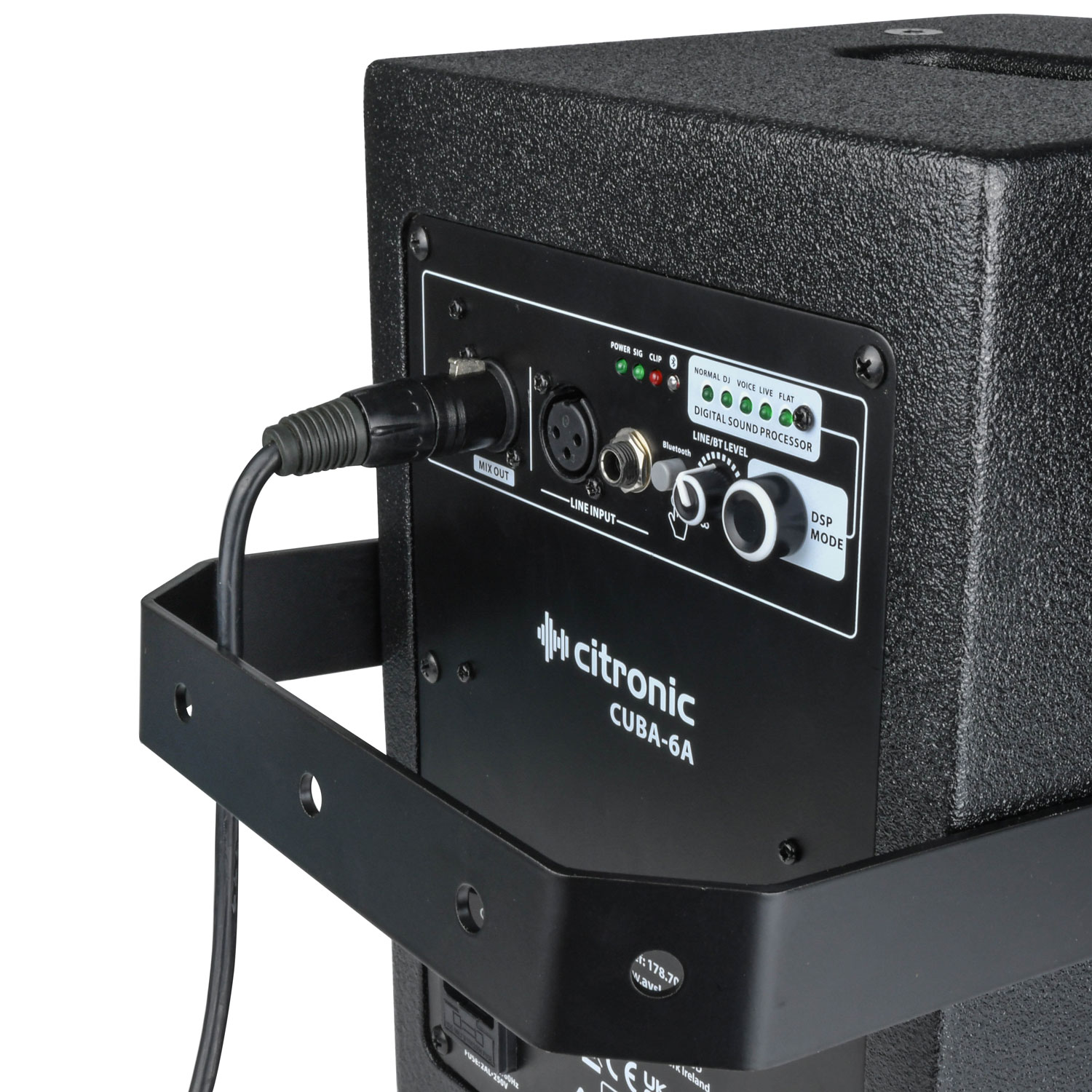

- Inputs Mic/line (XLR/jack), Line (RCA/XLR/jack), Bluetooth
- Line output XLR
- Construction Polyurea coated MDF + powder-coated steel grille
In the Box
- CUBA series active speaker cabinet
- IEC power lead
