CS Series Wooden Installation Speakers
8" Black
178.674UK
CS-810B
Passive speaker cabinets with smooth and even frequency response for accurate delivery of music and vocal material. Birch plywood cabinets with polyurethane texture coated finish and acoustic foam… more
- Premium birch plywood construction
- Titanium diaphragm HF compression driver
- Balanced full-range sound reproduction
CS Series Wooden Installation Speakers
Passive speaker cabinets with smooth and even frequency response for accurate delivery of music and vocal material. Birch plywood cabinets with polyurethane texture coated finish and acoustic foam backed steel grilles. Fitted with steel U brackets and mounting hardware for convenient and neat installation. Understated minimalist design with premium quality performance.
- Premium birch plywood construction
- Titanium diaphragm HF compression driver
- Balanced full-range sound reproduction

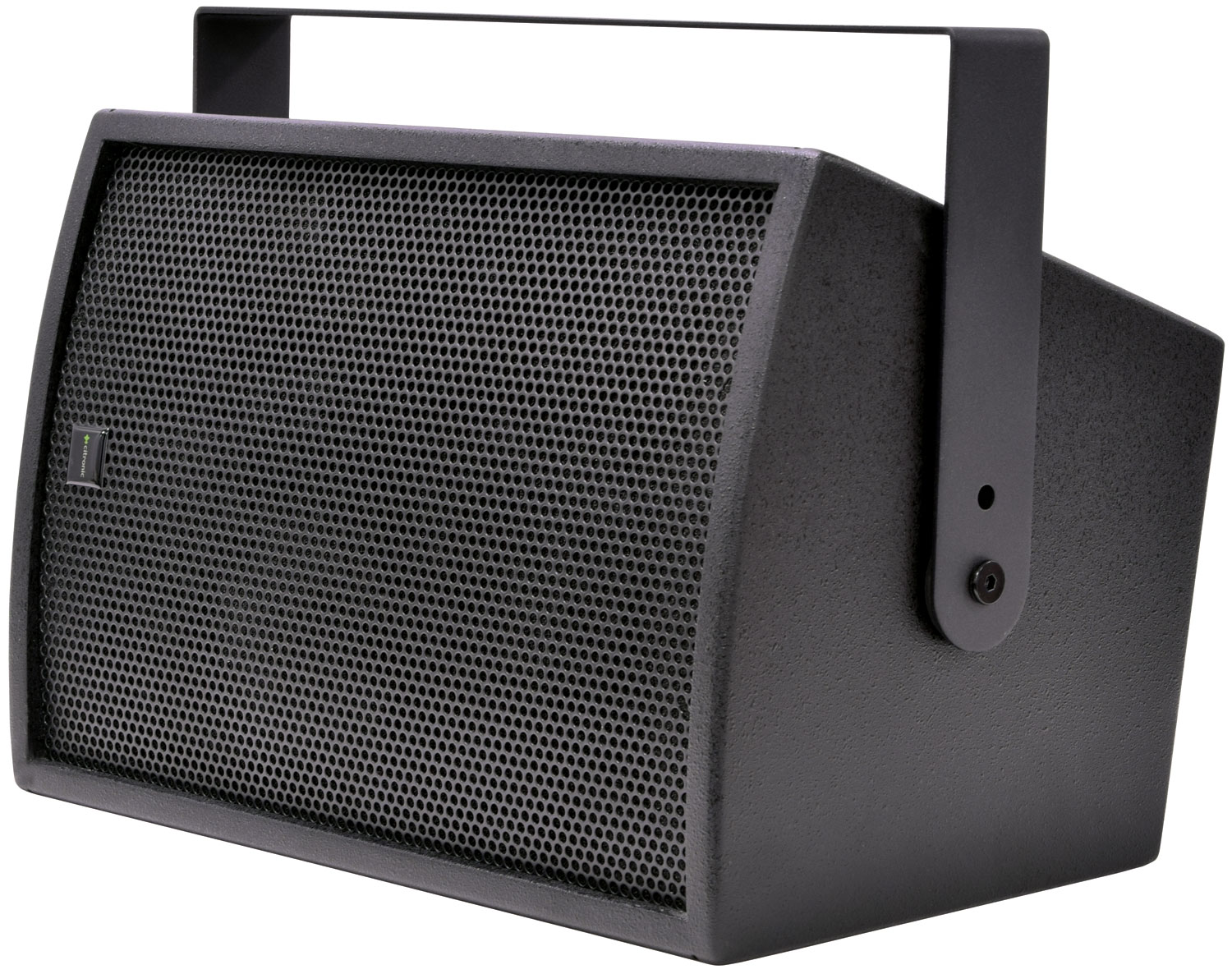

- Supplied with adjustable U-brackets
- CS-610 and CS-810 VESA mount compatible
- 10", 12" and 15" models fitted with 35mm pole mount socket
- Supplied singly
- Weight 8.9kg

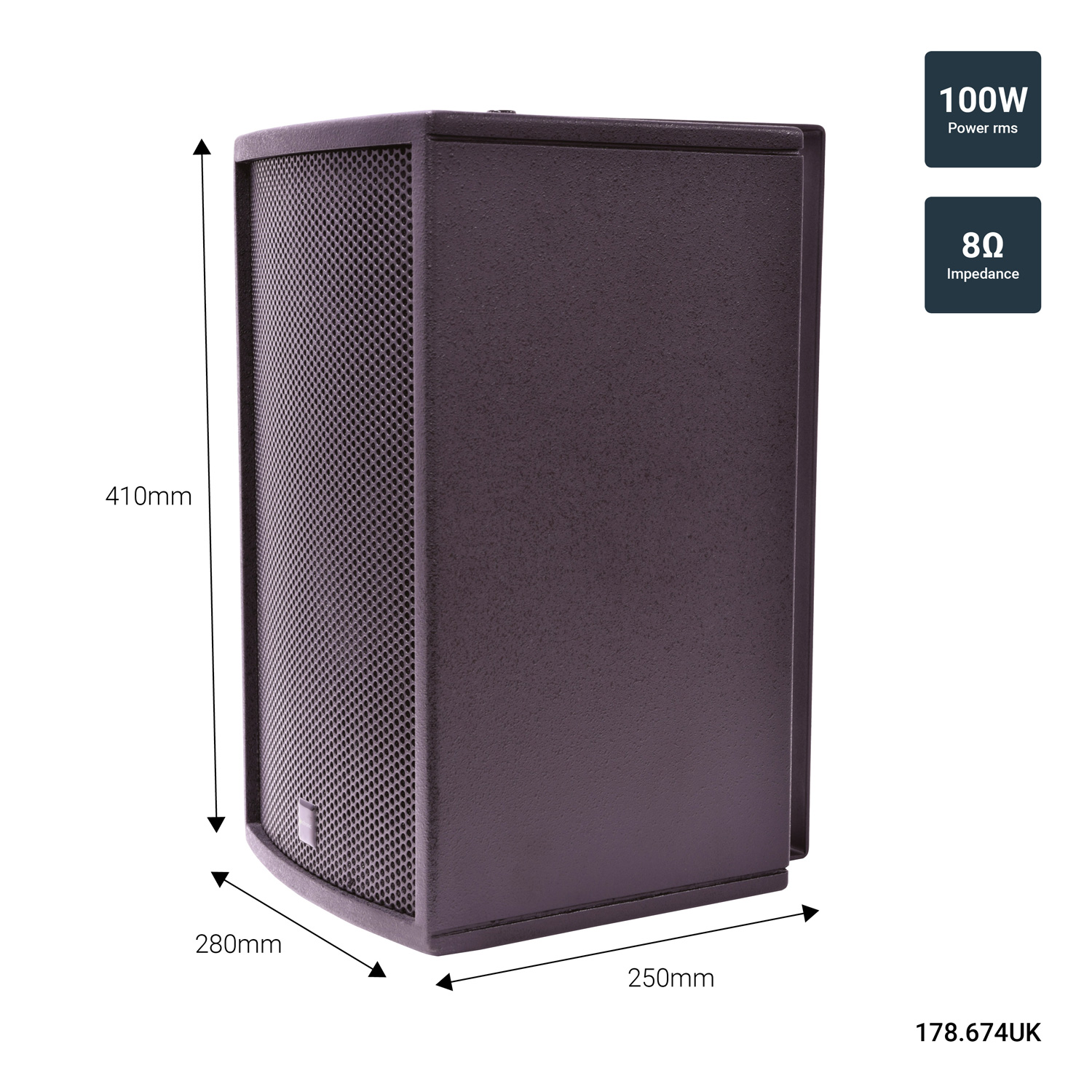

- Dimensions 410 x 280 x 250mm
- SPL @ 1W/1m 93dB
- Frequency response 70Hz - 20kHz
- Hardware U bracket + VESA100 threaded inserts 4mm
- Finish Black
- Dispersion 120° x 120° (H x V)
- Configuration 200mm (8") & CD horn
- Power : rms 100W
- Model CS-810B
- Crossover frequency 3.5kHz (12dB/oct)

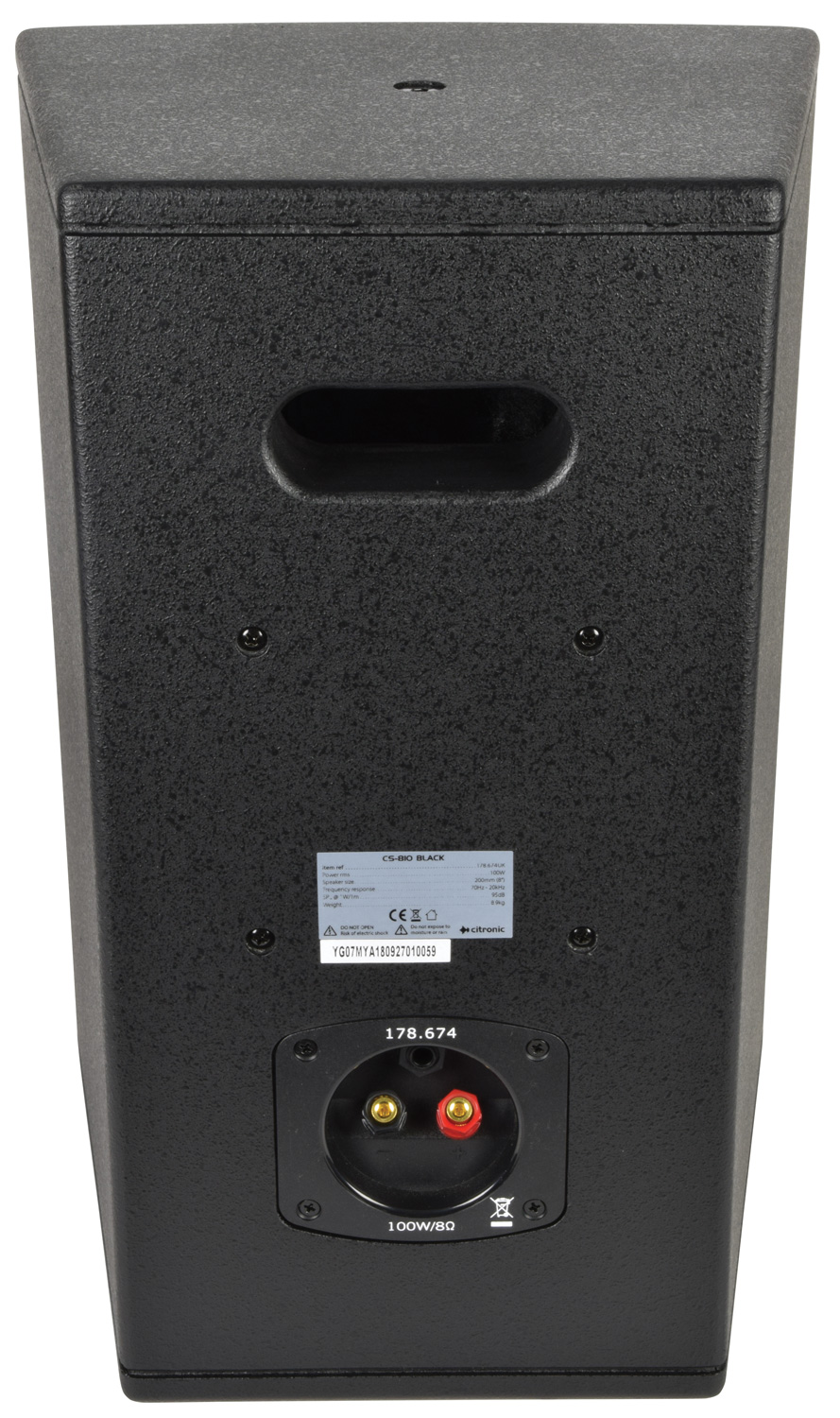

- Input connections 6.3mm jack & 4mm binding posts
- Impedance 8 Ohms
- Housing material Birch Plywood
In the Box
- 1 x CS series wooden speaker cabinet
- 1 x Adjustable U bracket
