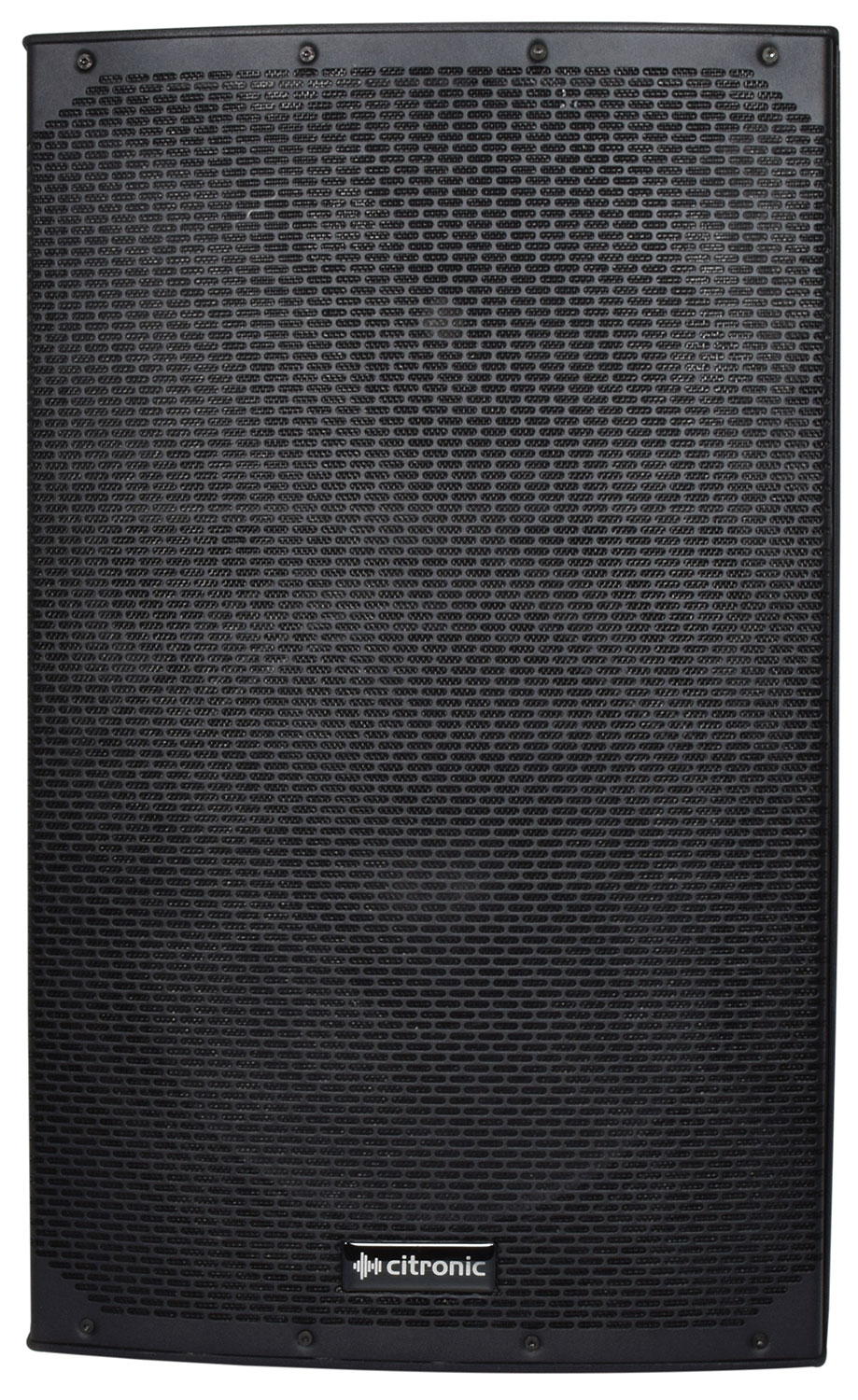

CAB Series Passive Cabinets

Full-range speaker cabinets housed in a compact and lightweight moulded PP enclosure. Custom designed low frequency woofers are paired with titanium compression drivers for a powerful yet balanced sound delivery. Each cabinet is fitted with top and side carrying handles and a 35mm pole mount socket. Connection from an amplifier is via Speakon lead to either of 2 sockets on the rear panel. Compact, lightweight and yet very capable sound reinforcement cabinets.

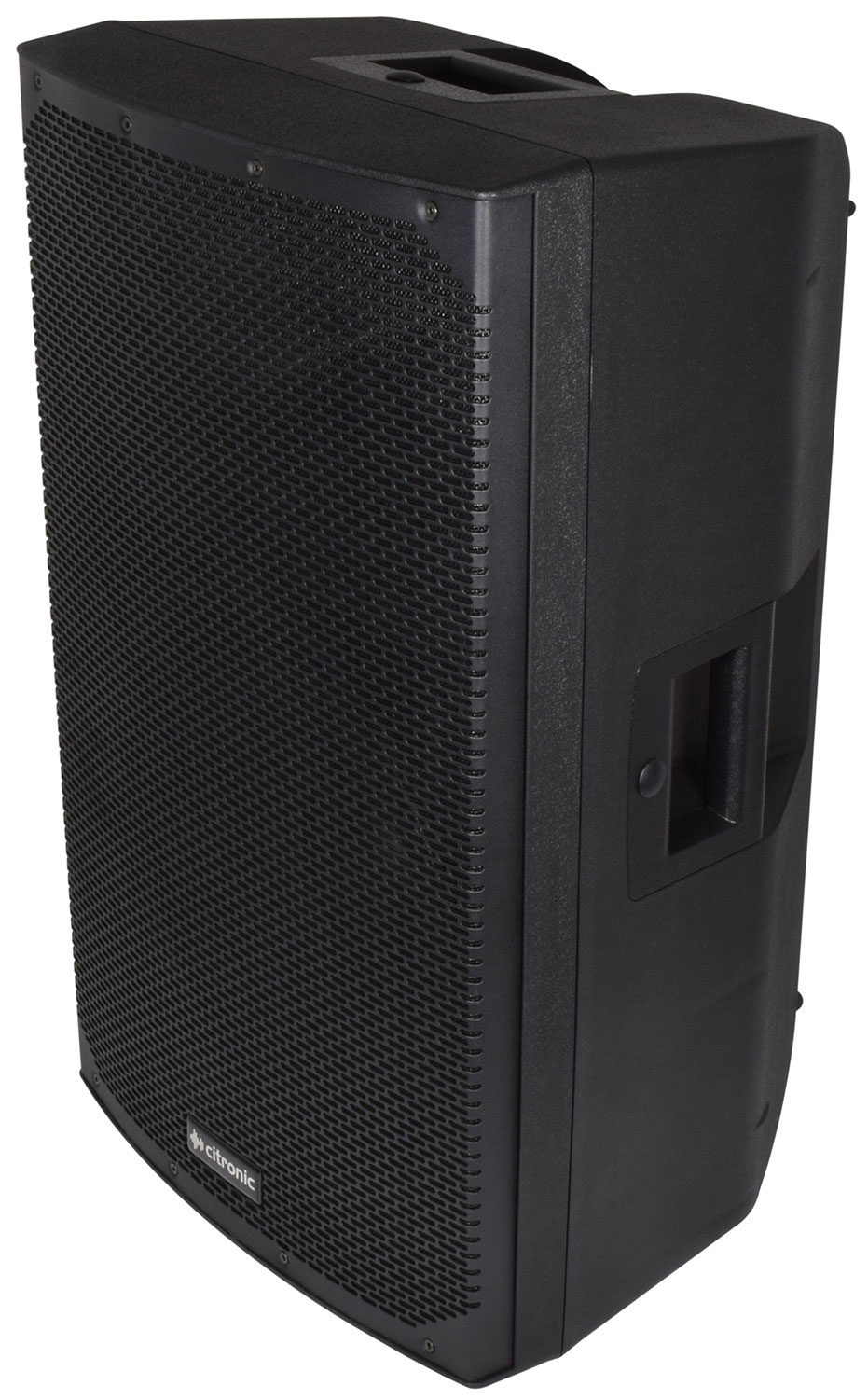

• Integral top and side carry handles
• 35mm pole mount

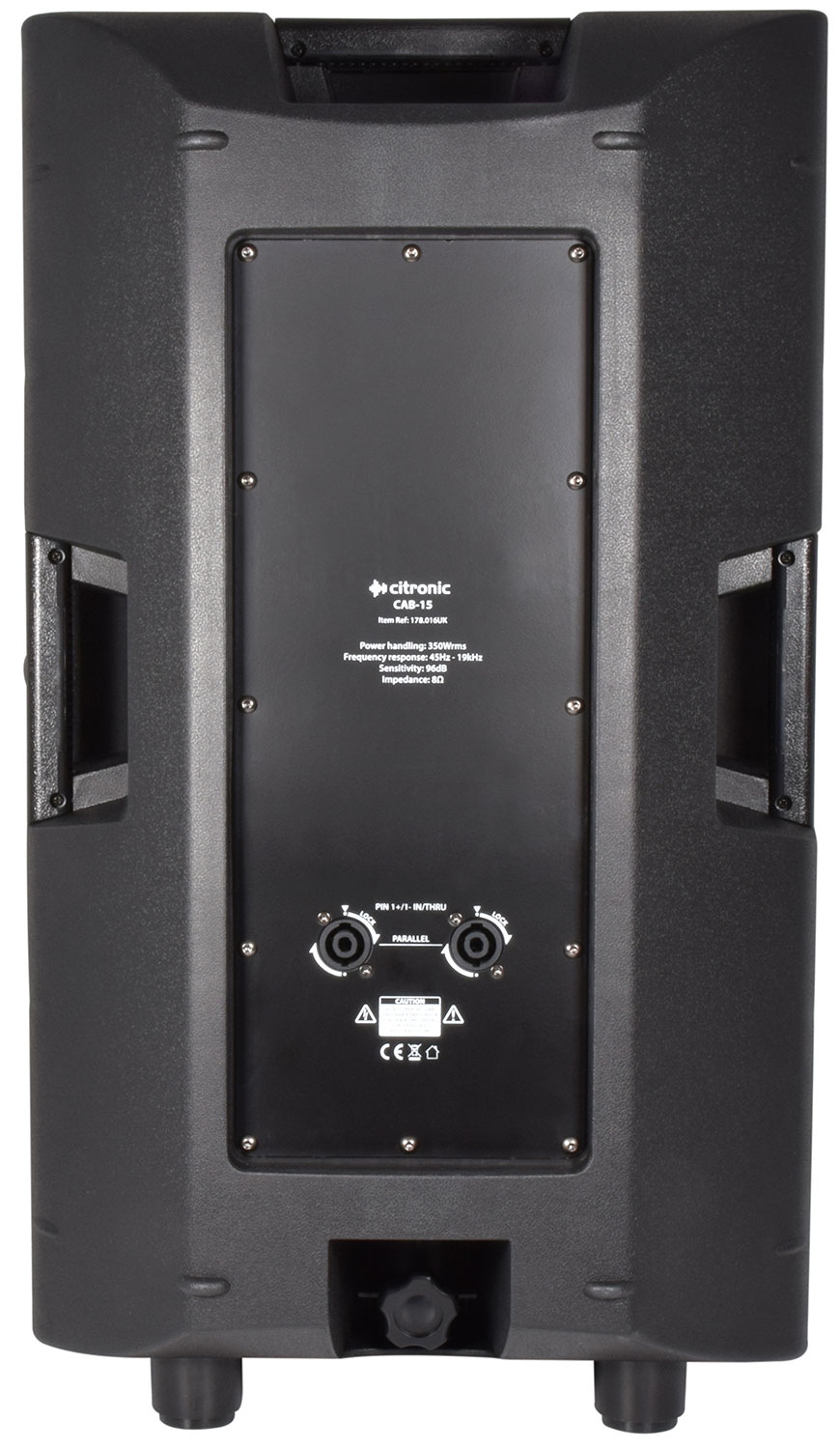

• 2 x SPK sockets

• Weight 16.6kg
• Dimensions 695 x 420 x 390mm
• Crossover frequency 2.6kHz
• SPL max. 121dB
• Sensitivity @ 1W/1m 96dB
• Frequency response 45Hz - 19kHz
• HF driver 35mmØ (1.35") Ti CD
• Voice coil 60mmØ (2.36")
• LF driver 380mmØ (15")
• Power handling : rms 350W
• Housing material Injection moulded polypropylene
• Impedance 8 Ohms (LF+HF combined)
• Dispersion 90° x 60°
• Connectors 2 x SPK socket
