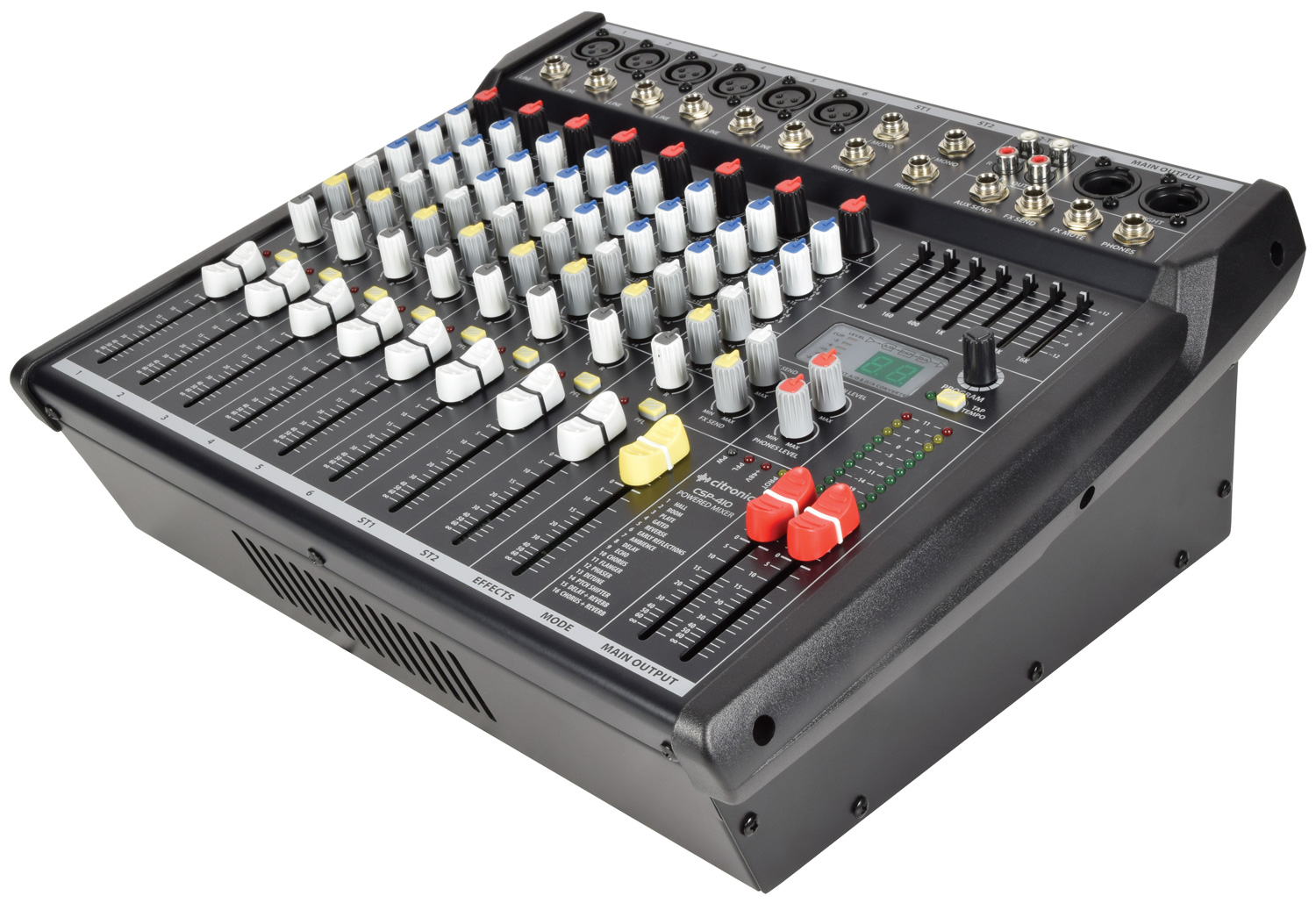

CSP Series Compact Powered Mixers with DSP

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

• 24-bit 16 program DSP effects
• 48V phantom power for XLR inputs
• 3-band EQ per channel
• 7-band global graphic EQ
• Internal stereo power amplifier
• Balanced main outputs

• Weight 7.35kg

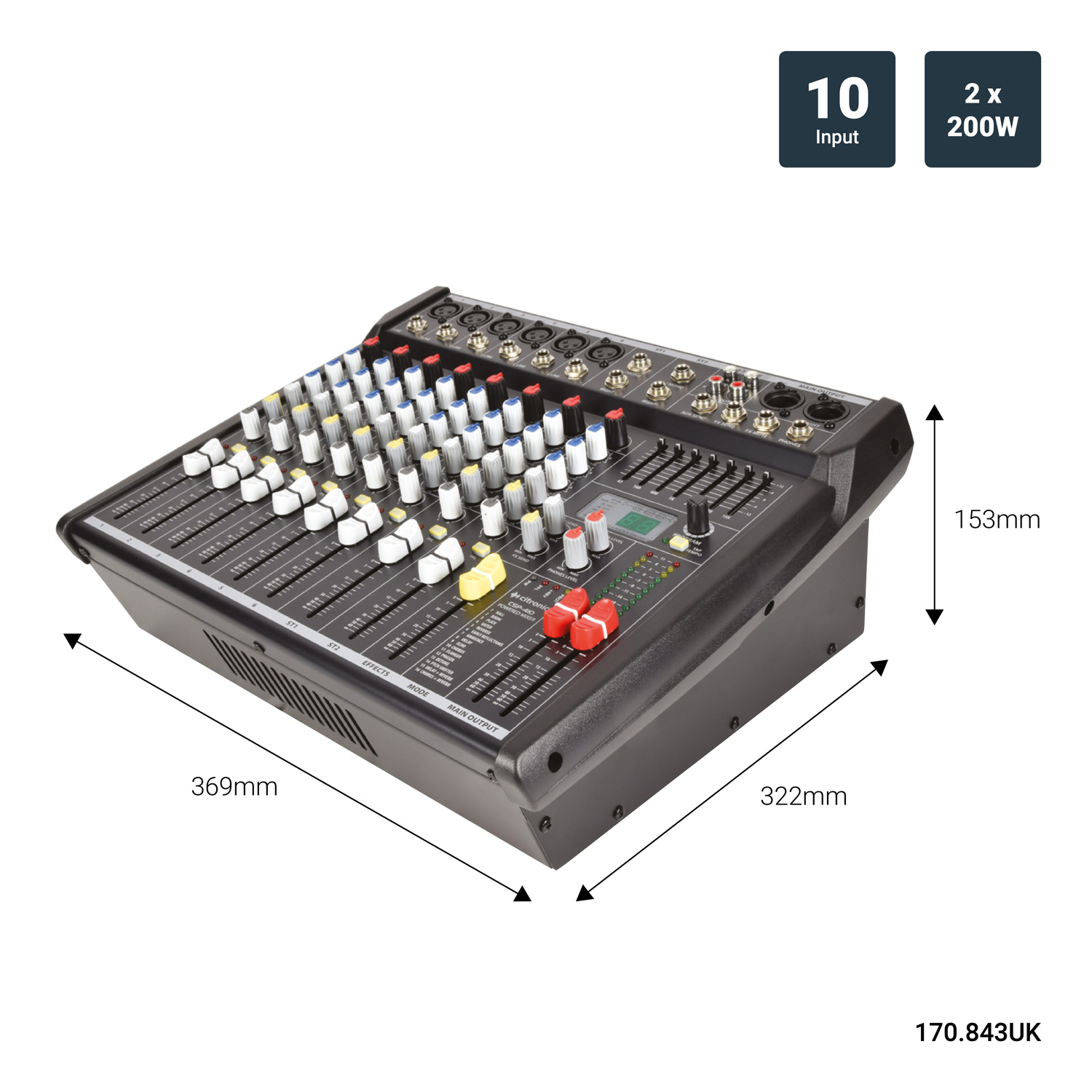

• Dimensions 369 x 322 x 153mm
• Inputs : Mic/Line 6 x balanced XLRF/TRS jack
• Output power : 8 Ohms 2 x 130Wrms
• Output power @ 4 Ohms 2 x 200Wrms
• Fuse T10A (5 x 20mm, 250V)
• Power consumption 600W
• Power supply 230Vac 50Hz (IEC)

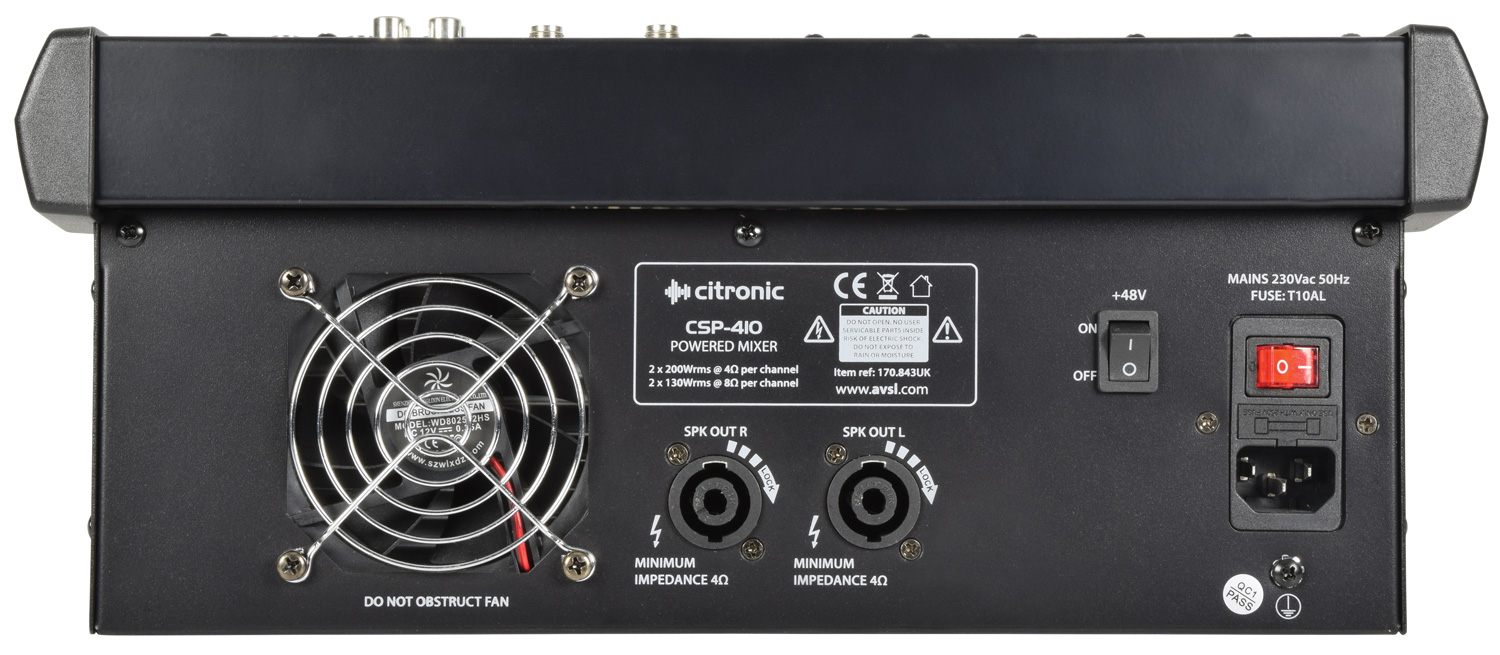

• Speaker : outputs L+R SPK connectors
• Effects 16 program DSP (24-bit sigma-delta, 40khz)
• Phantom power +48V (XLR inputs)
• Frequency response 20Hz-30kHz (0.5dB)
• Input level +24dBu
• Output level : line +26dBu
• CMRR >74dB (mic 1kHz)
• THD +N <0.01% (channel to main out)
• Crosstalk >85dB (fader mute), >82dB (channel)
• Noise rms : 22Hz-22kHz -122dBu (EIN), -82dBu (mix)
• EQ: high 12kHz ±15dB shelving
• EQ: mid 2.5kHz ±15dB band pass
• EQ: low 80Hz ±15dB shelving
• Input impedance : mic (balanced) 2k Ohms
• Input impedance : line (balanced) 10k Ohms
• Sensitivity : mic -60 to +14dBu
• Sensitivity : line -40 to +14dBu
• 2-track 2 x RCA in & out (-2dBu)
• Output impedance <75 Ohms
• Headphone output 6.3mm jack, 30-600 Ohms
