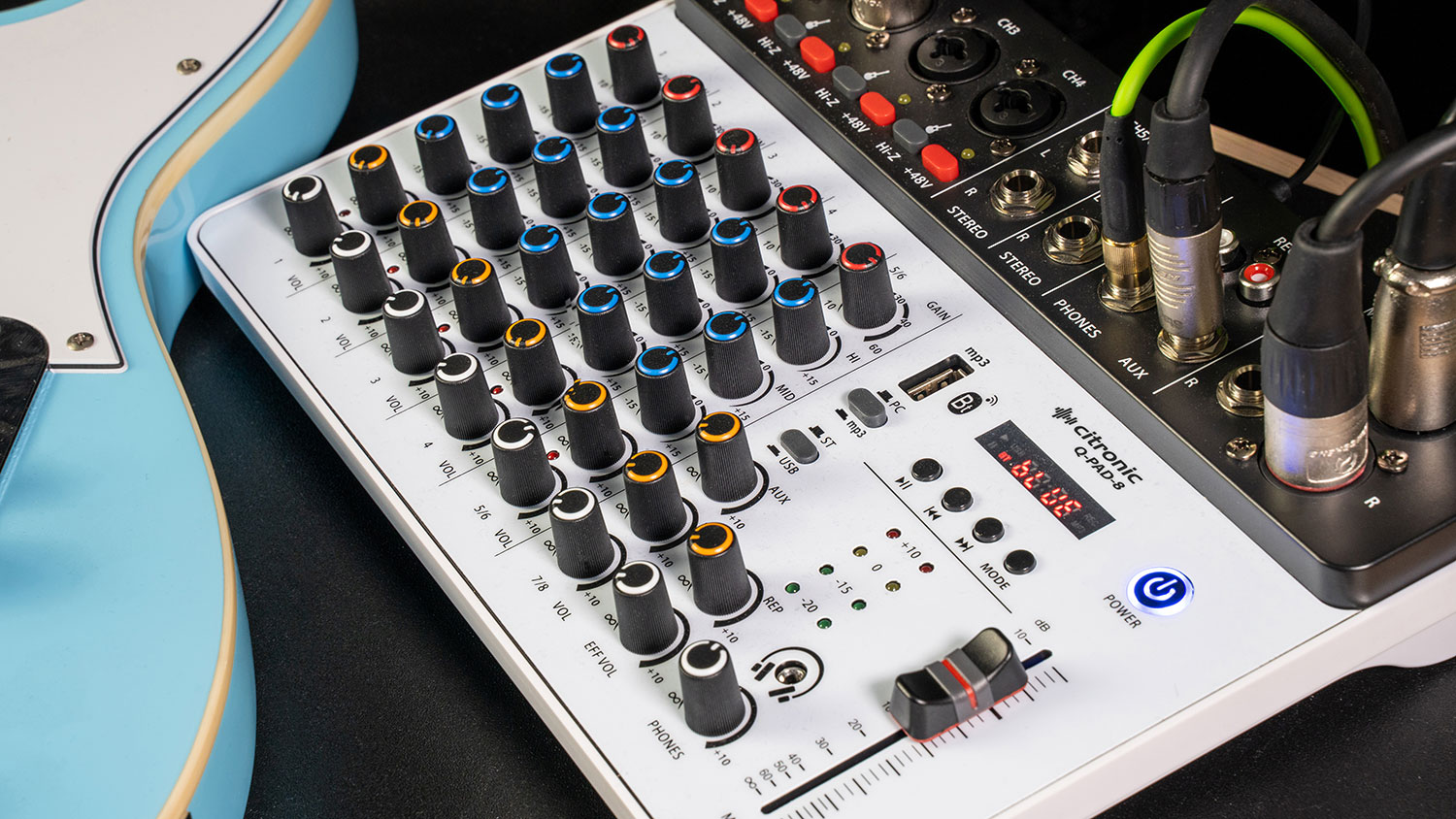

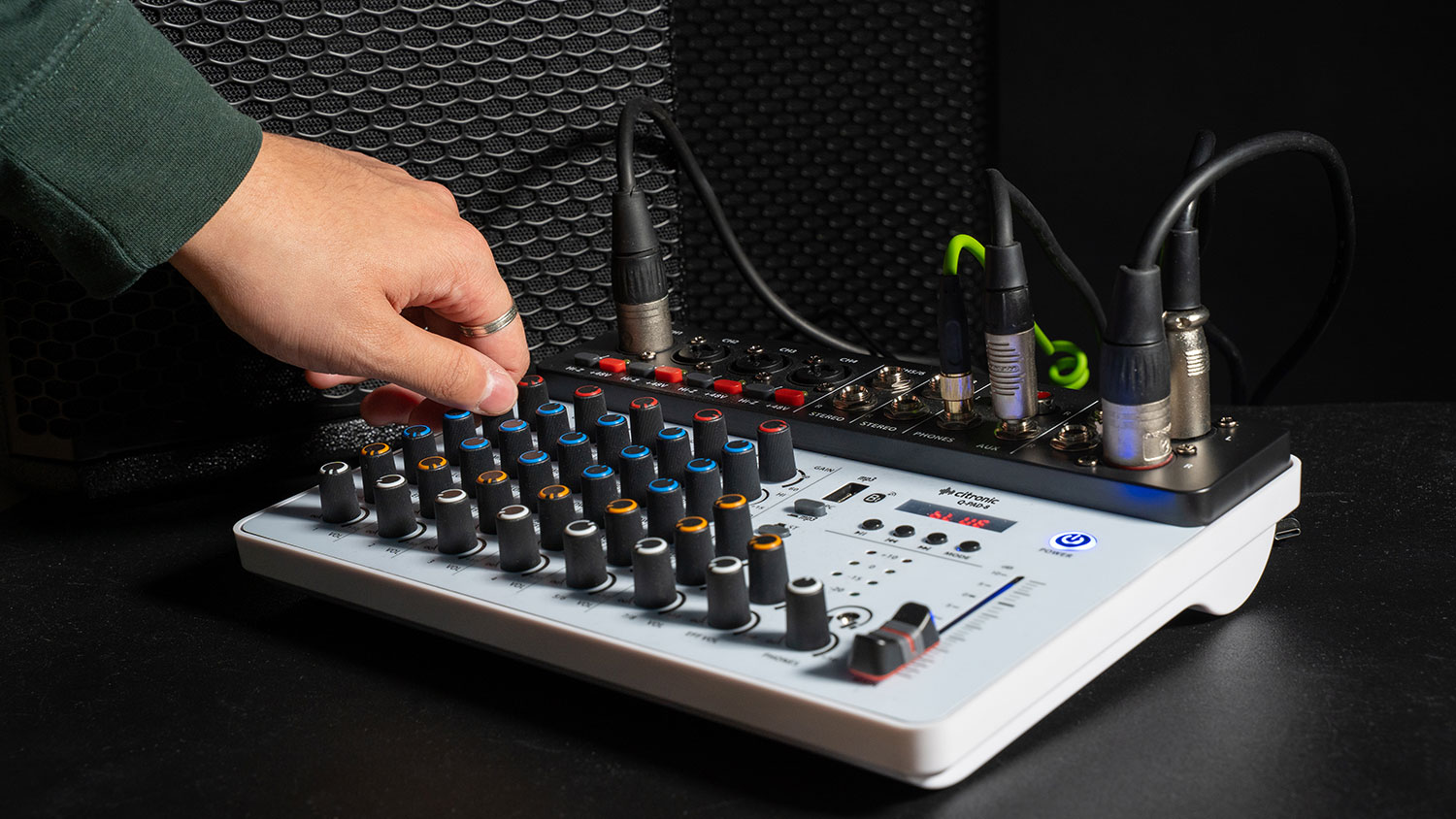

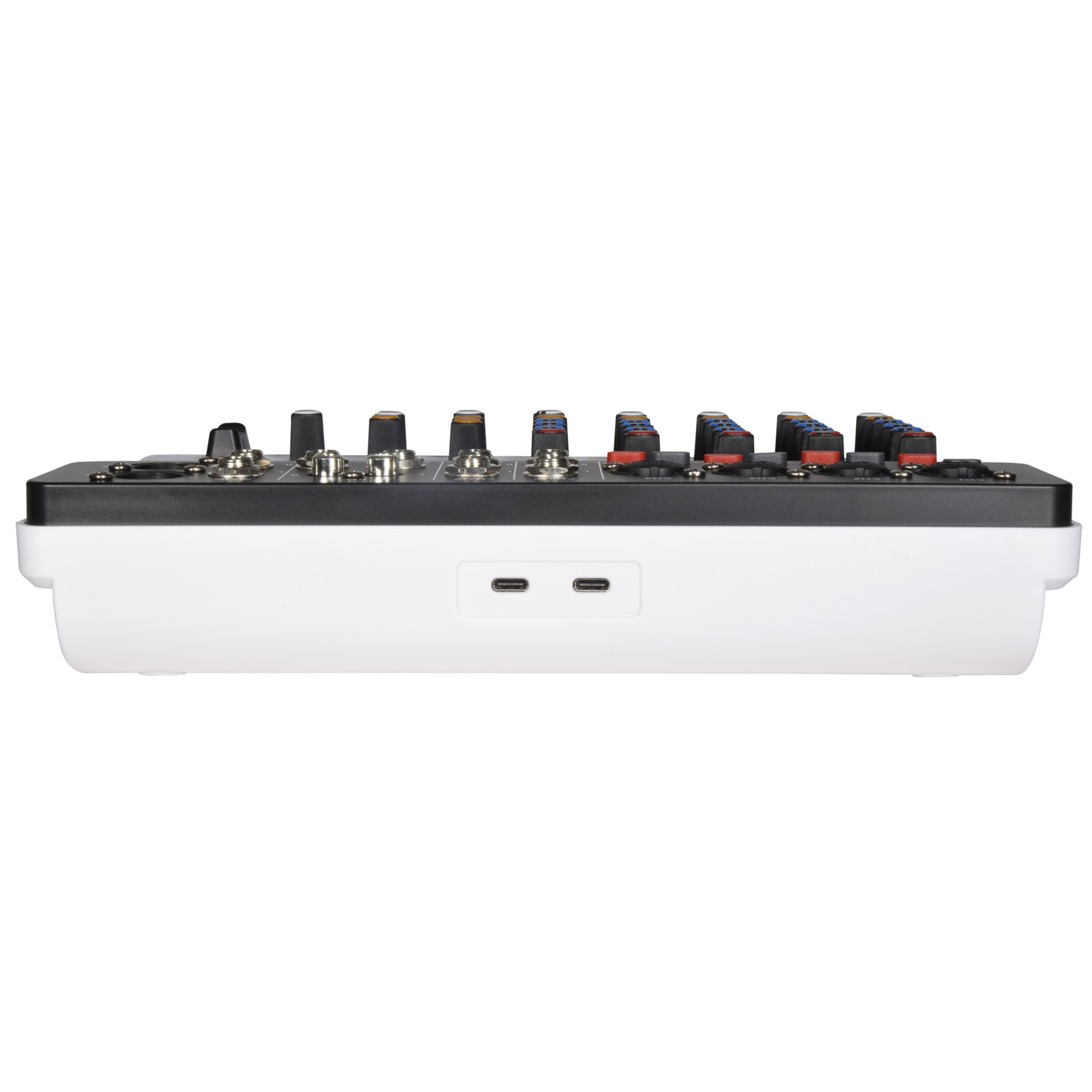

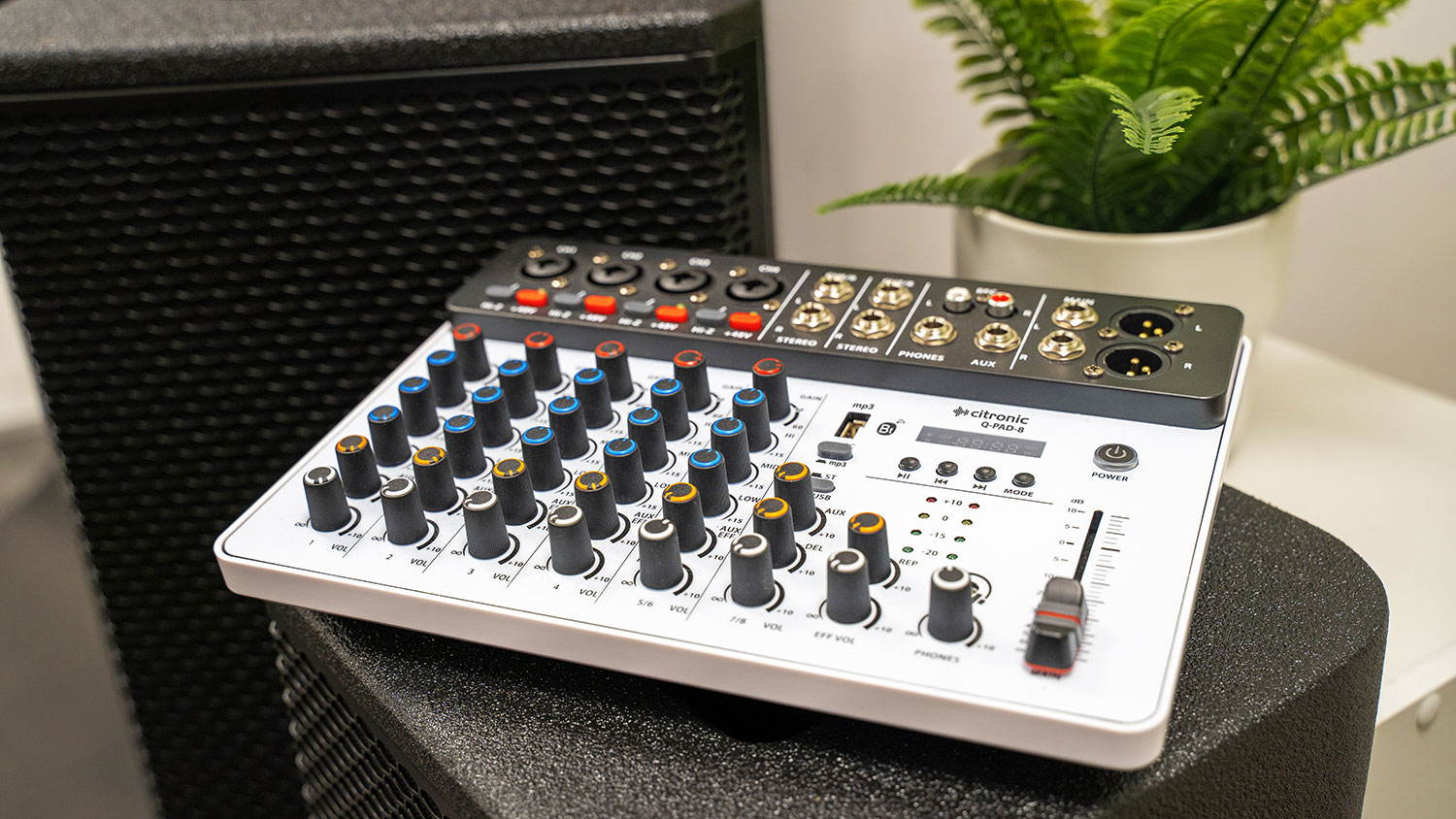

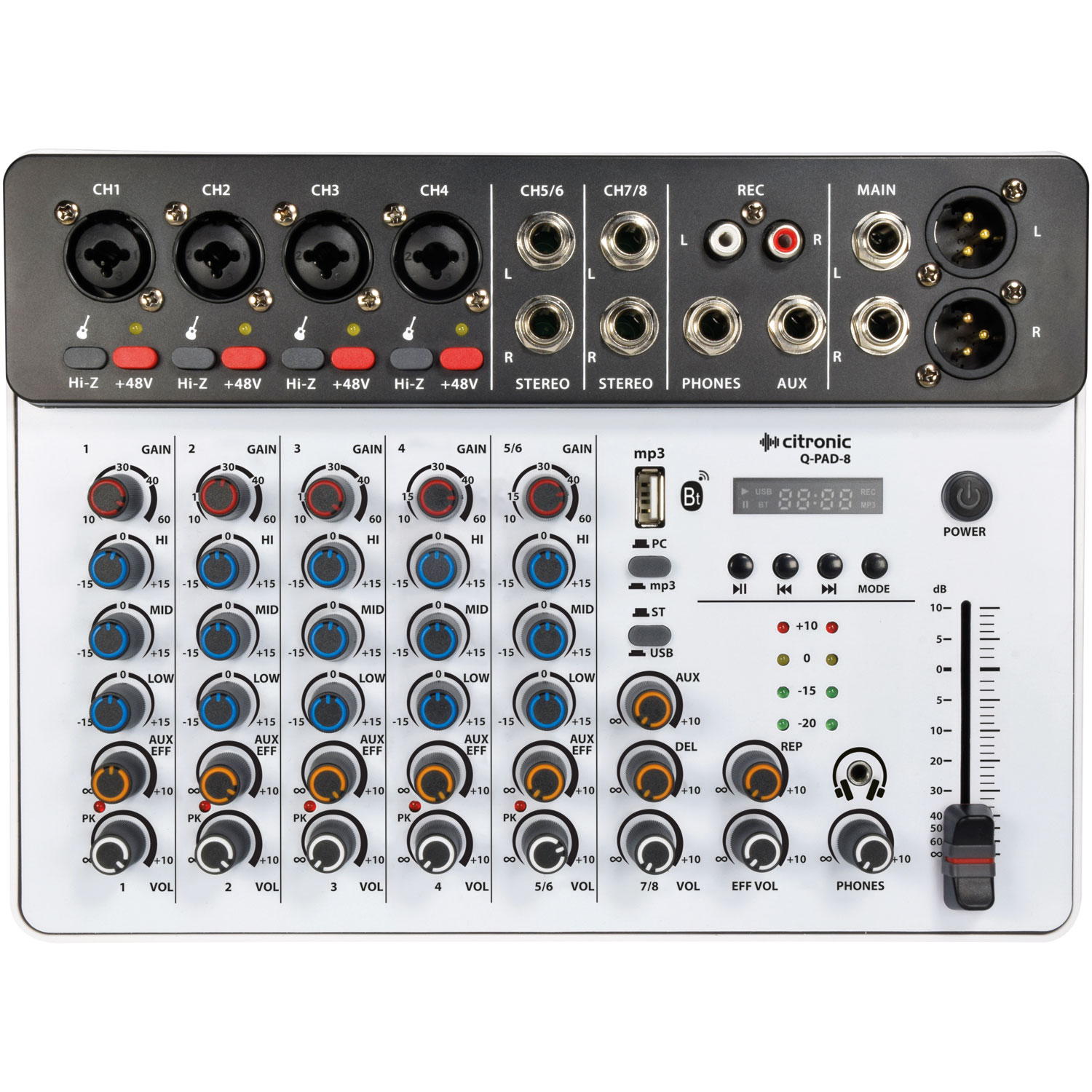

Q-PAD-8 Compact Mixer with USB/BT and Audio Interface

A multi-functional mixer in a compact format for live or studio applications. Powered via USB-C connection, with an additional USB-C port that acts as an audio interface for direct recording and playback from a PC. 4 mono channels can accept an XLR input for microphone or 6.3mm plug for line or instrument (selectable) with switchable 48V phantom power for condenser microphones. These can be routed to the internal delay effect section for echo effects if desired. Two additional stereo line channels can accept 6.3mm plugs or a single plug for mono operation. Each channel has a Gain control with Bass and Treble EQ controls. In addition, there is an AUX control that routes the channel signal to the internal digital delay effects section or can be alternatively taken to external equipment via the AUX output jack. A USB type-A connector is provided for playback of mp3 files from a pen drive and the media player even has a built-in Bluetooth receiver for wireless playback from a smart phone or tablet. Outputs include main outs on jack and XLR, recording and headphone outputs. These comprehensive features make this a useful tool for live performance, project studios, laptop DJs and podcasting.

• USB-C audio interface
• USB-A mp3/wma digital audio player
• Bluetooth receiver for wireless audio streaming
• Individually switchable +48V phantom power
• Supplied with USB-C power adaptor

• Power supply 5Vdc 3A (USB-C adaptor supplied)
• USB computer interface Type-C interface for PC
• Audio source USB audio player, Bluetooth receiver
• Outputs Main out L+R jack + XLR, Phones out, AUX out, REC out L+R RCA
• Inputs 4 x mono XLR/jack, 2 x Stereo L+R jack
• Effects Adjustable delay effect
• Phantom power +48V (switchable)
• Dimensions 265 x 192 x 56mm
• Weight 966g
