Premium KV-series Ceiling Speakers

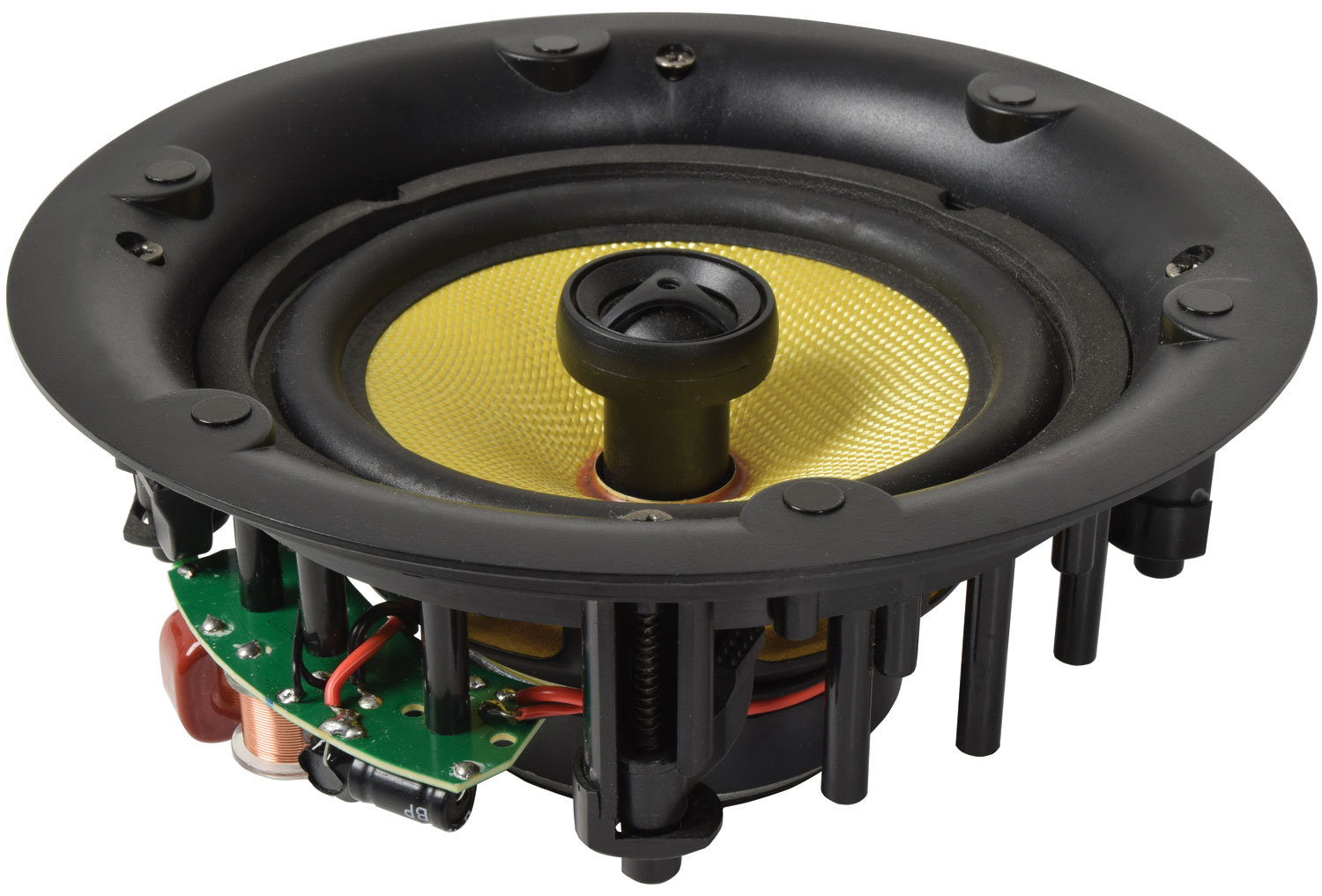

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV speaker is served by a full 2-way passive crossover network, providing an accurate and efficient frequency balance. Designed without compromise to deliver maximum power and quality from this class of ceiling speaker.

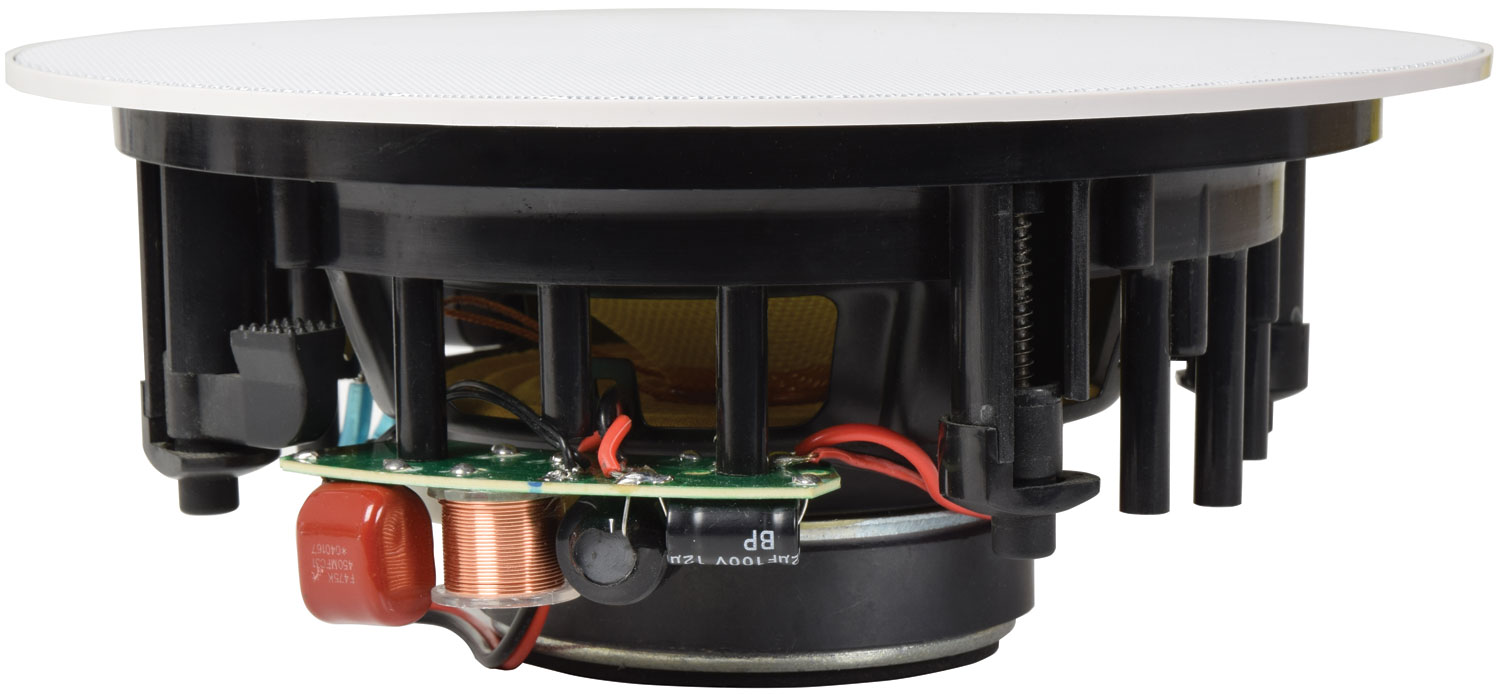

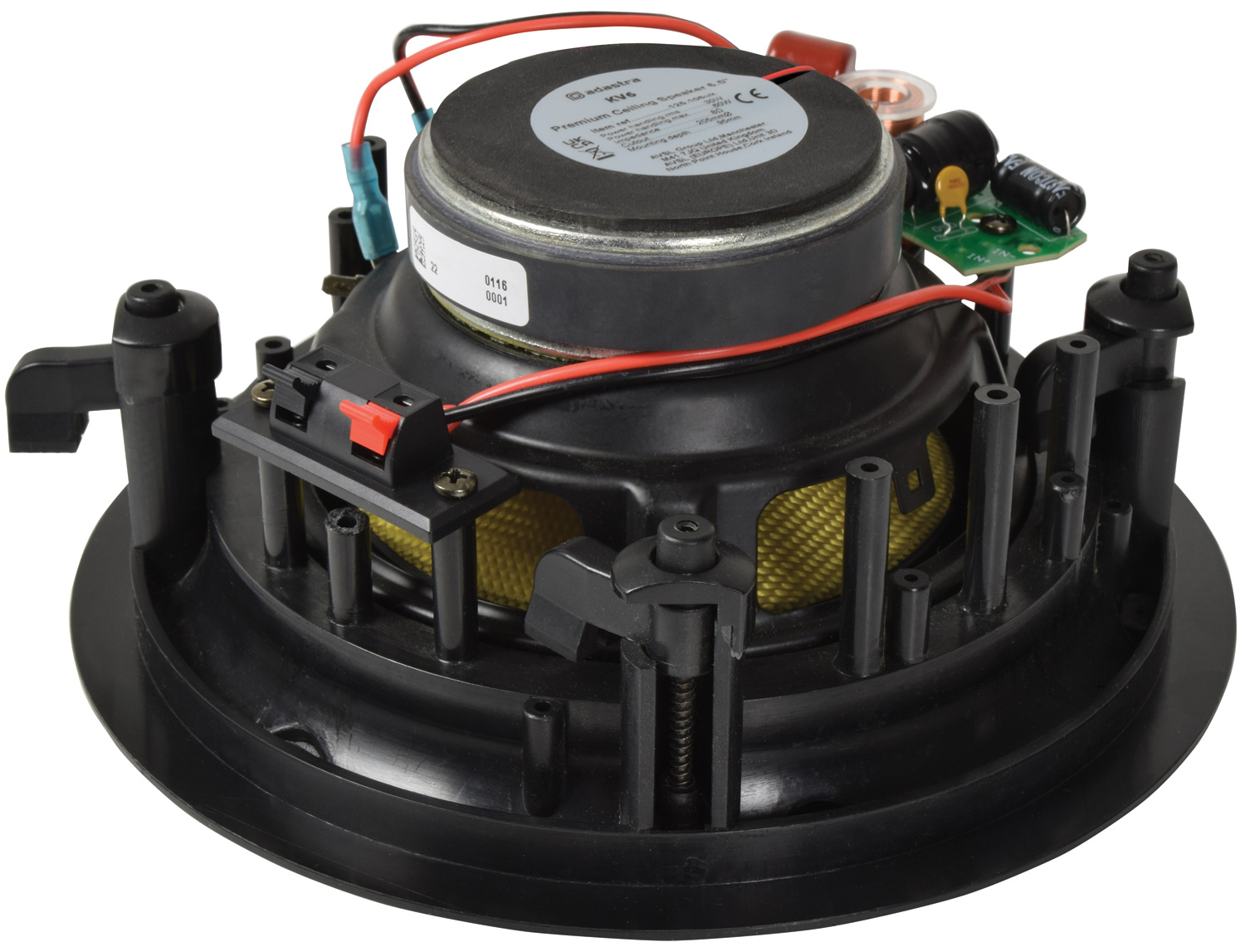

• Full 2-way passive crossover

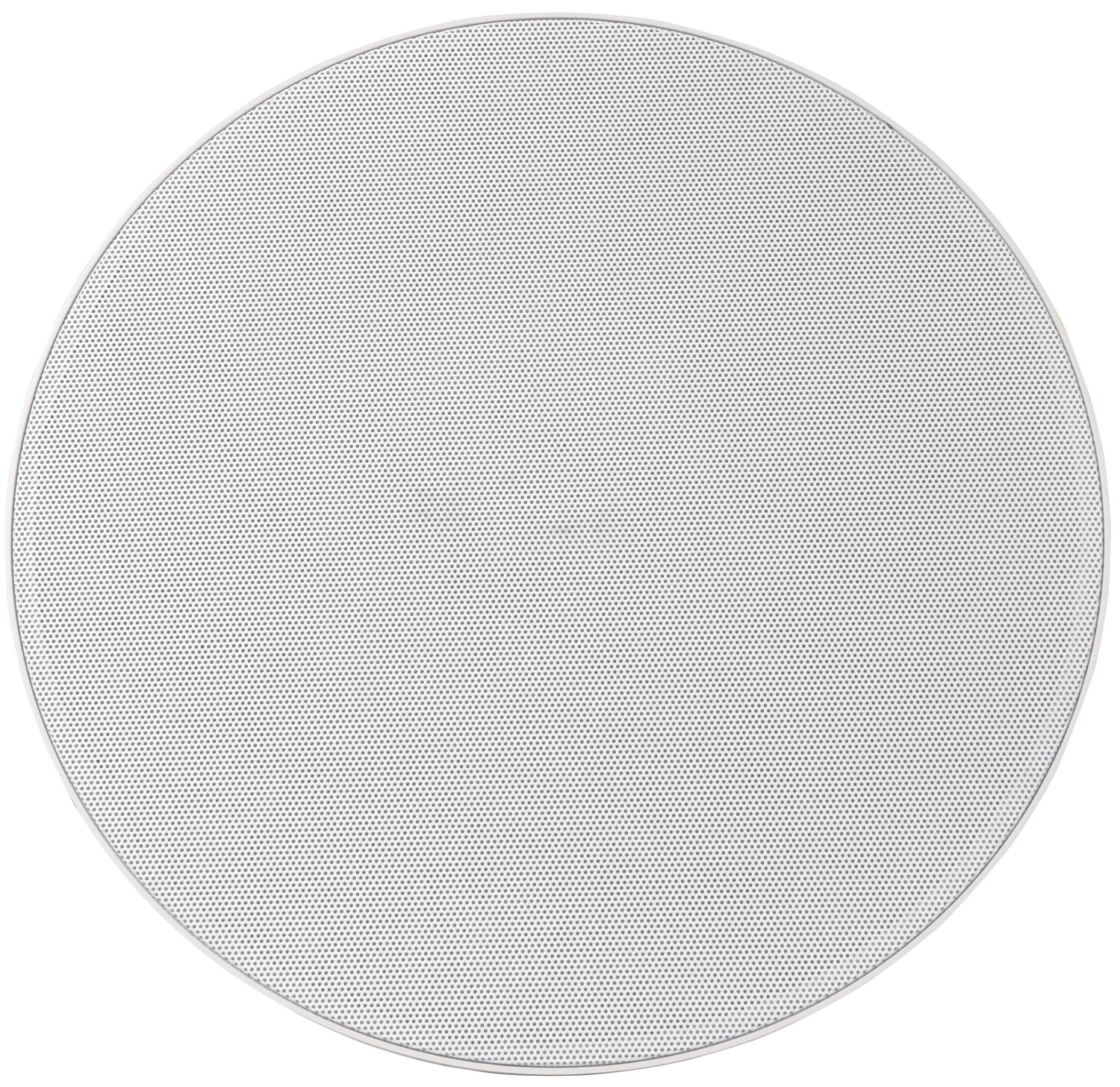

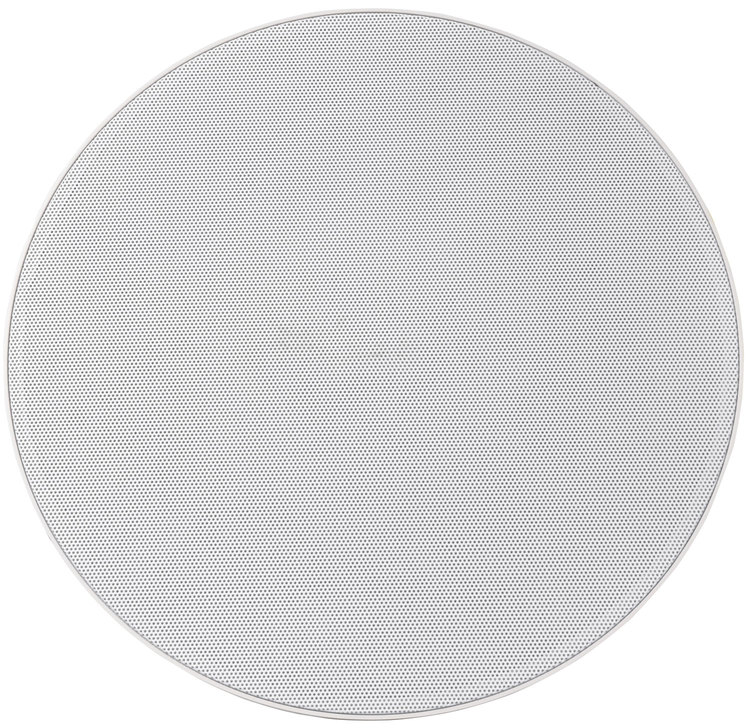

• Magnetic low profile steel grille
• Heavy duty glass-aramid cone
• Braced ABS basket with integral wave guide
• Supplied individually

• Weight 1.312kg
• Dimensions 94 x 232mmØ
• Mounting depth 95mm
• Cutout 205mmØ
• Max. SPL 103dB
• SPL @ 1W/1m 90dB
• Frequency response 50Hz - 20kHz
• Power handling : rms 30W
• Magnet weight 355g
• Main driver 165mmØ (6.5") glass-aramid diaphragm
• Power handling : max 60W
• Construction ABS basket & powder coated steel grille
• Impedance 8 Ohms
• Dispersion angle 120°
• HF driver 25mmØ (1") ASV diaphragm
