UM Series Ultra Compact Mixer-Amplifiers 100V
30W
100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume… more
- Ultra compact form factor
- Efficient class D amplifier design
- Internal USB/FM/BT audio player
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
953.173UK
UM30 Compact 100V Mixer-Amp |
30W | Box Label | |
953.176UK
UM60 Compact 100V Mixer-Amp |
60W | Box Label | |
953.179UK
UM90 Compact 100V Mixer-Amp |
90W | Box Label | |
Recommended Accessories |
|||
952.341UK
COM41 Dynamic Paging Microphone |
COM41 | Box Label | |
952.360UK
COM60 Paging Mic + Chime |
Box Label |
UM Series Ultra Compact Mixer-Amplifiers 100V

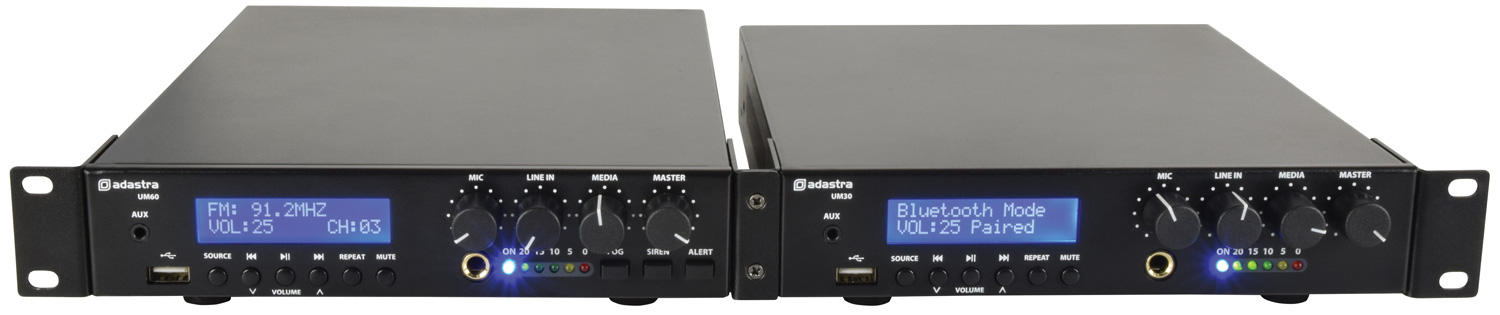

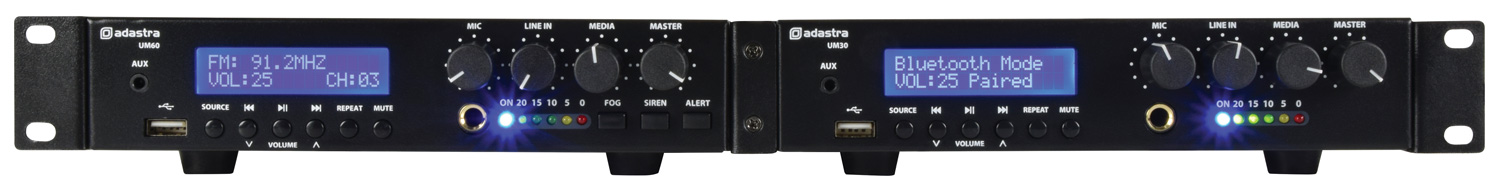

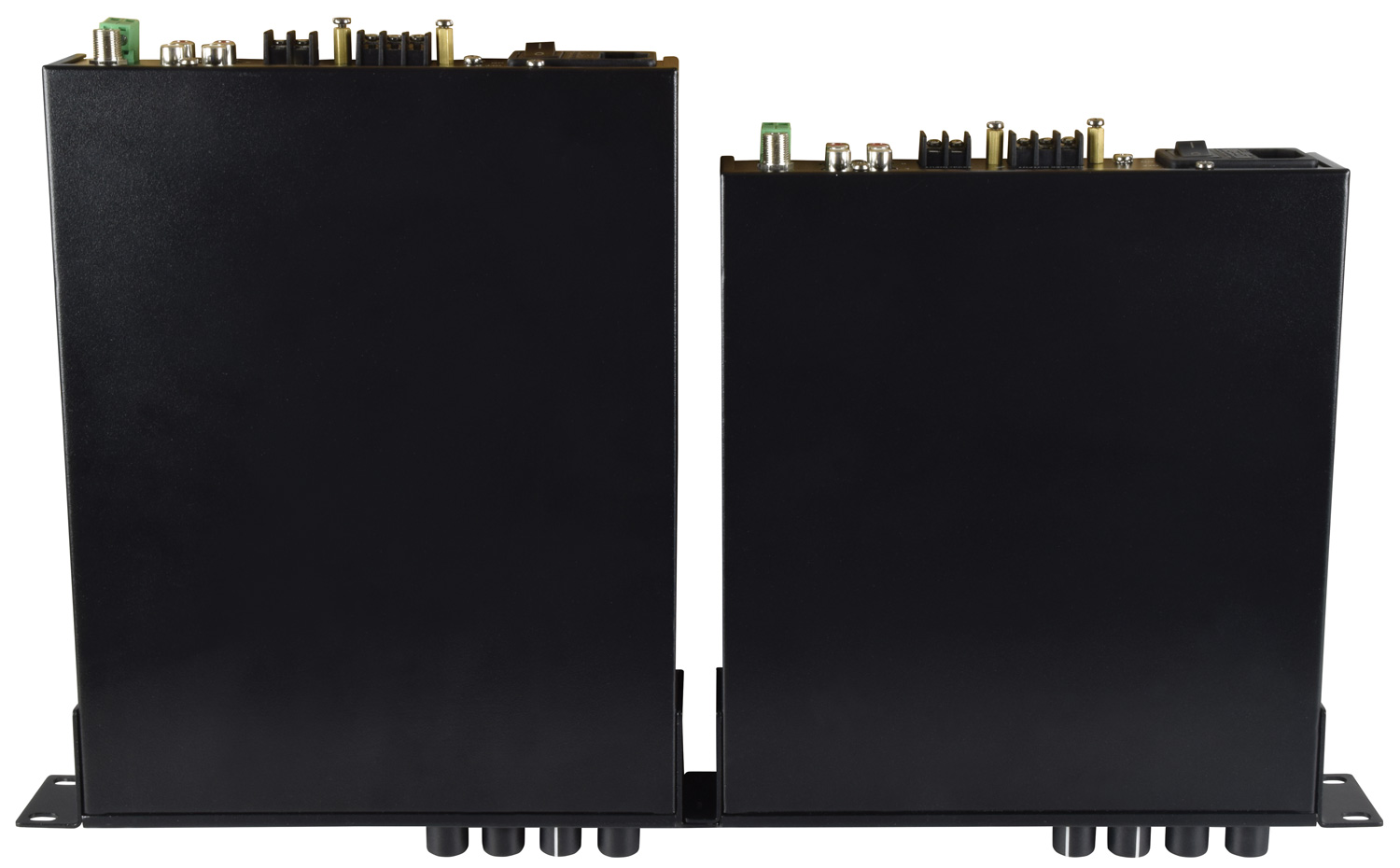

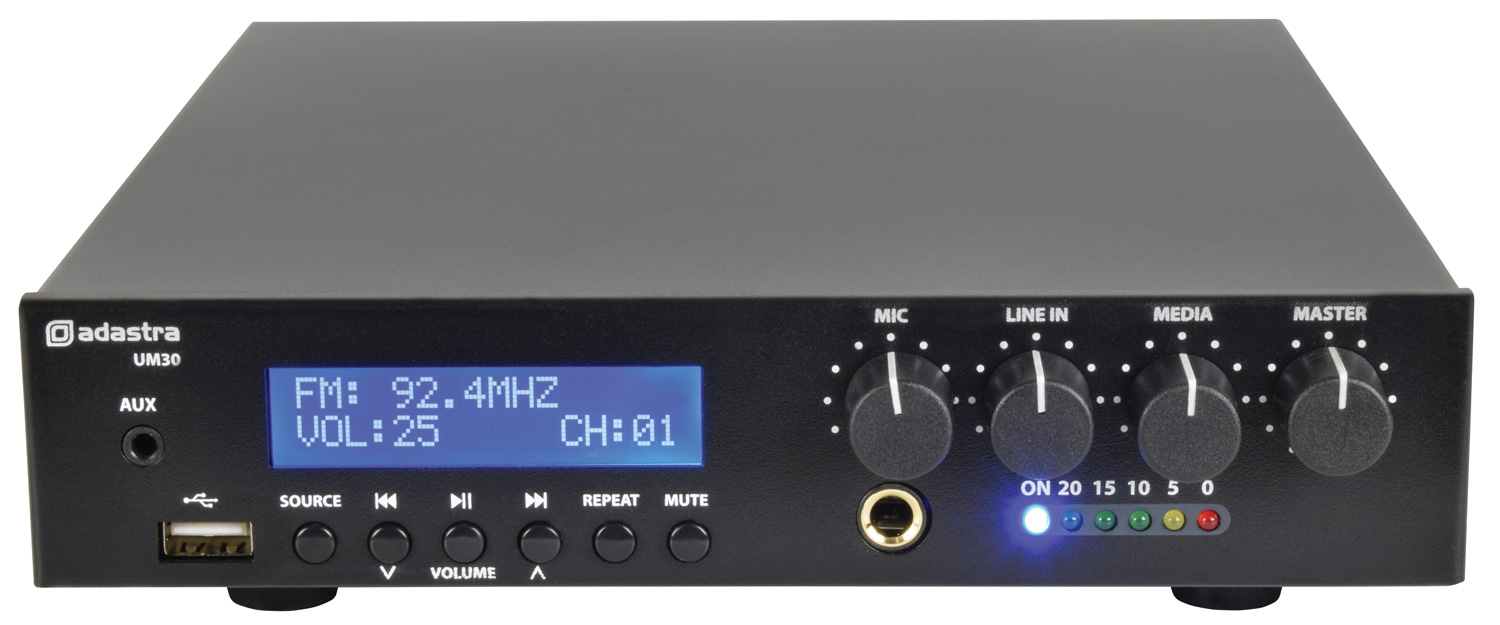

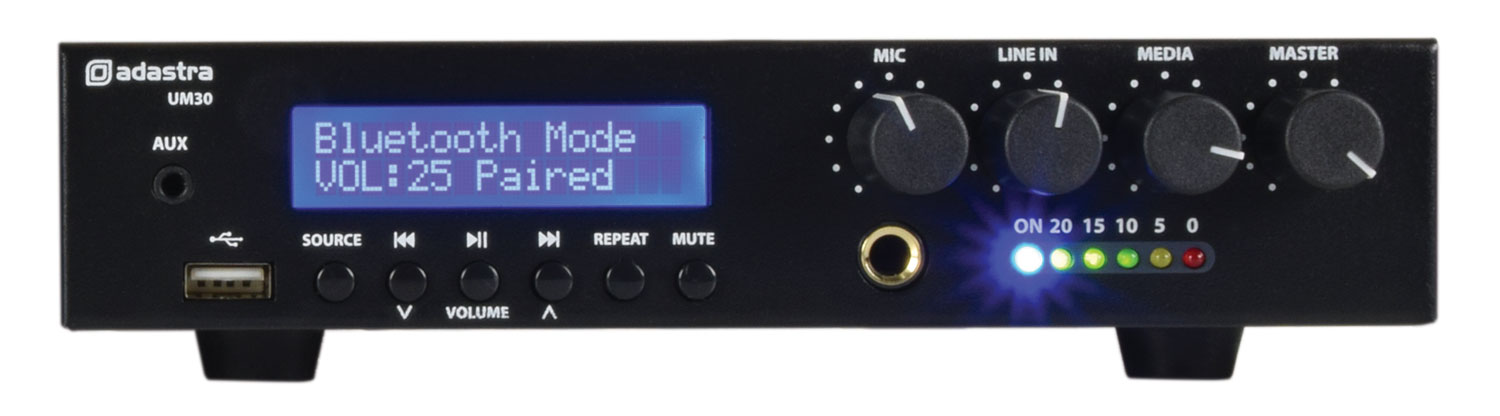

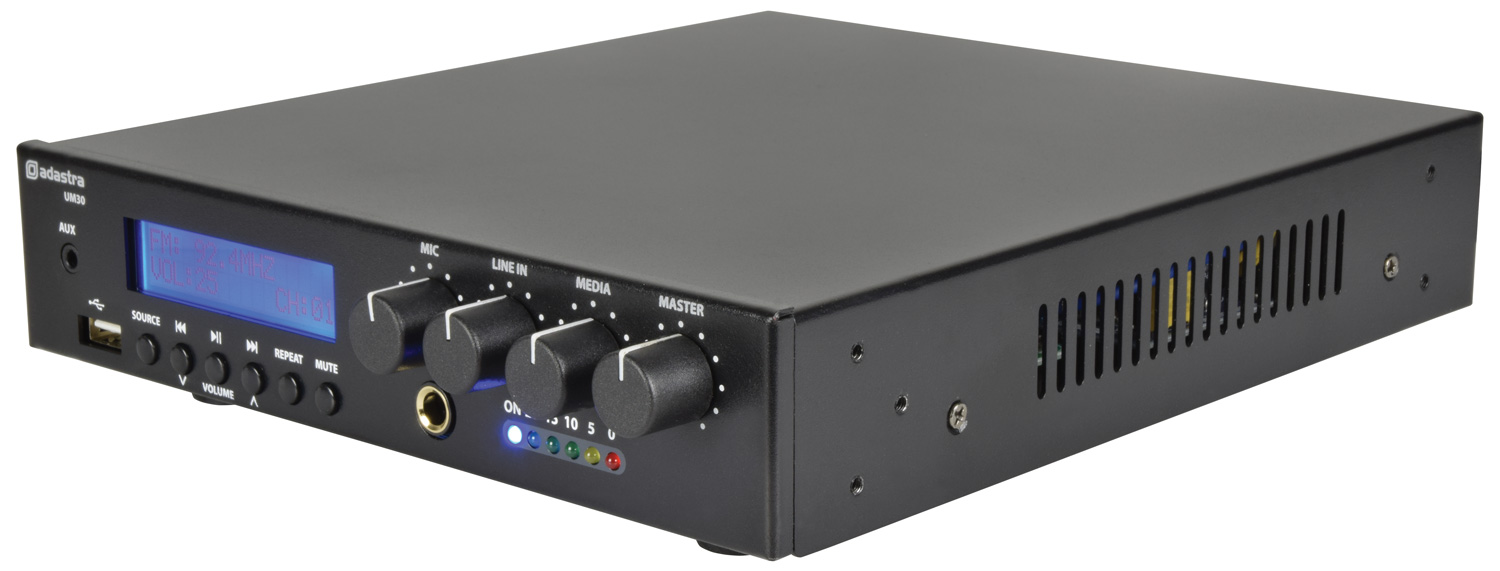

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.
- Ultra compact form factor
- Efficient class D amplifier design
- Internal USB/FM/BT audio player
- 100V line or 8 Ohms operation
- Bluetooth with programmable ID
- Weight 2.35kg

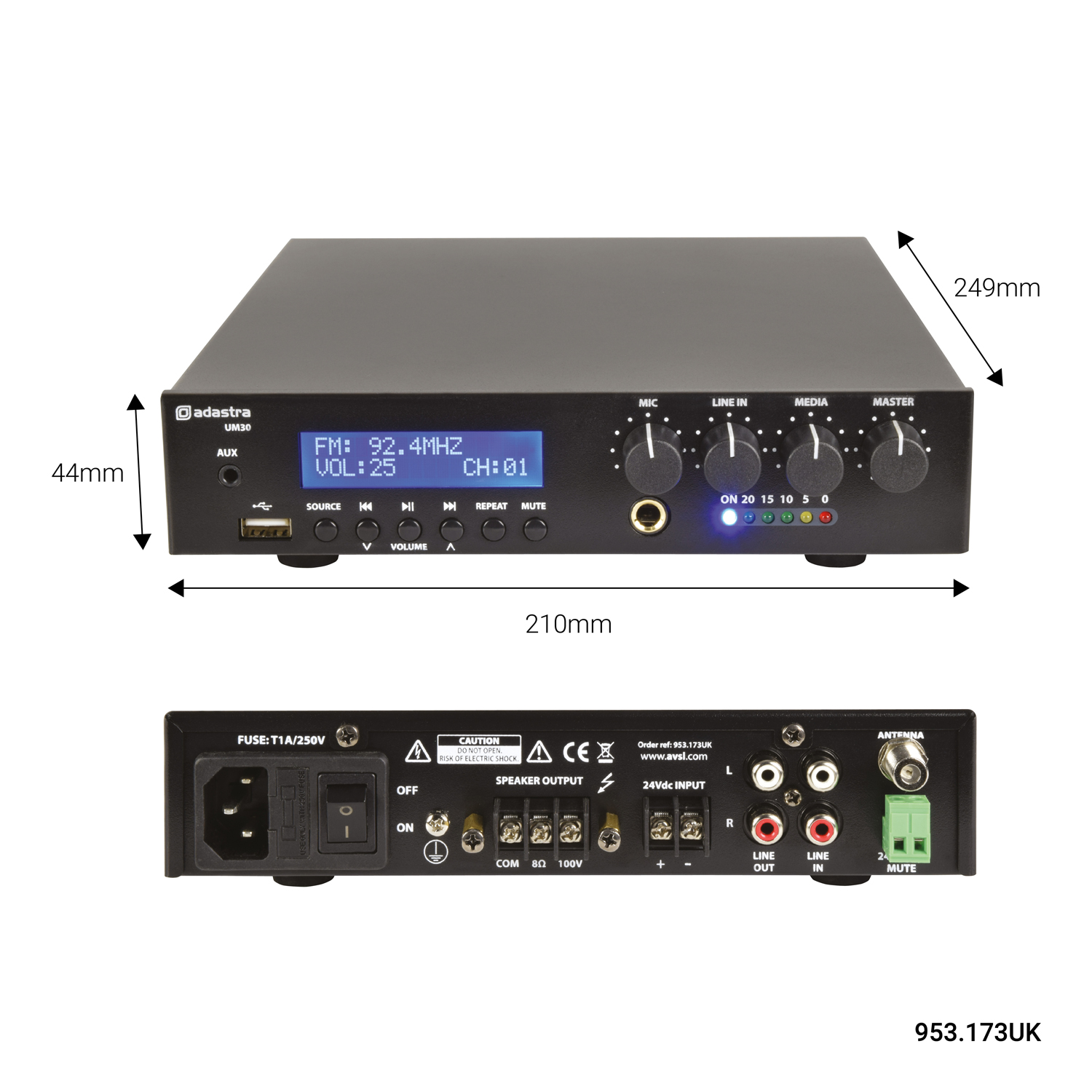

- Dimensions 249 x 210 x 44mm
- Alarm output N/A
- Output power : rms 30W
- Power supply 170-264Vac, 50Hz (IEC) or 24Vdc
- Amplifier : construction Class D + transformer output
- Audio source Internal USB/FM/BT player
- Bluetooth version 5.0
- Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
- Line output 2 x RCA (mono)

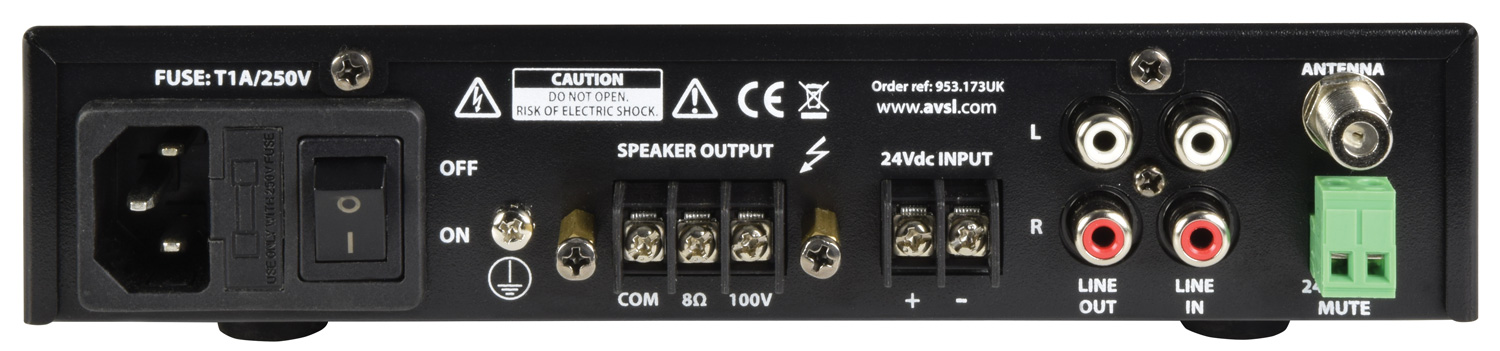

- Speaker outputs Screw terminals - 100V / 8 Ohms / Com
- DC power 24Vdc screw terminals
- Mute 24V relay contacts
- THD <0.4% @ 1kHz
- Input impedance 1k Ohms (mic/line)
- Input sensitivity -10dB (line), -45dB (mic)
- SNR 80dB (line), 75dB (mic)
- Frequency response 100Hz - 18kHz
In the Box
- UM series compact 100V amplifier
- IEC power lead(s)
- Rack-mounting hardware
