UM Series Ultra Compact Mixer-Amplifiers 100V

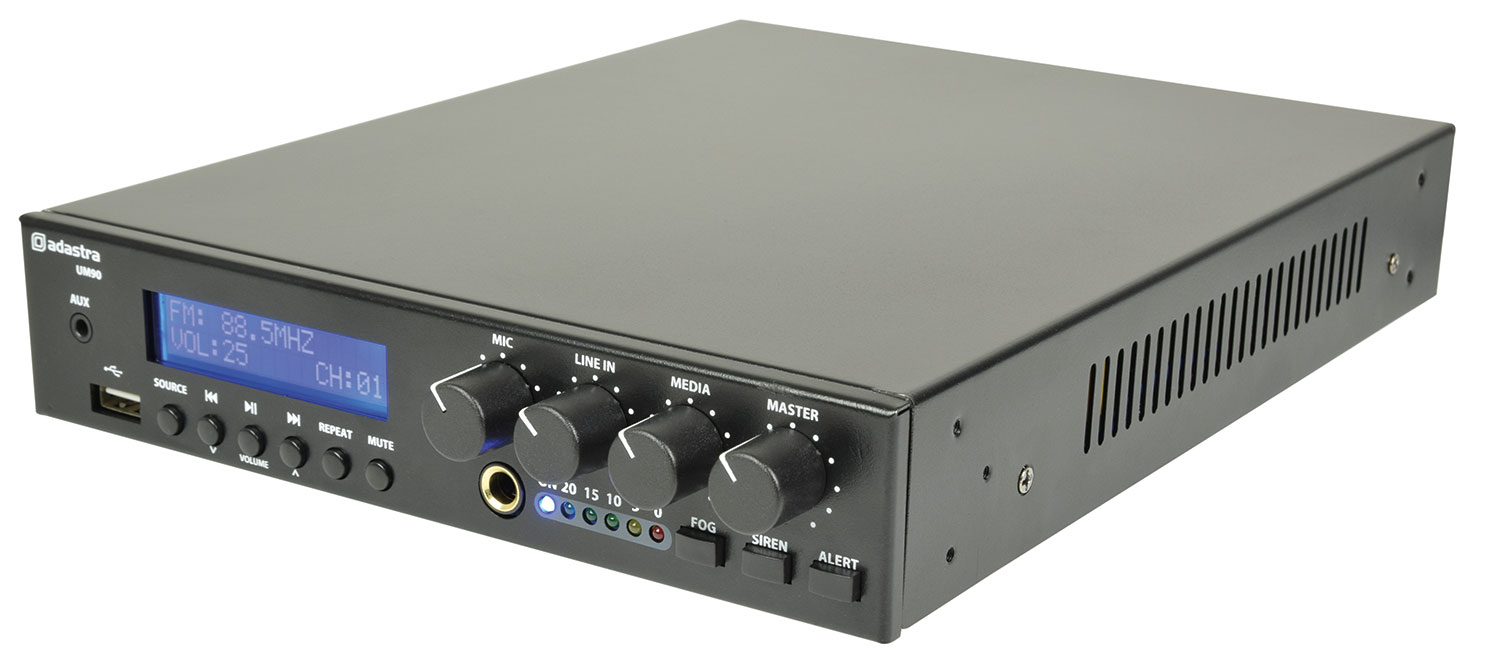

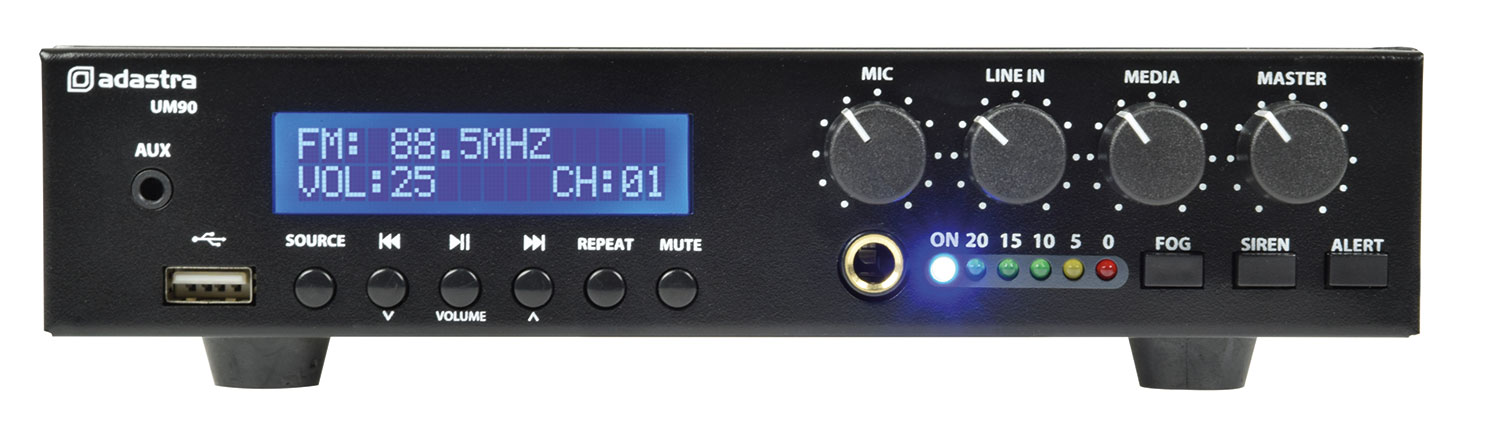

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.

• Ultra compact form factor
• Efficient class D amplifier design
• Internal USB/FM/BT audio player
• 100V line or 8 Ohms operation
• Bluetooth with programmable ID

• Weight 3.02kg
• Dimensions 300 x 210 x 44mm
• Alarm output Fog, siren & alert generator
• Output power : rms 90W (80W @ 24Vdc power)
• Power supply 170-264Vac, 50Hz (IEC) or 24Vdc
• Amplifier : construction Class D + transformer output
• Audio source Internal USB/FM/BT player
• Bluetooth version 5.0
• Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
• Line output 2 x RCA (mono)

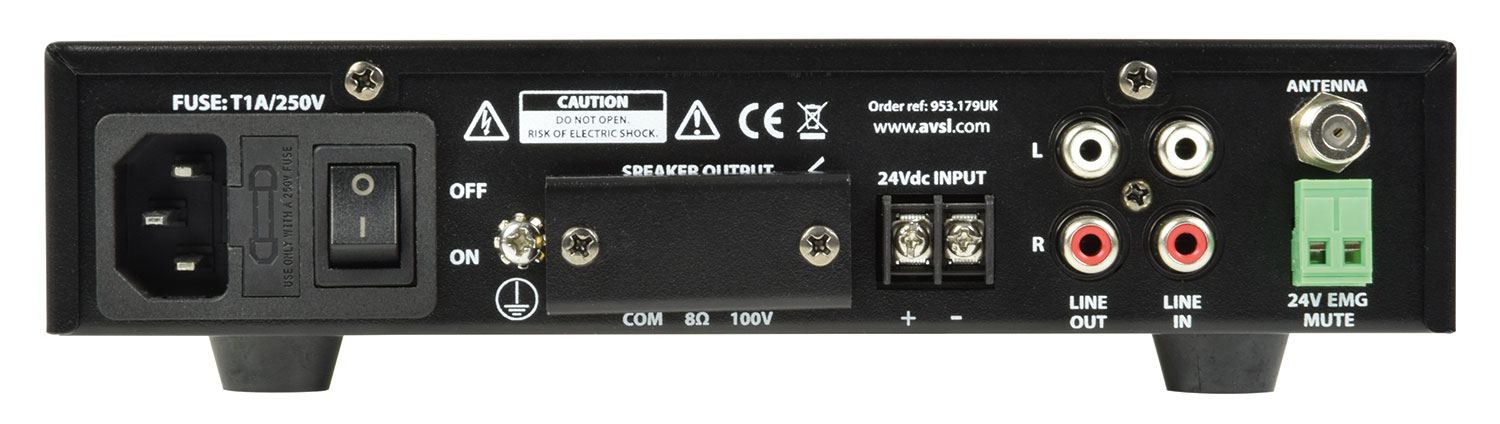

• Speaker outputs Screw terminals - 100V / 8 Ohms / Com
• DC power 24Vdc screw terminals
• Mute 24V relay contacts
• THD <0.4% @ 1kHz
• Input impedance 1k Ohms (mic/line)
• Input sensitivity -10dB (line), -45dB (mic)
• SNR 80dB (line), 75dB (mic)
• Frequency response 100Hz - 18kHz
