UM30
UM Series Ultra Compact Mixer-Amplifiers 100V
953.173UK
Introduction
Thank you for choosing an Adastra UM-series mixer-amplifier as part of your public address system. This unit is designed to offer high quality, dependable service for mobile and installed systems.
Please read this manual to gain the best results from your product and avoid damage through misuse.
Version 1.1
- UM60 953.176UK
- UM90 953.179UK
Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty
Safety Notice
- Prior to use, read through this manual.
- Keep the manual in good condition.
- Pay attention to safety warnings.
- Observe all operating requirements.
- Do not use the device near water or wet areas.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- Use mains lead provided and avoid damage to cable or connectors.
- Unplug power from mains during stormy weather or if unused for long periods.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Do not place in damp areas or near liquids or moisture. Do not spill liquids on the housing.
- Please pay attention to warning symbols during transit and placement.
- Terminals marked with the lightning symbol are HAZARDOUS LIVE and should only be connected by qualified personnel.
- Ensure that the apparatus is connected to a mains socket with a protective EARTH connection.
- Ensure correct operation of the mains switch.
Warning
To prevent the risk of fire or electric shock, do not expose any components to rain or moisture.
If liquids are spilled on the casing, stop using immediately, allow unit to dry out and have checked by qualified personnel before further use. Avoid impact, extreme pressure or heavy vibration to the case
No user serviceable parts inside – Do not open the case – refer all servicing to qualified service personnel.
Safety
Check for correct mains voltage and condition of IEC lead before connecting to power outlet
Use double insulated speaker wire with adequate current rating for 100V speaker connections
Only use 1 type of output – i.e. 8Ω or 100V – do not mix or combine these outputs on a single zone
Do not connect 8Ω speakers to the 100V terminal or 100V speakers to the 8Ω terminal
Do not allow any foreign objects to enter the case or through the ventilation grilles
Placement
Keep out of direct sunlight and away from heat sources
Keep away from damp or dusty environments
For rack-mounting, use the supplied accessories and ensure adequate support
Ensure adequate airflow and do not cover cooling vents at the front and rear of the amplifier
Ensure adequate access to controls and connections
Cleaning
Use a soft cloth with a neutral detergent to clean the casing as required
Use a vacuum cleaner to clear ventilation grilles of any dust or debris build-ups
Do not use strong solvents for cleaning the unit
Rack Mounting
The UM series amplifiers can be mounted into a 19” rack cabinet using the supplied rack accessories.

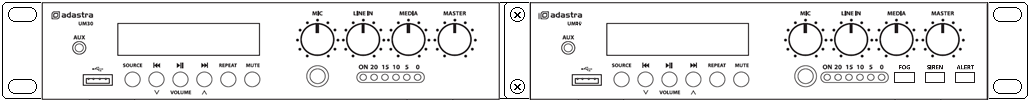

As shown below, the 2 joining brackets link a pair of UM series amplifiers together to form a full-width 1U rack-mount pair. One rack ear can be mounted at each end for fixing to the rack strip.

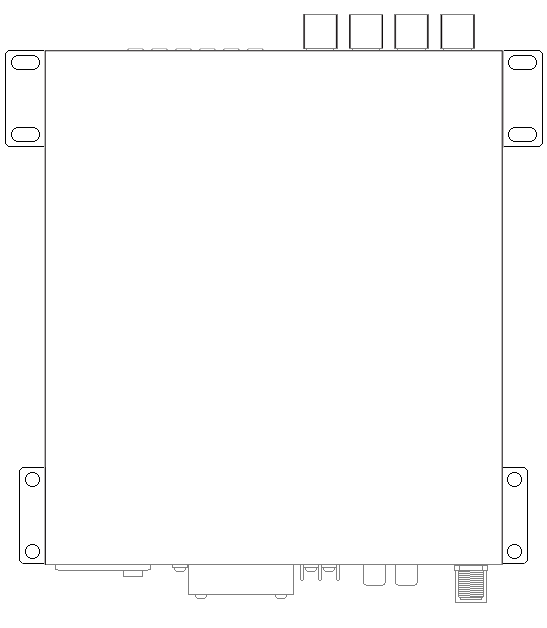

Wall or under counter mounting
The rack mounting accessories can also be attached so that the amplifier can be mounted against a wall or under a counter or work surface. To do this, mount the rack ears with the tabs aligned with the top of the housing to provide mounting holes to screw the amplifier to the underside of a work surface or against a wall with the controls visible vertically.

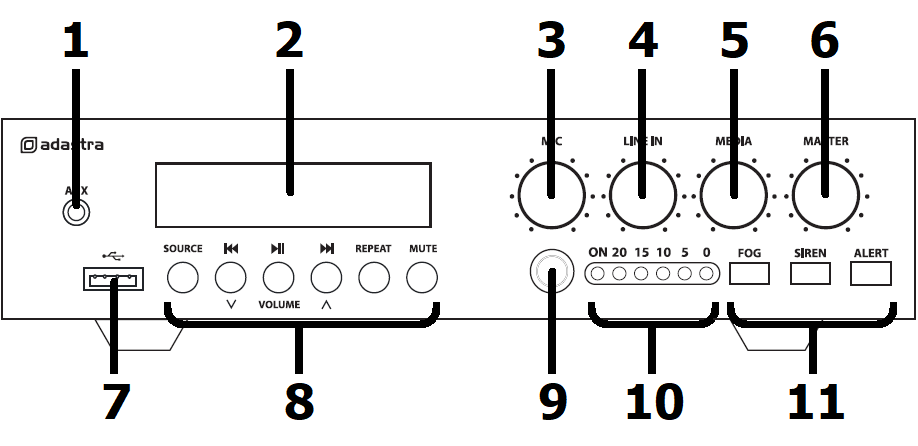

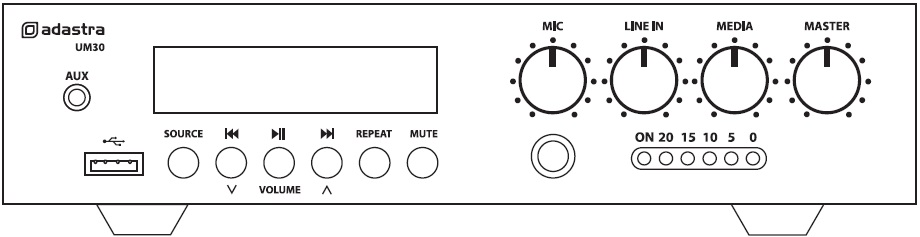

Front Panel
No | Function | No | Function |
---|---|---|---|
1. | 3.5mm stereo AUX input | 7. | USB port |
2. | Media player display | 8. | Media player controls |
3. | MIC volume control | 9. | Microphone input jack |
4. | LINE IN volume control | 10. | VU meter |
5. | MEDIA volume control | 11. | FOG/SIREN/ALERT buttons (UM60 & UM90 only) |
6. | MASTER volume control |

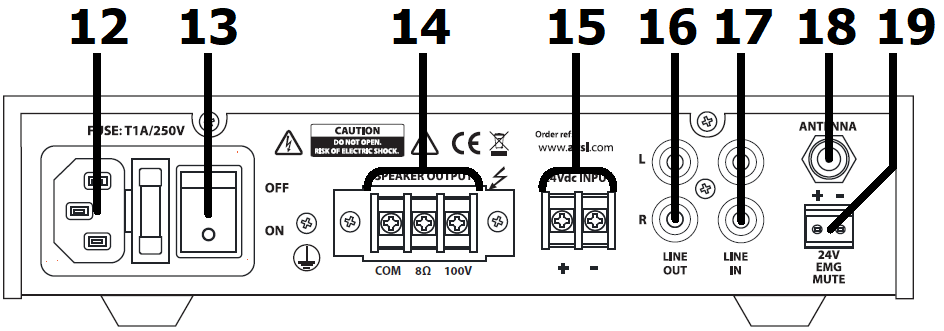

No | Function |
---|---|
12. | IEC power inlet and fuse holder |
13. | Power on/off switch |
14. | Speaker output terminals |
15. | DC power terminals |
16. | LINE OUT connectors (RCA) |
17. | LINE IN connectors (RCA) |
18. | Antenna F connector |
19. | 24V MUTE terminals |
Rear Panel
Connection and Setup
Connect the rear IEC inlet (12) to the mains using the supplied mains lead (or an equivalent approved type). Alternatively, the UM series amplifiers can be powered by a 24Vdc power supply, such as a truck or boat battery, by connecting the “+” and “-” of the battery to the 24Vdc INPUT (15) on the rear panel. Ensure that DC cables are capable of handling the current (4A or higher recommended)
(Note: For UM90 operating from 24Vdc power, the output is reduced to 80Wrms)
Connect a microphone (if required) to the front panel jack input (9).
Connect any line level audio inputs to the LINE IN connectors (17) on the rear panel using good quality RCA leads. An additional 3.5mm AUX line input (1) is provided on the front panel for connecting a playback device such as a smart phone or MP3 player.
Further amplifiers can be connected from the rear LINE OUT sockets (16)
For stable FM radio reception, connect the Antenna ‘F’ type socket (18) to a suitable FM antenna.
For buildings with a fire or security panel with 24Vdc trigger output, this trigger output can be connected to the 24V MUTE terminals (19), which will mute all except the mic input when 24V is present on the terminals.
(The 24V contacts can be connected with either polarity +/- or -/+ to operate)
The UM series amplifiers can be used either as 100V line amplifiers or standard low impedance power amplifiers. These 2 configurations cannot be used together, so it is important to decide which method will be used at the start.
100V Line Systems
For 100V line systems, connect the amplifier to the first speaker in the system using double-insulated speaker wire which has adequate current rating to handle the total output of the amplifier.
Connect the “100V” output terminal to the positive (+) connection of the speaker and “COM” output to the negative (-) connection of the speaker (14). Connect further speakers in parallel to the first speaker with all positive terminals connected together and all negative terminals connected together as shown below.

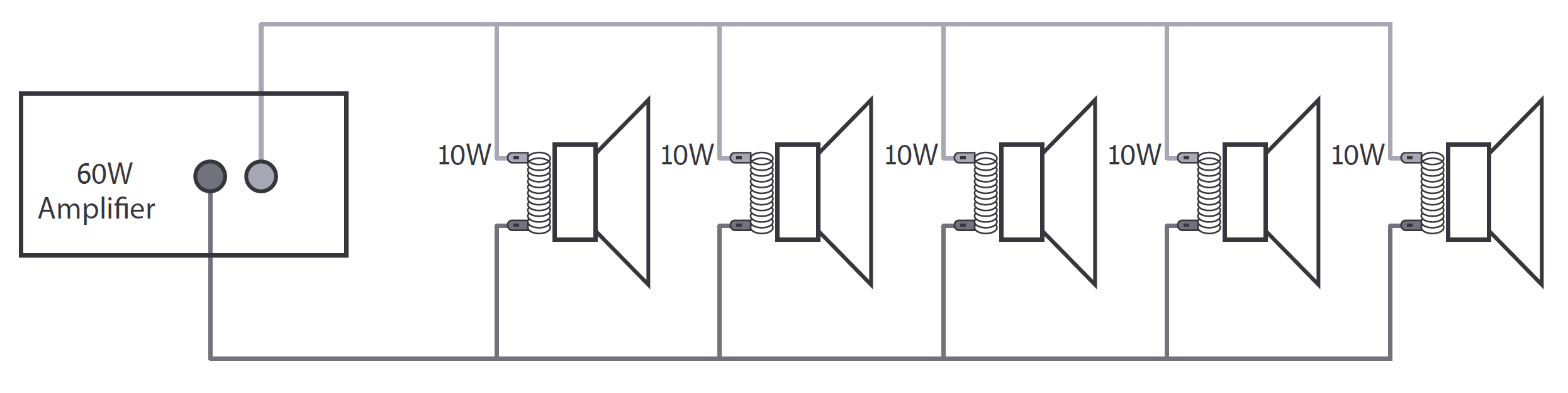

A 100V line speaker system can comprise of many speakers connected together. The determining factor for how many speakers can be used on a single amplifier is the power rating. For most purposes, it is advised to connect as many speakers as needed with a combined wattage of no more than 90% of the amplifier’s output power rating.
The terminals of a 100V speaker are connected to a transformer and in some cases, this transformer may be “tapped” for different power ratings. These tappings can be used to adjust the wattage (and output volume) of each speaker in the system to help achieve the ideal total power of the system for the amplifier.
Low Impedance Systems
The UM30/60 amplifiers can alternatively provide an output for a single 8Ω speaker by connecting the “8Ω” output to the positive (+) speaker connection and “COM” output to the negative (-) speaker connection. It is important to ensure that the speaker load is no lower than 8Ω and that the power handling of the speaker is equal to or greater than the output power of the amplifier.
Operation
When all connections to the amplifier are made, turn all rotary controls down and switch on the power (13) and a power LED will illuminate. Ensure a signal is being fed to the LINE IN connection and gradually increase the MASTER rotary control (6) part way for testing. Increase the LINE IN rotary (4) until the output is heard through the speakers. Turn up the MASTER to the maximum required volume level and reduce the LINE IN control if necessary.
Note: If a line input is not connected to a UM series mixer-amplifier, the initial test can be made
using the built-in Media audio player. See section below for instructions.
If a microphone is connected, make sure it is switched on and gradually increase the MIC control (3) whilst speaking into the microphone until the required volume level is reached. The microphone should not be able to “hear” the speakers, which can cause feedback (squealing or howling noise).

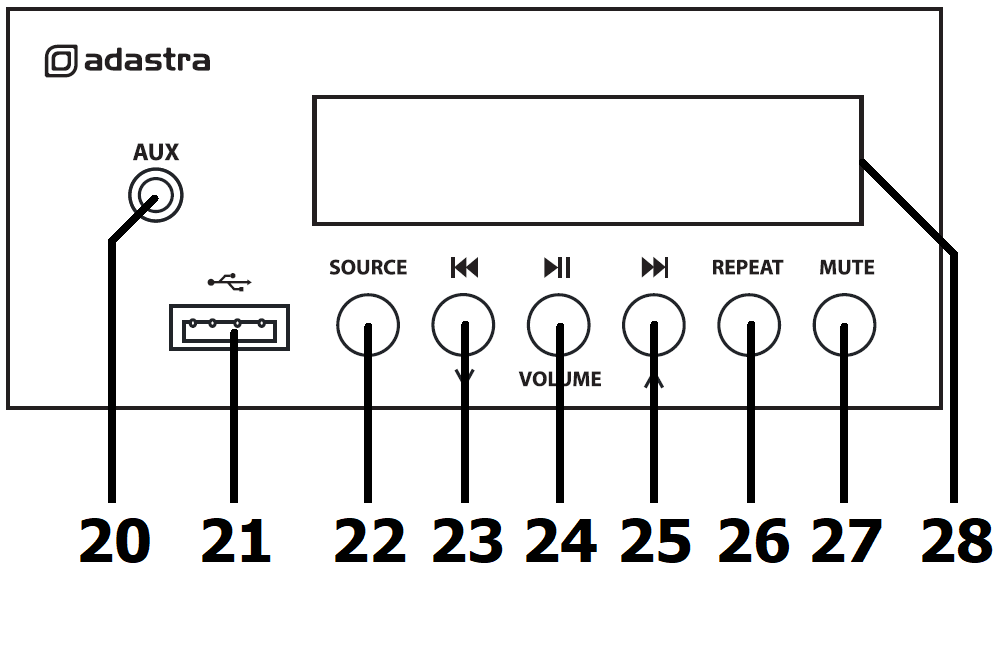

Media Player
No | Function |
---|---|
20. | AUX input 3.5mm jack |
21. | USB port |
22. | SOURCE select button |
23. | Previous / volume down button |
24. | Play / pause button |
25. | Next / volume up button |
26. | REPEAT mode button |
27. | MUTE button |
28. | Media player display |
UM series mixer-amplifiers are fitted with a built-in media player. This section comprises a Bluetooth receiver, USB audio player, FM tuner and AUX input. Pressing the SOURCE select button (22) will step through Bluetooth, USB, AUX and FM tuner modes. Pressing the MUTE button (27) for any source will mute the output.
Bluetooth
The Bluetooth function allows connection of a smart phone or tablet to the media player section for playback of stored files or streamed digital audio.
In order to enable this function, it will be necessary to pair the sending device to the receiver as follows.
Open the Bluetooth settings menu on the smart phone or tablet (or other sending device).
Scan for Bluetooth devices and look for “adastra 0000” in the list of available devices.
(ensure that the UM amp is powered on and within reception range)Select “adastra 0000” and the sending device should confirm that it is connected as an audio device. (note that “0000” may be a different number if it has been edited – see below).
Play audio from the sending device, ensuring that volume controls are not turned down/muted.
Turn up the MEDIA volume control (5) on the amplifier to the required level.
The Previous, Next and Play/pause buttons (23, 25, 24) will operate in Bluetooth as remote playback controls. Holding the Previous track or Next track buttons will adjust the output volume of the player down or up.
The Bluetooth name can be customized to enable identification of individual nearby amplifiers.
To customize the Bluetooth number press and hold the Play/Pause button until adastra 0000 is displayed with one of the characters flashing. Press Previous or Next buttons to edit the number and Play/Pause to select another character. Hold Play/Pause to store the ID and exit.
Note: Android devices have the facility to re-name devices within the Bluetooth settings menu.
If the Bluetooth ID has been re-named on the Android device, editing the Bluetooth ID on the media player will not affect the name displayed on that Android device.
FM Tuner
The FM tuner function operates in the same way as a standard FM radio and benefits from the connection of an FM antenna to the rear panel ‘F’ type connector.
If no channels are tuned in, press the Play/Pause button (24) to begin auto tuning, which scans available stations and stores them as channels within the FM tuner. Pressing Play/Pause again will abort auto-tuning.
To delete any selected station, press and hold the Repeat button (26).
Repeat the auto tuning process to re-populate any missing presets.
To step through pre-set stations, press the Previous or Next buttons (23, 25).
Turn up the MEDIA control (5) to hear the output from the speakers and increase to the required level.
Holding the Previous track or Next track buttons will adjust the output volume of the player.
USB Player
When a USB memory stick is inserted into the USB port (21), the track number and time will show in the display and audio files will start to play automatically.
If playback does not start automatically, press the SOURCE select button (22) and Play/Pause button (24) to check if the player is set to the correct mode. Try Previous track and Next track buttons (23, 25) if the selected track is unable to play. Also, check that the audio files are mp3 type.
Turn up the MEDIA control (5) to hear the output from the speakers and increase to the required level.
There are 3 Repeat modes: Repeat All tracks, Repeat Current track and Random.
Pressing the REPEAT button (26) will cycle through these modes as shown in the top right of the display.
Pressing the Previous track button (23) briefly steps backwards through tracks on the memory device. Press and hold this button to decrease the playback volume.
Pressing the Next track button (25) briefly steps forwards through tracks on the memory device.
Press and hold this button to increase the playback volume.
To pause the current track, press the Play/Pause button (24) and press it again to resume playback.
AUX Input
When a playback device is connected to the 3.5mm AUX input, the display will show “AUX”.
Alternatively, this source can be selected by the SOURCE button.
The output level of this AUX input is controlled by the MEDIA volume control and is independent of the rear RCA line inputs. When other media player sources are selected, this AUX input is muted.

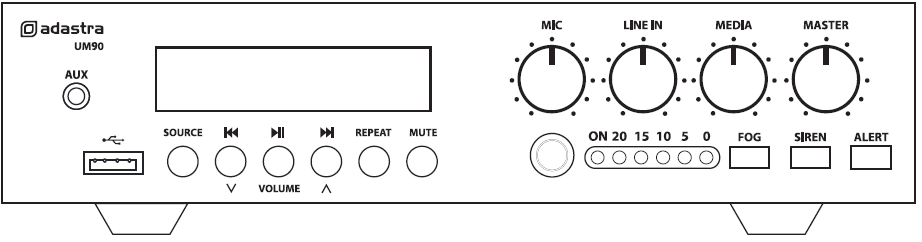

Fog/Siren/Alert Buttons

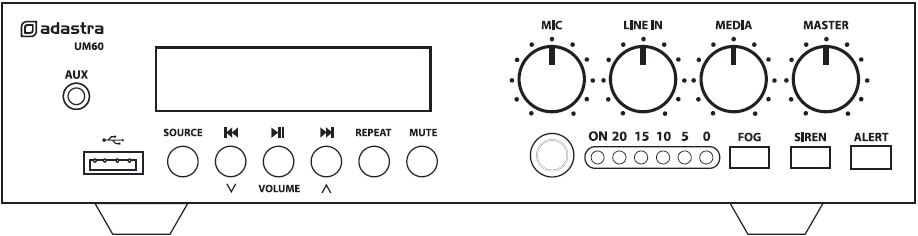

In addition to audio controls, the UM60 front panel has 3 warning sound buttons. Pressing any of these will issue one of 3 preset warning sounds through the speakers for alerts and/or emergency announcements.
To avoid loud pops through the speakers, turn down the MASTER control before powering down.
Troubleshooting
Issue | Solution |
---|---|
No power LED on control panel | Ensure IEC lead, mains switch and inlet fuse |
If 24Vdc power input is being used, check battery is charged | |
Power LED is on but no other LEDs and no output | Check input signals and condition of input connection leads |
Check MASTER, MIC, LINE IN or MEDIA controls are turned up | |
Power light and output LEDs lighting but no output | Check speaker output terminals are connected correctly |
Check speakers are working (test on another amp if available) | |
Bluetooth cannot connect | Ensure that the sending device is within Bluetooth range (5-10m) |
Check that the connected device is the correct ID | |
No audio from connected Bluetooth device | Ensure that volume controls are not turned down on sending device |
Check volume and Play/Pause buttons in case Bluetooth is muted | |
USB player will not play audio from media | Press PLAY on transport controls |
Check memory device is connected properly (remove and re-insert) | |
Check file types – standard compressed digital audio files required | |
Check memory device works on a PC or Mac for standard playback | |
Output is very loud or distorted | Check level of input signal is not too high |
Reduce MIC, LINE IN, MEDIA and/or MASTER level | |
Ensure Hi-Z line level input(s) not connected via MIC input | |
Output is working but at very low level | Check input audio source level is not too low |
Increase MIC, LINE IN, MEDIA and/or MASTER level | |
Check for quiet recording of media files on USB | |
Feedback from microphone | Face microphone away from speakers and monitors |
Turn down MIC and/or MASTER level | |
Amplifier overheating or cutting out | Check that 8Ω speakers are not connected to 100V terminals |
Ensure total 100V speaker wattage is lower than amplifier rating | |
Ensure that 100V and 8Ω speakers are not both connected |
Specification
Specification | Value |
---|---|
Weight | 2.35kg |
Dimensions | 249 x 210 x 44mm |
Alarm output | N/A |
Output power : rms | 30W |
Power supply | 170-264Vac, 50Hz (IEC) or 24Vdc |
Amplifier : construction | Class D + transformer output |
Audio source | Internal USB/FM/BT player |
Bluetooth version | 5.0 |
Inputs | 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm) |
Line output | 2 x RCA (mono) |
Speaker outputs | Screw terminals - 100V / 8 Ohms / Com |
DC power | 24Vdc screw terminals |
Mute | 24V relay contacts |
THD | <0.4% @ 1kHz |
Input impedance | 1k Ohms (mic/line) |
Input sensitivity | -10dB (line), -45dB (mic) |
SNR | 80dB (line), 75dB (mic) |
Frequency response | 100Hz - 18kHz |
Precautions
CAUTION | ||
RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL |
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
