SA-series Secure Wall Amplifier 100V with UHF Mic + Media Player

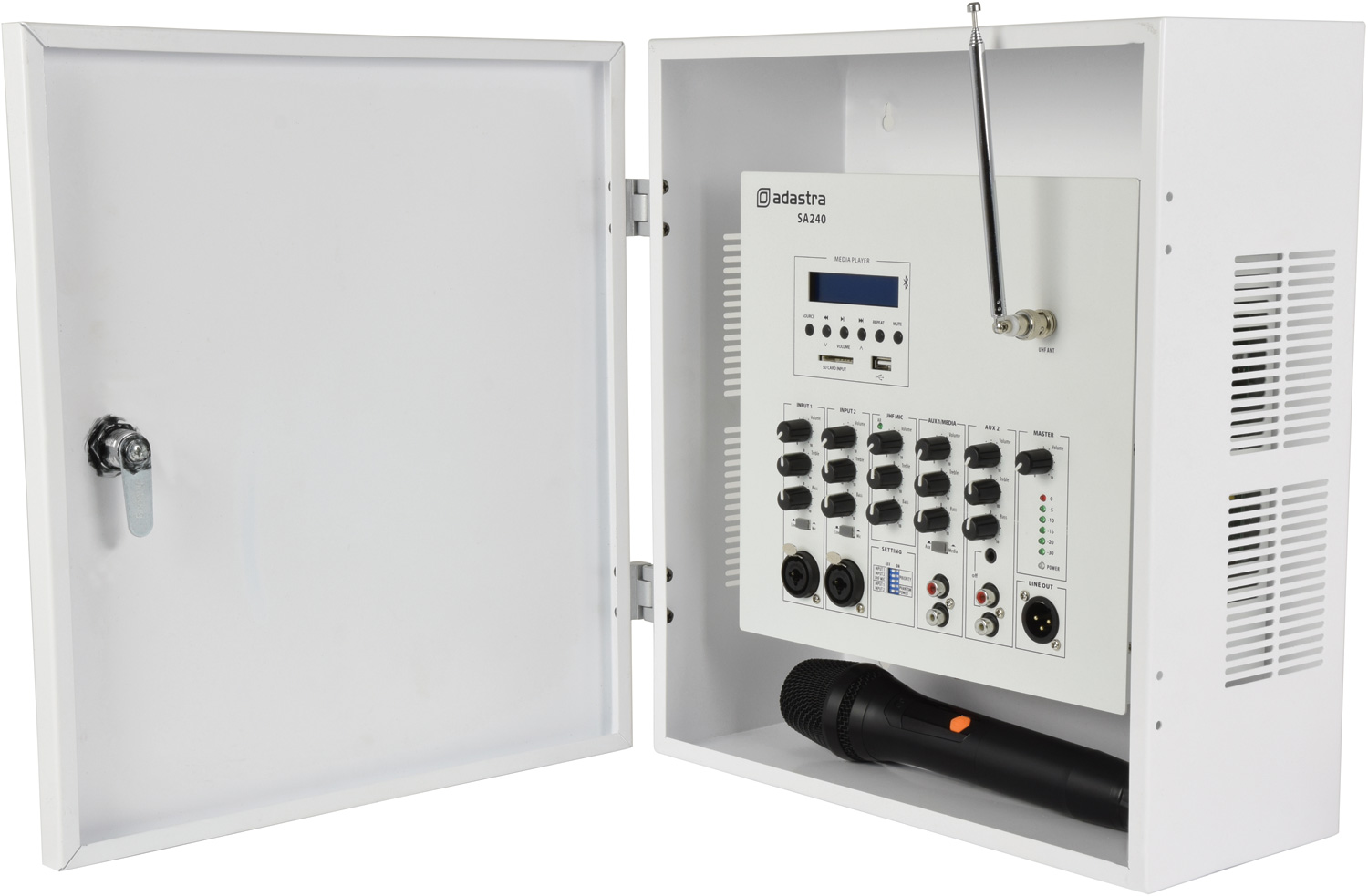

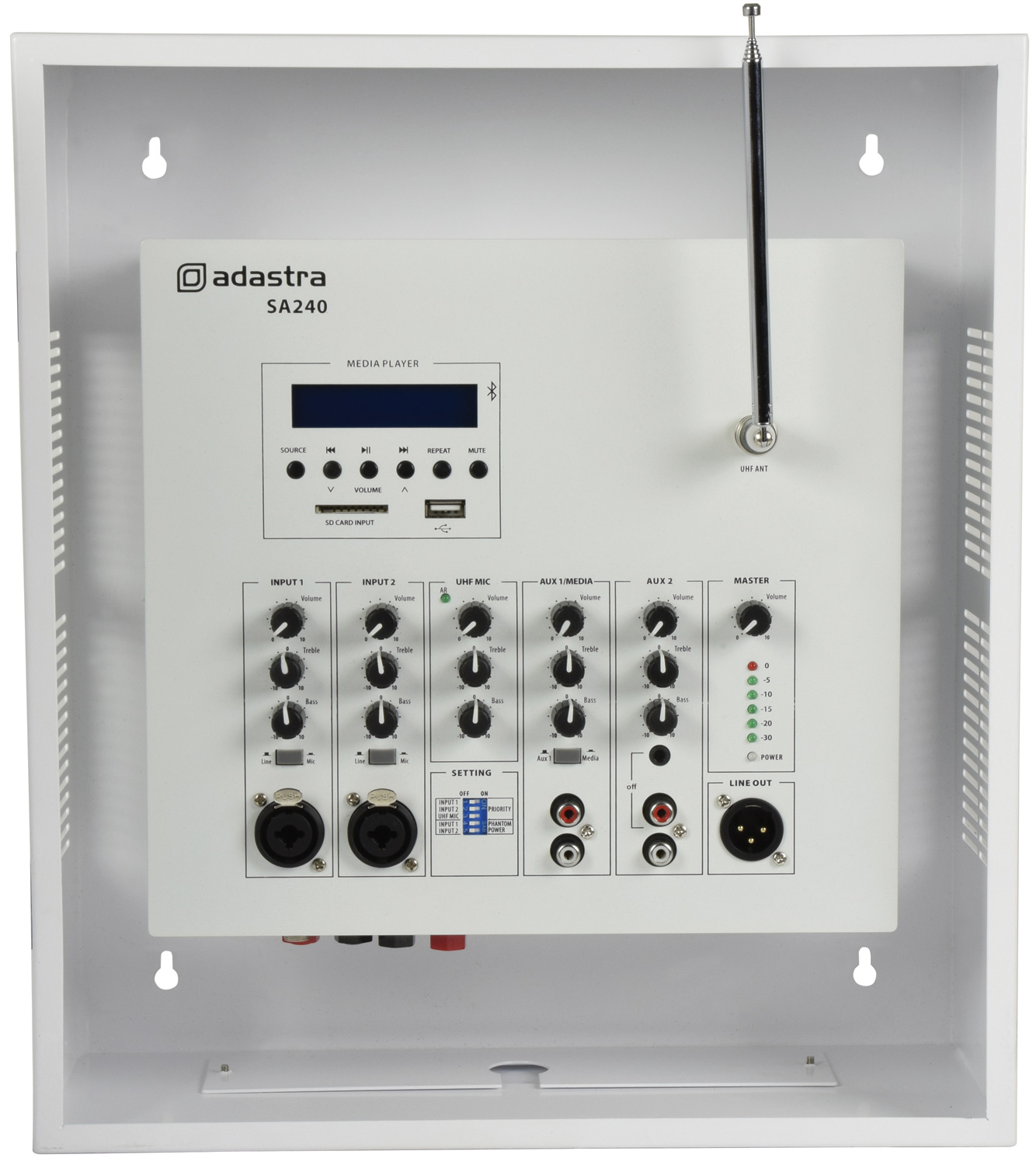

Public address mixer-amplifier built into a surface-mount secure box. A powerful output can drive either 100V line or low impedance speakers from binding post terminals inside the cabinet. The system includes a handheld UHF microphone with an inbuilt receiver and 2 switchable wired mic/line inputs are provided on combo XLR/jack sockets. Each mic input has switchable +48V phantom power and priority override, whch mutes the Aux inputs during voice operation. An internal media player enables playback of audio tracks from USB/SD player, FM tuner or Bluetooth pairing. Alternatively, line inputs can be connected to the Aux 1 RCA sockets or separate Aux 2 RCA/3.5mm jack sockets. The combination of flexible input section and a high efficiency amplifier in a strong, lockable cabinet provides a complete solution for buildings where security and ease of use is essential.

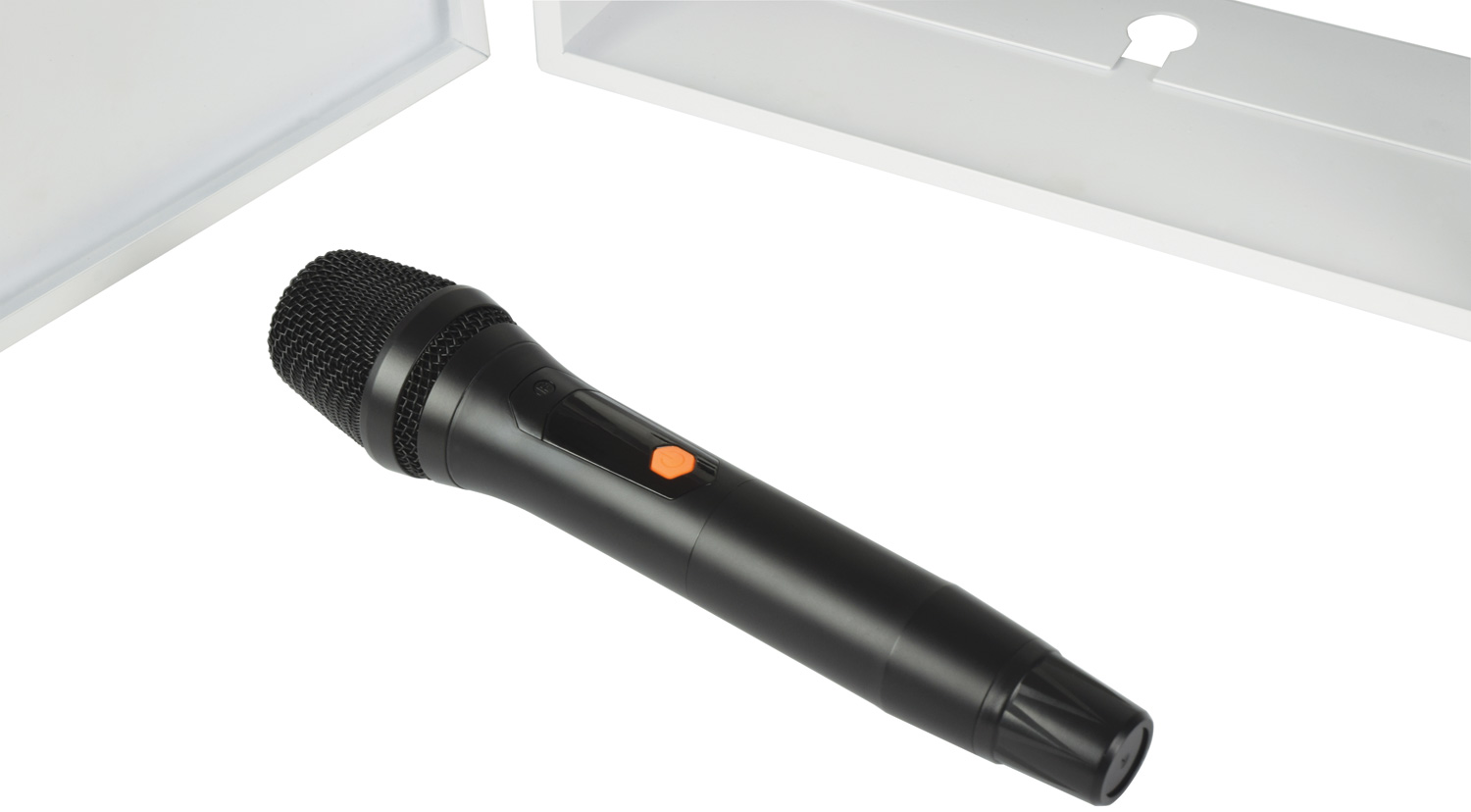

• UHF wireless handheld mic included
• USB/SD media player
• Bluetooth receiver
• 2 switchable mic/line inputs
• Switchable phantom power for condenser mics
• 100V or low impedance operation

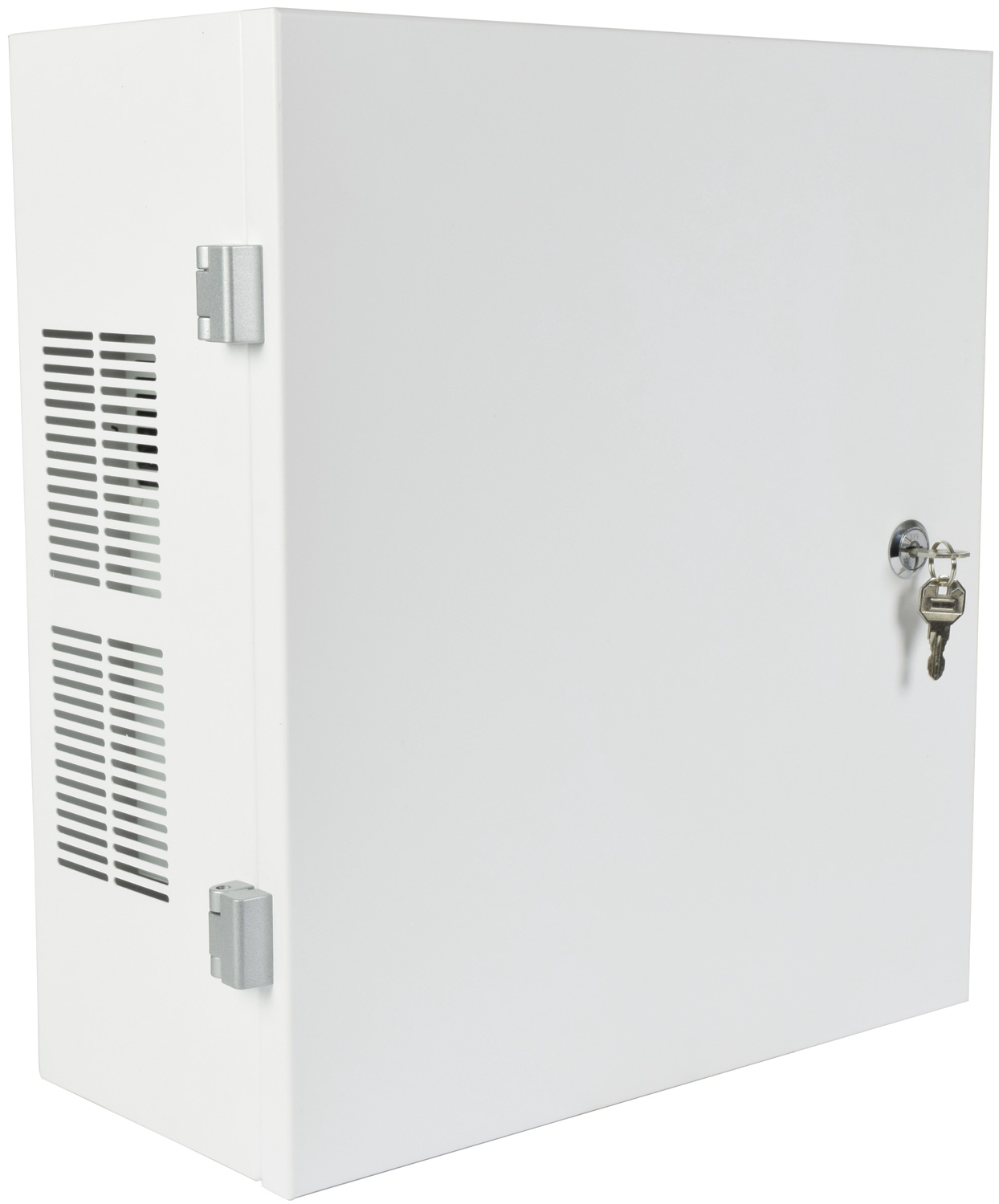

• Secure lockable cabinet

• Weight 9.25kg
• Fuse F2AL (20x5mm)
• Output power : rms 240W
• Power supply 170-264Vac, 50Hz (IEC)
• Amplifier : construction Class-D + output transformer
• Phantom power +20V switchable to each XLR input
• Input impedance Mic: 600 Ohms / Line: 10k Ohms
• Input sensitivity Mic: -42dB / Line: -10dB
• Frequency response : mic 85Hz-22kHz
• Frequency response : line Line 1+2: 80Hz-24kHz, Line 3+4: 85Hz-24kHz
• SNR Mic: 66dB / Line: 76dB
• THD <0.4% @ 1kHz

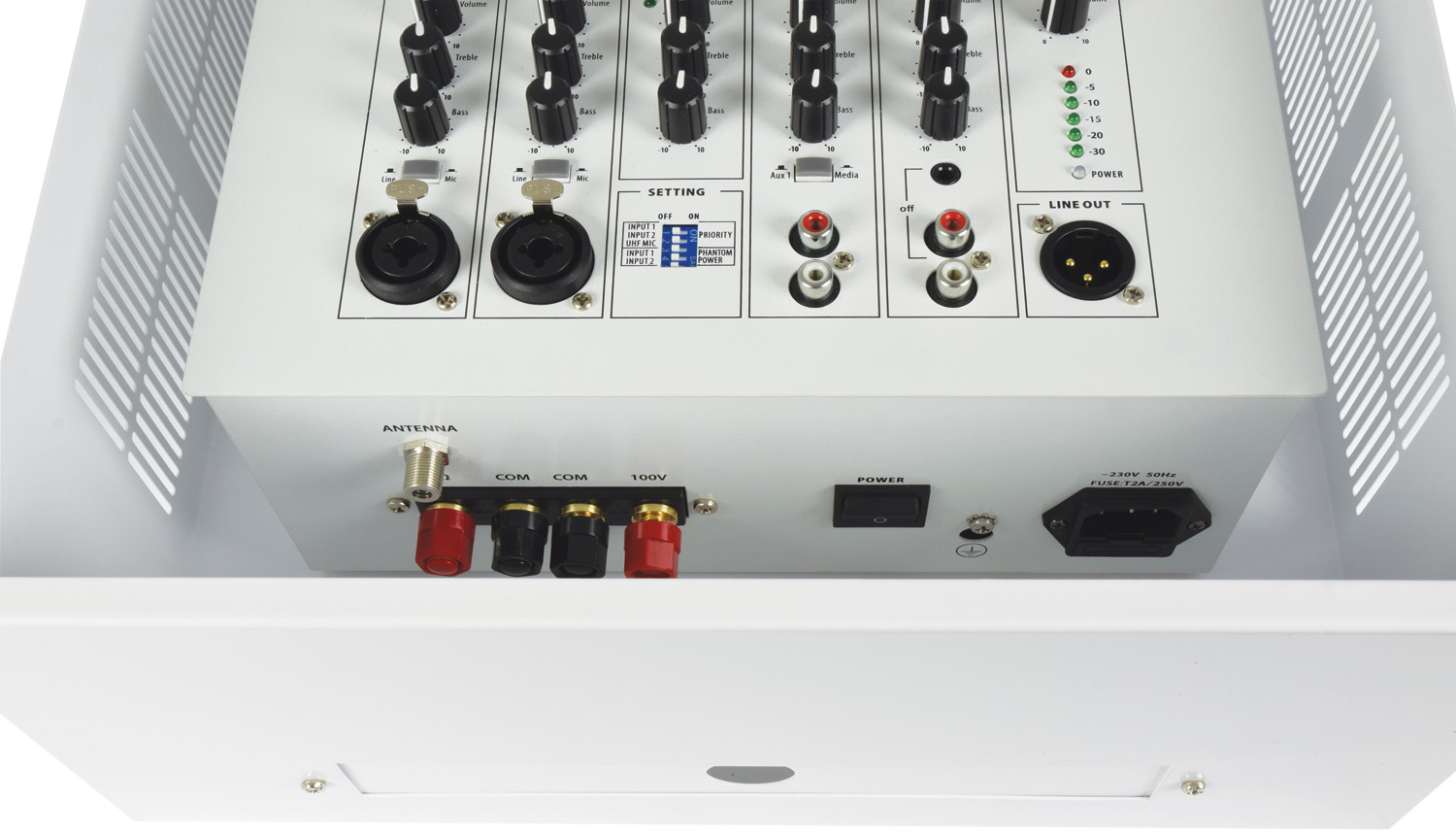

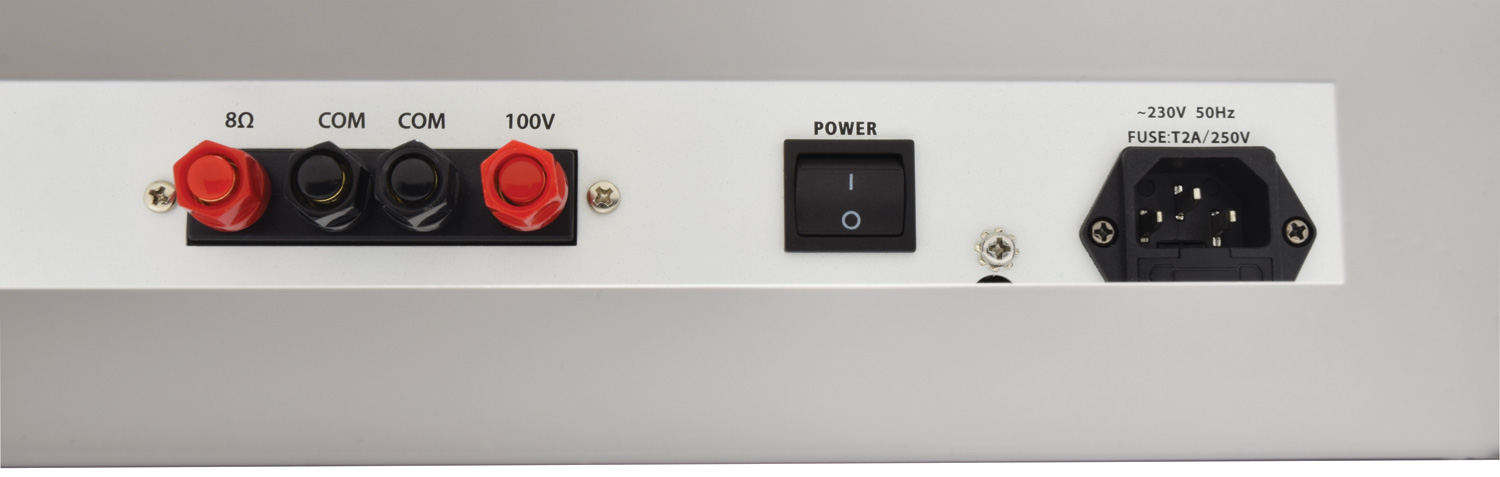

• Speaker outputs 8 Ohm / Com / Com / 100V
• Music source USB/SD player, FM tuner, Bluetooth
• Mic/line inputs 2 x combo XLR/jack
• Line inputs RCA (Aux 1), RCA or 3.5mm jack (Aux 2)
• Line output XLR male connector
• Equalization Bass + Treble each channel
• Bluetooth version 5.0
• Carrier frequency 864.5MHz
• Batteries : handheld transmitter 2 x AA (alkaline)
• Wireless range 50m (max)
• Dimensions 375 x 345 x 160mm
