SA-series Secure Wall Amplifier 100V with UHF Mic + Media Player

120W

953.149UK
SA120

Public address mixer-amplifier built into a surface-mount secure box. A powerful output can drive either 100V line or low impedance speakers from binding post terminals inside the cabinet. The system… more

  • UHF wireless handheld mic included
  • USB/SD media player
  • Bluetooth receiver
DESCRIPTION VERSION PACKED
953.150UK

SA240 Secure Wall Amp +UHF Mic

240W Box Label
953.149UK

SA120 Secure Wall Amp +UHF Mic

120W Box Label

Recommended Accessories

953.153UK

UHF Handheld Mic for SA amp

Handheld 864.5MHz Box Label

SA-series Secure Wall Amplifier 100V with UHF Mic + Media Player

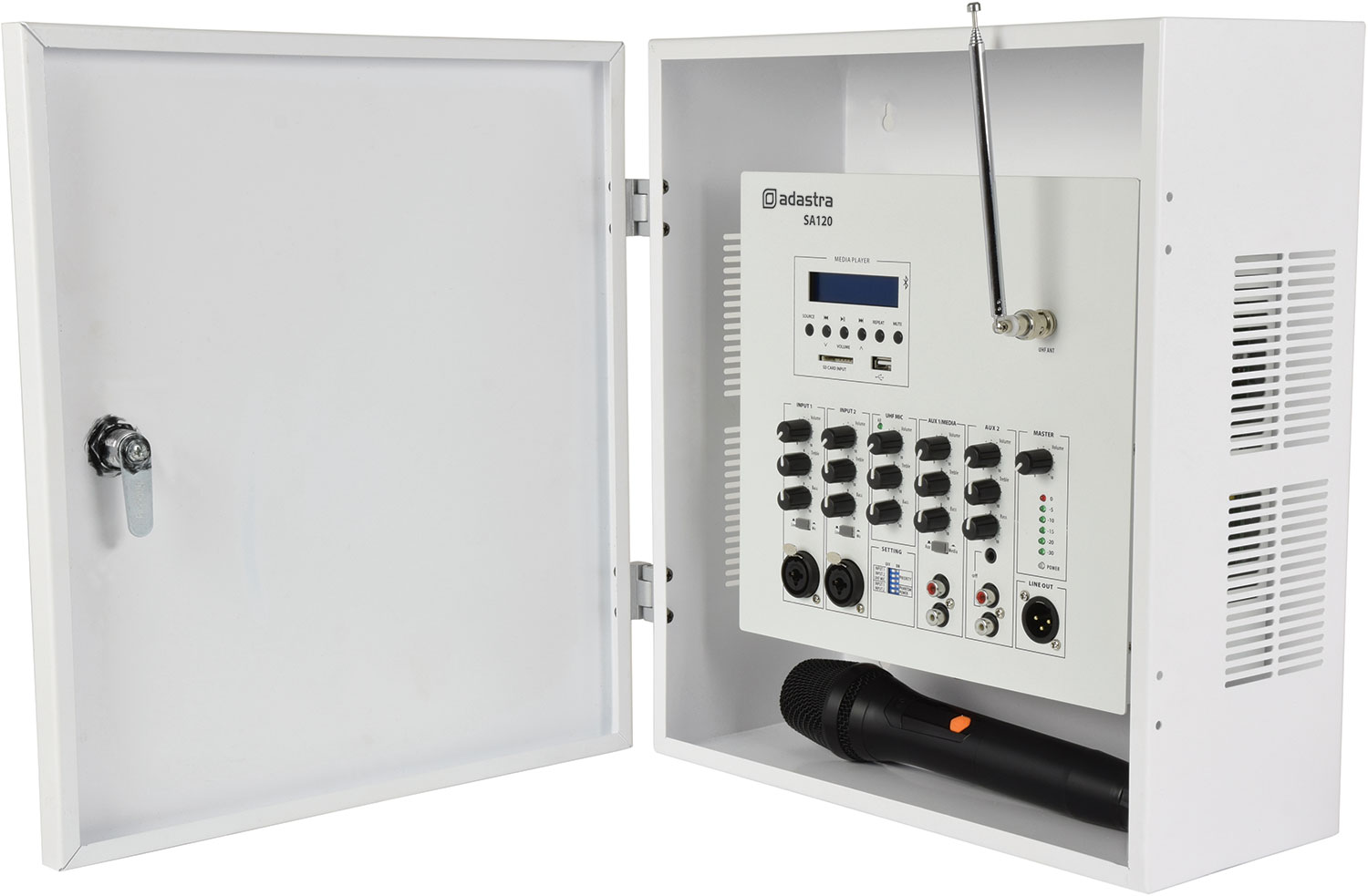

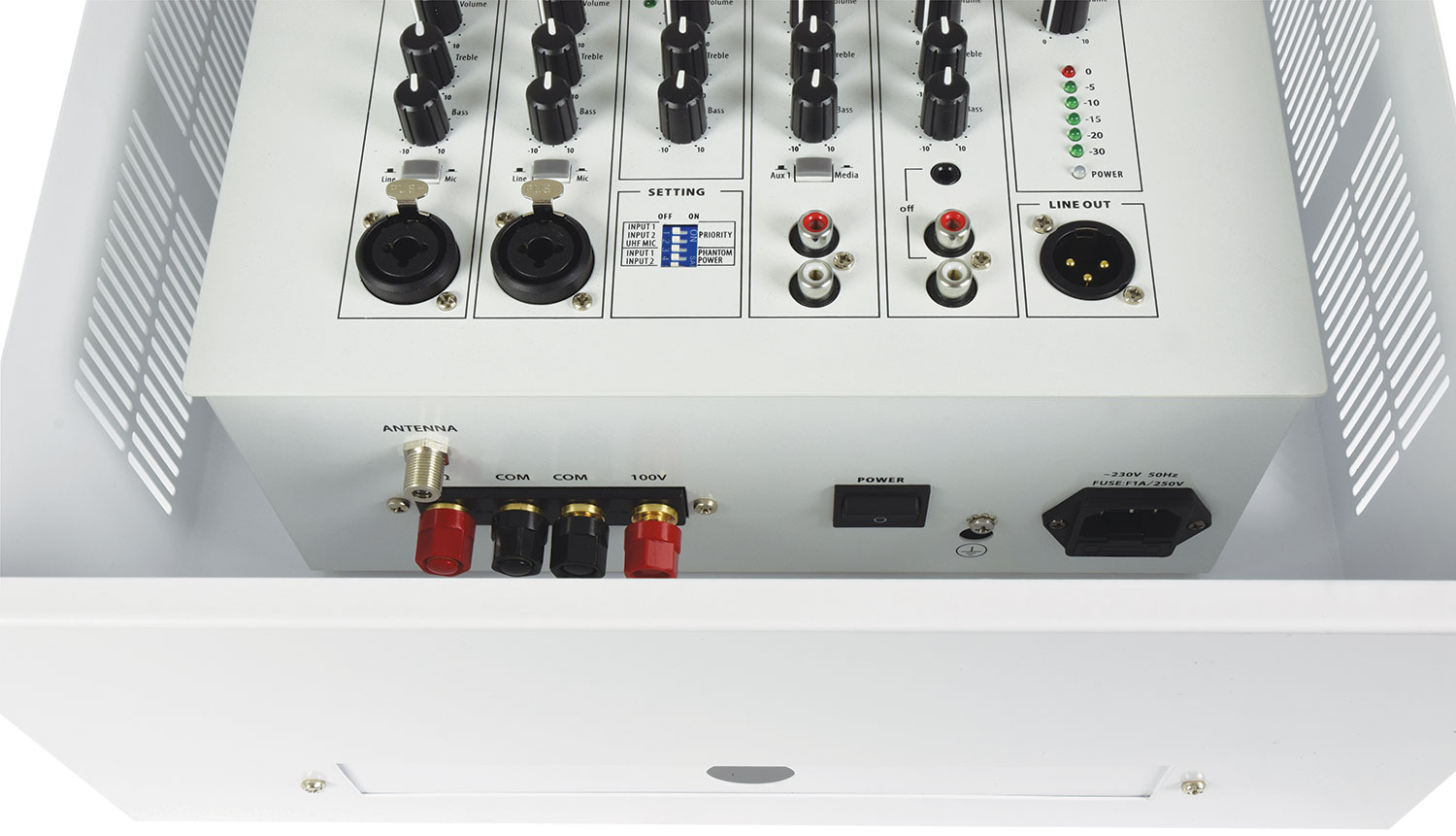

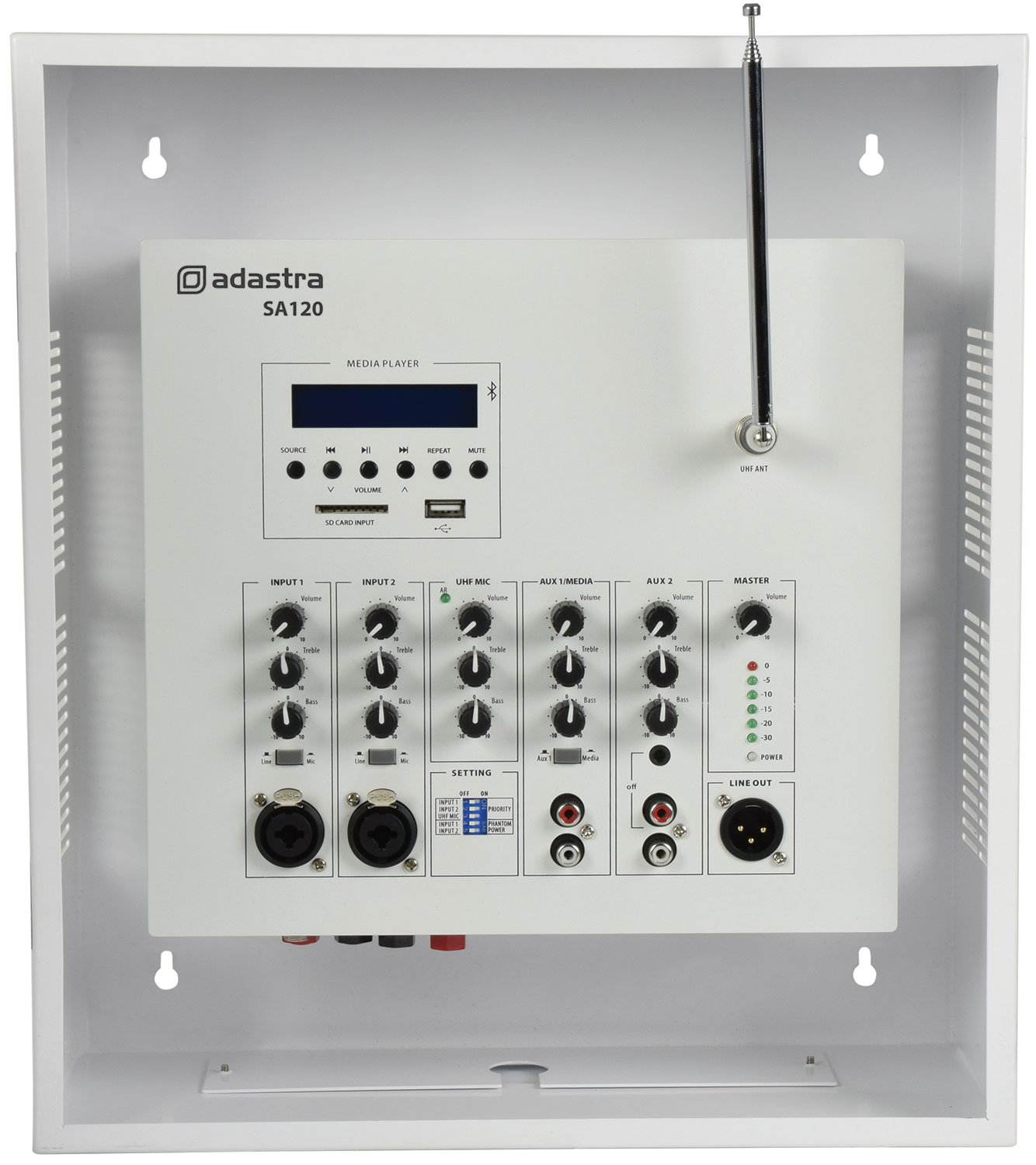

Public address mixer-amplifier built into a surface-mount secure box. A powerful output can drive either 100V line or low impedance speakers from binding post terminals inside the cabinet. The system includes a handheld UHF microphone with an inbuilt receiver and 2 switchable wired mic/line inputs are provided on combo XLR/jack sockets. Each mic input has switchable +48V phantom power and priority override, whch mutes the Aux inputs during voice operation. An internal media player enables playback of audio tracks from USB/SD player, FM tuner or Bluetooth pairing. Alternatively, line inputs can be connected to the Aux 1 RCA sockets or separate Aux 2 RCA/3.5mm jack sockets. The combination of flexible input section and a high efficiency amplifier in a strong, lockable cabinet provides a complete solution for buildings where security and ease of use is essential.

  • UHF wireless handheld mic included
  • USB/SD media player
  • Bluetooth receiver
  • 2 switchable mic/line inputs
  • Switchable phantom power for condenser mics
  • 100V or low impedance operation
  • Secure lockable cabinet
  • Weight 8.70kg
  • Fuse F1AL (20x5mm)
  • Output power : rms 120W
  • Power supply 170-264Vac, 50Hz (IEC)
  • Amplifier : construction Class-D + output transformer
  • Phantom power +20V switchable to each XLR input
  • Input impedance Mic: 600 Ohms / Line: 10k Ohms
  • Input sensitivity Mic: -42dB / Line: -10dB
  • Frequency response : mic 85Hz-22kHz
  • Frequency response : line Line 1+2: 80Hz-24kHz, Line 3+4: 85Hz-24kHz
  • SNR Mic: 66dB / Line: 76dB
  • THD <0.4% @ 1kHz

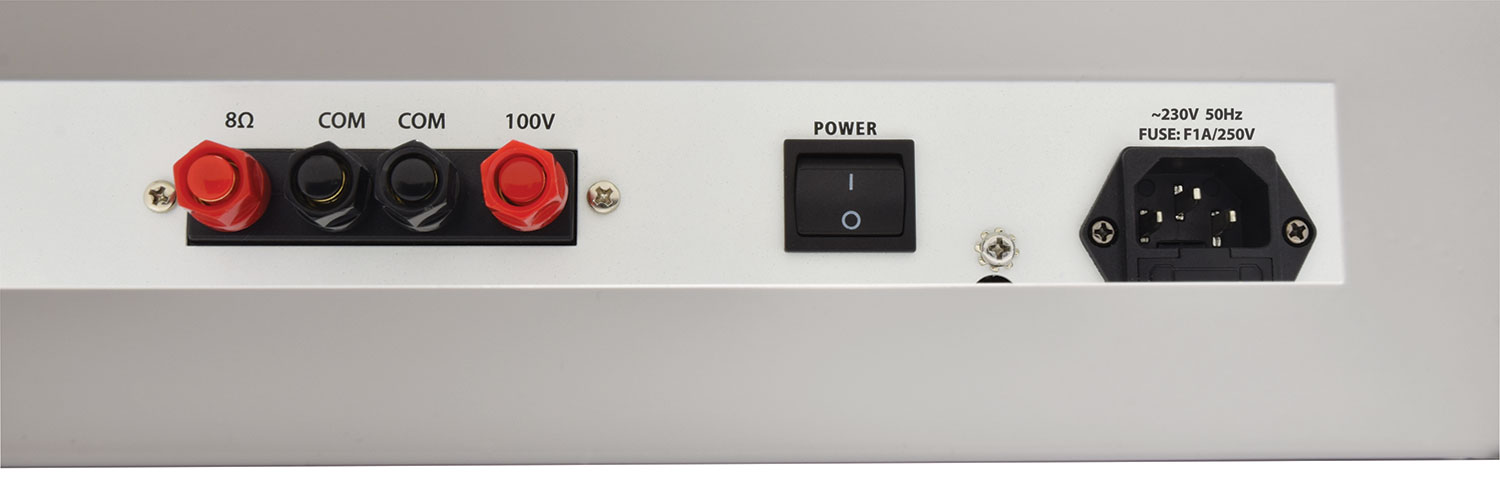

  • Speaker outputs 8 Ohm / Com / Com / 100V
  • Music source USB/SD player, FM tuner, Bluetooth
  • Mic/line inputs 2 x combo XLR/jack
  • Line inputs RCA (Aux 1), RCA or 3.5mm jack (Aux 2)
  • Line output XLR male connector
  • Equalization Bass + Treble each channel
  • Bluetooth version 5.0
  • Carrier frequency 864.5MHz
  • Batteries : handheld transmitter 2 x AA (alkaline)
  • Wireless range 50m (max)
  • Dimensions 375 x 345 x 160mm
