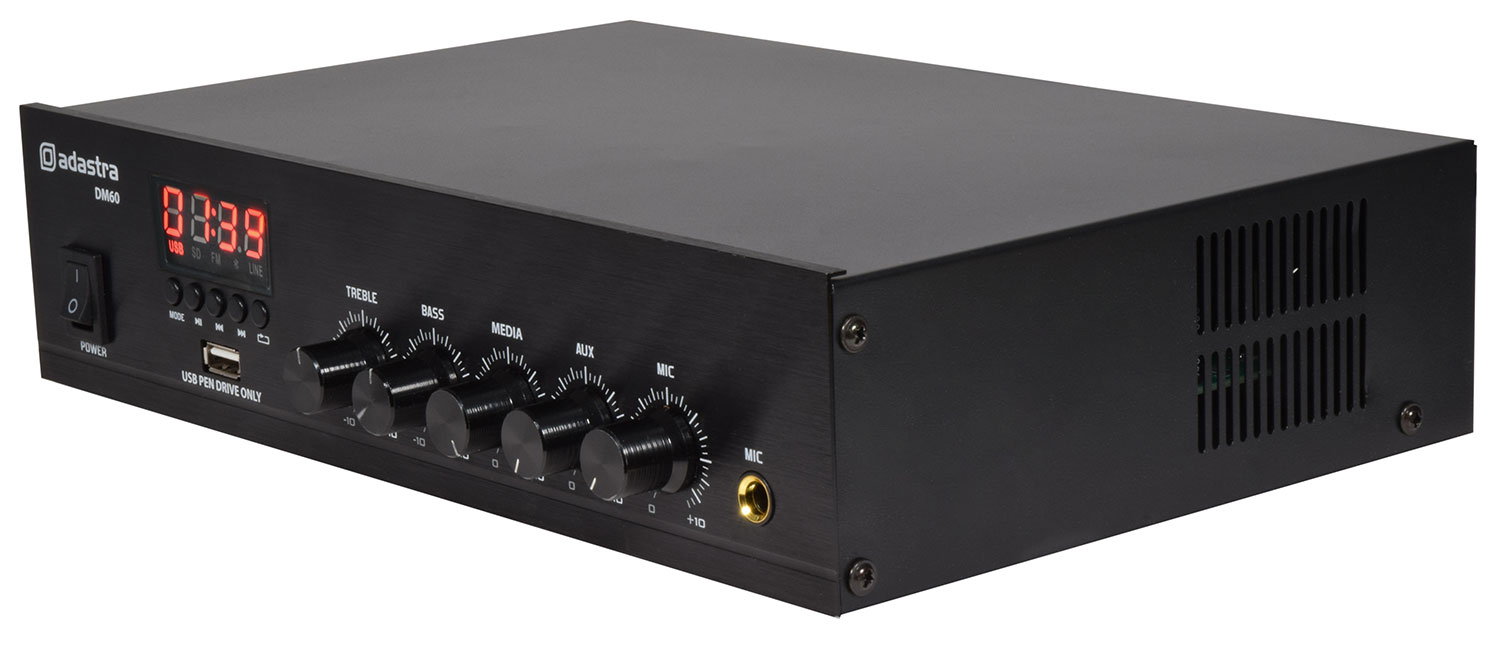

DM-Series Mixer-Amp with USB/FM and Bluetooth

100V line mixer-amp with digital amplifier in a compact housing. An onboard audio player accepts USB media for digital audio or can be tuned to FM radio stations. In Bluetooth mode, a smart phone or tablet may be paired with the DM25 for wireless audio playback. Mono output to either 100V line or 4-16 ohms speaker load is connected via spring terminals on the rear panel. All-in-one solution for small sound installations.

• Bluetooth connectivity
• Integral USB player and FM tuner
• 100V line or 4-16 Ohms operation
• Note: USB port is not for charging smart phones

• Weight 1.96kg
• Power : output 60Wrms
• Power supply 230Vac, 50Hz (IEC)
• Audio source USB player, FM tuner and Bluetooth receiver

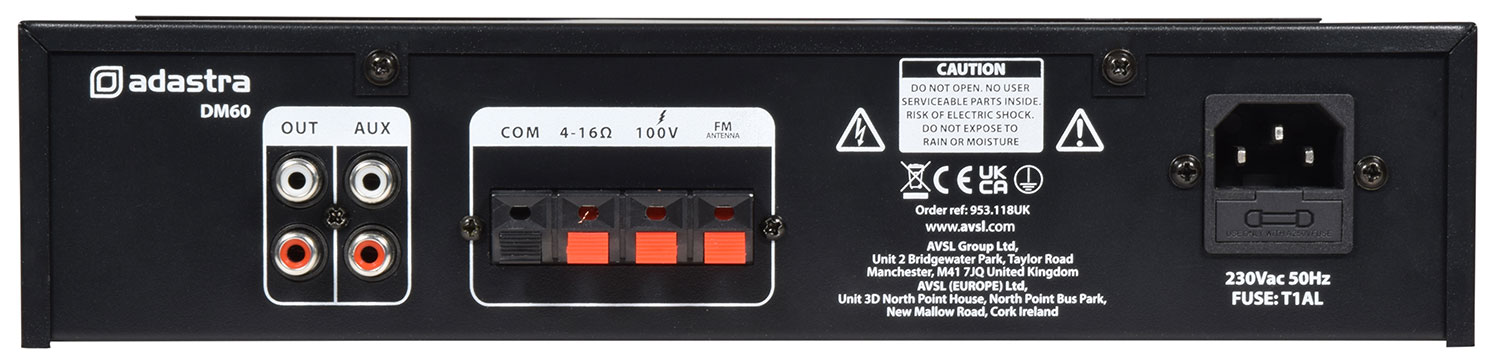

• Speaker : outputs COM, 100V and 4-16 Ohms (spring terminals)

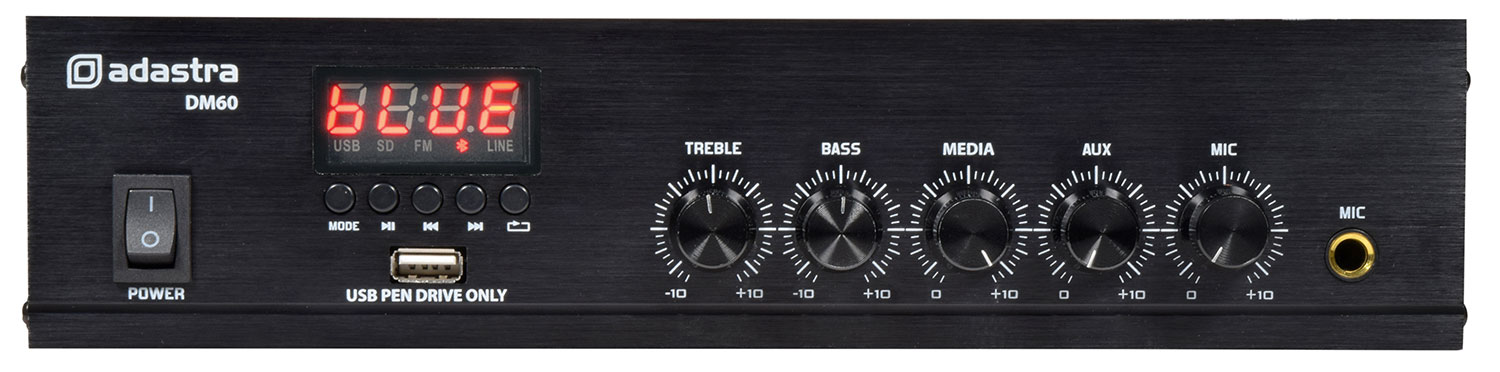

• Controls Treble, Bass, MP3, Aux, Mic
• Fuse T1AL
• USB version USB 2.0 (FAT32, 128GB max.)
• Bluetooth version 2.1
• Microphone : inputs 6.3mm jack (unbalanced)
• Line input 2 x RCA (summed to mono)
• Line output 2 x RCA
• Antenna connection Spring terminal
• Dimensions 280 x 205 x 67mm
