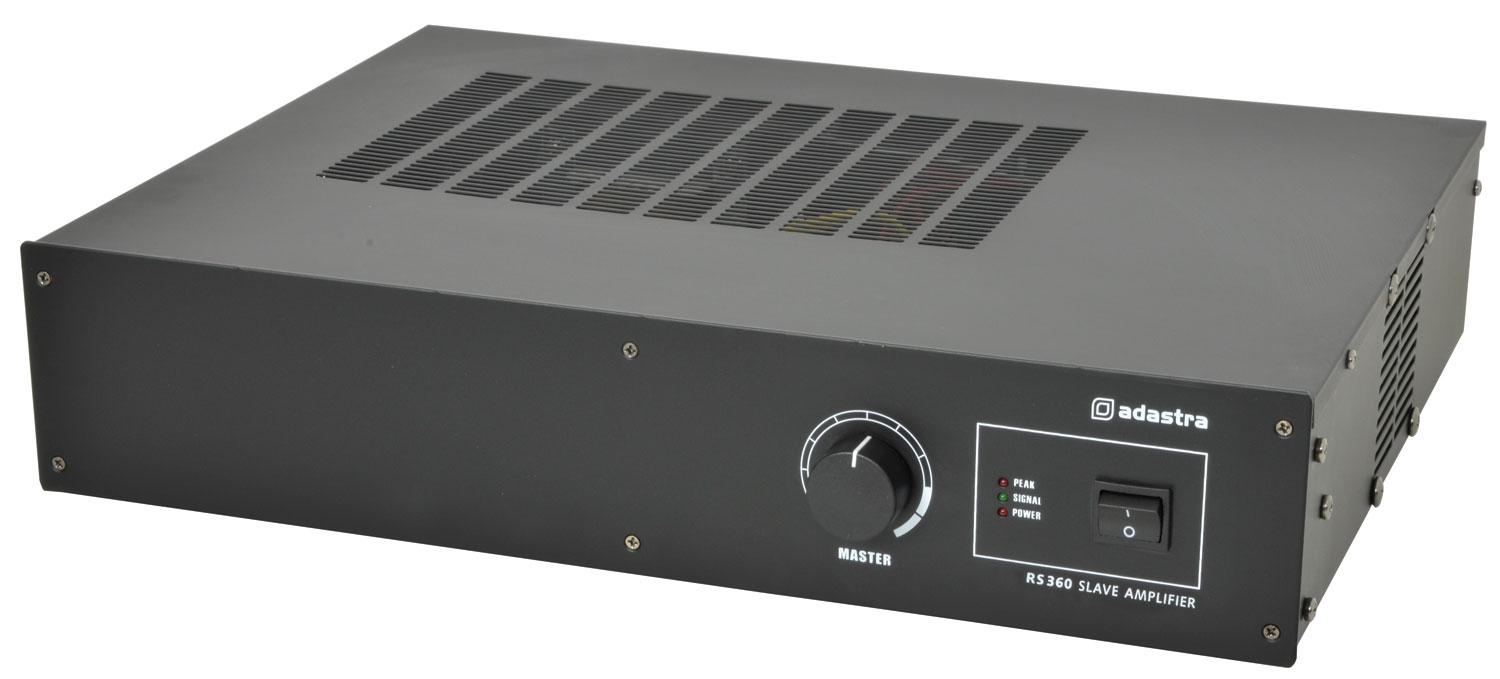

RS Series 100V Line Slave Amplifiers
360Wrms
953.122UK
RS360
High power 100V line slave amplifiers in a 2U rack-mountable housing. Slave inputs can be connected from Adastra RM series mixer amplifiers and slave outputs onto further RS slaves. Master volume… more
- RCA slave inputs and outputs
- 8 ohms and 100V line speaker output
- Peak and signal LEDs
RS Series 100V Line Slave Amplifiers
High power 100V line slave amplifiers in a 2U rack-mountable housing. Slave inputs can be connected from Adastra RM series mixer amplifiers and slave outputs onto further RS slaves. Master volume control governs output level to either low impedance or 100V speakers. Designed to power medium to large installations from a mixer output or expand existing systems.
- RCA slave inputs and outputs
- 8 ohms and 100V line speaker output
- Peak and signal LEDs
- 2U 19" rack mountable
- Supplied with rack-mount ears
- Weight 11.60kg
- Dimensions 433 x 345 x 89mm
- Power : output 360Wrms
- DC power N/A
- Power supply 110/240Vac, 50/60Hz (IEC)
- Input RCA slave in
- Output : signal 2 x RCA
- Outputs : speaker 100V and 8 ohms
- Controls Master volume
- THD <1.0%
In the Box
- RS-series slave amplifier 100V
- IEC power lead(s)
- 19" rack-mounting ears
