US Series Compact 100V Slave Amplifiers

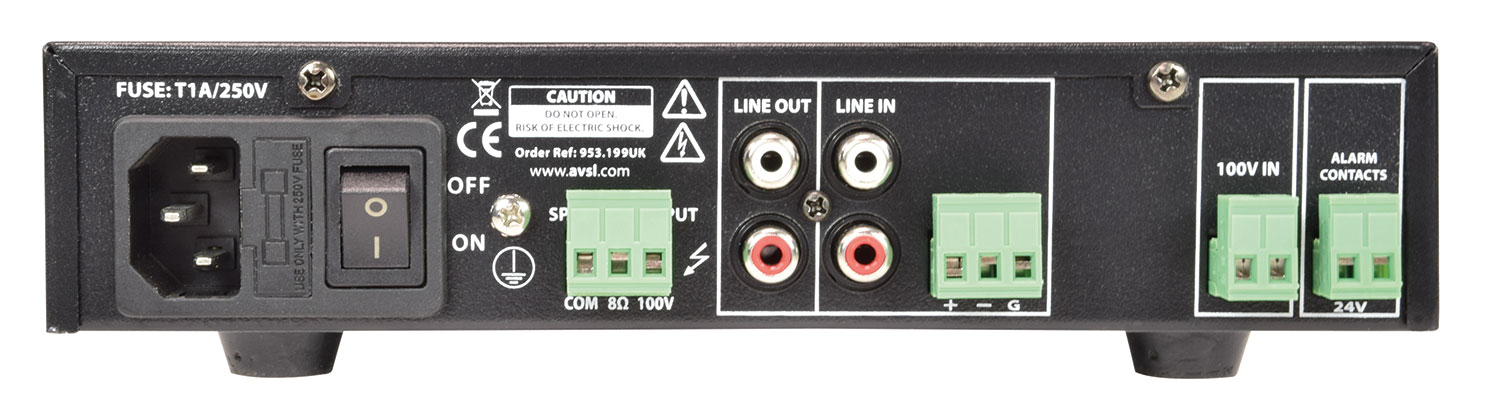

100V slave amplifiers built into a half width 1U housing. In addition to RCA line input and output, the US amplifiers have a 100V input on removable screw terminals, which enables the amplifier to be connected in parallel with existing 100V speakers to extend the system. Mono output to either 100V line or an 8 ohm speaker load is connected via a separate removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

• Note: Can expand an existing 100V speaker system directly from the speaker cable
• Supplied with hardware for rack-mounting 2 units
• 100V input for connection in parallel with existing 100V speakers
• 24V fire alarm mute contacts
• 100V line or 8 Ohms operation

• Output power : rms 90W
• Dimensions 330 x 210 x 44mm
• Weight 2.40kg
• Power supply 170-264Vac, 50Hz (IEC)
• Amplifier : construction Class D + transformer output
• Inputs Line (RCA), 100V (Euroblock +/-)
• Line output 2 x RCA (mono)
• Speaker output Euroblock terminals: 100V / 8 Ohms / Com
• Mute 24V relay contacts
• THD <0.4% @ 1kHz
• Input impedance 1k Ohms
• Input sensitivity -10dB (line)
• SNR 80dB
• Frequency response 100Hz - 18kHz
