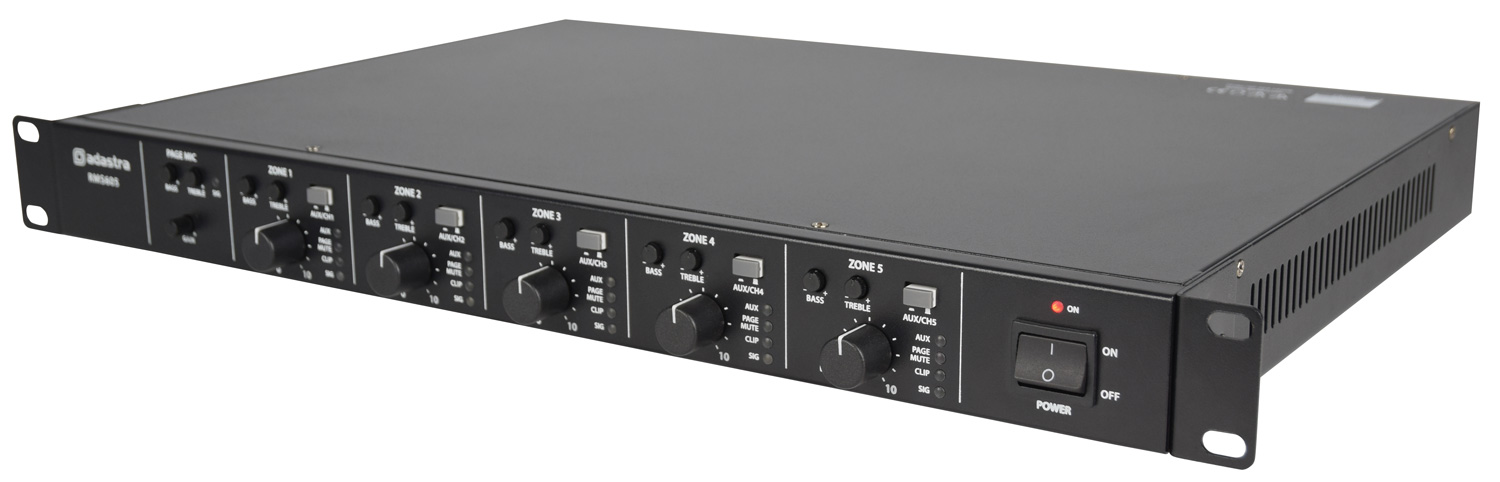

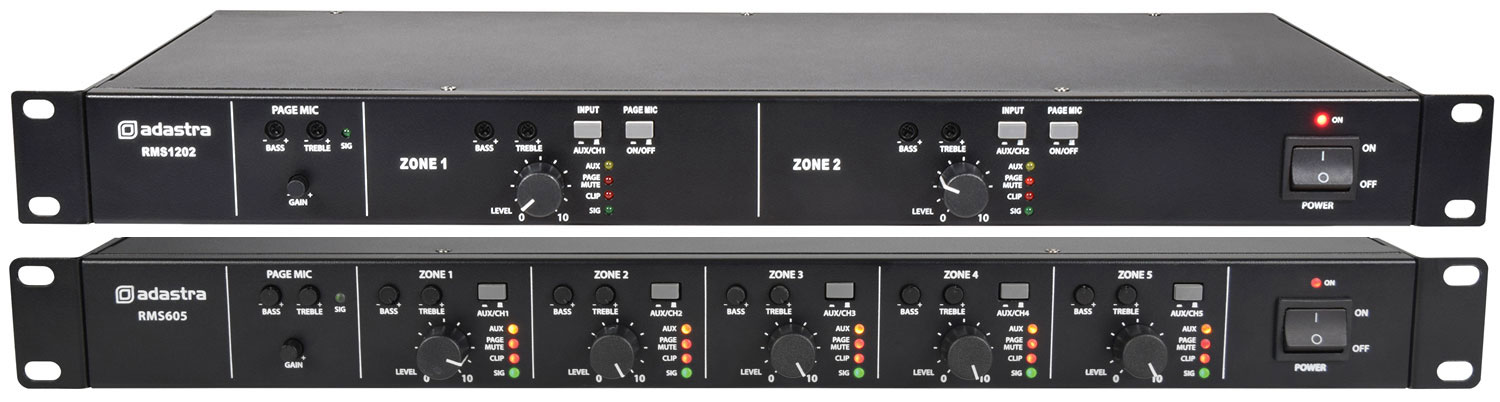

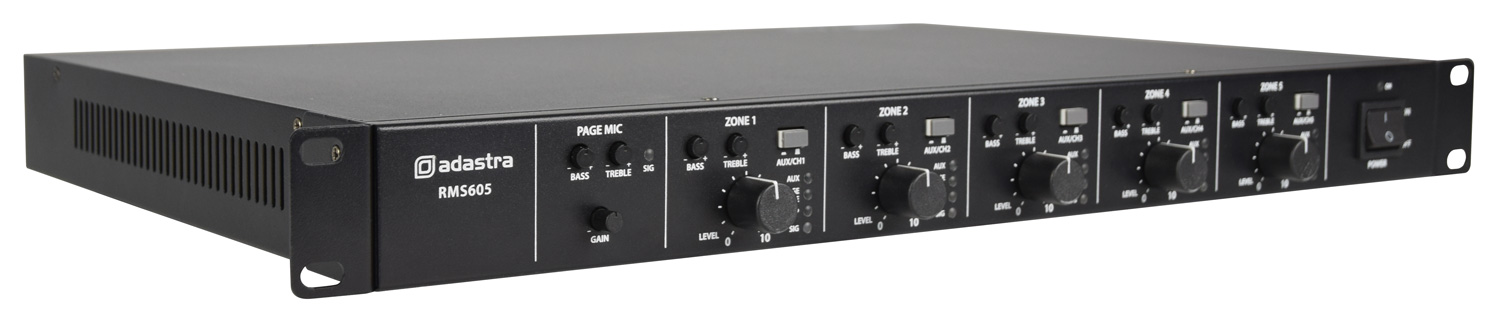

RMS-series Multi Zone 100V Amplifiers

Multi-channel 100V slave amplifier with independent outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is provided for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS-series amplifiers can be applied as high power slave units or equally as a fully independent zoning system for a multi-room installation.

• Independent high efficiency class-D amplifiers
• Outputs for 100V or 4-16 Ohm speakers
• Separate channel inputs and optional global aux input
• Paging microphone input with vox override
• Switchable +20V phantom power for paging microphone
• 24V contacts for emergency muting

• Weight 8.17kg
• Dimensions 482 x 330 x 42mm
• Auxiliary output N/A

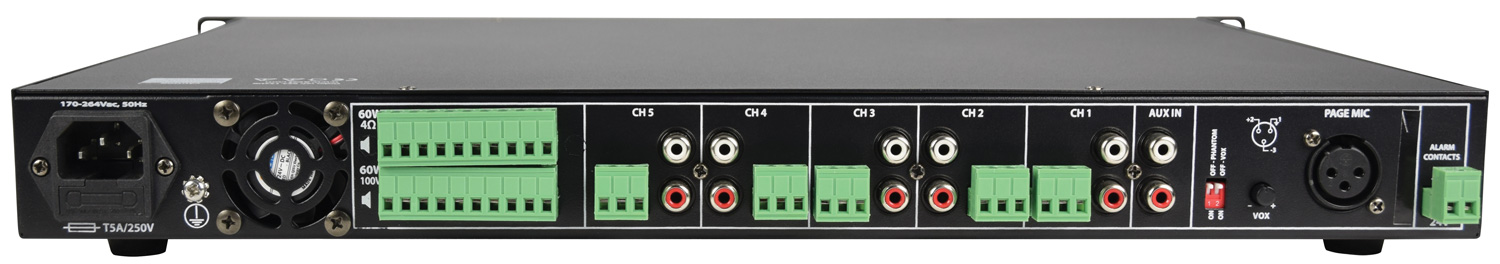

• Output connection 5 x 100V or 4 Ohm (Euroblock terminal)
• Power rms : 4 Ohms 5 x 60W
• Power rms : 100V line 5 x 60W
• Channel inputs 5 x L+R RCA or balanced terminal
• Fuse T2AL
• Power supply 170-264Vac, 50/60Hz (IEC)
• Microphone input Balanced XLR (rear panel)
• Mic controls Gain, Bass, Treble & Vox (rear panel)
• Auxiliary input L+R RCA

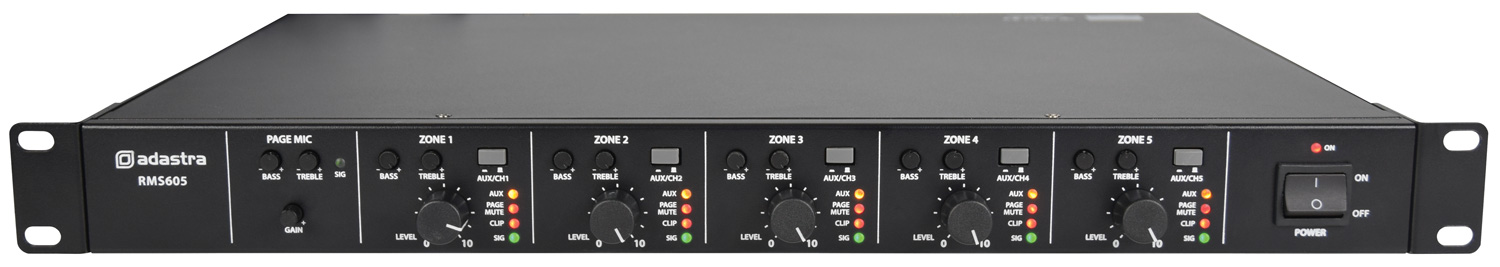

• Output controls Level, Bass, Treble & Ch/Aux switch
• Phantom power +20V switchable (paging mic)
• Emergency control 24V mute contacts (Euroblock terminal)
