100V Volume Controls - Relay Fitted
24W
952.464UK
V24-VR
A range of high quality attenuators supplied complete with plastic surface mount back box. The stylish ABS faceplate is fitted with a matching plastic knob. Each attenuator is fitted with a 24V relay… more
- Attenuation in 10 steps: 8 x 3dB and 2 x 6dB steps
- 24V relay fitted for remote attenuator bypass
| DESCRIPTION | VERSION | PACKED | ||
|---|---|---|---|---|
|
952.461UK
100V volume control, relay fitted, 12W |
12W | Box Label | |
|
952.464UK
100V volume control, relay fitted, 24W |
24W | Box Label | |
|
952.467UK
100V volume control, relay fitted, 36W |
36W | Box Label | |
|
952.470UK
100V volume control, relay fitted, 50W |
50W | Box Label | |
Recommended Accessories |
||||
|
952.476UK
AT6 Volume Attenuator + A/B Switcher 100V 6 x 30W |
Box Label | ||

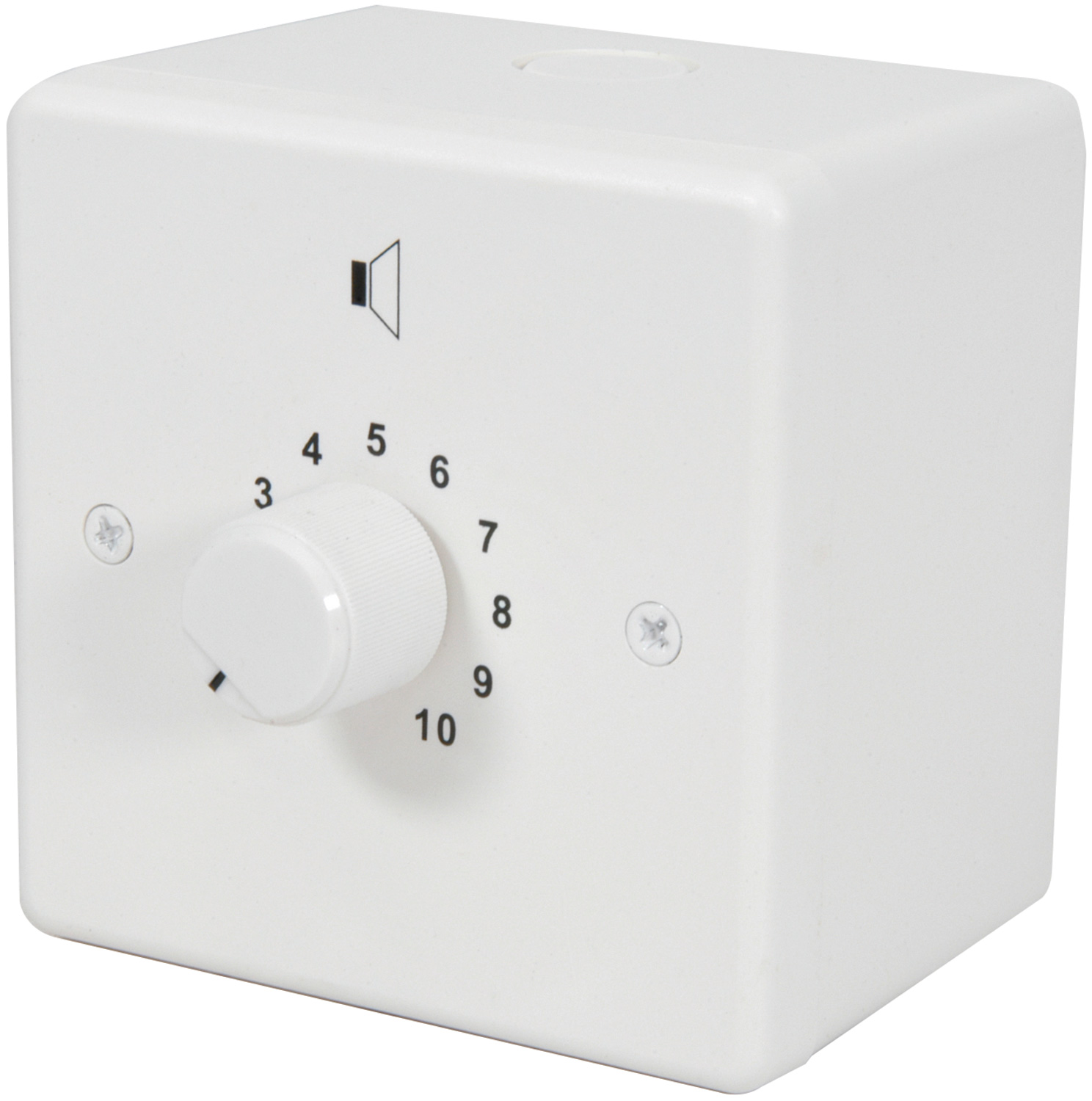

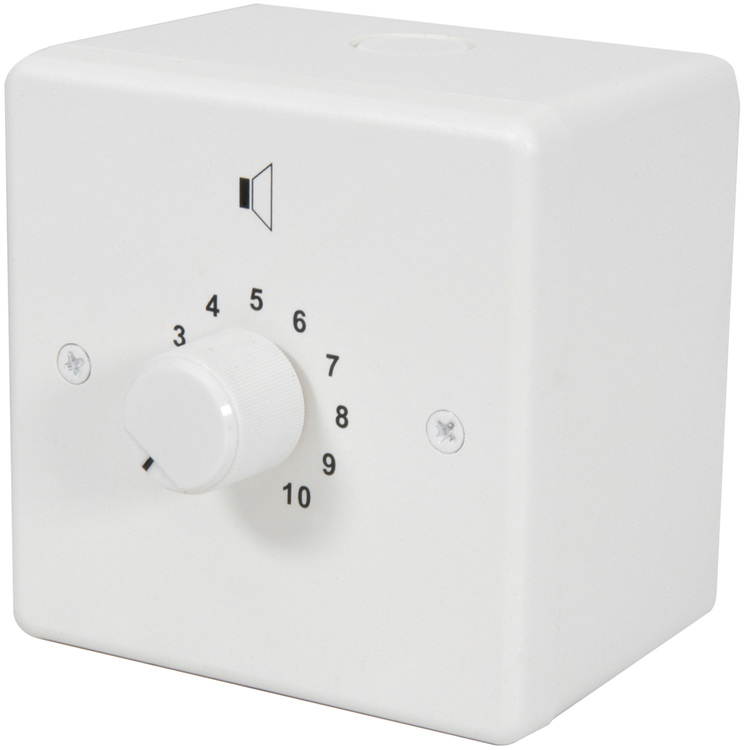

100V Volume Controls - Relay Fitted
A range of high quality attenuators supplied complete with plastic surface mount back box. The stylish ABS faceplate is fitted with a matching plastic knob. Each attenuator is fitted with a 24V relay to enable bypass to full volume when triggered from a fire alarm panel.
- Attenuation in 10 steps: 8 x 3dB and 2 x 6dB steps
- 24V relay fitted for remote attenuator bypass
- Weight 230g
- Power 24W
- Attenuation 3dB per graduation
- Frequency response 35Hz - 20kHz
- Relay 24V, 50mA
- Dimensions (assembled) 85 x 85 x 75mm (inc. back box)
- Mounting depth 47mm

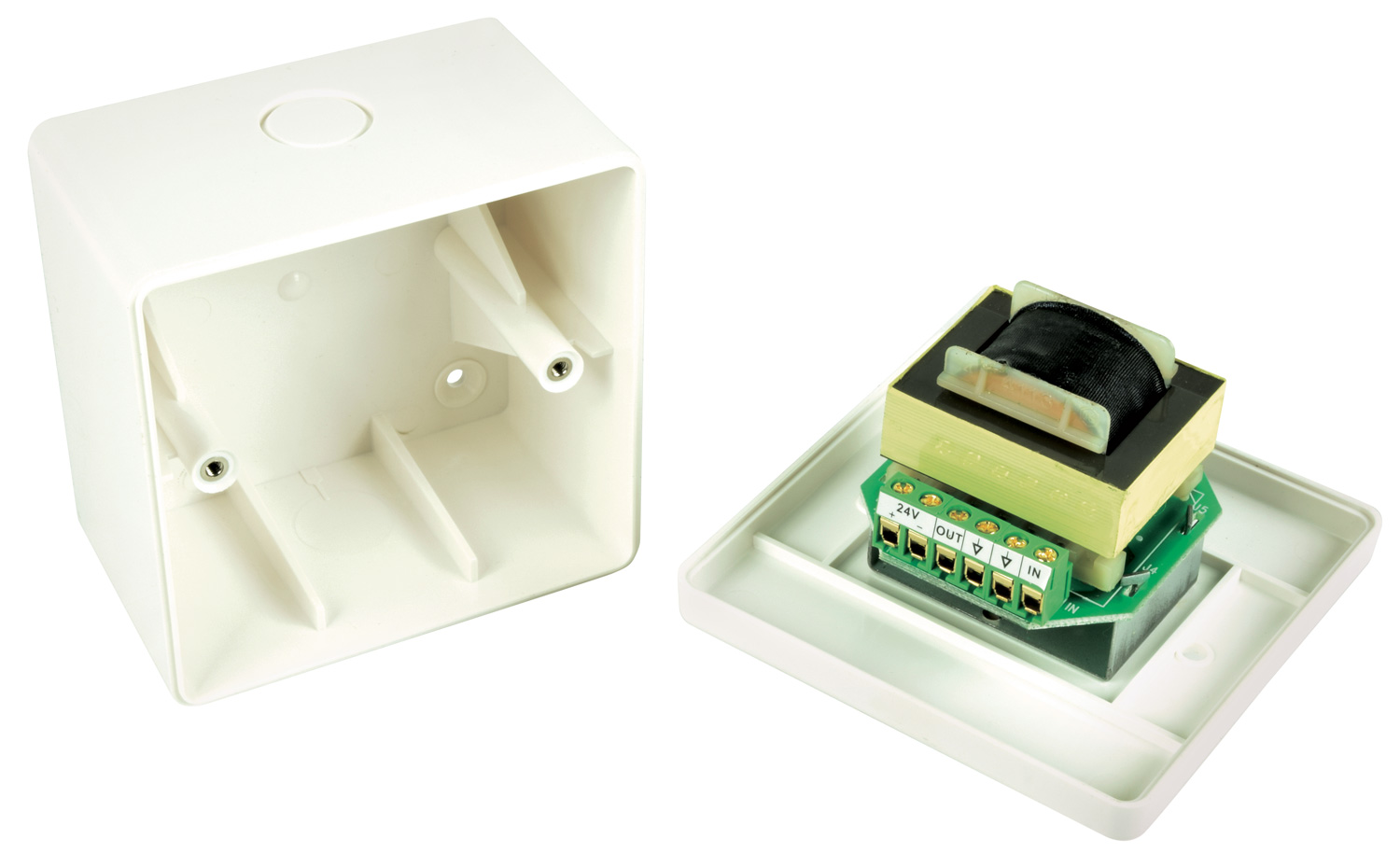

In the Box
- 100V volume attenuator

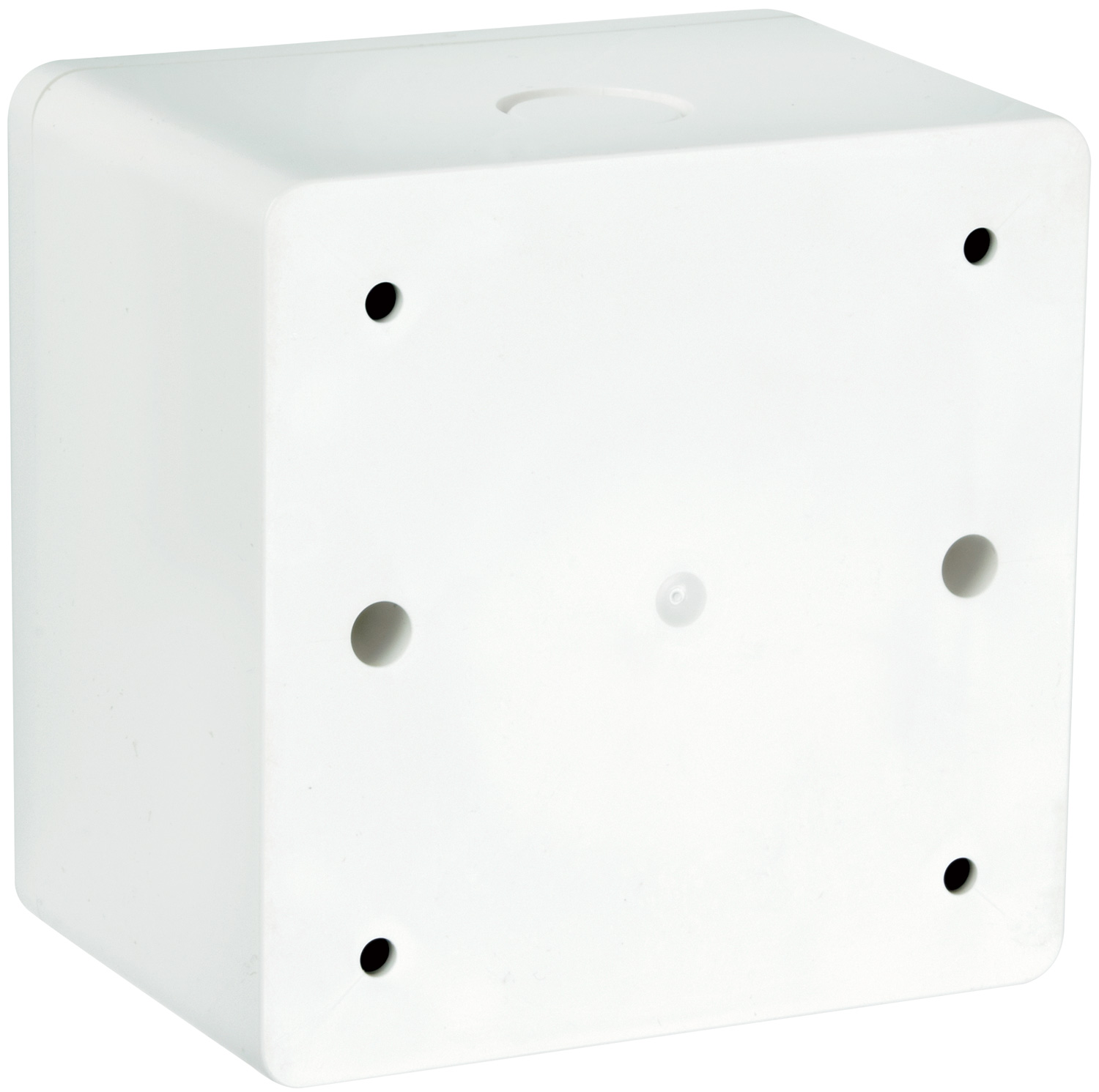

- Surface back box
- Assembly screws
- Installation guide
