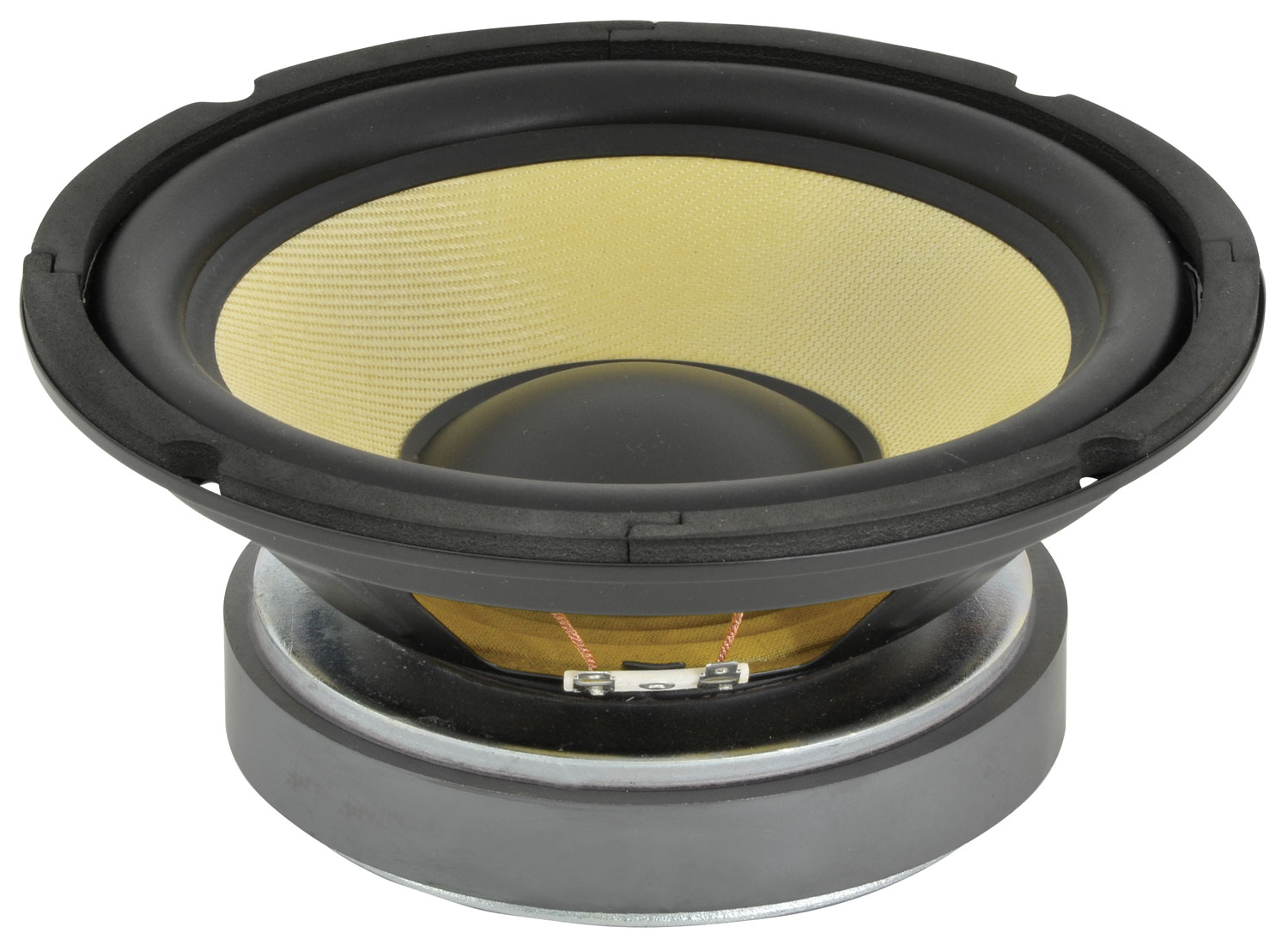

High Power Woofers with Aramid Fibre Cone
8"
902.426UK
QXW8
A range of high-powered woofers with reinforced aramid fibre cones. Incorporating rubber surrounds, vented magnets and heat resistant 4 layer voice coils, these speakers can easily handle power peaks,… more
- Aramid fibre cone
- Rubber surround
- Vented magnet
High Power Woofers with Aramid Fibre Cone
A range of high-powered woofers with reinforced aramid fibre cones. Incorporating rubber surrounds, vented magnets and heat resistant 4 layer voice coils, these speakers can easily handle power peaks, yet produce a smooth sound that will please any Hi-Fi enthusiast.
- Aramid fibre cone
- Rubber surround
- Vented magnet
- 4 layer voice coil
- Black metal chassis
- Spade terminals
- Weight 2.76kg
- SPL @ 1W/1m 85.5dB
- Magnet weight 1.1kg (40oz)
- Frequency response 27Hz - 6kHz
- Diameter 200mm (8")
- Mounting centres 194mmØ
- Magnet diameter 140mmØ
- Overall depth 95mm
- Power rms 250W
- Power max. 500W
- Impedance 8 ohms
- Voice coil 4 layer
