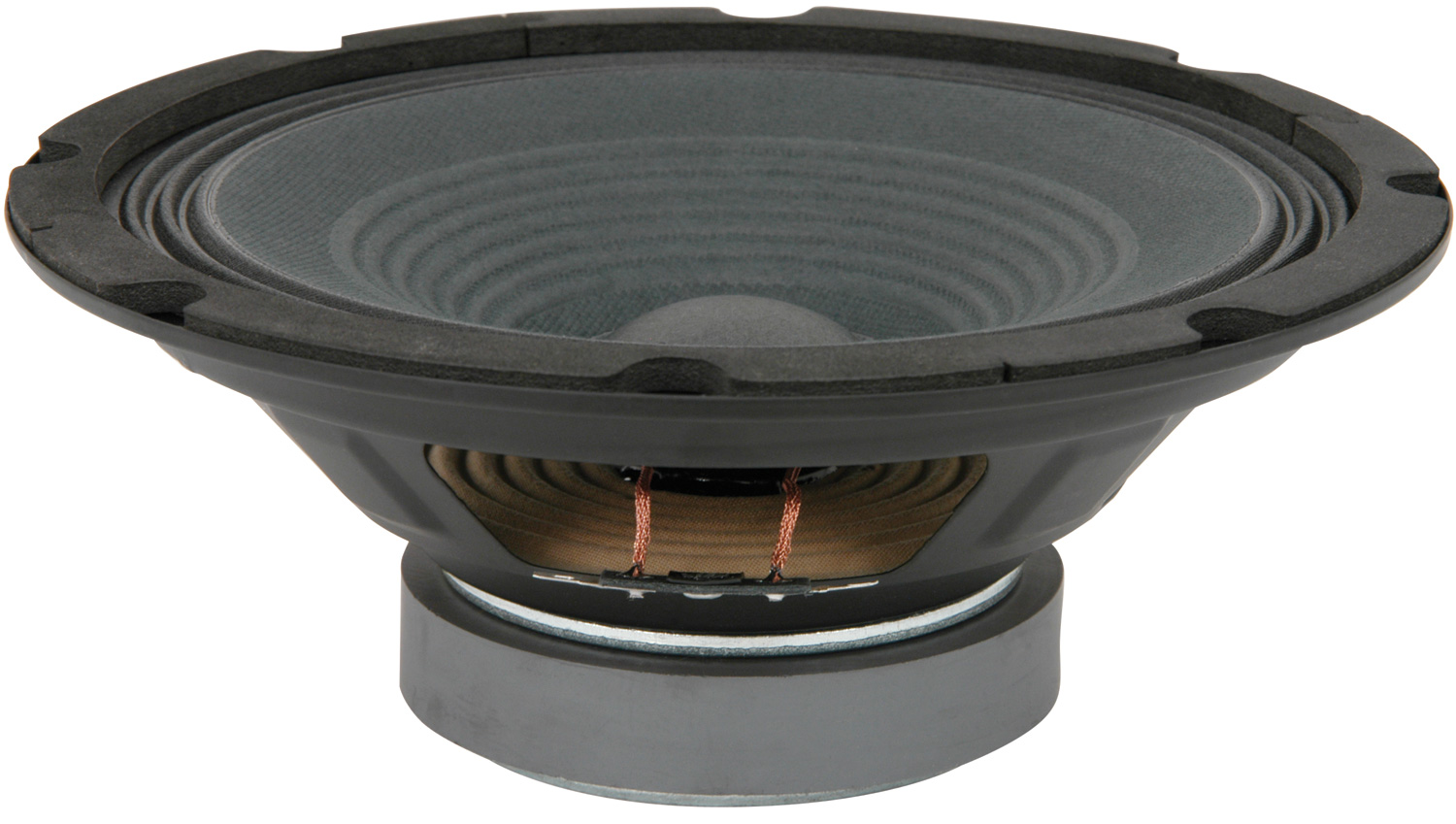

QR Active Series Replacement Drivers
20cm (8"), 100Wrms
902.528UK
A range of chassis speakers to replace the main driver in the QTX Sound QR series active cabinets. more
- Vented magnets
- Spade terminals
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
902.528UK
4 Ohm 8" Driver for QR8A (178.202UK) |
20cm (8"), 100Wrms | Box Label |
|
902.525UK
4 Ohm 10" Driver for QR10A (178.203UK) |
25cm (10"), 100Wrms | Box Label |
|
902.522UK
4 Ohm 12" Driver for QR12A (178.204UK) |
30cm (12"), 200Wrms | Box Label |
|
902.519UK
4 Ohm 15" driver for QR15A (178.205UK) |
38cm (15"), 250Wrms | Box Label |
QR Active Series Replacement Drivers
A range of chassis speakers to replace the main driver in the QTX Sound QR series active cabinets.
- Vented magnets
- Spade terminals
- Weight 1.35kg
- Dimensions 87 x 210mmØ
- SPL @ 1W/1m 93dB
- Frequency response 55Hz - 8kHz
- Voice coil 35mm (1.35")
- Diameter 20cm (8")
- Magnet size 18 x 100mmØ
- Magnet weight 567g (20oz)
- Power rms 100W
- Power max. 150W
- Impedance 4 ohms
