AVSL : Product : Loudspeakers : Components : Woofers : 902.524UK

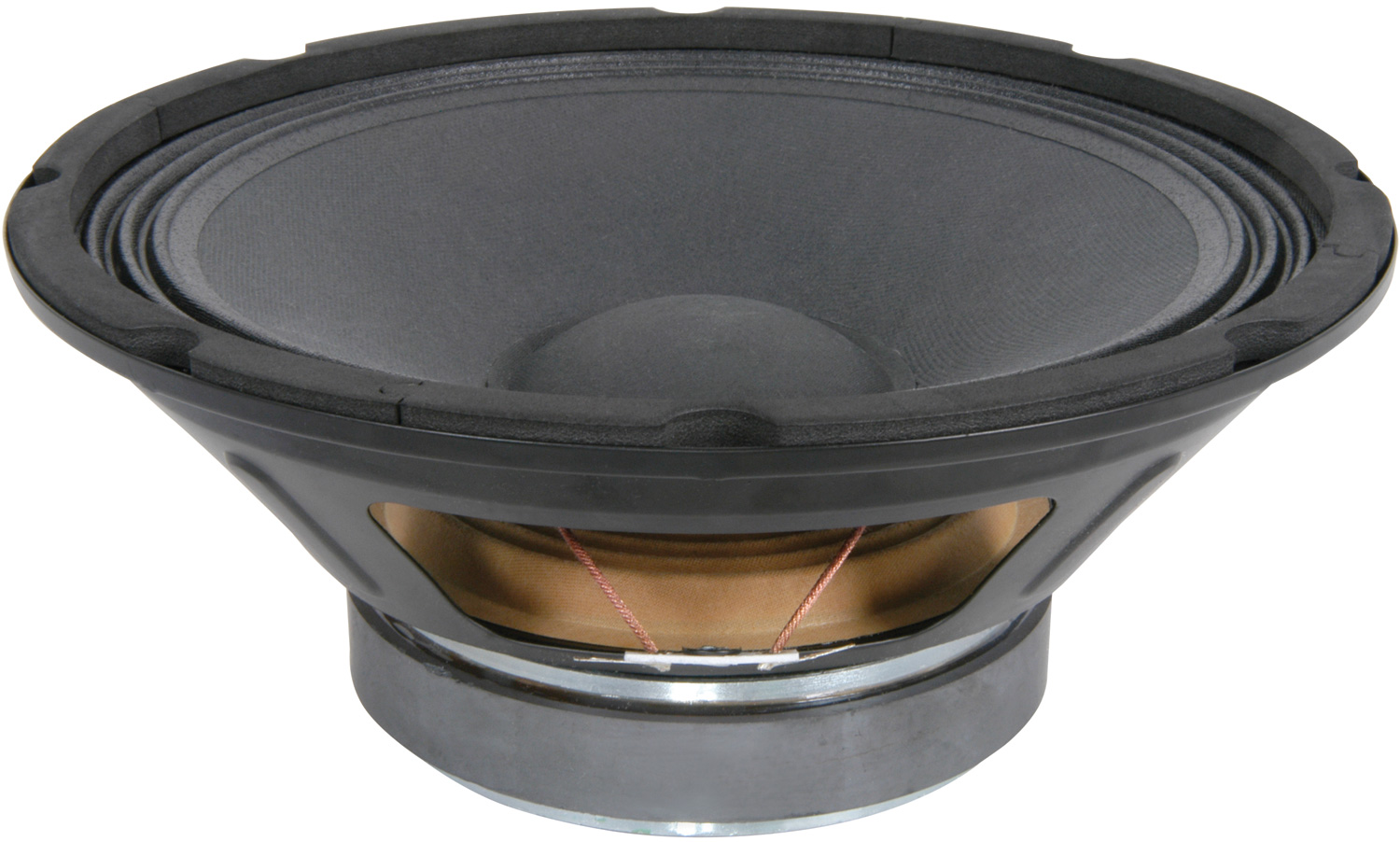

QR Passive Series Replacement Drivers

10" for QR10

902.524UK

A range of chassis speakers to replace the main driver in the QTX QR series passive cabinets. more

Vented magnets
Spade terminals

	DESCRIPTION	VERSION	PACKED
	902.527UK 8" driver for QR8 (178.210UK)	8" for QR8	Box Label
	902.524UK 10" driver for QR10 (178.211UK)	10" for QR10	Box Label
	902.521UK 12" driver for QR12 (178.212UK)	12" for QR12	Box Label
	902.518UK 15" driver for QR15 (178.213UK)	15" for QR15	Box Label

QR Passive Series Replacement Drivers

A range of chassis speakers to replace the main driver in the QTX QR series passive cabinets.

Vented magnets
Spade terminals

Weight 2.85kg
Dimensions 108mm x 255mmØ
Voice coil 52mmØ (2")
Sensitivity 95dB (1W/1m)
Magnet 850g (30oz)
Frequency response 50Hz-6kHz
Diameter 250mmØ (10")
Magnet 120 x 20mm
Power handling RMS 150W
Power handling max. 300W
Impedance 8 ohms
