Economy RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid
Brown 100m
808.123UK
75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid… more
- Solid CCS conductor
- Foam filled PE dielectric
- Binded aluminium screen
Economy RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid

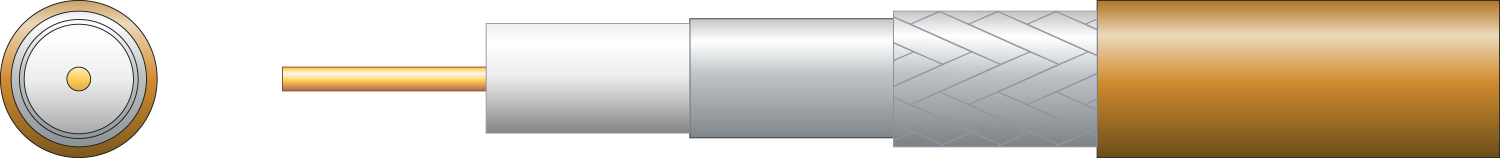

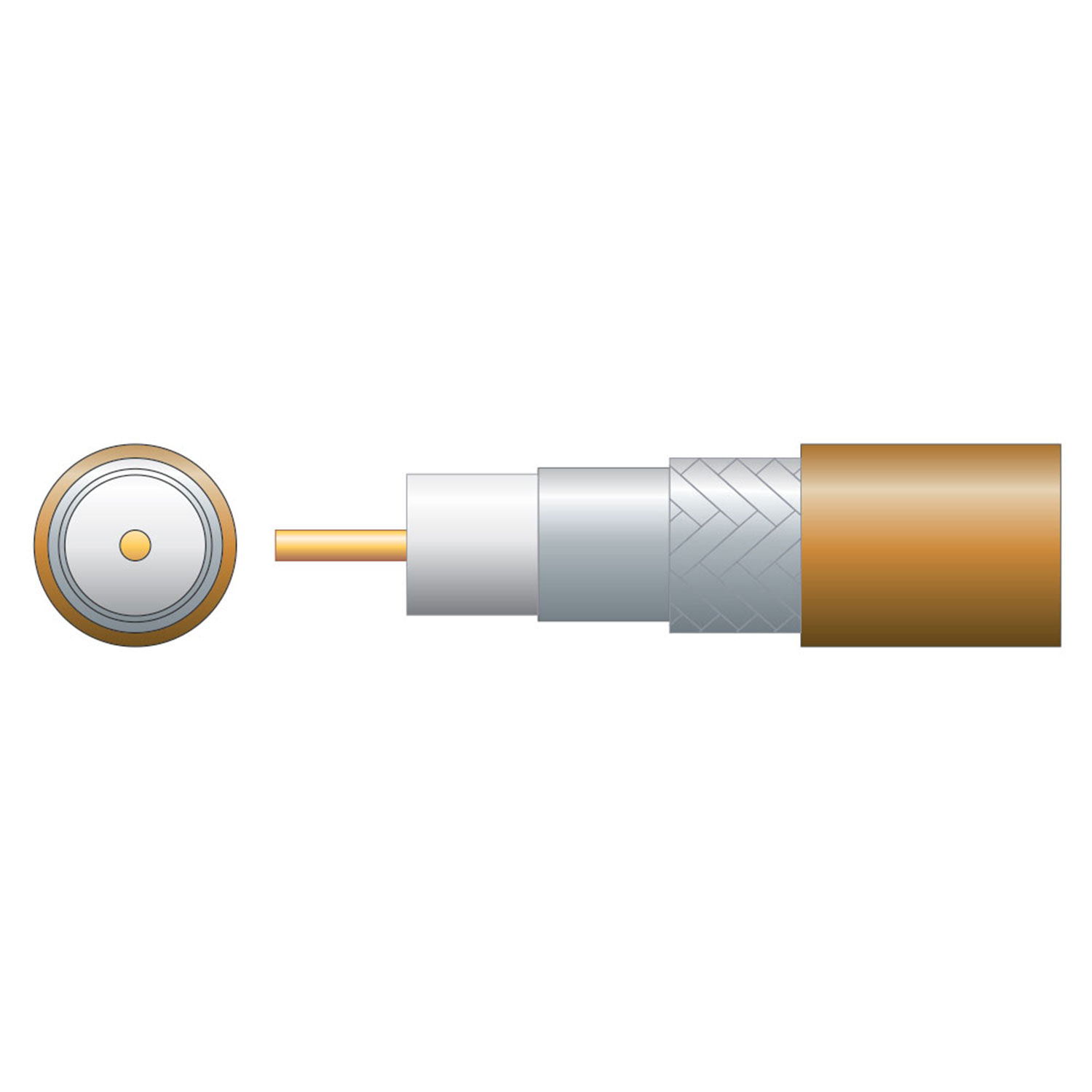

75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.
- Solid CCS conductor
- Foam filled PE dielectric
- Binded aluminium screen
- Aluminium braid
- Supplied in 100m reel with metric cut markers
- Colour Brown
- CSA 0.79mm²
- Conductor diameter 1mmØ
- Conductor material Solid CCS
- Braid 48 x 0.12mmØ
- Braid material Aluminium
- Screen Aluminium / PET foil
- Dielectric 4.6mmØ foam PE
- Cable : diameter 6.6mmØ
- Impedance 75 Ohms
- Capacitance 54pF/m
- Velocity factor 83%
- Return loss 5-400MHz 24dB min./100m
- Return loss 450-1000MHz 20dB min./100m
- Return loss 1000-2150MHz 16dB min./100m
- Attenuation @ 5MHz 2.8dB max./100m
- Attenuation @ 50MHz 5.1dB max./100m
- Attenuation @ 100MHz 6.9dB max./100m
- Attenuation @ 200MHz 10.1dB max./100m
- Attenuation @ 400MHz 14.9dB max./100m
- Attenuation @ 860MHz 20.1dB max./100m
- Attenuation @ 1000MHz 22.2dB max./100m
- Attenuation @ 1750MHz 29.6dB max./100m
- Attenuation @ 2150MHz 33.3dB max./100m
- Length 100m
- Weight 3.8kg
