Economy RG6 75 Ohms Air Spaced Coaxial Cable - CCA Braid

White 100m

808.113UK

75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, air spaced polyethylene dielectric, aluminium foil screen, copper clad aluminium braid and PVC sheath. The overall screen… more

  • Solid CCS conductor
  • Air spaced PE dielectric
  • Binded aluminium foil screen
DESCRIPTION VERSION PACKED
808.111UK

Eco RG6 Air Spaced PE Coaxial Cable with CCA Braid - 100m Black

Black 100m Reel
808.113UK

Eco RG6 Air Spaced PE Coaxial Cable with CCA Braid - 100m White

White 100m Reel
808.115UK

Eco RG6 Air Spaced PE Coaxial Cable with CCA Braid - 100m Brown

Brown 100m Reel

Economy RG6 75 Ohms Air Spaced Coaxial Cable - CCA Braid

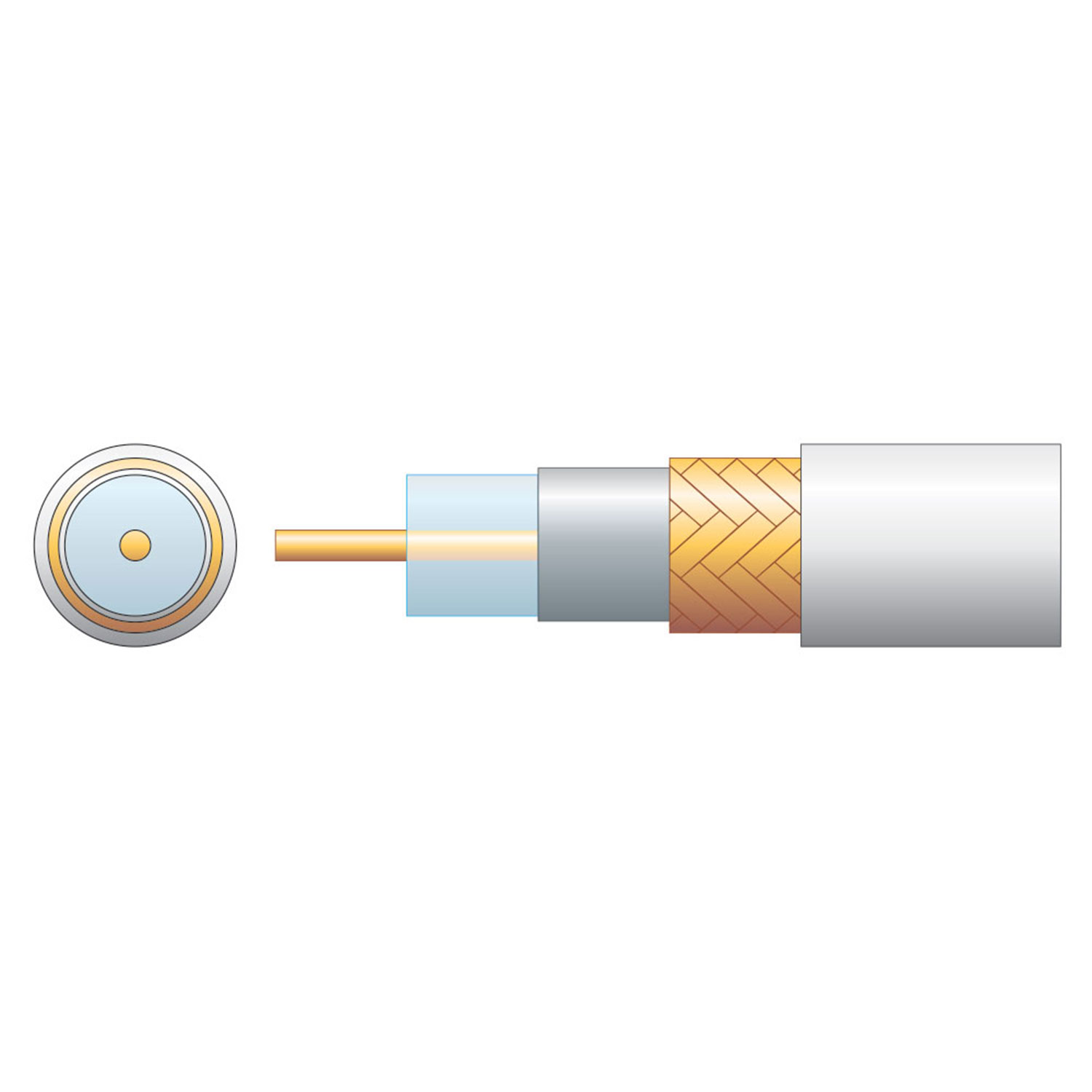

75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, air spaced polyethylene dielectric, aluminium foil screen, copper clad aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

  • Solid CCS conductor
  • Air spaced PE dielectric
  • Binded aluminium foil screen
  • CCA braid
  • Supplied in 100m reel with metric cut markers
  • Cable colour White
  • CSA 0.79mm²
  • Conductor diameter 1mmØ
  • Conductor material Solid CCS
  • Braid 48 x 0.12mmØ
  • Braid material CCA
  • Screen Aluminium / PET foil
  • Dielectric 4.6mmØ air spaced PE
  • Cable : diameter 6.6mmØ
  • Impedance 75 Ohms
  • Capacitance 54pF/m
  • Velocity factor 83%
  • Return loss 5-400MHz 24dB min./100m
  • Return loss 450-1000MHz 20dB min./100m
  • Return loss 1000-2150MHz 16dB min./100m
  • Attenuation @ 5MHz 2.9dB max./100m
  • Attenuation @ 50MHz 5.2dB max./100m
  • Attenuation @ 100MHz 6.9dB max./100m
  • Attenuation @ 200MHz 10.2dB max./100m
  • Attenuation @ 400MHz 14.9dB max./100m
  • Attenuation @ 860MHz 20.3dB max./100m
  • Attenuation @ 1000MHz 22.5dB max./100m
  • Attenuation @ 1750MHz 29.8dB max./100m
  • Attenuation @ 2150MHz 33.6dB max./100m
  • Length 100m
  • Weight 4.2kg
